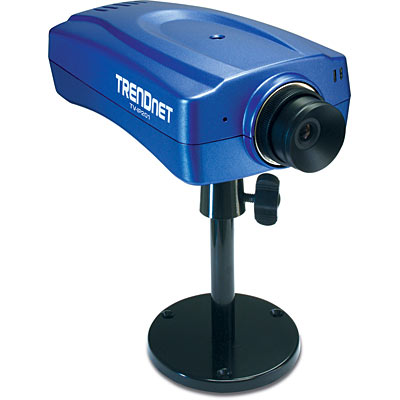

Network Camera Server w/ Audio
TV-IP201 (Version v1.0R)
- View streaming video, hear sounds and record from any Internet connection
- Enjoy high quality VGA streaming video
- Program motion detection recording, email alerts and more with free software
TV-IP201 Internet audio Camera Server is the perfect device for remote monitoring and transmitting real-time events over the Internet. The TV-IP201 functions as a video/audio/surveillance camera allowing you to view live events with your web browser via Internet or Intranet. Up to 32 cameras can be remotely managed with the bundled IP View software. This Network Camera Server has M-JPEG quality streaming video, automatic image capture, and event notification via e-mail, making it the ideal solution for Internet video broadcasting applications.
ProView cameras are not compatible with TRENDnet's SecurView camera application for SecurView cameras.
 |  |  |
- Supports M-JPEG Compression and Audio Monitoring
- Built-in RS-485 connectors for Pan & Tilt control device (additional Pan & Tilt control device required)
- Supports ActiveX Control for Internet Explorer and Java applet for Internet Explorer and Netscape Navigator
- Allows for Remote Access from Web Browser for Live Image Viewing and listening
- Supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related protocols
- Supports Web Configuration with Password Protection
- Powerful Windows IPView Application Software for multiple cameras monitoring, motion detection alerts, image capturing, and video recording (Windows 98/ME/2000/XP)
- Built-in I/O Ports to Trigger Alarm and Email Notification
- Broad Range of Applications for Monitoring Homes, Offices, Banks, Hospitals, and a Variety of Private and Public Monitoring
- 3-year limited warranty
ProView cameras are not compatible with TRENDnet's SecurView camera application for SecurView cameras.
| Camera Specifications | |
| Image Sensor | |
| Sensor | 1/4” Color CMOS Sensor |
|---|---|
| Resolution | 640 x 480 pixel |
| Lens | f :6.0mm F1.8 Lens (CS-Mount Standard, Replaceable) |
| Minimum Illumination: | 2.5lux |
| Audio | |
| MIC Input Volume | Internal MIC (mono) |
| Control | Adjustable |
| Compression | ADPCM/PCM |
| Video & Image | |
| Display Standard | 30fps@CIF, QVGA, VGA |
| Compression | M-JPEG |
| Resolution& Light Frequency | 176 x 144, 320 x 240, 640 x 480 Outdoor/Indoor/50Hz/60Hz |
| Frame Rate Setting | 1, 3, 7, 12, 15, 25, 30 (Depends on video format) |
| Mirror Function | Vertical / Horizontal |
| Control | Yes (Brightness/ Contrast/ Saturation/Sharpness) |
| Hardware Specifications | |
| Communication | |
| LAN | 10/100Mbps Auto-Sense, Auto-MDIX |
| Protocol | HTTP, FTP< TCP/IP, UDP, ARP, ICMP, DHCP, PPPoE, DDNS, SMTP, UPnP |
| Software | |
| Browser | Internet Explorer 5.0 or above Netscape 6.0 or above |
| Application | IP View and Active X |
| Supported OS | Windows 98SE, ME,2000,XP, Vista |
| System | |
| CPU | RDC1610 |
| SDRAM/Flash | 16MB/4MB |
| OS | Linux |
| I/O & Control | |
| Input | 1 set, 2 pin (photo relay; Active High: 9~40V DC; Dropout: 0 VDC) |
| Output | 1 set, 2 pin (photo relay. Close circuit current: 70mA~100mA; 30Ohm. Open circuit voltage: 240VAC or 350VDC) |
| RS-485 | Half Duplex (to control external pan/tilt device |
| Requirements | |
| Memory Size | 512MB or above |
| Intel Celeron 1.1GHz or above (Pentium 4 Recommend) VGA card resolution: 800 x 600 or above Note: According to Engineer, to record 8 Cameras at the same time, will require at least P4 3.0GHz, 1GB RAM. | |
| Physical/Environmental | |
| Dimension | 180 x 83 x 47mm (7.1 x 3.3 x 1.9in.) |
| Weight | Camera: 247g (8.7oz.) Stand: 116g (4.1oz.) |
| Stand Height | 128 mm (4.7 inches) |
| Power | 5VDC 2.5A External Power Adapter |
| Consumption | 4.5 Watt max. |
| Temperature | Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -25°C ~ 50°C (-13°F ~ 122°F) |
| LED | Power: Blue Link/Active: Orange |
| Humidity | 5% ~ 95% Non-Condensing |
| Safety Emissions | CE, FCC |
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
