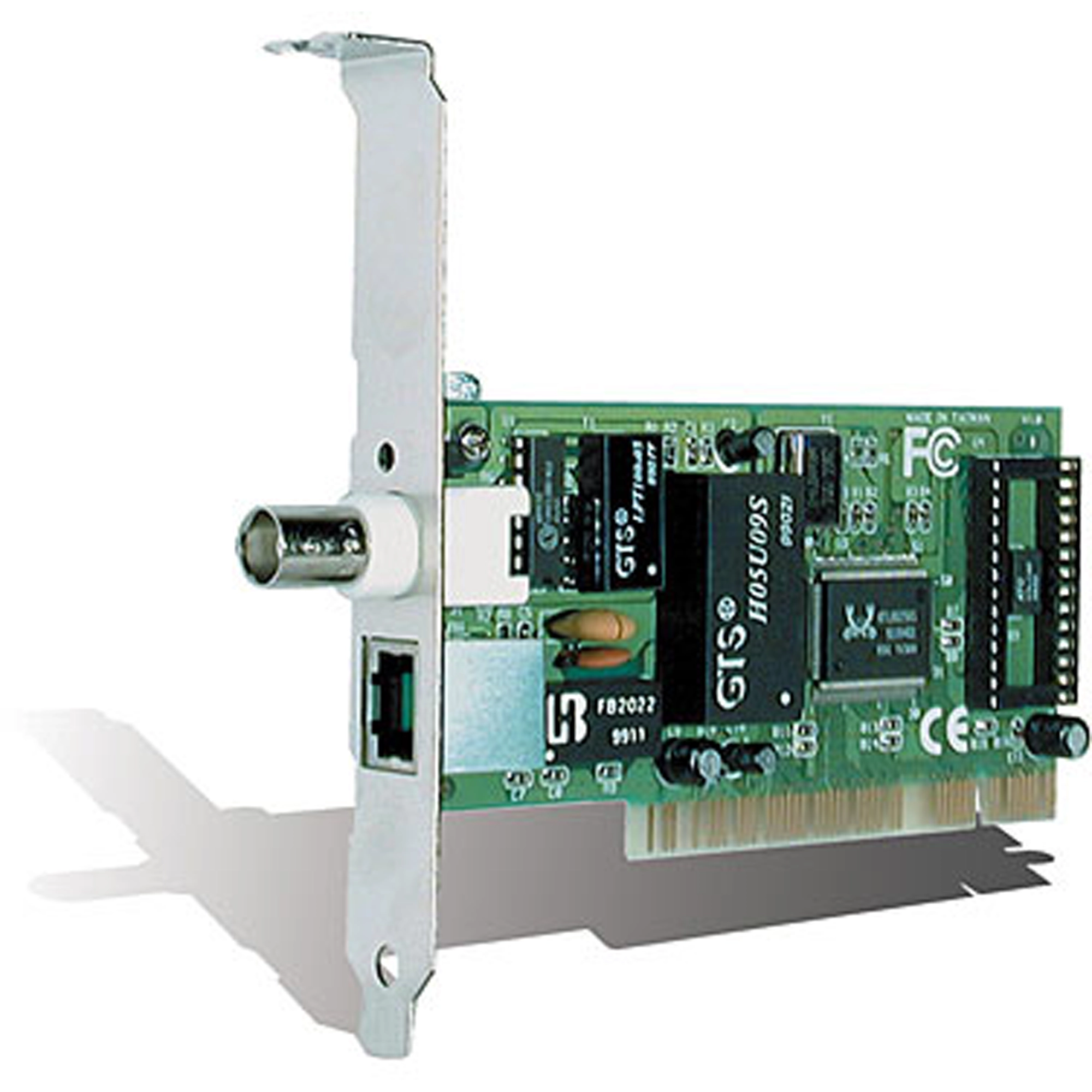

32-bit PCI Plug-and-Play Ethernet Adapter with BNC + RJ-45 Connectors

TE-PCIWplus (Version 1.0)

TRENDnet's PCI Plug-and-Play (PnP) 32-bit Ethernet adapters feature the latest PCI bus technology to process network packets with minimal CPU utilization. The adapters are recommended for workstations in a PC client/server environment. Taking advantage of 32-bit bus width and speed up to 33MHz, they are superior to all ISA adapters. Equipped with both BNC and RJ-45 connectors they include drivers for every popular network operating system. The PnP and full-duplex functions increase the channel bandwidth from 10Mbps to 20Mbps and avoid the performance-degrading problem. TRENDnet adapters provide software configuration of the jumperless Ethernet through a setup program.

  • Comply with IEEE 802.3 10Base-2 and 10Base-T industry standard
  • 32-bit PCI local bus specification 2.0 compliant
  • Plug-and-Play (self-configuring), plugs into any 486/Pentium PCI bus slot
  • Supports PCI bus slave mode for low maintenance cost
  • Compatible with all popular network operating systems
  • Supports both 10Mbps (half-duplex) and 20Mbps (full-duplex) operations
  • Easy-to-view LED indicators
  • 5-year limited warranty
Hardware
Standards:
  • IEEE 802.3 10Base-2 and 10Base-T
On-board Connector:
  • RJ-45 and BNC
Data Bus Supported:
  • 32-bit, PCI Local Bus Specification 2.0
IRQ's Supported:
  • Assigned by the BIOS to a free IRQ (interrupt) number
I/O Base Address:
  • Assigned by the BIOS to a free I/O address block
Network Drivers:
  • Novell IPX, ODI, NDIS, SCO Unix, NetWare 3.x, 4.x server, Windows 95/98/NT 3.x, 4.x/2000/XP, Windows for Workgroups, LAN Manager, LAN Server, Banyan VINES, PathWork, Packet Driver, LANtastic, NetBIOS, and many others
RAM Buffer:
  • 16Kb
Boot ROM Size:
  • 8Kb, 16Kb, and 32Kb
Dimensions:
  • 5.20" x 3.27"
FCC Compliance:
  • FCC Class B
Power Consumption:
  • 430mA at 5V
Operating Temperature:
  • 0° to 55°C
Operating Humidity:
  • 10 to 90%, non-condensing

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
