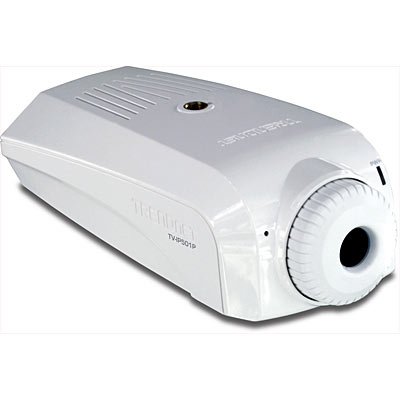

ProView PoE Network Camera
TV-IP501P (Version v1.0R)
- No need to install this camera near a power source, power and data are received through a single Ethernet cable
- View streaming video, hear sounds and record from any Internet connection
- Program motion detection recording, email* alerts and more
- Manage up to 32 cameras with complimentary software
 |  |
The ProView PoE Network Camera transmits real-time high quality video over the Internet at up to 30 frames per second. View and manage the IP camera from any Internet connection.
No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology.
Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include motion detection recording, email alerts, scheduled recordings, MJPEG image compression, 1-way audio and digital zoom. The camera mounts on most surfaces and the off-white housing design blends into the environment.
ProView cameras are not compatible with TRENDnet's SecurView camera application for SecurView cameras.
- Works with IEEE 802.3af PoE compliant devices
- 1x 10/100Mbps Fast Ethernet PoE port
- 45 degree horizontal and 35 degree vertical viewing angle
- 4.57mm focal length and 1.9 F/No
- Option to power the device from a power outlet
- 4x digital zoom
- High quality MJPEG video recording with up to 30 frames per second
- Resolution up to VGA: 640 x 480 pixels
- Included camera mounting kit
- Hear sound from the built in microphone
- Supports TCP/IP networking, SMTP Email*, HTTP and other Internet protocols
- Motion detection triggered email alerts and image upload via FTP
- Multiple adjustable motion detection windows with just-in-time snapshot
- Quick Universal Plug and Play (UPnP) installation
- Complimentary IPView Pro 2.0 software: manage up to 32 IP View cameras **
- Complimentary IPView software: supports Windows XP and Vista operating systems
- 3-year limited warranty
*Does not support SSL**Monitoring multiple cameras may require a high performance CPU
ProView cameras are not compatible with TRENDnet's SecurView camera application for SecurView cameras.
| Camera | |
| General | Sensor: 1/4” color CMOS image sensor Resolution: up to 640 x 480 pixels Board lens Focal length: 4.57mm F/No: F1.9 Minimum illumination: 1 Lux Focus depth: 20cm ~ infinity View angle: horizontal: 45 degree, vertical: 35 degree |
|---|---|
| Audio | Built-in microphone Sensitivity: -48dB +/- 3dB (5 meters max) Frequency: 50~16000Hz S/N: 50dB Codec: PCM |
| Image & Video | Compression: MJPEG Exposure/white balance control: automatic Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps |
| Hardware | |
| Network | IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX IEEE 802.3af PoE |
| LED | Power, Link |
| Reset Button | Reset settings |
| Power Consumption | 1.5 watts |
| Power | 5V, 2.5A external power adapter |
| Dimension | 195 x 90 x 50mm (7.7 x 3.5 x 2 in.) |
| Stand Dimension | 128 mm (4.7 in.) |
| Weight | Camera: 133g (4.7oz.) Stand: 121g (4.3 oz.) |
| Temperature | Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -15°C ~ 50°C (5°F ~ 122°F) |
| Certification | CE, FCC |
| Requirement | |
| To View Camera Browser | Internet Explorer 6.0 or above, Safari 2.0 or above, Firefox 2.0 or above and Netscape |
| To Run IPView Pro Software | Windows XP (32/64-bit), Vista (32/64-bit) |
| IPView Pro 2.0 | Channel: supports up to 32 cameras Record/Playback/Motion Detection/Audio |
| Network Protocols | IPV4, ARP, TCP, UDP,ICMP DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client HTTP Server PPPoE UPnP |
| Management | |
| Remote | Remote management supported |
| Backup / Restore | Save/retrieve configuration files |
| Settings | |
| Image | Brightness, contrast, noise reduction, saturation, sharpness, white balance, flip mirror(horizontal/vertical) |
| Video | Encoding type: MJPEG Compression rate: 5 levels Frame rate: 1, 5, 7, 15, 20, Auto (up to 30fps) Frequency: 50Hz, 60Hz |
| Recording (via Software) | Storage size: 32MB (minimum) Recording type: event based (motion detection), continuous and scheduled |
| Snapshot (via Software) | Trigger event: motion detection Action: send alert email and/or upload to FTP |
| Access Port | HTTP port: 80 (default) |
| Digital Zoom | 4x |
| Dynamic DNS | Yes |
| Time | Synchronize with NTP server or set time/date manually |
PACKAGE CONTENTS |
|
