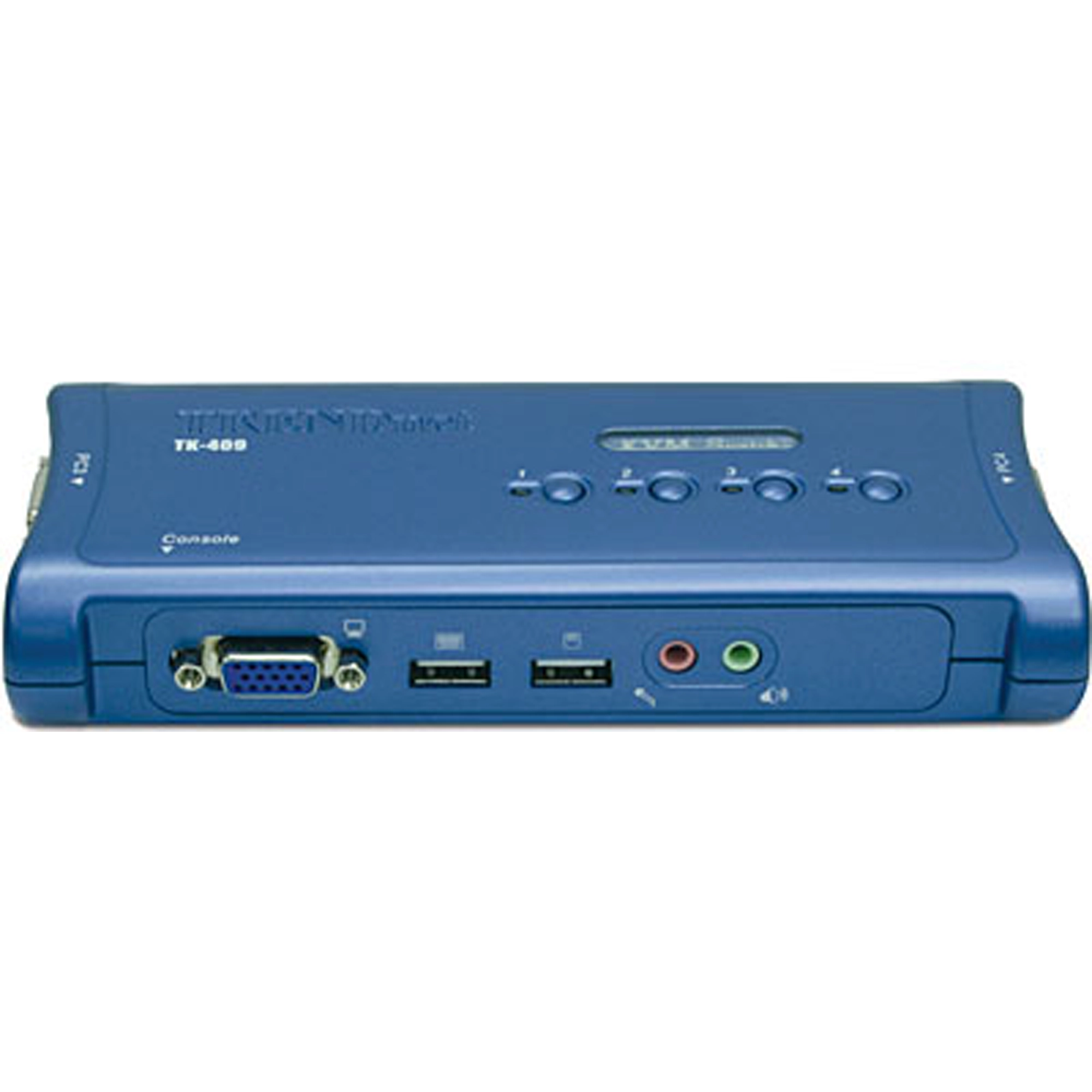

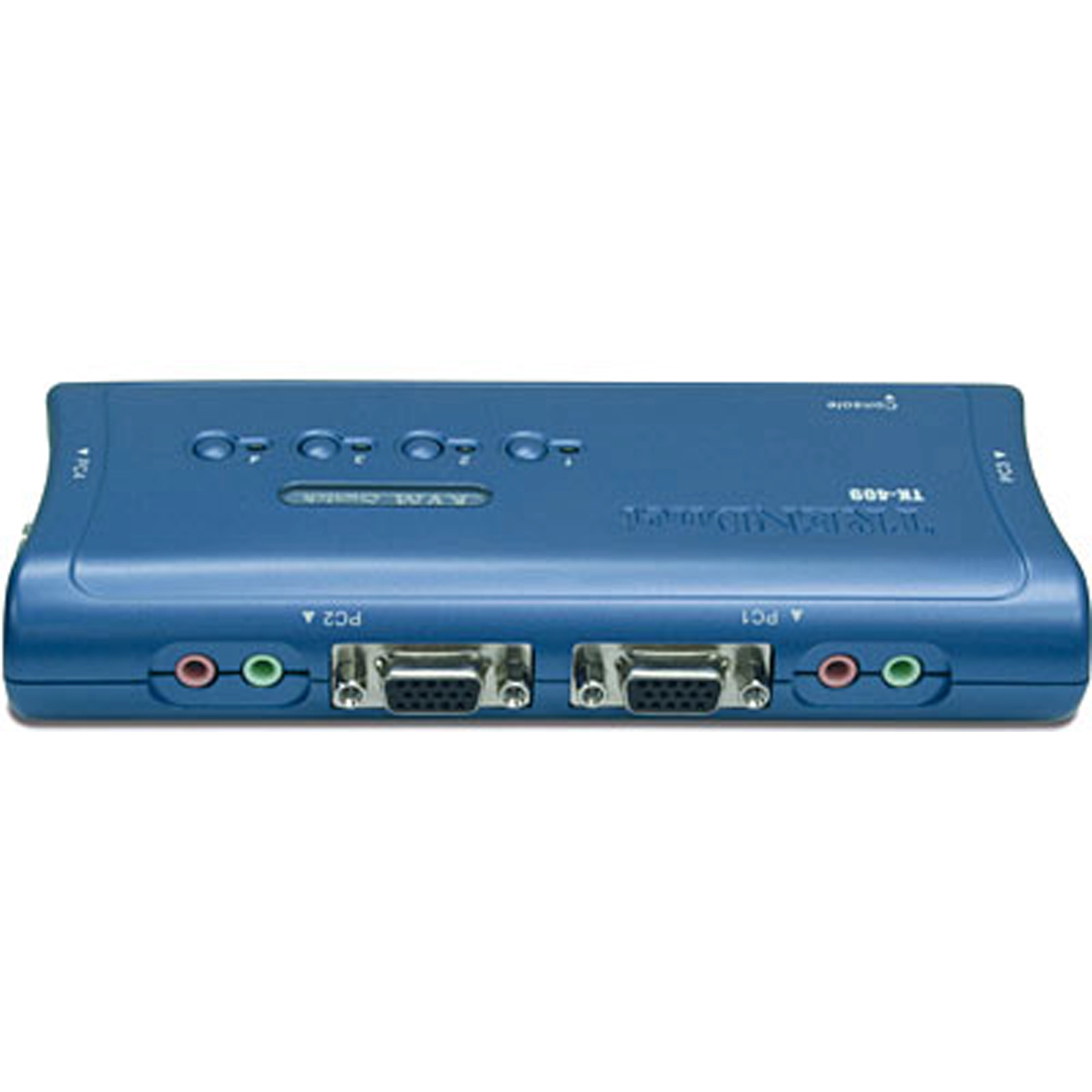

4-Port USB KVM Switch Kit with Audio

TK-409K (Version V1.1R)

  • 4-port KVM switch with VGA and USB connection to PCs and audio support
  • Device monitoring with Auto-Scan and audible feedback
  • High quality 2048x1536 resolution for a crisp display
  • Supports most operating systems and advance mouse designs
  • All required cabling included
DISCONTINUED PRODUCT
The TK-409K (Version V1.1R) has been discontinued. It has been replaced by the TK-409K (Version v1.3R). For a list of discontinued products, click here.

The 4-Port USB KVM Switch with Audio lets you manage 4 computers with just one set of keyboard, monitor, mouse, and a set of speakers/Microphone. The device comes with 4 sets of USB KVM and Audio cables, no additional equipment required. Its compact size makes it ideal for home and business environment.

  • Use one keyboard, monitor, and mouse to control four computers
  • 4-port USB KVM Switch with 1 set of Microphone/Speaker port
  • 4 sets of VGA and 4 sets of Audio & Microphone Cables
  • Supports Microsoft IntelliMouse, Optical Mouse, Logitech Net Mouse and more
  • Supports super High Video Quality, up to 2048 x 1536 VGA resolution
  • Supports Windows 98(SE)/ME/2000/XP/2003 Server, Linux, and Mac OS
  • Multi-Platform supports for PCs, Macintosh G3/G4, iMac and Mac Mini
  • Auto-Scan & LED display for PCs monitoring
  • Hot-Key, push button and Windows-based client switching software
  • User definable hot-key (Windows Only)
  • Plug & Play and Hot-Pluggable
  • USB Interface Power method
  • 2-year limited warranty
Hardware

Management

4 Computers

USB Interface

USB 1.1 Specifications Compliant

KVM Cable
  • 4 Sets of 1.8M (6ft) KVM Cables
  • 4 Sets of Audio/MIC Cables
Cable Interface
(All Male)
  • KVM
    • To KVM
      • 1 x VGA/SVGA HDB 15-pin
    • To PC
      • 1 x USB (Type A)
      • 1 X VGA/SVGA HDB 15-pin
  • Audio
    • To KVM
      • 1 x 3.5mm audio in/out jack
      • 1 x 3.5mm microphone in/out jack
    • To PC
      • 1 x 3.5mm audio in/out jack
      • 1 x 3.5mm microphone in/out jack

Console Connectors
  • 1 x USB Keyboard (Type A)
  • 1 x USB Mouse (Type A)
  • 1 x VGA/SVGA HDB 15-pin
  • 1 x 3.5mm audio in/out jack
  • 1 x 3.5mm microphone in/out jack

Port Selection

Push Button, Hot-Key Commands or Windows-Based Client Switching Software

Auto-Scan Interval

10~ 60 seconds

Power Type

USB Interface Power

Dimensions

167 x 80 x 28mm (6.6 x 3.2 x 1.1in.)

Weight

185 g (6.5 oz.)

Temperature
  • Operating: 0°C ~ 40°C (32°F ~104°F)
  • Storage: -20°C ~ 60°C (-4°F ~140°F)

Humidity

0%~90%, Non-Condensing

Certification

CE, FCC

PACKAGE CONTENTS
  • TK-409K
  • Multi-Language User's Guide
  • Utility CD-ROM
  • 4 sets of USB KVM Cables
  • 4 sets of KVM & Audio Cables

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
