The 8-Port 10/100Mbps Layer 2 Managed Switch with Gigabit Copper and Mini-GBIC Slot (TEG-S811Fi) delivers powerful layer 2 performance and security management tools to network administrators.
Built-in Gigabit and Mini-GBIC slots provide additional network connections to increase overall network performance. Manage your network from anywhere and protect what your company values most.
The feature rich TEG-S811Fi incorporates Simple Network Management Protocol (SNMP), Quality of Service (QoS), Trunking and Port/Tag-based VLANs. Included is a robust 3.6Gbps backplane which may be remotely accessed. Configure the switch with ease using your choice of a Web browser, CLI, Telnet or HyperTerminal. Use this switch as a foundation for a highly scalable, easy to manage secure network.
- Instantly expand network operations with this 8-port Layer 2 managed switch
- 8 x 10/100Mbps RJ-45 Auto-MDIX ports
- 1 x 10/100/100Mbps RJ-45 Auto-MDIX port and 1x 1000Base Mini-GBIC slot
- Robust 3.6Gbps switching capacity IGMP support for multi-media applications
- Quality of Service (QoS) for bandwidth prioritization
- Includes SNMP, RMON, port Mirroring, Spanning Tree protocol and port base VLAN/802.1Q
- Port Trunking, Broadcast Storm filtering, flow control and port security
- Flexible load distribution control and fail-over functions
- Store-and-forward switching architecture
- Configuration via RS-232 console port, telnet and any Web browser (HTTP)
- Supports up to 8,000 MAC address entries
- System backup, restore and firmware upgrades
- 3-year limited warranty
| Hardware |
| Standards | - IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX
- IEEE802.3ab 1000Base-T
- IEEE802.3z Gigabit fiber
- IEEE802.3x Flow Control and Back Pressure
- IEEE802.3ad Port trunk with LACP
- IEEE802.1d Spanning Tree/ IEEE802.1w Rapid Spanning Tree
- IEEE802.1p Class of Service
- IEEE802.1Q VLAN Tag
- IEEE 802.1x User Authentication (Radius)
|
|---|

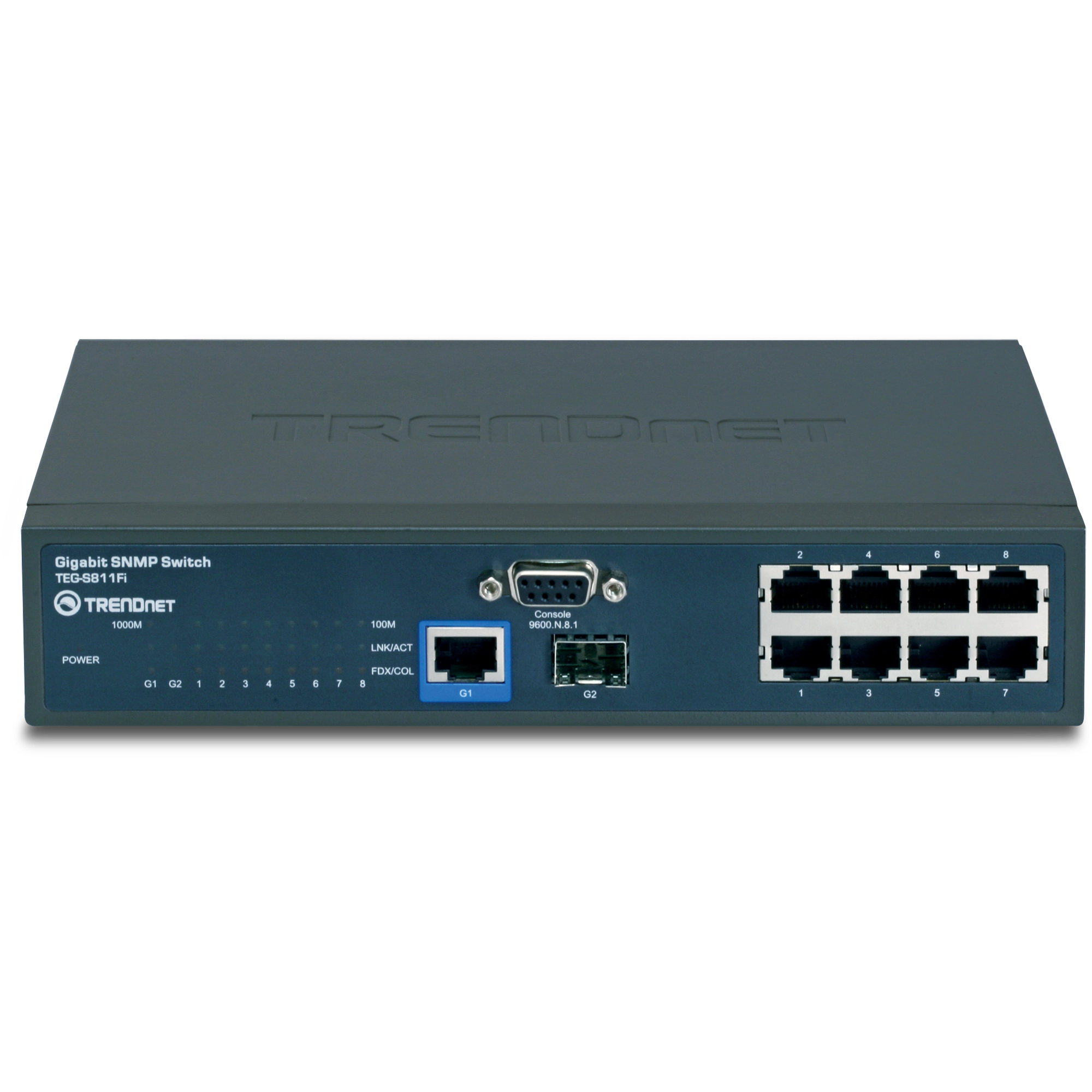

| Interface | - 8 x 10/100TX Ports RJ-45 with Auto MDI/MDI-X Function
- 1 x 10/100/1000T Ports RJ-45 with Auto MDI/MDI-X Function
- 1 x Gigabit Fiber Mini-GBIC
- 1 x RS-232 DB-9 Connector for Switch Management
|
|---|
| Packet Forwarding and Filtering Rate | - Gigabit: 1,488,000 Packets per Second per Port
- 100M Ethernet: 148,800 Packets per Second per Port
|
|---|
| Cabling | - Network:
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 Cable
- EIA/TIA-568 100-ohm (100m)
- 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E Cable
- EIA/TIA-568 100-ohm (100m)
- Optional:
- LC (Multi-Mode): 50/125um~62.5/125um
- LC (Single Mode): 9/125um~10/125um
- Available Distance: 2KM (Multi-mode) / 30KM (Single-Mode)
- Wavelength: 1310nm (Multi-Mode/ Single Mode)
|
|---|
| Protocol/Topology | |
|---|
| Buffer Memory | |
|---|
| Filtering Address Table | |
|---|
| Switching Fabric | |
|---|
| LED Display | - System Power (Green)10/100TX Port: Link/Activity (Green), Full-Duplex/Collision (Yellow), 100Mbps(Green)Gigabit Copper Port: 1000/100Mbps (Green/Yellow), Link/Activity (Green), Full Duplex/Collision (Yellow)Mini GBIC: Link/Activity (Green)
|
|---|

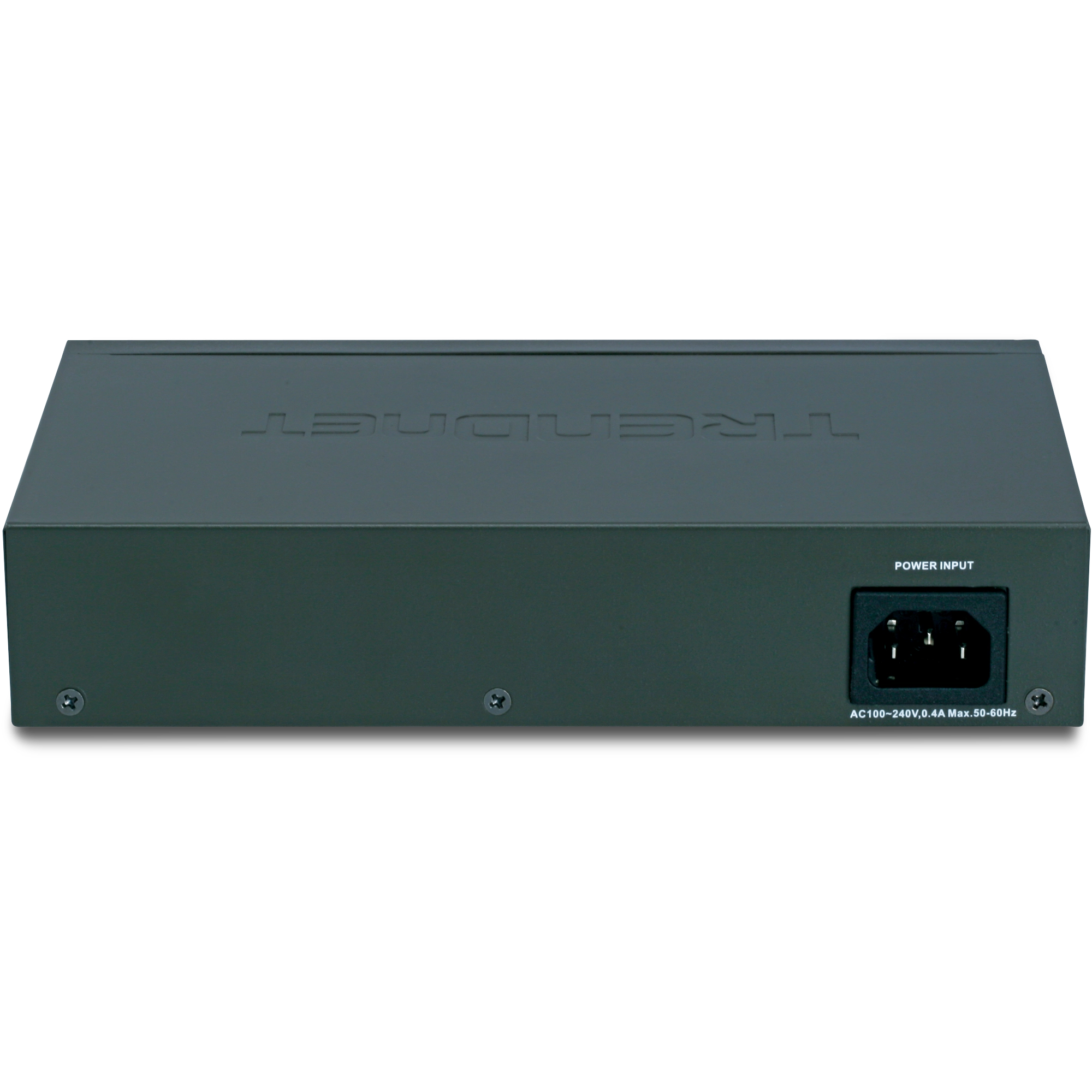

| Power | - Input: 100~240VAC, 50/60Hz Internal Power Supply
|
|---|
| Power Consumption | |
|---|
| Dimensions | - 217 x 160 x 43mm (8.5 x 6.2 x 1.6 inch) (W x H x D)
|
|---|
| Weight | |
|---|
| Temperature | - Operating: 0° ~ 45° C (32° ~ 113° F)
- Storage: -40° ~ 70° C (-40° ~ 158° F)
|
|---|
| Humidity | |
|---|
| Certifications | |
|---|
| Management | - SNMP v1 v2c, v3/ Web/Telnet/CLI/Menu Driven** Management
|
|---|
| Trunk | - LACP Port Trunk: 4 Trunk Groups/Maximum 4 Trunk Members
|
|---|
| Class of Service | - Support IEEE802.1p Class of Service, Per Port Provides 4 Priority Queues
|
|---|
| QoS | - QoS Determined by Port, Tag and IPv4 Type of Service, IPv4/IPv6 Different Service
|
|---|
| VLAN | - Port Based VLANIEEE 802.1Q Tag VLAN (256 Entries)/ VLAN ID (Up to 4K, VLAN ID From 1 to 4096.)GVRP (256 Groups)Double Tag VLAN (Q in Q)*
|
|---|
| X-Ring | - Support X-ring, Dual Homing, and Couple Ring Provides Redundant Backup and Recovery Time Below 300ms
|
|---|
| IGMP | - Support IGMP Snooping v1,v2256 Multicast Groups and IGMP Query
|
|---|
| Port Mirror | - Supports 3 Mirroring Types: "RX, TX and Both Packets".
|
|---|
| Port security | - Supports 100 static MAC Address Entries And 100 MAC Filter Entries
|
|---|
| Spanning Tree | - Support IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree
|
|---|
| IP Security | - Supports 10 Permitted Access IP Addresses
|
|---|
| Login Security | - Support IEEE802.1X Authentication/RADIUS
|
|---|
| Bandwidth Control | - Ingress Filter Packet Types Include Broadcast/Multicast/Unknown, Unicast Packet, Broadcast/Multicast Packet and Broadcast Packet Only/ All of Packet. Packet Filter Rate: 100k to 250Mbps
|
|---|
| Flow Control | - Supports Flow Control For Full-duplex and Back Pressure For Half-Duplex
|
|---|
| System Log | - Supports System Log Record And Remote System Log Server
|
|---|
| SMTP | - SMTP Server support And 6 E-mail Accounts For Event Alerts
|
|---|
| SNMP Trap | - Up to 3 Trap Stations, Cold start, Port Link Up, Port Link Down, Authentication Failure, Power Status Private Trap and X-ring Topology Change
|
|---|
| DHCP | - Provides DHCP Client/ DHCP Server
|
|---|
| DNS | - Provides DNS Client Feature and Supports Primary And Secondary DNS servers
|
|---|
| SNTP | - Supports SNTP To Synchronize System Clock
|
|---|
| Firmware Update | - Support TFTP Firmware Update, TFTP Backup and Restore.
|
|---|
| Configuration Upload and Download | - Support Text Format Configuration File For System Quick Installation
|
|---|
PACKAGE CONTENTS |
- TEG-S811Fi
- Quick Installation Guide
- CD-ROM user guide
- Power cord
(1 m, 3.28 ft) - RS-232 cable
(1 m, 3.28 ft) - Rack mounting kit
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
