2-Port USB KVM Switch Kit with Audio

TK-209K (Version v1.3R)

  • 2-port KVM switch with VGA and USB connections to computers and audio devices
  • Listen to music from one computer while working on the other
  • High quality 2048x1536 resolution for a crisp display
  • Supports most operating systems and advance mouse designs
  • All required cabling included
  • NDAA compliant
NDAA Compliant
Coming Soon

The 2-Port USB Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 2 PCs. With it's Hot-Plug, Auto-Scan and Hot-Key operating features, the TK-209K is the perfect choice for managing 2 PCs. Separate KVM cables are included.

  • Control up to 2 computers/servers with one set of console device
  • USB keyboard/mouse emulation with 2 sets of detachable KVM cables
  • Compliant with Windows and Linux
  • High video quality, up to 2048 x 1536 VGA resolution
  • Listen to music from one computer while working on the other
  • Auto-Scan & LED display for computer monitoring
  • Computer selection by face panel push buttons, keyboard hot key commands or Windows-based client switching software*
  • User definable hot key (Windows only)
  • Plug & Play and hot-pluggable
  • USB interface power method
  • 2-year limited warranty

* Please go tohttp://www.trendnet.com/downloads/to download the client switching software

Hardware
Connections
  • 2 computers
USB Interface
  • USB 1.1 compliant
KVM Cable

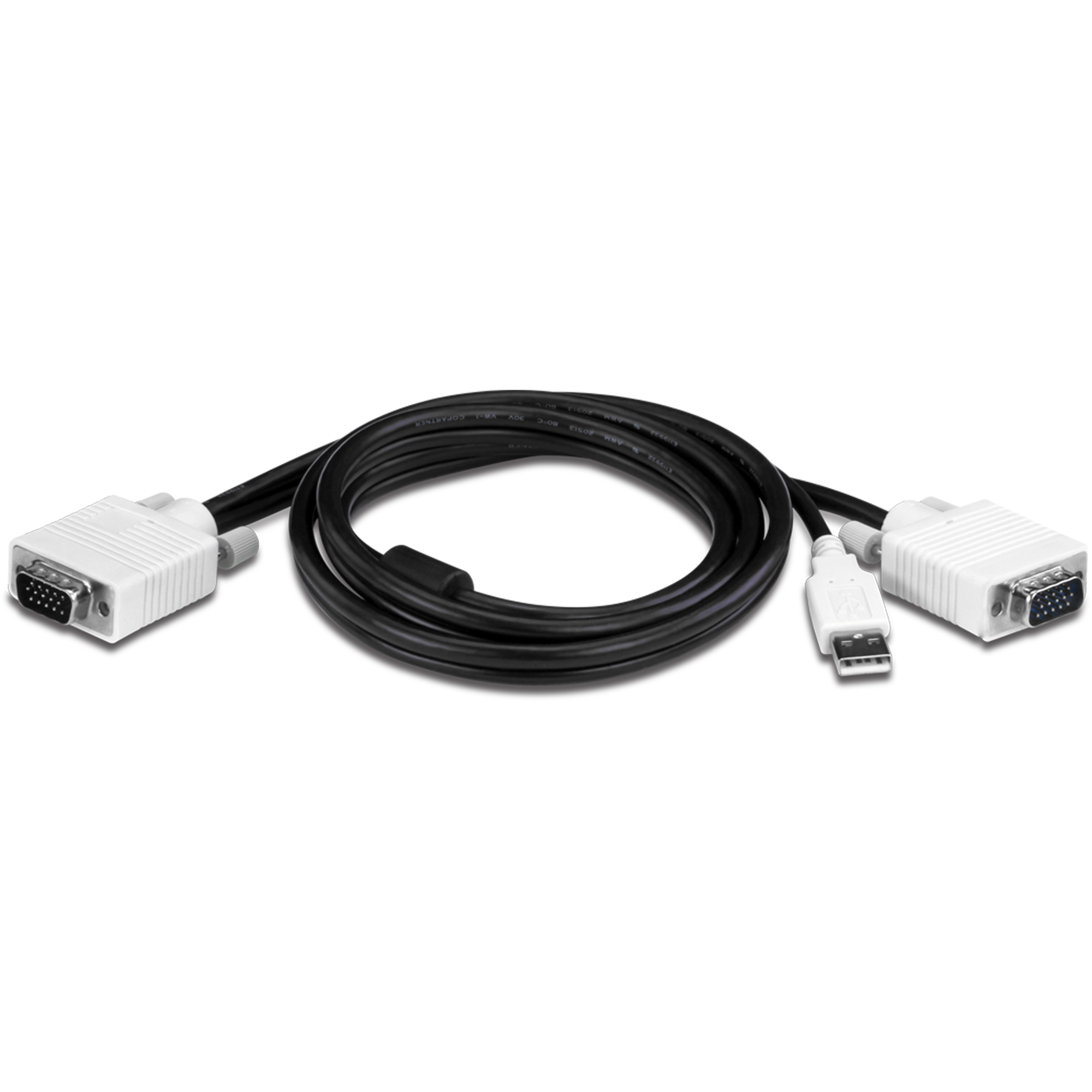

  • 2 sets of 1.2m (4ft.) USB KVM cables

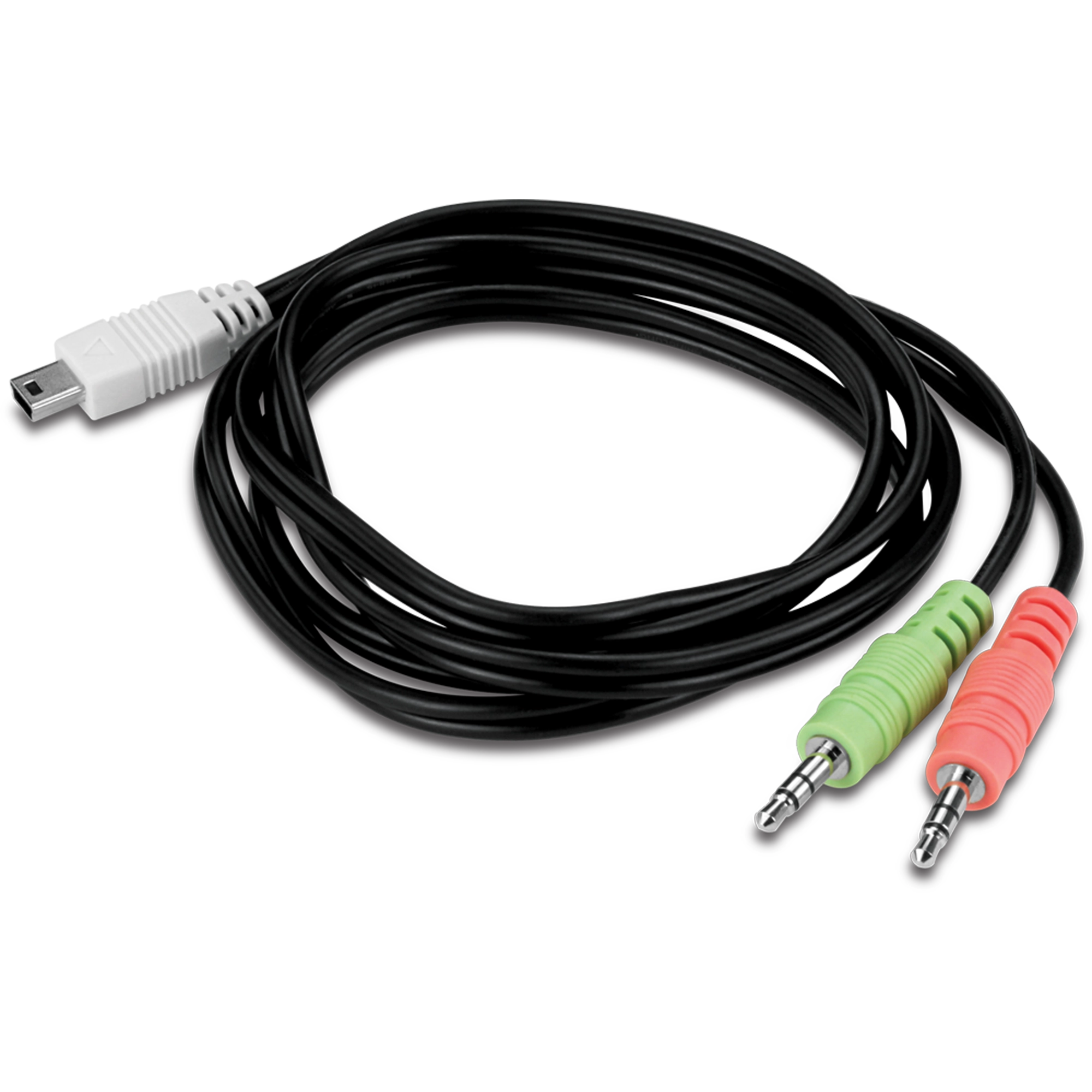

  • 2 sets of 1.2m (4ft.) audio cables (USB mini B to 3.5mm jack)
Cable Interface (all male)
  • To KVM
  • KVM Cable: 1 x VGA/SVGA HDB 15-pin
  • Audio Cable: 1 x USB (Mini B)
  • To PC
  • KVM Cable: 1 x USB (Type A), 1 X VGA/SVGA HDB 15-pin
  • Audio Cable: 1 x 3.5mm speaker jack, 1 x 3.5mm microphone in jack
PC Port Connectors (all female)
  • 2 x VGA/SVGA HDB 15-pin
  • 2 x USB (Mini B)
Console Port Connectors (all female)
  • 1 x USB keyboard (type A)
  • 1 x USB mouse (type A)
  • 1 x VGA/SVGA HDB 15-pin
  • 1 x 3.5mm speaker jack
  • 1 x 3.5mm microphone jack
Supported OS
  • Windows and Linux
Port Selection
  • Front panel push buttons, keyboard hot key commands or Windows-based Client Switching software*
Auto-Scan Interval
  • 10 ~ 60 seconds
Keyboard Status
  • Save and restore
Power Type
  • USB Interface Power
Dimensions
  • 98 x 70 x 28mm (3.86 x 2.76 x 1.1in.)
Weight
  • 100 g (3.6oz)
Temperature
  • Operating: 0°C ~ 40°C (32°F ~104°F)
  • Storage: -20°C ~ 60°C (-4°F ~140°F)
Humidity
  • 0%~90%, non-condensing
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TK-209K
  • Quick Installation Guide
  • 2 sets of USB KVM cables (1.2m/4ft)
  • 2 sets of audio cables (1.2m/4ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
