24-Port 10/100Mbps Layer 2 Stackable Switch w/ 2 shared Gigabit Ports and Mini-GBIC Slots

TEG-S2620is (Version v1.0R)

  • Stack up to 8 switches to create a reliable highly scalable network
  • Provides SNMP (v1), 802.1x and RSTP support
  • 24 x 10/100Mbps Auto-Negotiation ports, 2 x shared Gigabit ports and mini-GBIC slots and 1 x RS-232 console port
  • Supports Port Trunking, Mirroring, IGMP, VLAN, RMON, CoS, STP and DHCP
DISCONTINUED PRODUCT
The TEG-S2620is (Version v1.0R) has been discontinued. It has been replaced by the TL2-G244 (Version v2.0R). For a list of discontinued products, click here.

The 24-Port 10/100Mbps Layer 2 Stackable Switch includes two shared Gigabit ports and mini-GBIC slots, providing a reliable foundation for a highly scalable managed network.

Features Stacking support for up to 8 TEG-S2620is switches, an 8.8Gbps switch fabric, 802.1x authentication, SNMP v1 support and Rapid Spanning Tree support.

Built-in Gigabit Ethernet ports and Mini-GBIC slots provide high speed uplinks to backbone switching or servers. Configure the switch using your choice of Telnet, HyperTerminal, SNMP or a Browser. Additional management features such as Port Trunking, IGMP snooping, VLAN, RMON, CoS and STP allow administrators to effectively manage departmental work groups.

  • Stack up to 8 switches

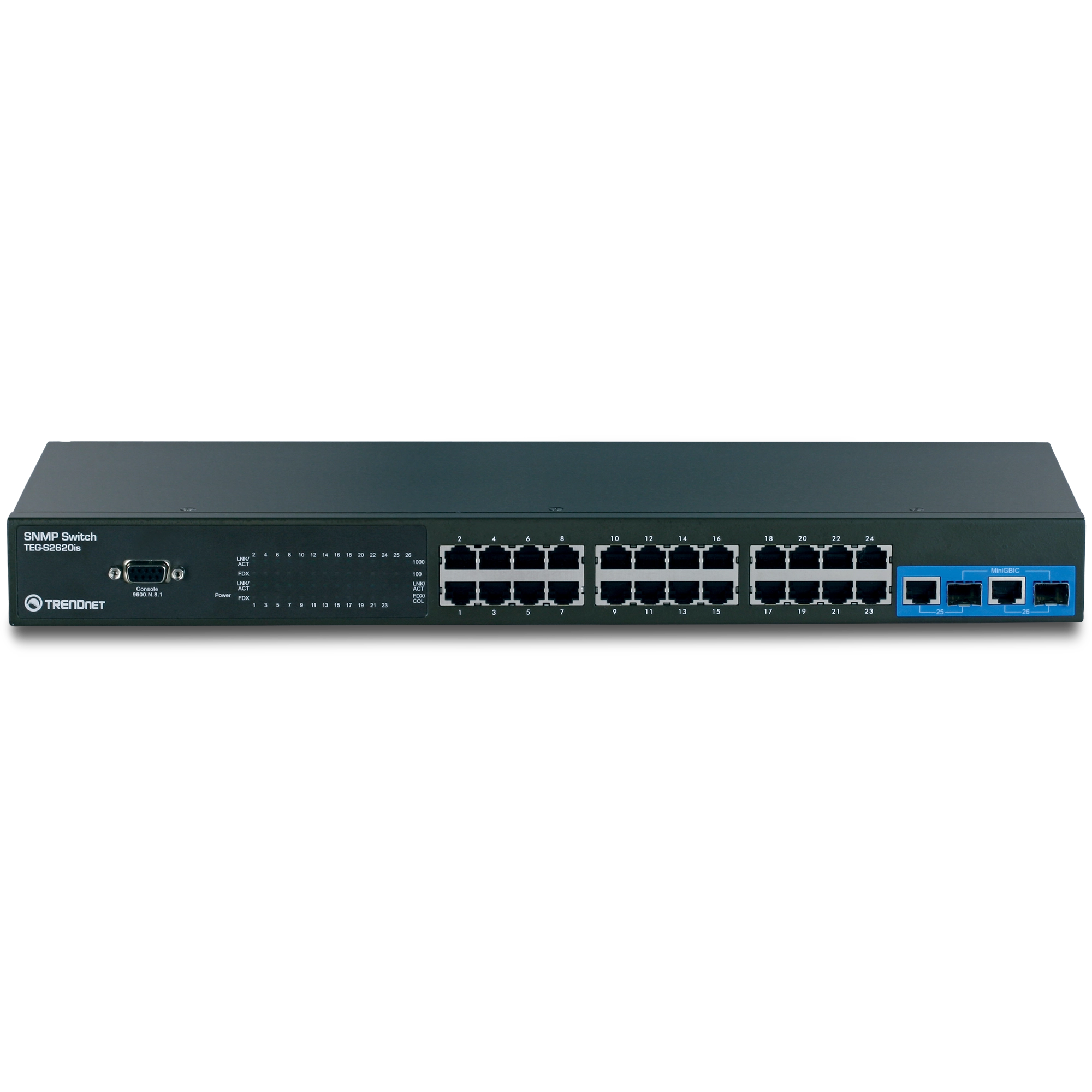

  • 24 x 10/100Mbps Auto-Negotiation and Auto-MDIX RJ-45 ports
  • 2 x shared Gigabit RJ-45 ports and Mini-GBIC slots
  • 1 x RS-232 DB-9 console port
  • 8K MAC and 4K VLAN
  • Port Based VLAN and 802.1Q VLAN
  • Spanning Tree Protocol (RSTP) supported
  • IEEE 802.3x Flow Control for half/full duplex support
  • IGMP support for multi-media applications up to 256 groups
  • Switching fabric up to 8.8Gbps
  • Broadcast Storm Filtering protection against constant Broadcast or Multicast traffic
  • Supports port status control (auto-negotiation, speed, duplex and flow-control)
  • 2-Level priority queuing Quality of Service (QoS)
  • IEEE 802.3ad port trunking with LACP
  • Port Mirroring for network traffic analysis
  • Supports port security and IEEE 802.1p Class of Service
  • Supports IP multicast, SNMP and RMON
  • Switch management with Simple Network Management Protocol (SNMP V1.0), Telnet, RS-232 console port and Web Browser
  • Supports IEEE 802.1x/RADIUS user authentication
  • Upgradeable firmware via Web browser and TFTP program
  • 19” (1U) Rack mount design with mounting hardware included
  • 3-year limited warranty
Hardware
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/100Base-FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z Gigabit fiber SX/LX
  • IEEE 802.3x Flow Control and Back Pressure
  • IEEE 802.3ad Port Trunk with LACP
  • IEEE 802.1d Spanning Tree
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1p Class of Service
  • IEEE 802.1Q VLAN Tag
Interface
  • 24 x 10/100Mbps Auto MDIX RJ-45 ports
  • 2 x 10/100/1000Mbps Auto MDIX RJ-45 ports 2 x Gigabit Fiber Mini-GBIC slots (shared with Gigabit ports)
  • 1 x RS-232 DB-9 port for switch management
Packet Forwarding and Filtering Rate
  • Gigabit: 1,488,000 packets per second per port
  • 100M Ethernet: 148,800 packets per second per port
Cabling
  • Network:
  • 10Base-T: UTP/STP Cat. 3, 4, 5 cable (100m)
  • 100Base-TX: UTP/STP Cat. 5, 5e cable (100m)
  • 1000Base-T: UTP/STP Cat 5e, 6 cable (100m)
  • Mini-GBIC:
  • LC (Multi-Mode): 50/125um~62.5/125um
  • LC (Single Mode): 9/125um~10/125um
Protocol/Topology
  • (CSMA/CD) / Chain (8 units)
Buffer Memory
  • 3Mbits data buffer
Filtering Address Table
  • 8K MAC address entries
Bandwidth
  • Up to 8.8Gbps
LED Display
  • System power
  • 10/100Base-TX: link/activity, Full Duplex/collision
  • 1000Base-T: 100, 1000,Link/activity, Full Duplex/collision
Power

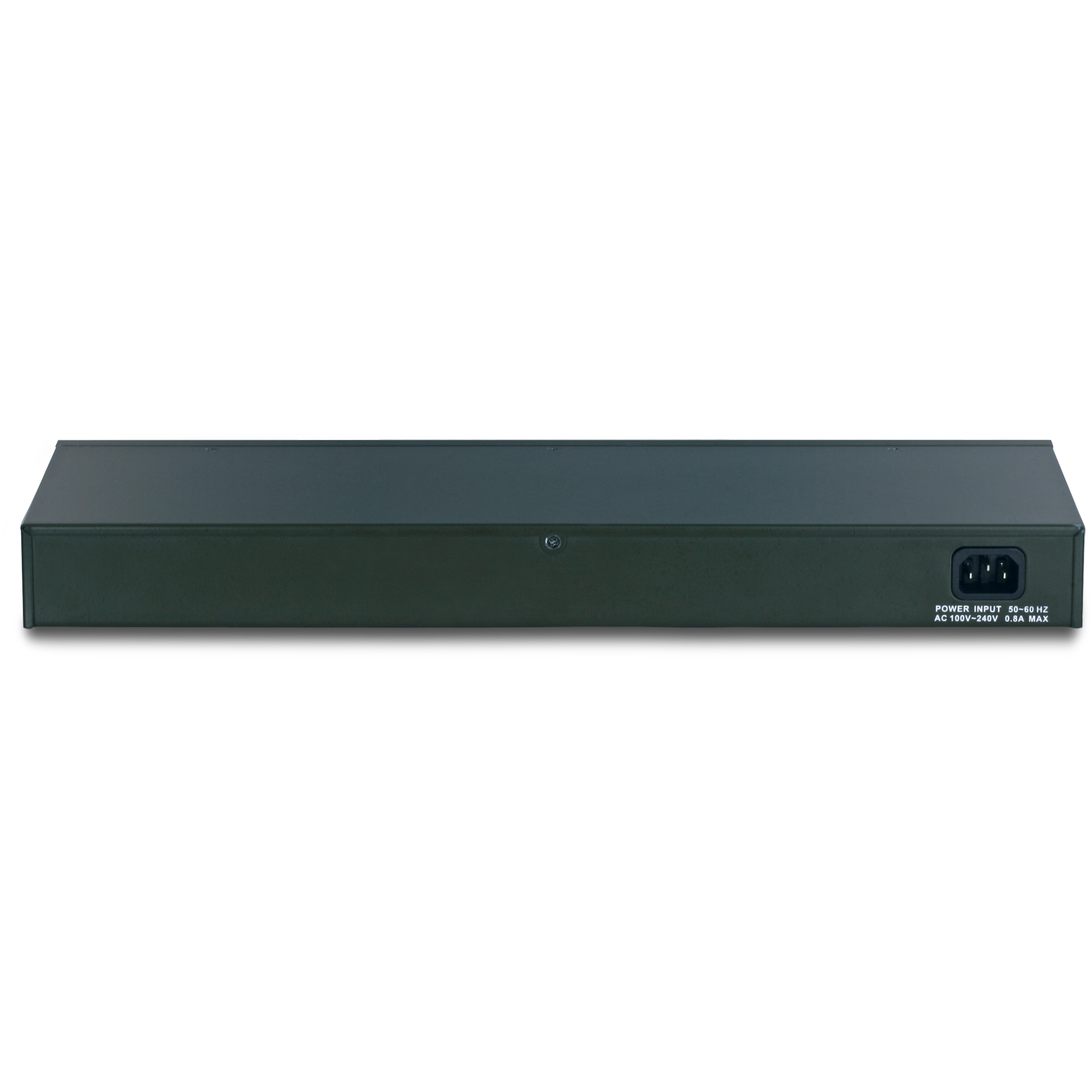

  • Input: 100~240VAC, 50/60Hz internal power supply, 0.8A (max)
Power Consumption
  • 34 watts
Dimensions
  • 440 x 161 x 44mm (17.3 x 6.3 x 1.7 in.)
Weight
  • 2.3 Kg. (5.07lb.)
Temperature
  • Operating: 0° ~ 45° C (32° ~ 113° F)
  • Storage: -40° ~ 70° C (-40° ~ 158° F)
Humidity
  • 5% ~ 95% non-condensing
Certifications
  • FCC, CE
Software
Management
  • SNMP v1/ Web/Telnet/Console
Trunk
  • LACP Port Trunk: 7 Trunk groups/maximum 4 Trunk members
Class of Service
  • Support IEEE802.1p Class of Service, per port provides 2 priority queues
Port-Based Priority
  • Supports 3 settings: “disable, low or high priority”.
RFC Standard
  • RFC 1157 SNMP, RFC 1213 MIB II, RFC 1643 Ethernet like, RFC 1493 Bridge MIB, RFC 1757 RMON 1, RFC 1215 Trap, RFC 2674 VLAN MIB, private MIB
VLAN
  • Port based VLAN
  • IEEE 802.1Q Tag VLAN (256 Entries)/ VLAN ID (Up to 4K, VLAN ID From 1 to 4094.)
  • GVRP (256 groups)
  • IEEE802.1v Protocol VLAN
IGMP
  • Support IGMP Snooping v1,v2
  • 256 multicast groups
Port Mirror
  • Supports 3 Mirroring types: “RX, TX or both”
Port security
  • Supports static and filtering MAC Address entries
Spanning Tree
  • IEEE802.1d Spanning Tree and IEEE802.1w Rapid Spanning Tree
Login Security
  • IEEE802.1x Authentication/RADIUS
Bandwidth Control
  • Bandwidth control per port
Flow Control
  • Flow Control for Full-Duplex and back pressure for Half-Duplex
SNMP Trap
  • Up to 3 trap stations, cold start, port link up, port link down, authentication failure
DHCP
  • DHCP client
Firmware Update
  • Support TFTP firmware update, TFTP backup and restore.

PACKAGE CONTENTS
  • TEG-S2620is
  • Multi-Language Quick Installation Guide
  • CD-ROM (User Guide)
  • Power cord
  • RS-232 cable (1.5 m / 4.9 ft)
  • Rack mounting kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
