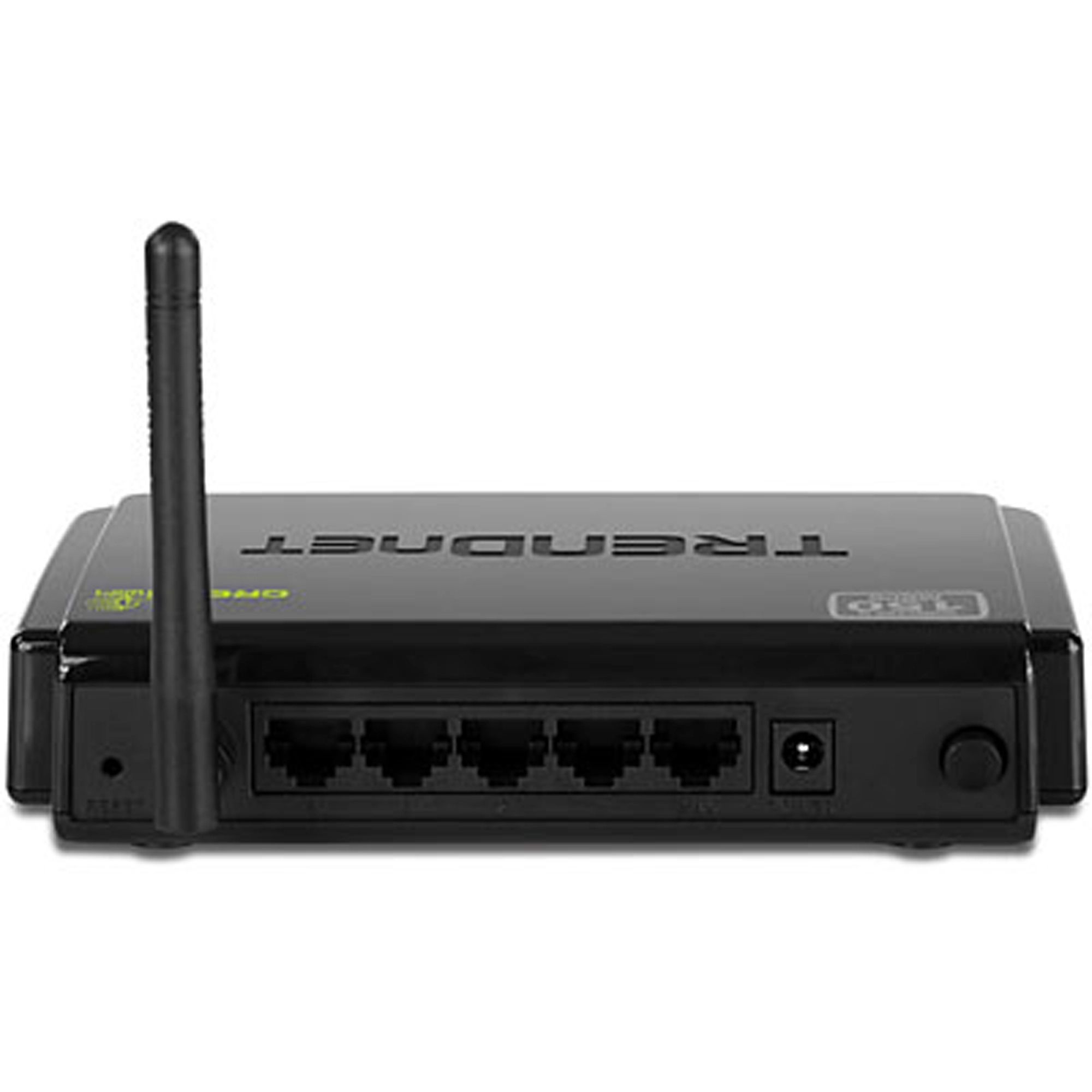

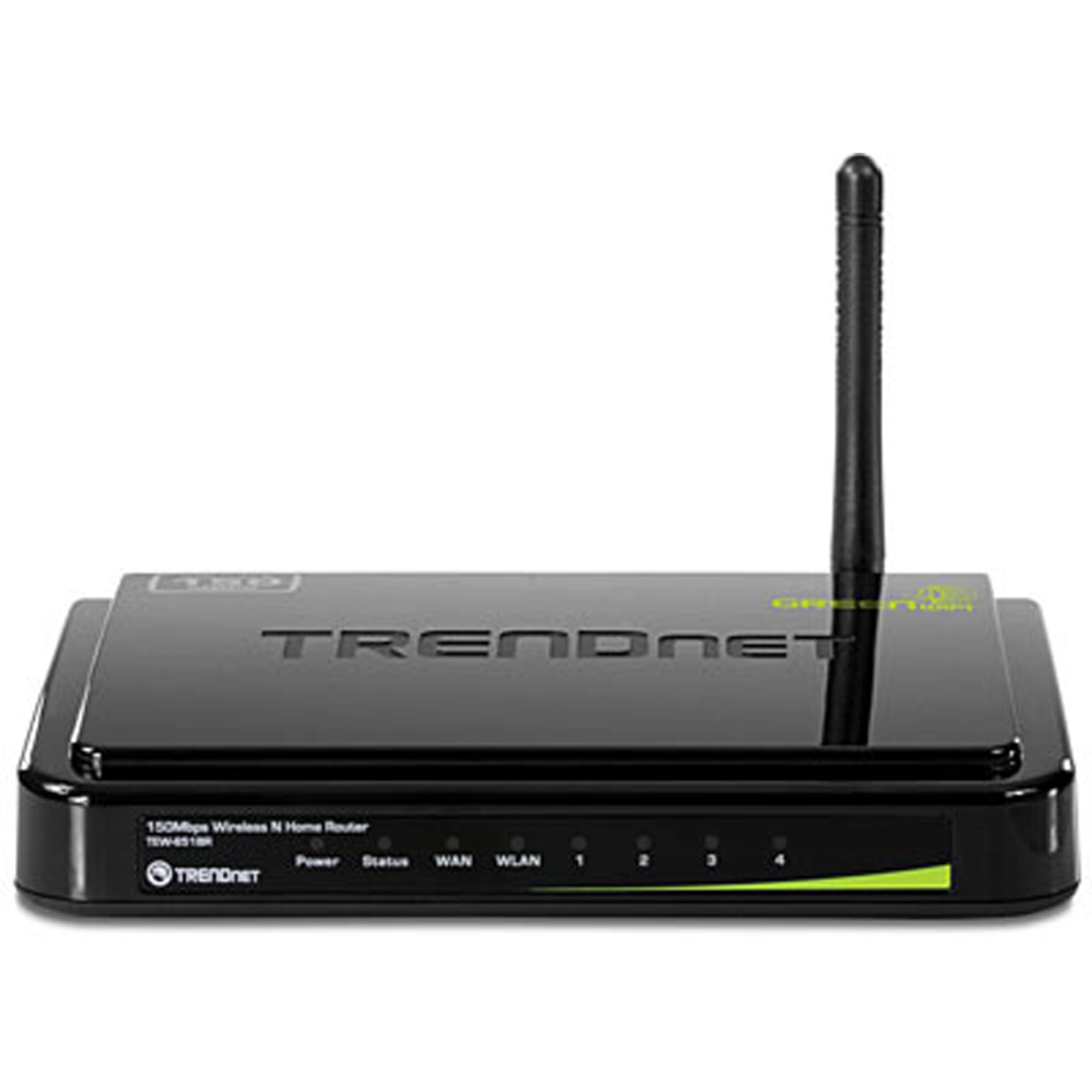

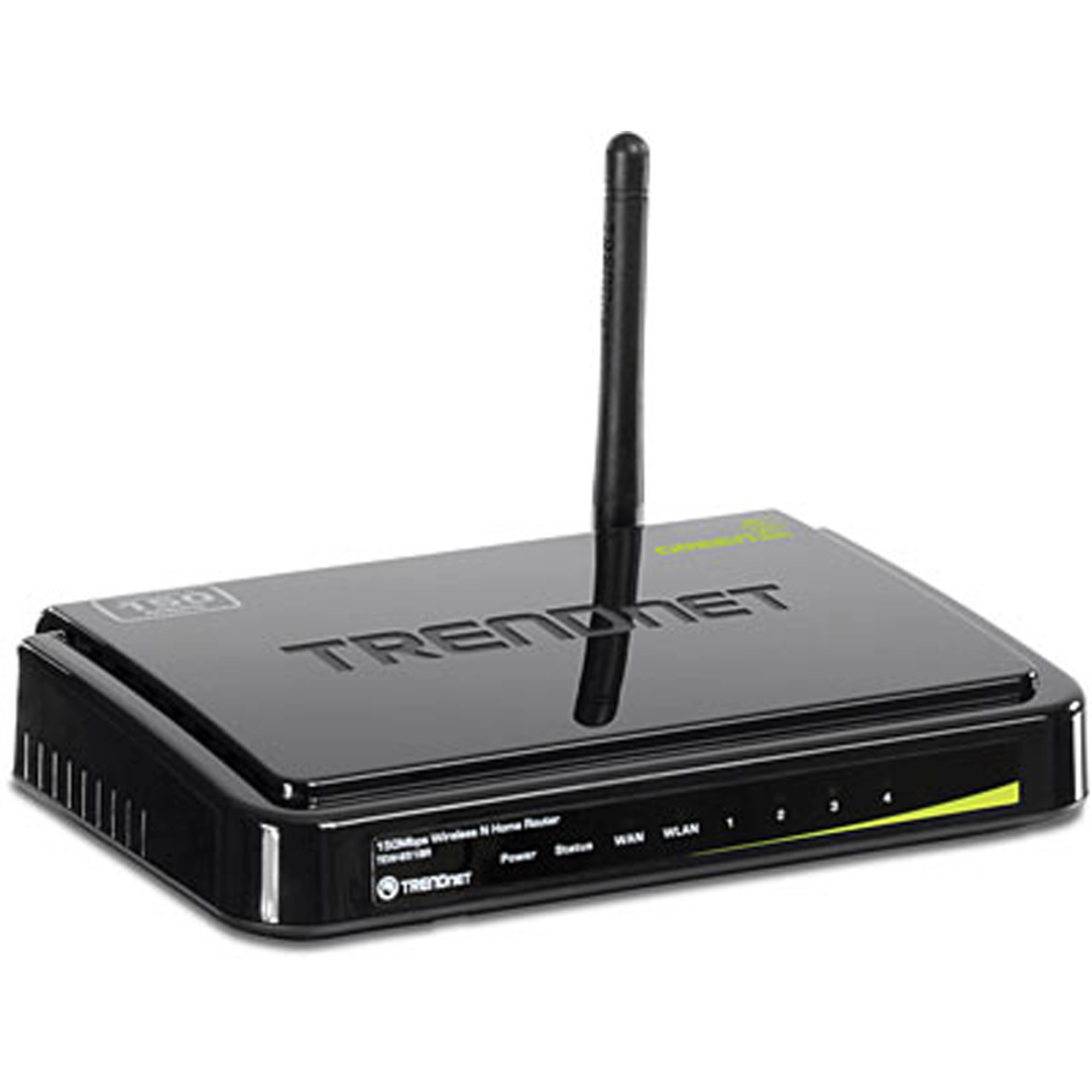

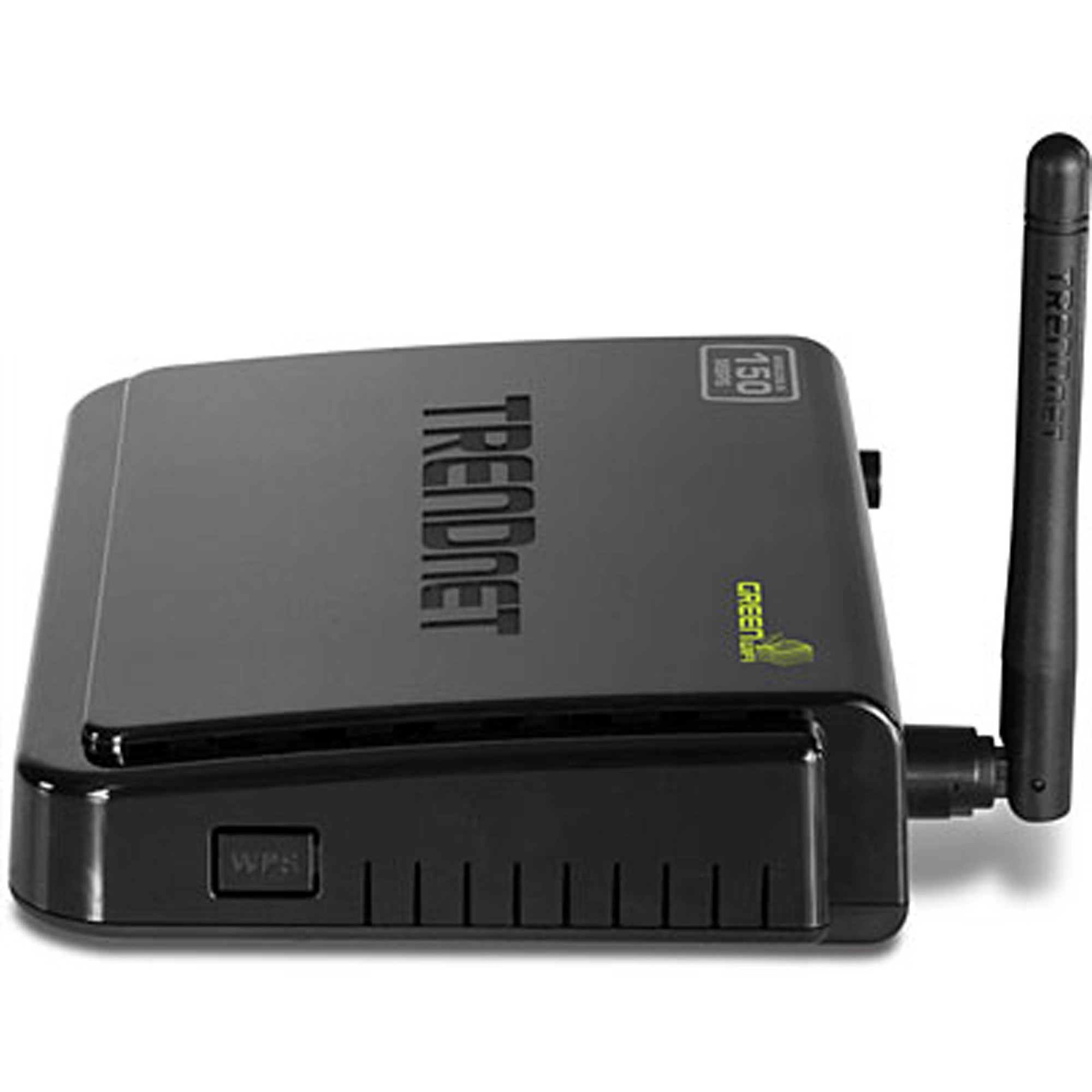

N150 Wireless Home Router
TEW-651BR (Version v2.3R)
- 6x the speed and 3x the coverage of wireless g
- Seamlessly stream video, download files, talk online and play games
- Advanced wireless encryption protects your valuable data
- Intuitive installation process
The N150 Wireless Home Router delivers the highest level of security with 6x the speed and 3x the coverage of wireless g products. Quickly install the router and use it with TRENDnet wireless n adapters to receive the full benefits of wireless n speed and coverage.
The latest in wireless encryption and a secure firewall protect your valuable data. Router setup is fast and intuitive. Wireless Protected Setup (WPS) integrates other WPS supported wireless adapters at the touch of a button. Seamlessly stream HD media, download files and surf online with wireless n speed.
- Based on IEEE 802.11n technology and compliant with IEEE 802.11b/g standards
- 4 x 10/100Mbps Auto-MDIX LAN ports
- 1 x 10/100Mbps WAN port (Internet)
- GREENnet technology reduces port-based power consumption
- Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP
- High-speed data rates of up to 150Mbps with IEEE 802.11n*
- Wi-Fi Protected Setup (WPS) connects wireless clients at the push of a button
- Supports 64/128-bit WEP, WPA/WPA2-RADIUS and WPA-PSK/WPA2-PSK
- Internet Access Control (MAC Address, Domain and IP Filtering)
- Easy remote management via Web browser
- Firewall features Network Address Translation (NAT)
- Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP, gaming, remote desktop, Net Meeting, Telnet and more
- Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
- Simple setup via Web browser using the latest version of Internet Explorer, Firefox, and Safari
- Works with Windows, Linux, and Mac operating systems
- Indoor range up to 100 meters (330 ft.) depending on the environment
- Outdoor range up to 300 meters (980 ft.) depending on the environment
- 3-year limited warranty
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
| Hardware | |
| Standards | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.11b, IEEE 802.11g, Based on IEEE 802.11n technology, IEEE 802.3az |
| WAN | 1 x 10/100Mbps Auto-MDIX WAN port (Internet) |
| LAN | 4 x 10/100Mbps Auto-MDIX LAN port |
| WPS Button | Enables Wi-Fi Protected Setup (WPS) function |
| Connection Type | Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP |
| Supported Web Browsers | Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari |
| Internet Access Control | MAC Address Filter, Domain/URL Filter, Protocol/IP Filter |
| SNMP | Up to 3 external trap receivers |
| LED Indicators | Power, Status, LAN1 - LAN4, WAN, WLAN |
| Power Switch | On/Off power switch |
| Power Supply | 5V DC, 1A external power adapter |
| Power Consumption | 2.8 watts (max) |
| Dimensions (LxWxH) | 158 x 109 x 34mm (6.2 x 4.3 x 1.3in) |
| Weight | 204g (7.2oz) |
| Temperature |
|
| Humidity | 10% ~ 95% max (non-condensing) |
| Certifications | CE, FCC |
| Wireless | |
| Frequency | 2.412 ~ 2.484 GHz ISM band |
| Antenna | 1 x 2dBi fixed dipole antenna |
| Module Technique |
|
| Media Access Protocol | CSMA/CA with ACK |
| Data Rate (Auto Fallback) |
|
| Output Power |
|
| Receiving Sensitivity |
|
| Encryption | 64/128-WEP, WPA-PSK/WPA2-PSK, WPA/WPA2-RADIUS |
| Channels | 1-11 (FCC), 1-13 (ETSI) |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
