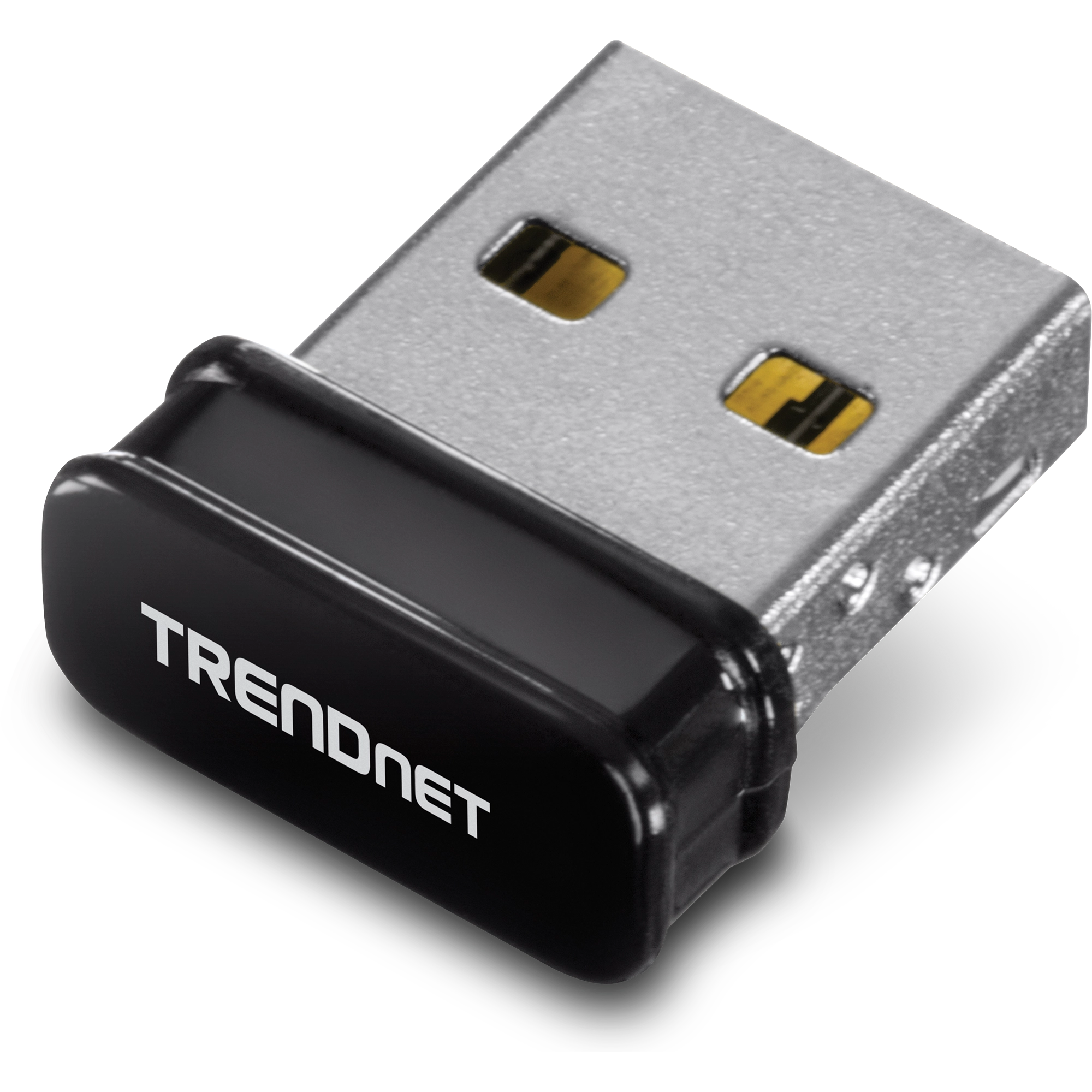

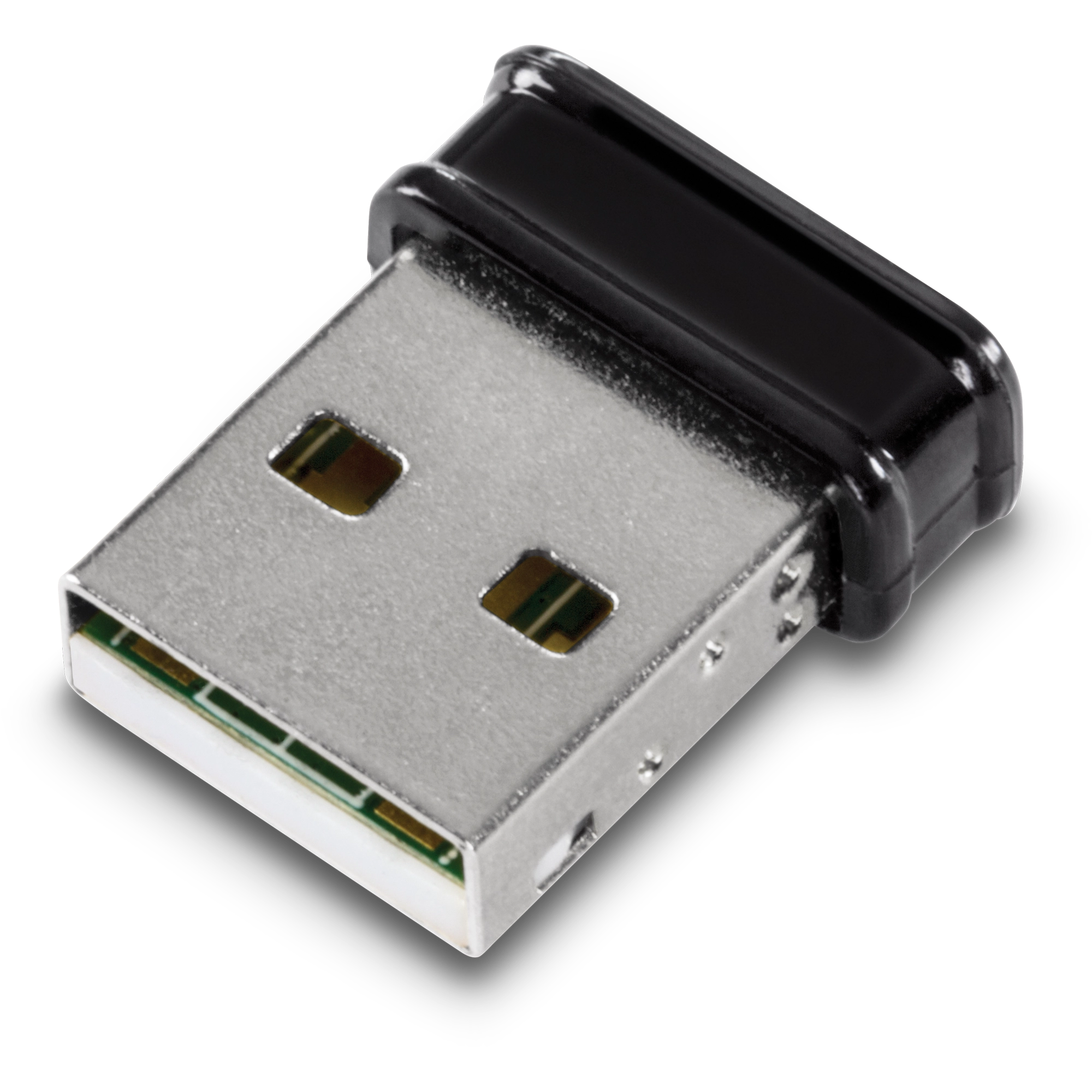

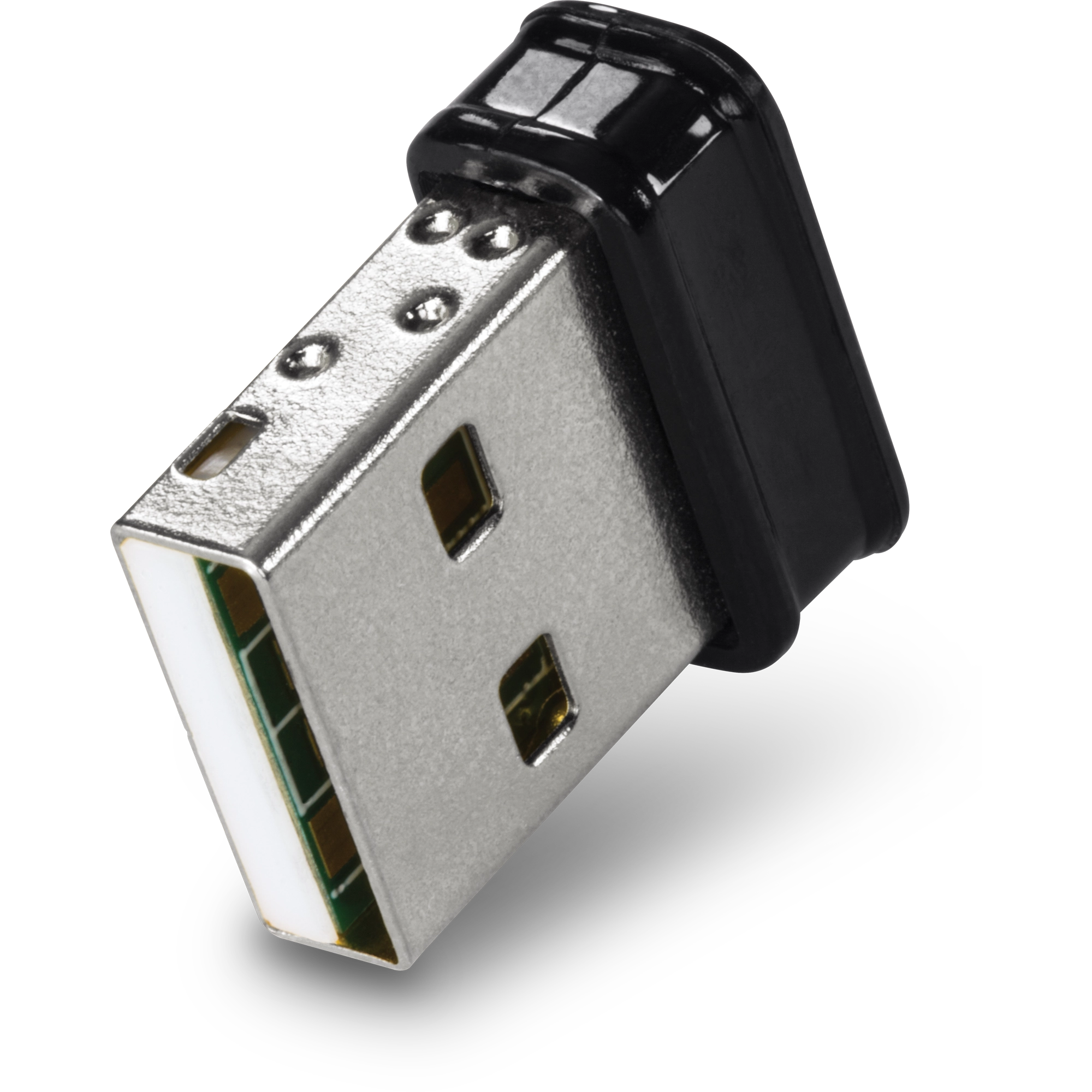

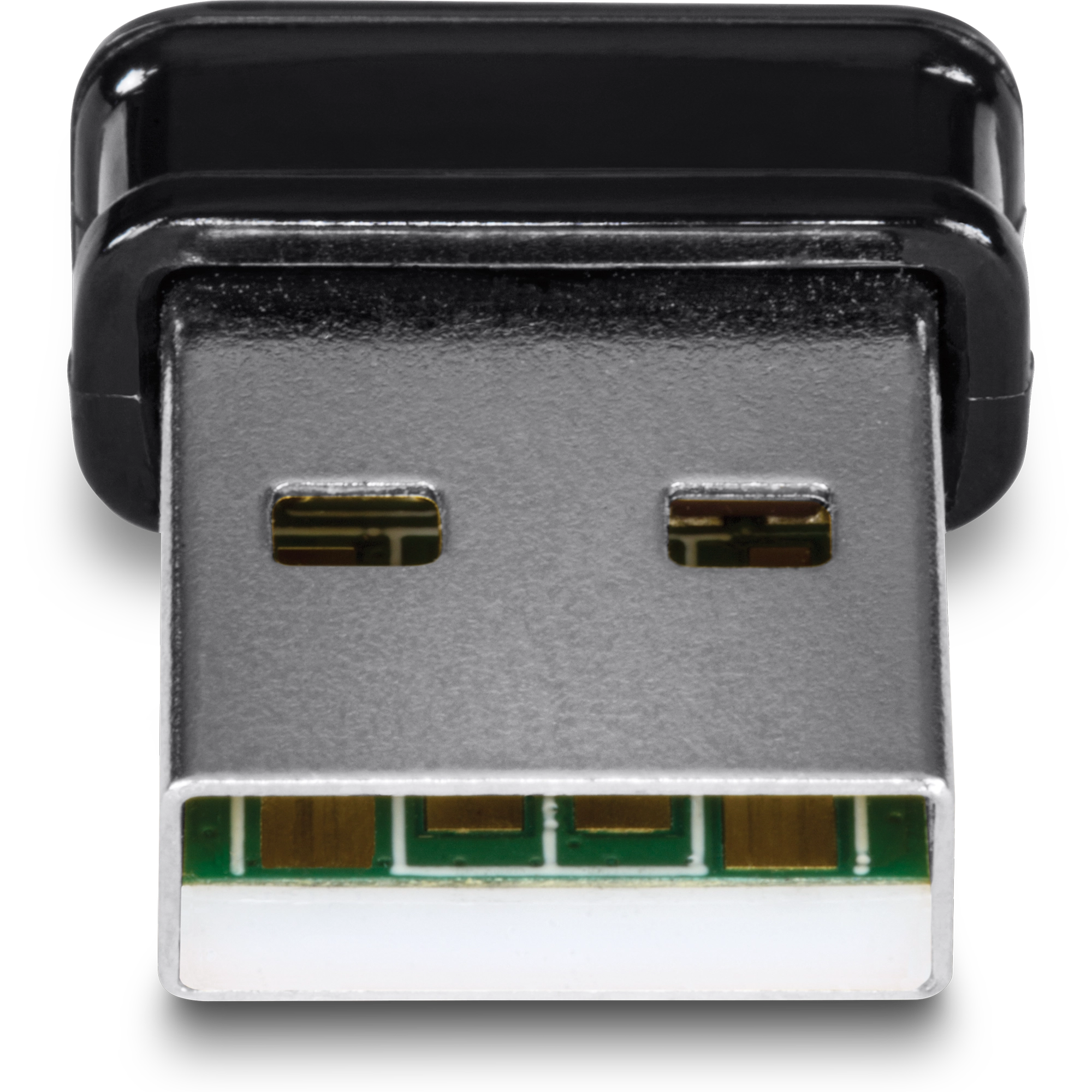

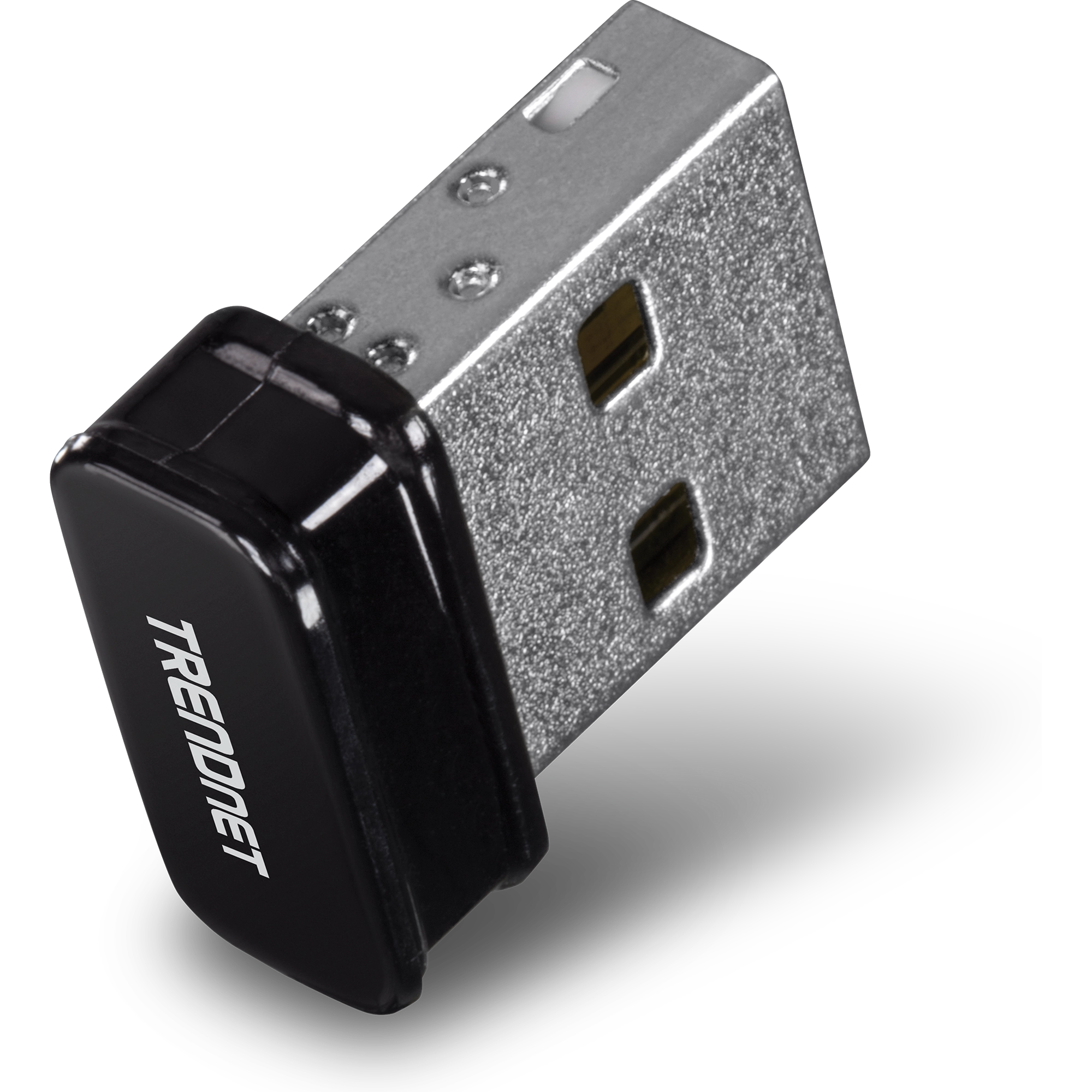

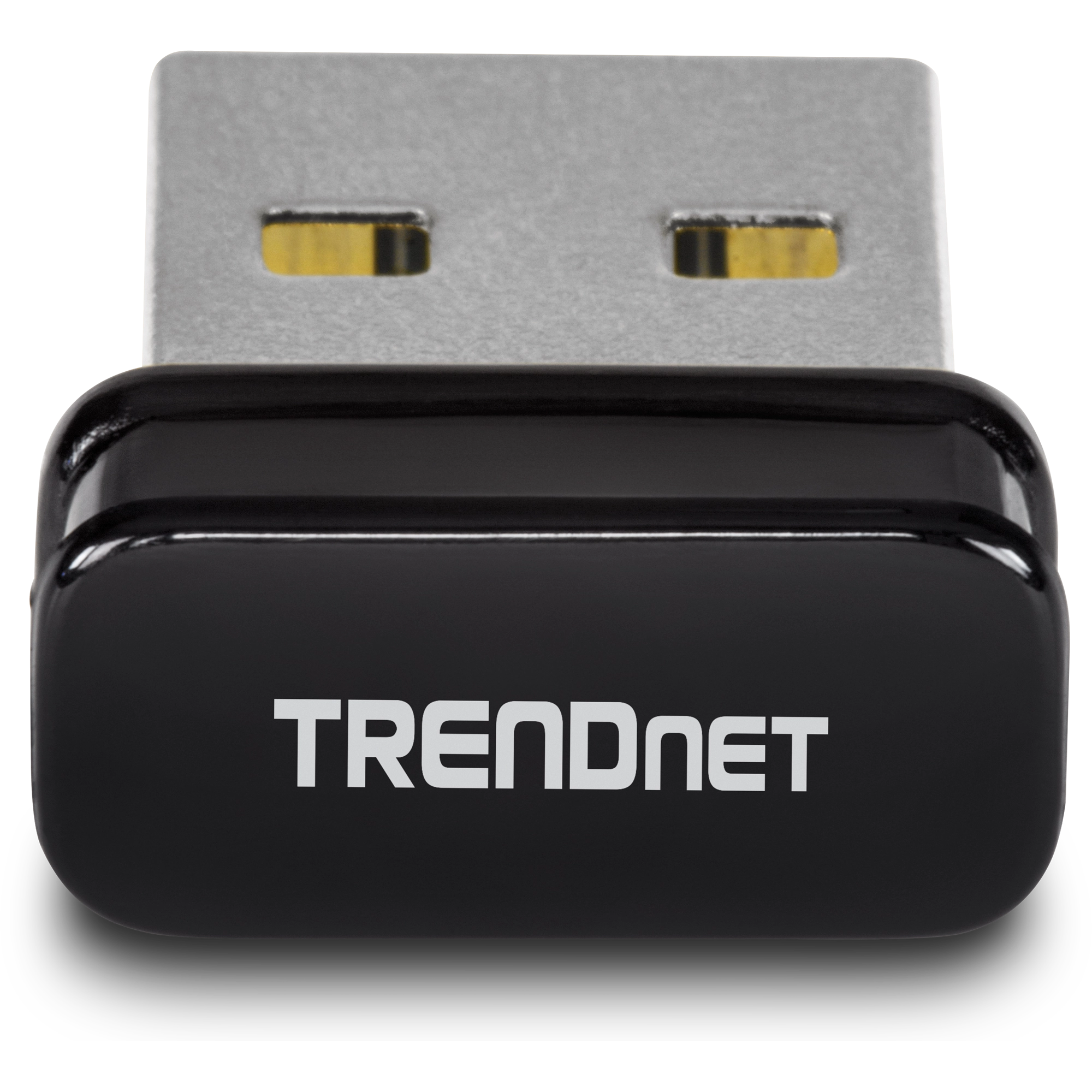

Micro N150 Wireless USB Adapter

TEW-648UBM (Version v2.0R)

  • Quick and easy setup
  • Ultra-compact high speed WiFi N150 adapter
  • Upgrade your laptop or desktop to wireless n
  • WMM Quality of Service (QoS) data prioritization
  • Supports Windows® and Mac® operating systems
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet's Micro N150 Wireless USB Adapter, model TEW-648UBM, connects a laptop or desktop computer to a high-speed WiFi N network. Seamlessly stream video, download files, and play games with this ultra-compact wireless n adapter. WiFi Multimedia Quality of Service prioritizes important video, audio, and gaming traffic.

A stylized representation of wireless encryption technology. At the bottom, there is a laptop with a speech bubble pointing towards a Wi-Fi signal icon and a shield icon with a padlock, indicating security. Inside the bubble, there is a Micro N150 Wireless USB Adapter.

Wireless Encryption

Supports up to WPA2 encryption.

Technical drawing showing a Micro N150 Wireless USB Adapter on the left, a vertical line with 7mm above it indicating a measurement, and a five-cent coin below with 5 in the center and FIVE CENTS written underneath, providing a sense of scale.

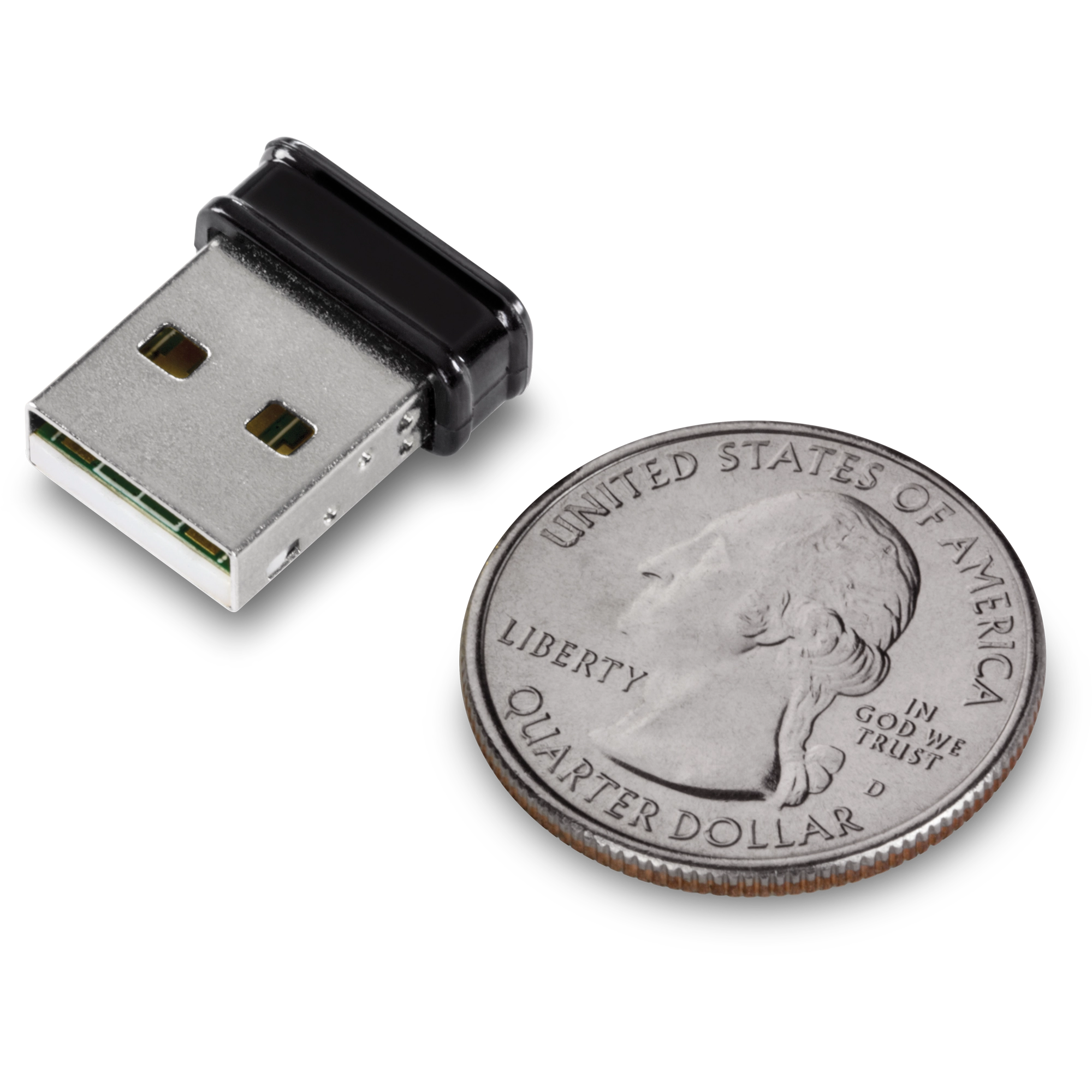

Ultra-Compact Design

Micro design length is just over a quarter inch (7mm).

Illustration of a Micro N150 Wireless USB Adapter at the top. Below it, a speech bubble contains various connected devices, including a gaming console, desktop computer monitor, and laptop, showing how the adapter connects multiple devices to a network.

WiFi Performance

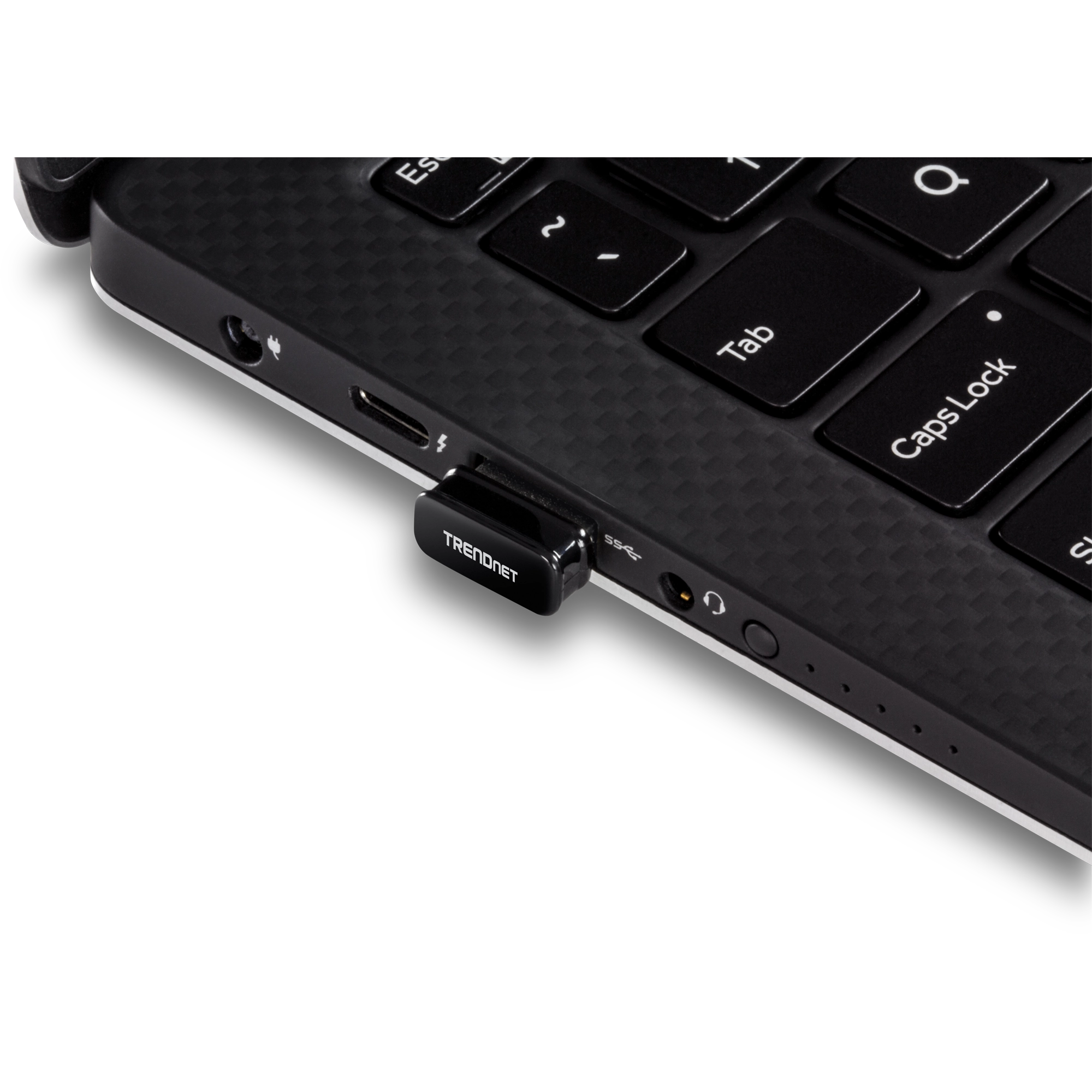

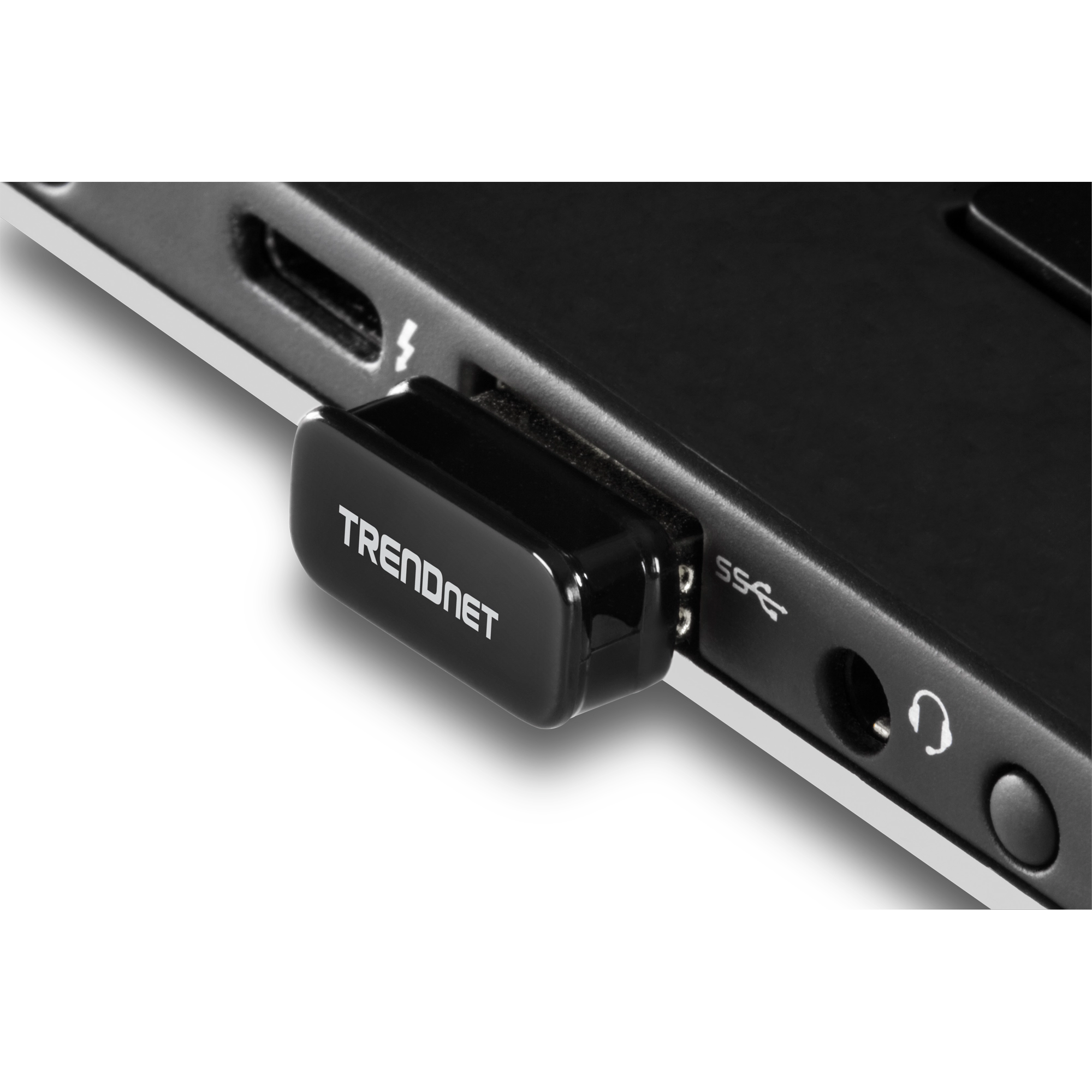

Connect your laptop or computer to high-speed WiFi N150 to download files, play games, stream video, and more.

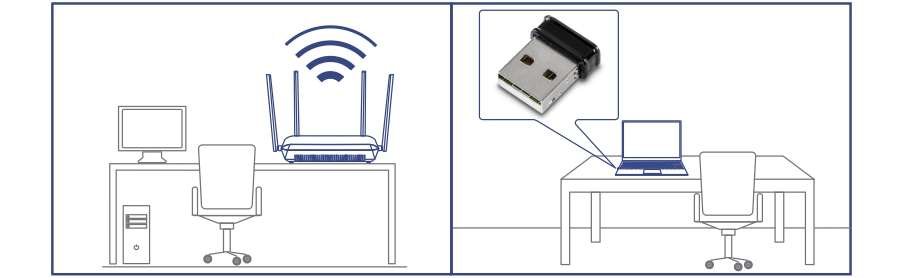

The illustration is divided into two sections. The left section depicts a desktop computer setup with a monitor, keyboard, mouse, and a Wi-Fi router emitting signals, indicating a wireless internet connection. The right section shows a laptop on a desk with a chair and a close-up of a USB Wi-Fi adapter being plugged into the laptop, suggesting the laptop is being connected to the internet wirelessly using the adapter.

Easy Setup

Get up and running in minutes with the intuitive guided setup

N150 WiFi

Connect your laptop or computer to high-speed WiFi N150 to download files, play games, stream video, and more

Wireless Encryption

Supports up to WPA2 encryption

Ultra-Compact Design

Micro design length is just over a quarter inch (7mm)

Operating Systems

Compatible with Windows®and Mac®operating systems

Interface
  • USB 2.0
Standards
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Power Consumption
  • Receive: 90mA (max.)
  • Transmit: 250mA (max.)
Supported OS
  • Windows® 10 (32/64-bit), 8.1 (32/64-bit), 8 (32/64-bit), 7 (32/64-bit)
  • Mac OS® 10.7-10.12
Antenna
  • Built-in on board antenna
Frequency
  • 2.4 ~ 2.48GHz
Modulation
  • OFDM, DSSS
Data Rate
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 150Mbps
Output Power
  • 802.11b: 17 ± 1.5dBm
  • 802.11g: 15 ± 1.5dBm
  • 802.11n: 14 ± 1.5dBm
Receiving Sensitivity
  • 802.11b: -81 ± 2dBm at 11Mbps
  • 802.11g: -71 ± 2dBm at 54Mbps
  • 802.11n: -65 ± 2dBm at 150Mbps
Encryption
  • 64/128-bit WEP, WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
Channels
  • 1~11 (FCC), 1~13 (ETSI)
Operating Temperature
  • 0° - 40 °C (32° - 104 °F)
Operating Humidity
  • Max 90% non-condensing
Dimensions
  • 17.5 x 15 x 7.3mm (0.7 x 0.6 x 0.29 in.)
Weight
  • 1.98g (0.07 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEW-648UBM
  • CD-ROM (Driver & User's Guide)
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
