1000BASE-T to SFP Fiber Media Converter

TFC-1000MGA (Version v2.0R)

1 x 100/1000BASE-T RJ-45 port
1 x 100/1000BASE-SX/LX SFP slot
LLCF support (Link Loss Carry Forward)
SFP slot accommodates multi-mode or single-mode modules
Functions as a standalone converter or with the TFC-1600 fiber chassis
Auto-MDIX 1000BASE-T RJ-45 port supports full-duplex mode
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

TRENDnet's 1000BASE-T to SFP Fiber Media Converter, model TFC-1000MGA, is a reliable Plug-and-Play SFP-to-Ethernet converter in a compact form factor. This versatile SFP media converter supports both Multi-Mode and Single-Mode fiber SFP modules for transmission distances of up to 120km (74.56 mi.).

The SFP slot and Gigabit Ethernet port both support 100Mbps and 1000Mbps transmission speeds. Diagnostic LEDs on the front of the converter convey device status. Our TFC-110 and TFC-1000 series fiber converters can be installed as standalone units, or they can be used with TRENDnet's expandable 16-Bay Fiber Converter Chassis System (model TFC-1600).

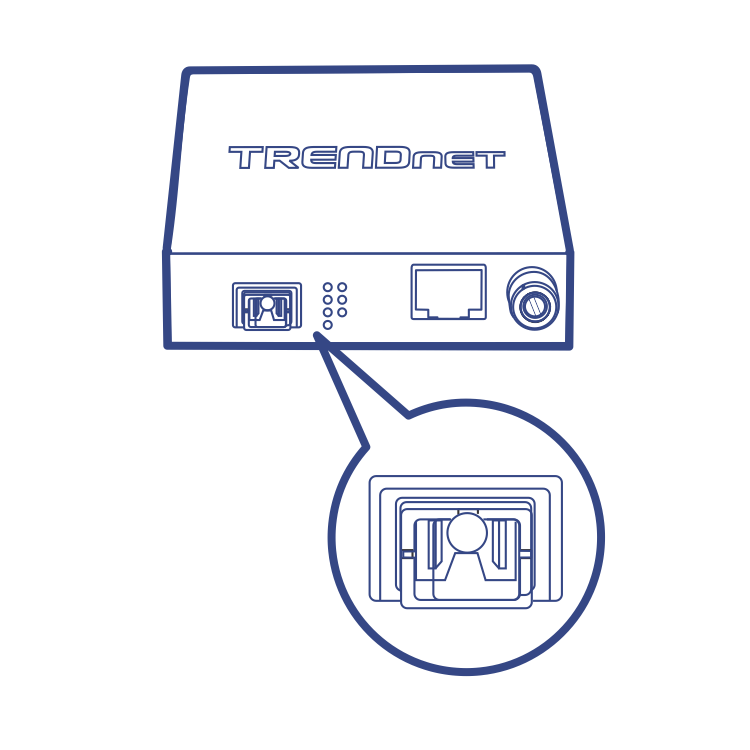

A line drawing of a device with a Dual-Speed SFP (Small Form-factor Pluggable) Slot, highlighting its rectangular shape and internal port structure.

Dual-Speed SFP Slot

Dual-speed SFP slot supports both 100Mbps and 1000Mbps SFP modules.

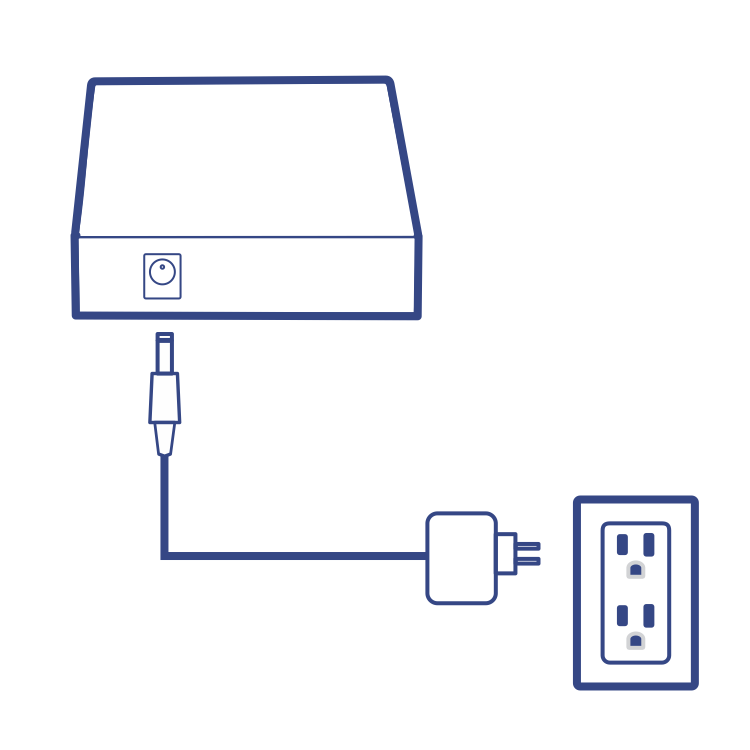

Power Adapter

The SFP fiber converter Includes a power adapter for standalone use.

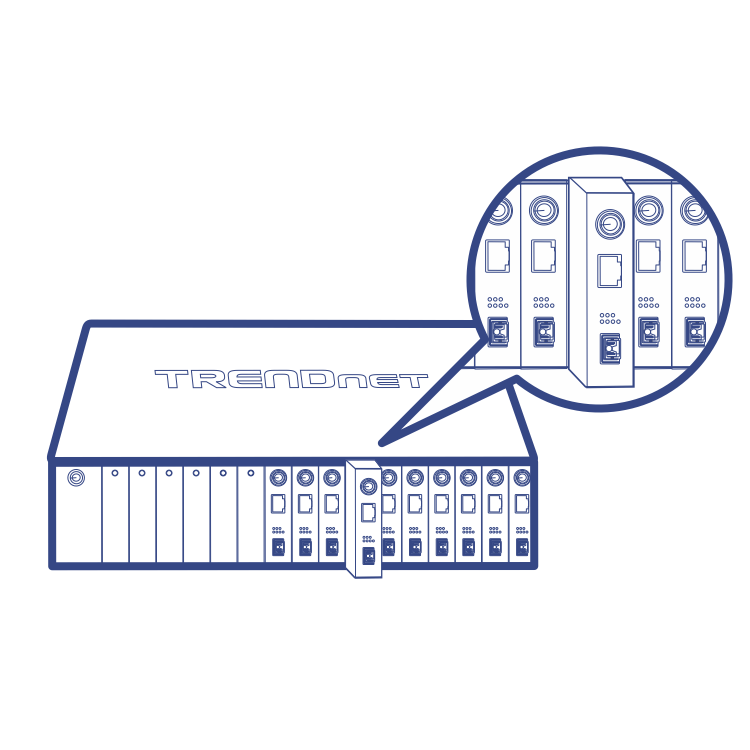

Depiction of a TRENDnet TFC-1600 Chassis, featuring the front panel with various slots and indicators. The image emphasizes that the chassis can operate independently or be integrated.

TFC-1600 Chassis Compatible

Functions as a standalone SFP media converter, or can be used with TRENDnet's expandable 16-Bay Fiber Converter Chassis System, model TFC-1600 (sold separately).

A TRENDnet TFC-1000MGA media converter is connected to four switches on each side. The media converter features ports for fiber optic and Ethernet connections, demonstrating its integration within the network setup.

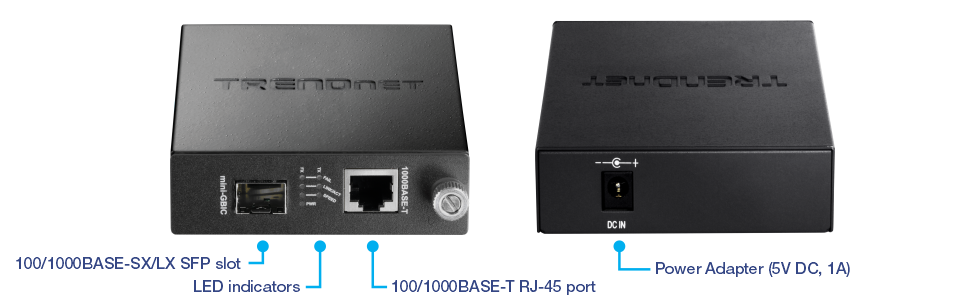

Network Ports

1 x 100/1000Mbps RJ-45 copper port and 1 x 100/1000Mbps dual-speed SFP slot

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Compact Design

Small, compact, and lightweight metal housing provides greater installation flexibility

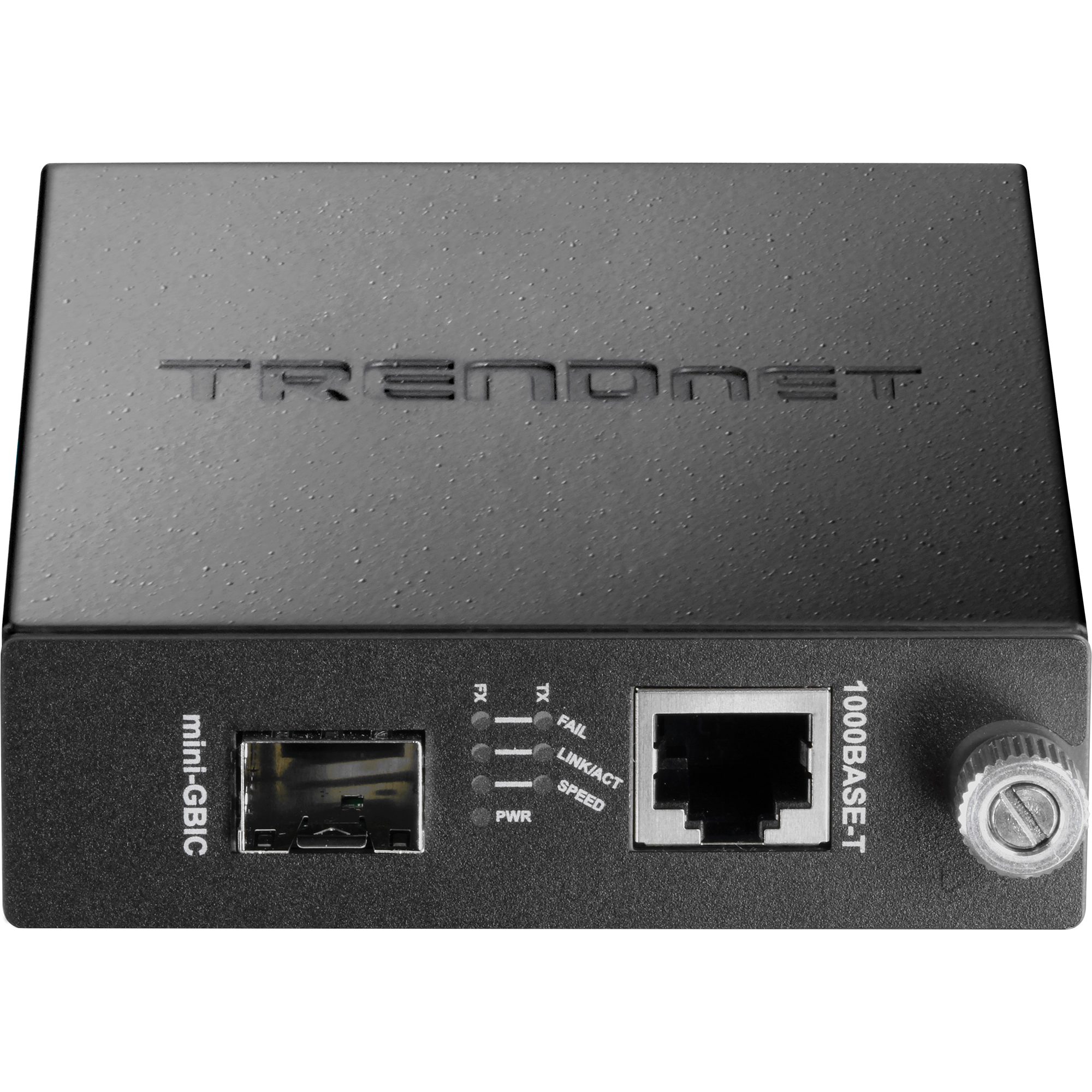

LED Indicators

LED indicators convey port status

Fiber Wavelength

Compatible with multi-mode and single mode transmissions

Standards	IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3u (100Base-FX) IEEE 802.3ab (1000Base-T) IEEE 802.3z (1000Base-SX/LX)
Device Interface	1 x Gigabit port 1 x 100/1000Base-SX/LX Mini-GBIC slot for optional SFP modules LED indicators
Network Media	10/100Base-TX: Cat.5 EIA/TIA-568 100-ohm UTP/STP, up to 100m 1000Base-T: Cat.5e or Cat.6 EIA/TIA-568 100-ohm UTP/STP, up to 100m Multi-mode ﬁber optic cable 50/125 µm, up to 550m Multi-mode ﬁber optic cable 62.5/125 µm, up to 220m Single-mode ﬁber optic cable 9/125 µm, up to 120km (TEG-MGBS120)
Protocol	CSMA/CD
Dip Switch	LLCF (enable & disable)
Data Transfer Rate	Gigabit Ethernet: 2000 Mbps (full duplex)
Jumbo Frame	Up to 10KB
Power	Input: 100 – 240V AC, 50 – 60Hz, 0.2 A Output: 5 V DC, 1A external power adapter Consumption: 2.63 W (max.)
Special Features	Support LLCF (Link Loss Carry Forward) and built-in LLR (Link Loss Return) Status LED indicators for Power and Link/Activity Wall mountable Optional 19” system chassis (TFC-1600), houses up to 16 TFC-100/1000 series Media Converters
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	120 x 88 x 25mm. (4.7 x 3.46 x 0.98 in.)
Weight	280g (9.8 oz.)
Certiﬁcations	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TFC-1000MGA
Quick Installation Guide
Power Adapter (5V DC, 1A)
