Home Smart Switch (with WiFi AC750 Extender)

THA-103AC (Version v1.0R)

Quick app-based setup
Turn a device on/off from any mobile internet connection
Create a weekly on/off schedule
AC750 extender: connects to either a WiFi AC or N router
AC750 extender: broadcasts concurrent WiFi AC433 and N300 networks
Free iOS^® and Android^™ app
Requires a home wireless network

DISCONTINUED PRODUCT

The THA-103AC (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's Home Smart Switch with WiFi AC Extender, model THA-103AC, is a combination smart electrical outlet and powerful AC750 wireless extender. Use the free Apple^® or Android^™ mobile app from any internet connection to turn on and off a light, fan, electronic device, or appliance. Create a daily schedule to turn on/off the outlet to match your needs or to give the illusion that you're home. Place the THA-103AC in an area of your home with low wireless coverage – the powerful built-in WiFi extender connects to either an existing WiFi AC or WiFi N router and broadcasts two concurrent WiFi AC433 and N300 networks.

A person is using a smartphone to control a device, with a cup and saucer in the background. Next to the smartphone, there is a wireless AC750 device plugged into a wall outlet, with an on/off label and a floor lamp nearby.

Remote On/Off

Create a weekly schedule or turn a light, or other device, on/off from an Android or iOS mobile device with TRENDnet's free app

A person is holding a tablet device with both hands, with a large red power button icon displayed in the center of the screen. The text above the icon reads Power Button. The person, dressed in a suit, appears to press the icon with their right index finger, while a wooden surface is visible in the background.

Power Protection

See how much power your device is consuming with real-time electrical consumption stats and overcurrent protection

The illustration shows three people: a man on the left holding and looking at a tablet, a woman in the middle also using and looking at a tablet, and a woman on the right holding and looking at a smartphone.

Blasts Away Deadspots

Connects to either a WiFi AC or N network and broadcasts concurrent WiFi AC433 and N300 networks into an area with low or no coverage.

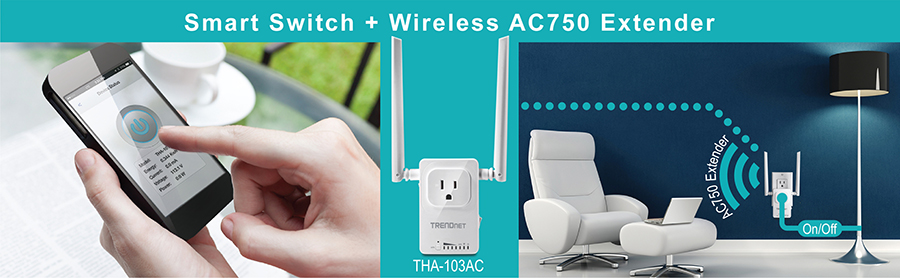

A person uses a smartphone to control a smart switch and wireless extender. The smartphone screen shows an app interface with a large power button. In the center, the THA-103AC smart switch with two antennas is plugged into a wall outlet. To the right, a modern living room setup includes a white chair, a small table, and a floor lamp connected to the smart switch, highlighting remote control functionality.

Quick App-Based Setup

Complete the intuitive app-based setup in minutes

Remote Power Control

Turn a light, fan, electronic device, or appliance on/off from any mobile internet connection

On/Off Schedule

Create a weekly on/off schedule for a light, fan, or another device to match your needs or to give the illusion that you're home

No Clutter

The compact form factor stays off the ground by plugging directly into an outlet

Free App

TRENDnet's free iOS® and Android™ app controls multiple THA-103AC units and other TRENDnet home control devices from any internet connection

Power Consumption

See how much power your device is consuming with real-time electrical consumption information listed within the app

Over Current Protection

Trips relay when current exceeds 15 Amps

Wireless Extender

AC750 WiFi Extender

Connects to either an existing WiFi AC or WiFi N router and broadcasts two concurrent WiFi AC433 and N300 networks

External Antennas

Powerful external dual band antennas maximize WiFi coverage

One Touch Connection

Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

LED Indicators

LED indicators convey device status

Compatibility

Works with legacy routers

Smart Home App	Quick in-app installation Power on/off the electrical outlet from any internet connection Create weekly on/off electrical outlet schedule View real time power consumption: Energy (KWh), current (A), voltage (V), power (W) Manage multiple units from the app
Hardware Standards	IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps) IEEE 802.11ac (up to 433 Mbps)
Device Interfaces	Electrical outlet WPS Button Power switch LED indicators Reset button
Special Features	Overcurrent protection Requires existing wireless network in order to function
Encryption	Wireless encryption: WEP, WPA/WPA2-PSK
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	5 GHz: 4.5 dBi 2.4 GHz: 3.5 dBi, 4.1 dBi 5.15 – 5.35 GHz, 5.47 – 5.825 GHz 2.412 - 2.484 GHz
Wireless Channels	5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; CE: 36, 40, 44, 48 2.4 GHz: FCC: 1 -1 1; CE: 1 - 13
Modulation	802.11b: DSSS with DBPSK, DQPSK and CCK 802.11g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: OFDM with BPSK, QPSK and 16/64-QAM 802.11ac: OFM with BPSK, QPSK, 16-QAM
Wireless Output Power (EIRP)/Receiving Sensitivity (CE)	802.11b: 18.1 dBm /-80 dBm (typical) @ 11 Mbps 802.11g: 19.1 dBm)/-68 dBm (typical) @ 54 Mbps 802.11n: 19.1 dBm)/-62 dBm (typical) @ 300 Mbps 802.11a: 19.5 dBm)/-70 dBm (typical) @ 54 Mbps 802.11an: 17.5 dBm /-65 dBm (typical) @ 150 Mbps 802.11ac: 17.5 dBm)/-55 dBm (typical) @ 433 Mbps
Wireless Output Power (EIRP)/Receiving Sensitivity (FCC)	802.11b: 21.1 dBm/-80 dBm (typical) @ 11 Mbps 802.11g: 21.1 dBm /-68 dBm (typical) @ 54 Mbps 802.11n: 21.1 dBm /-62 dBm (typical) @ 300 Mbps 802.11a: 19.5 dBm)//-70 dBm (typical) @ 54 Mbps 802.11an: 16.5 dBm)/-65 dBm (typical) @ 150 Mbps 802.11ac: 16.5 dBm)/-55 dBm (typical) @ 433 Mbps
Power	100 - 240 V AC, 50/60 Hz Consumption: 6 Watts max. (not including electrical outlet)
Power Capacity	US: 1800 Watts, 15 Amps EU/UK: 3120 Watts, 13 Amps
Operating Temperature	0 - 40 °C (32 – 104 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	94 x 59 x 37 mm (3.7 x 2.4 x 1.5 in.) without antennas 218 x 114 x 38 mm (8.6 x 4.5 x 1.5 in.) with antennas
Weight	US: 176 g (6.2 oz.) UK: 202 g (7.1 oz.) EU: 194 g (6.4 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

THA-103AC
Quick Installation Guide
CD-ROM (User's Guide)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
