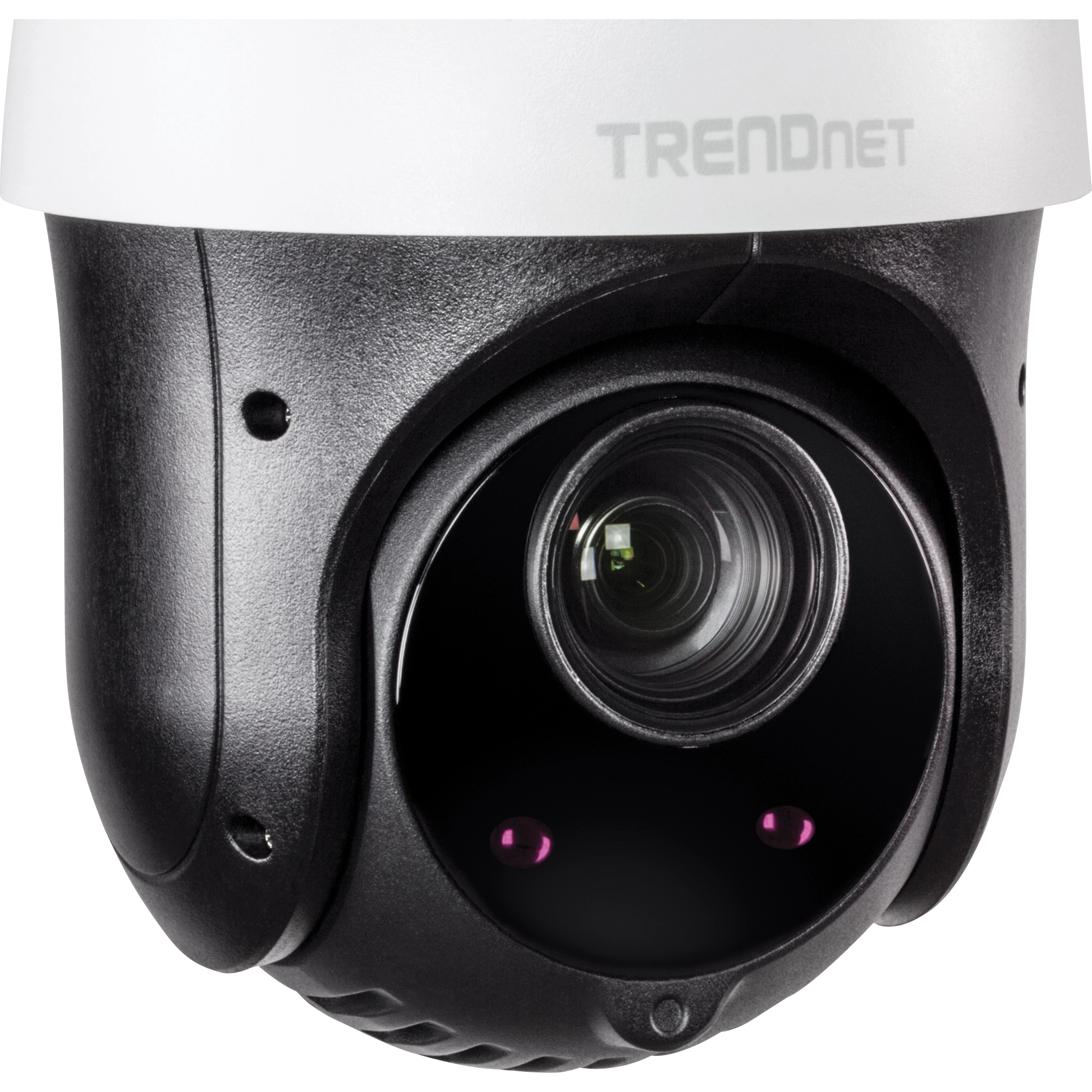

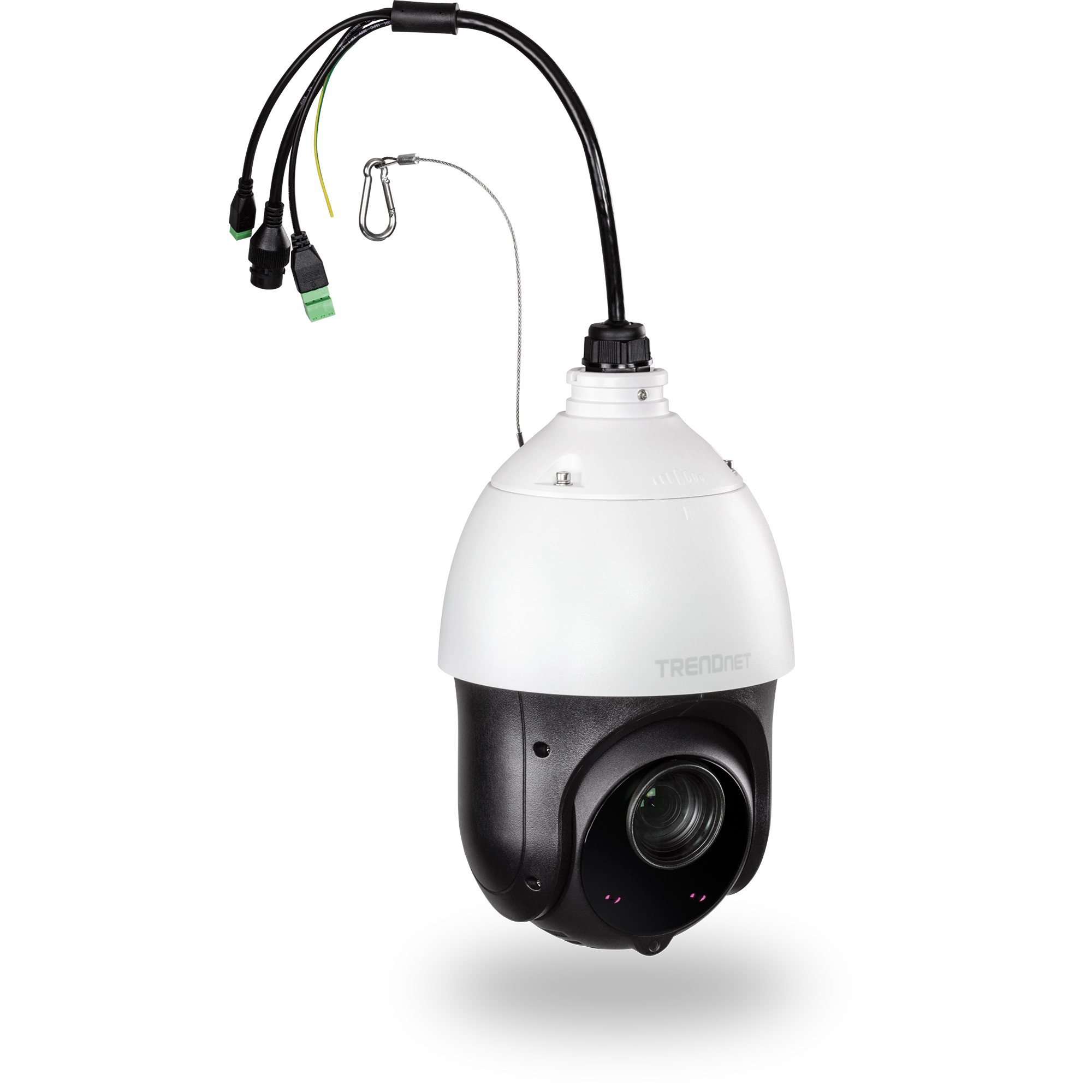

Indoor / Outdoor 2MP 1080p PoE+ IR PTZ Speed Dome Network Camera

TV-IP440PI (Version v1.0R)

2MP 1080p HD resolution
Endless 360° pan / 90° tilt with auto-flip
20x optical zoom and 16x digital zoom
Intelligent 3D Zoom
Auto-Focus and Auto-Iris Lens
Night vision up to 100 meters (328 ft.)
Outdoor IP66 weather rating
Save installation costs with Power over Ethernet (PoE)
Digital Wide Dynamic Range image balancing
Program motion detection recording and email alerts
MicroSD card slot (up to 128GB)
Free iOS^® and Android^™ mobile apps

TRENDnet's Indoor/Outdoor 2MP 1080p PoE+ IR PTZ Speed Dome Network Camera, model TV-IP440PI, provides day and night surveillance with a night vision range of up to 100 meters (328 ft.) This speed dome network camera delivers year-round surveillance with an IP66 weather rated housing to withstand harsh environments. A built-in 20x optical zoom lens allows you to adjust the field of view to meet your installation needs. Record 1080p video (1920 x 1080) at 30 fps in a space saving H.264 compression format. Manage TRENDnet cameras with included complimentary software and mobile apps.

Two surveillance cameras are connected to a network switch. The cameras have lightning bolt icons, indicating they are powered by Power over Ethernet (PoE+). The network switch has multiple ports and is linked to both cameras, showing a setup where power and data are transmitted through the same Ethernet cables. This setup highlights the convenience and efficiency of PoE+ technology in surveillance systems.

PoE+

PoE offers cost savings and the flexibility to install this outdoor speed dome camera up to 100m (328 ft.) from the PoE+ source equipment.

A magnifying glass focusing on the rear view of a car, highlighting the license plate area. In the background, a computer monitor displays the same rear view of the car. This suggests a detailed examination or analysis of the car's license plate, possibly for identification or verification.

Optical Zoom Lens

A built-in 20x optical zoom lens allows you to manually adjust the field of view from 58.3° – 3.2° to achieve the perfect viewing field for your installation.

The illustration depicts two icons side by side. The first icon, on the left, shows several raindrops representing water resistance. The second icon, on the right, features a cloud with small dots, signifying dust resistance. These icons emphasize the product's durability in outdoor conditions.

Outdoor Ready

Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° – 65°C (-22° – 149°F).

Optical Zoom Lens

A built-in 20x optical zoom lens allows you to manually adjust the field of view from 58.3° – 3.2° to achieve the perfect viewing field for your installation

2 Megapixel

Record 1080p (1920 x 1080) HD video at 30 fps in the space saving H.264 compression format

Smart IR Night Vision

Smart IR dynamically adjusts the IR LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away. Night vision up to 100 meters (328 ft.)

Continuous PTZ

Endless 360° variable speed pan and 90° tilt with auto-flip

PoE+

Save installation costs with Power over Ethernet (PoE)

IP66 Rating

Outdoor IP66 weather rated housing

Additional Mounting Bracket Required

Separate mounting bracket required—install with TRENDnet's TV-HC400, TV-HW400, TV-HP400, or TV-HN400

Storage

Record video to a network storage device or to a Micro SD card (up to 128GB sold separately)

Advanced Playback

Advanced in-camera archived video review functionality

Motion Detection

Create custom motion detection zones to record video and send email notifications when a zone is triggered

Tamper Detection

Create custom tamper detection zones to send an email notification when the camera view has been obstructed

Digital Wide Dynamic Range (D-WDR)

Adjustable D-WDR setting improves image quality and focusing when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible

Recording Flexibility

Define custom schedules using continuous (24/7) and/or event based recording modes

Audio Support

Audio input/output for third party microphone and speaker (sold separately)

IPv6

IPv6 support

Complimentary Software

Complimentary pro-grade software to manage TRENDnet cameras

Lens	Focal length: 4.7 - 94 mm Focal depth: 10 – 1,000 mm (Wide-Tele) Aperture: F1.6 – 3.5 (Wide - Tele) Sensor: 1/2.8” Progressive Scan CMOS Focus: auto, semi-auto, and manual
Viewing Angle	Horizontal: 58.3 – 3.2° (Wide – Tele)
Zoom	Optical: 20x Digital: 16x Speed: 3s
Pan/Tilt	Pan: endless 360° Tilt: -15 - 90° (auto flip) Pan speed: (manual) 0.1 - 80°/s, (preset) 80°/s Tilt speed: (manual) 0.1 - 80°/s, (preset) 80°/s Number of presets: 300 Patrol: 8 patrols, up to 32 presets per patrol
Minimum Illumination	IR off: color: 0.05 lux, B/W: 0.01 lux IR on: 0 lux 100 m IR illumination distance Smart IR: automatically adjusts wide angle and narrow focus IR to match zoom ratio
Video	Digital Wide Dynamic Range (DWDR) Backlight Compensation (BLC) 3D Digital Noise Reduction (DNR) Shutter speed: 1 - 1/10,000s H.264 resolution: 1920 x 1080 up to 25 fps MJPEG resolution: 1920 x 1080 up to 25 fps
Audio	2-way audio supported (mic and speaker not included) External microphone line in / speaker line out
Micro SD	Up to 128 GB micro SD card support
Hardware Standards	IEEE 802.1X IEEE 802.3 IEEE 802.3u IEEE 802.3at

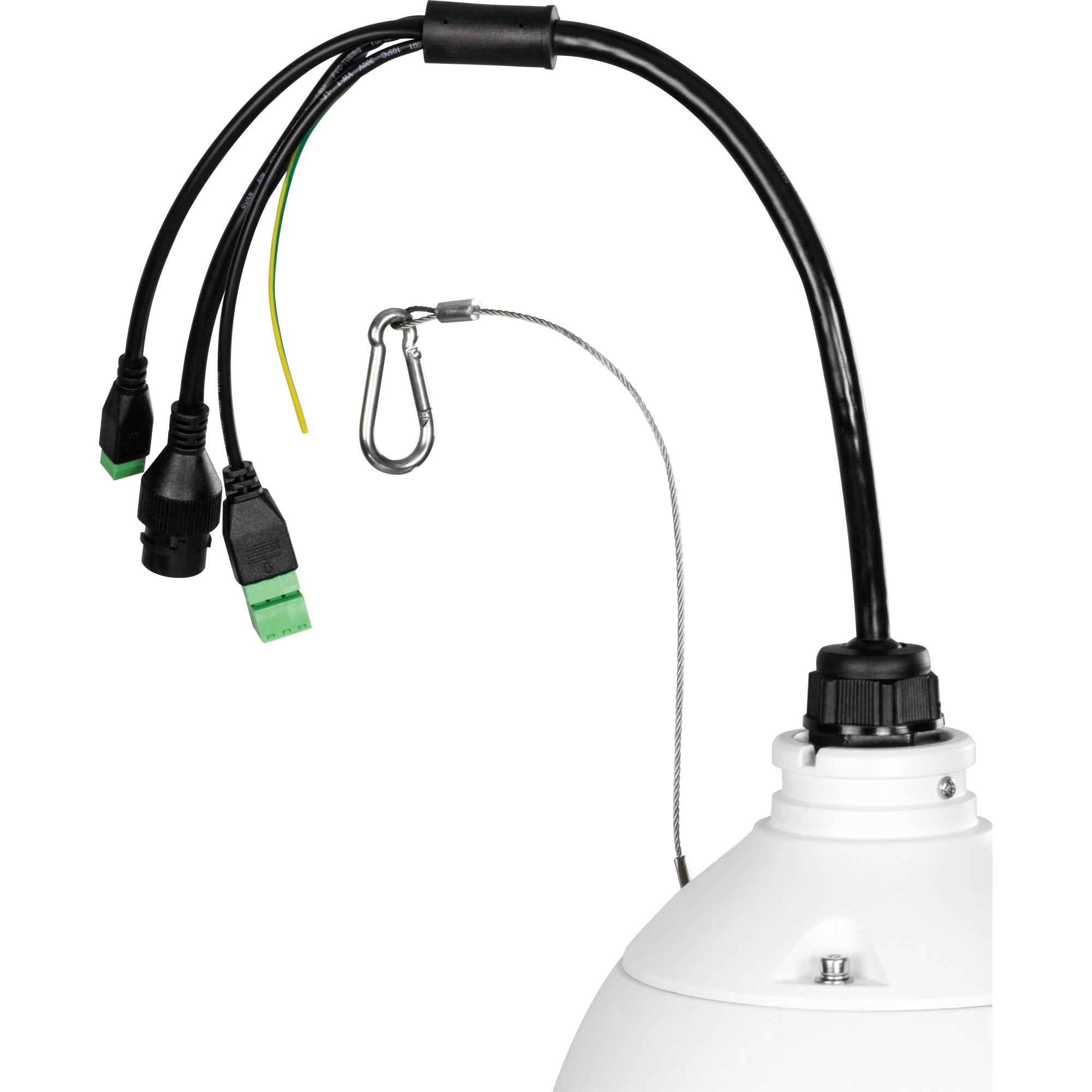

Device Interface	10/100 Mbps PoE+ port Power connector (for non-PoE installation) Audio I/O port (in/out/ground) Micro SD card slot (128GB max.)
Input / Output	Audio input: 1 audio line in, 2 – 2.4 V; impedance: 1000 Ω, ± 10% Audio output: 1 output line out, impedance: 600 Ω
Housing	Weather rating: IP66 TVS 4,000 V lightning, surge, and voltage transient protection Built-in automatic heater for cold weather conditions
Network Protocol	IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2 DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3) CIFS/SMB, NFS HTTP, HTTPS PPPoE UPnP, RTSP, RTP
Power	Input: PoE+ (IEEE 802.3at) Consumption: Max. 20W
Optional Power Brick	Input: 100 – 240V AC , 50/60Hz 1.6A Output: 12V DC, 2A external power brick Required regional power cord not included
Operating Temperature	-30 - 65 °C (-22 - 149 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	295 x 165 x 165 mm (11.6 x 6.5 x 6.5 in.)
Weight	2 kg (4.4 lbs.)
Required Mounting Accessories (not included)	Ceiling mount: TV-HC400 Pole mount: TV-HP400 Wall mount: TV-HW400 Corner mount: TV-HN400
Management Interface	Multi-language support: English, French, German, Spanish and Portuguese Time, date, and text overlay Image settings: brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, smart IR, video standard, day/night switch, sensitivity, mirror, slow shutter, D-WDR, lens initialization, BLC, white balance, digital noise reduction, noise reduction level, Defog mode, zoom limit, HLC DWDR enhances video quality in high contrast daytime lighting 3D DNR Digital Noise Reduction enhances night vision quality Scheduled recording: continuous and motion detection Video storage: to computer, NAS, CIFS/SMB share, NFS, Micro SD card, FTP server, or through software Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis Smart privacy masks: custom privacy masks are fixed to an area of interest as the camera pans and tilts Tamper detection: email notification if the viewing field is suddenly obscured Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings Alert messages: storage full, storage error, and illegal login Snapshot: real time snapshot, motion detection with schedule, tamper detection with schedule Supported dynamic DNS services: dyn.com and No-IP.org Management Setting: maximum 32 user accounts Supports remote management Storage logs: Alarm, Exception, Operation, and others Compatibility: Internet Explorer^® 9.0 or higher
TRENDnetVIEW Pro Software	Supports up to 16 TRENDnet cameras Multiple language support Set recording options (motion detection, schedule, event trigger) Search and playback Custom viewing modes and options Compatibility: Windows^® 8.1, 8, 7, Vista, XP, Windows Server^® 2003, 2008, 2012
TRENDnetVIEW App	Free iOS^® and Android^™ app View your camera on your mobile device Take snapshots Pan/Tilt/Zoom
Warranty	3 year

PACKAGE CONTENTS

TV-IP440PI
CD-ROM (Software & User's Guide)
Quick Installation Guide

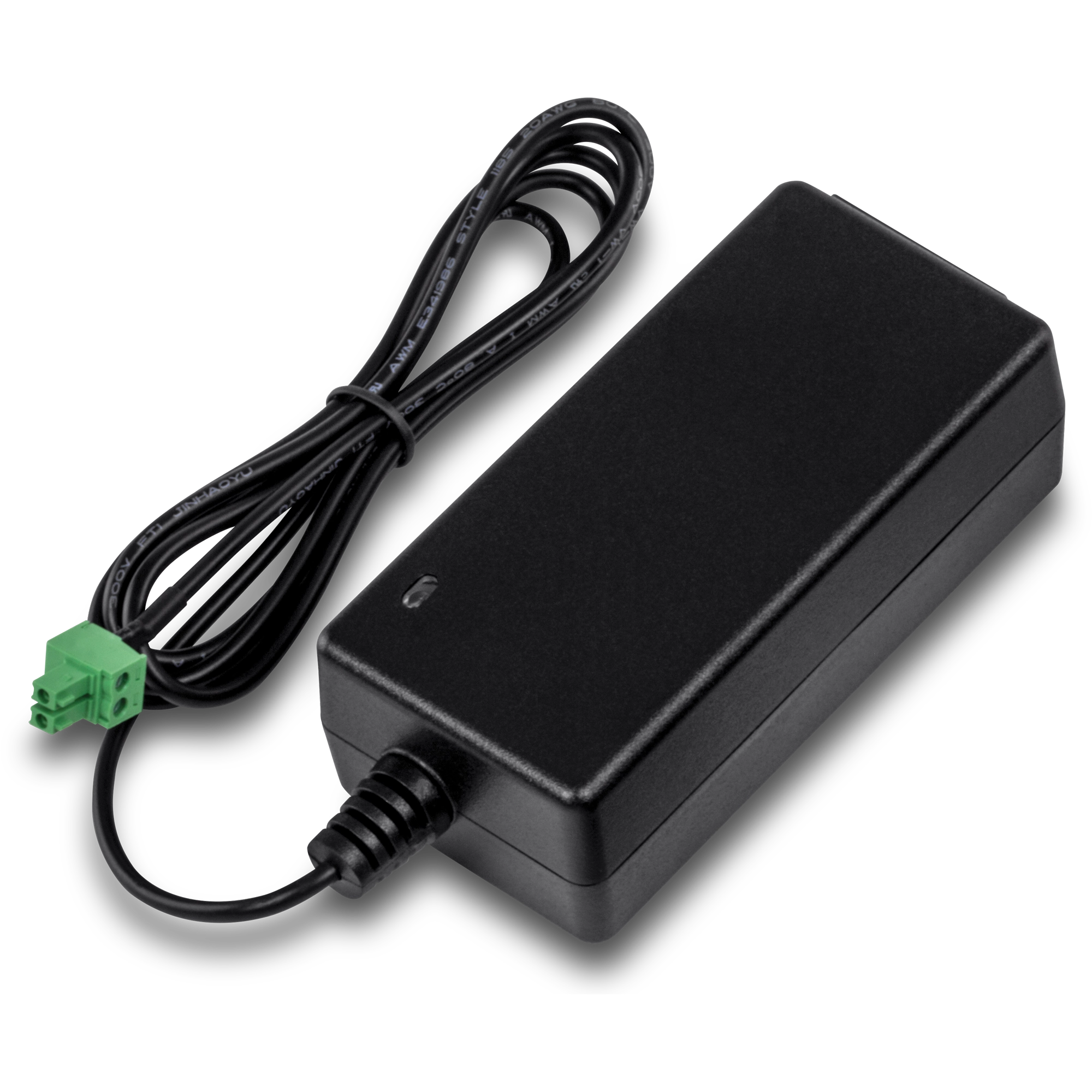

Power brick (12V DC, 2A)

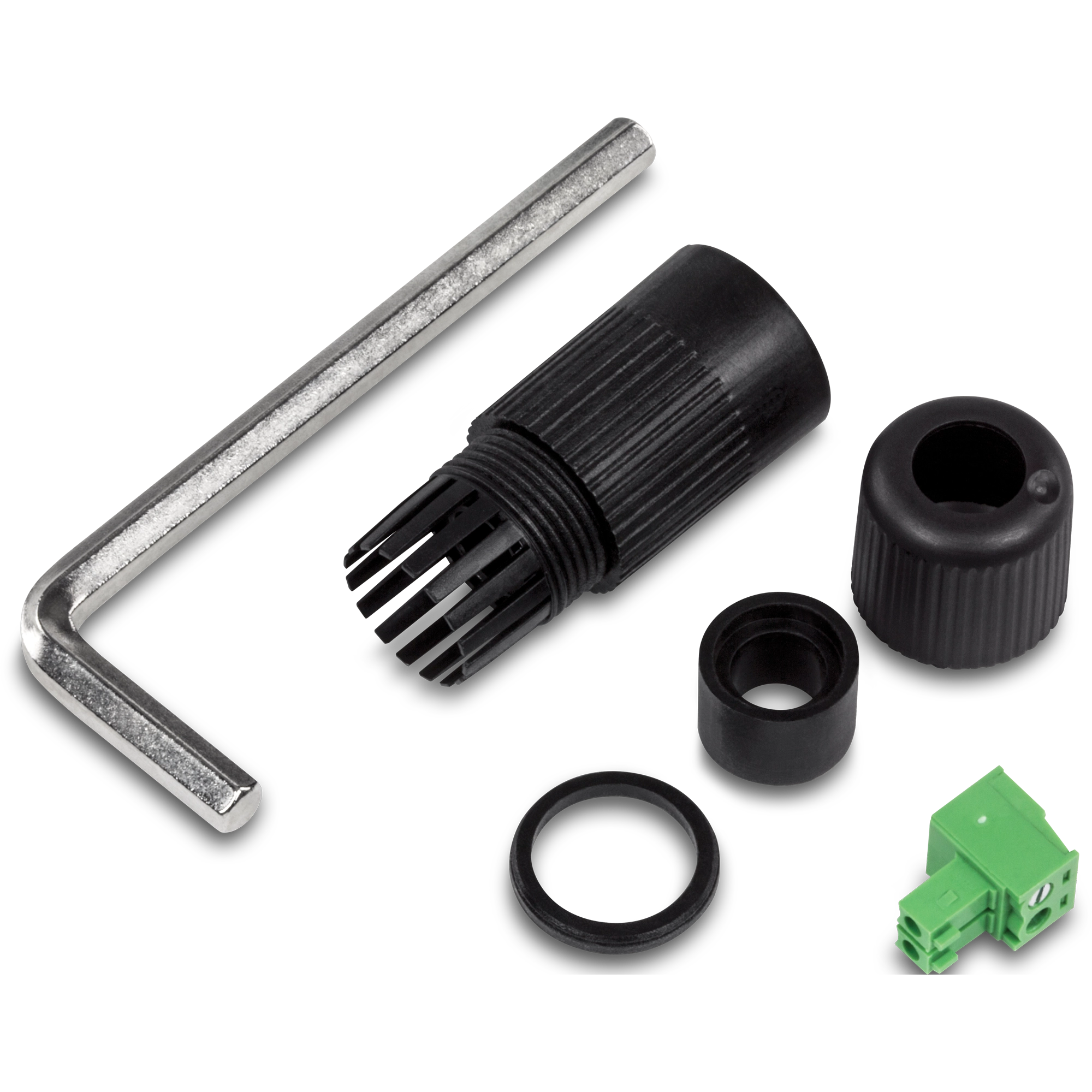

Accessories

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
