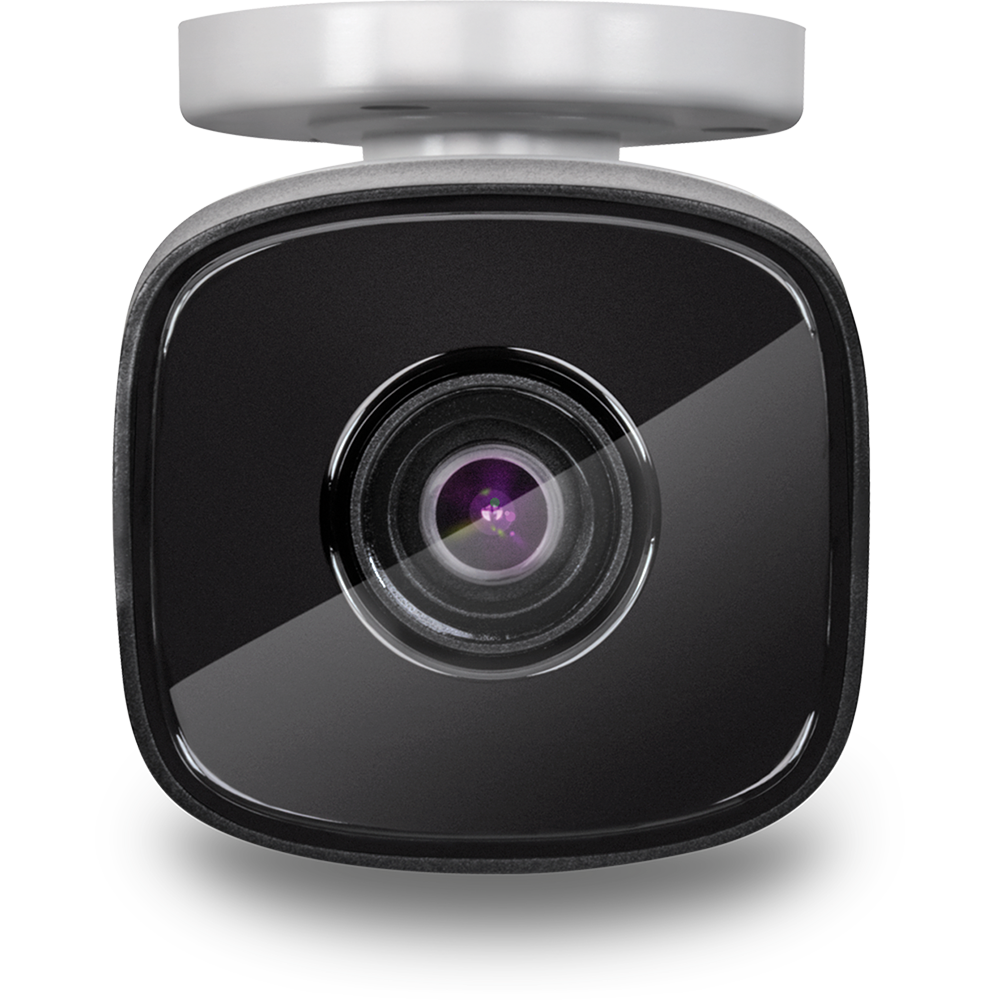

Indoor/Outdoor 4MP H.265 PoE IR Bullet Network Camera

TV-IP328PI (Version v1.0R)

4MP HD video (2560 x 1440) at 20 fps
Night vision up to 30m (98 ft.)
Outdoor IP67 weather rated housing
Save installation costs with Power over Ethernet (PoE)
120dB Wide Dynamic Range image balancing
Program motion detection with email alerts
Free iOS® and Android™ mobile apps

TRENDnet's Indoor/Outdoor 4MP H.265 PoE IR Bullet Network Camera, model TV-IP328PI, provides day and night surveillance with a night vision range of up to 30m (98 ft.) This IR bullet network camera delivers year-round surveillance with an IP67 weather rated housing designed for outdoor environments. Stream 4MP HD video (2560 x 1440) at 20 fps in bandwidth saving H.265 compression format with included complimentary software and mobile apps.

Day/Night HD Surveillance

Stream 4MP HD video in H.265 compression with a 30m (98 ft.) night vision range for 24-hour surveillance monitoring.

Power over Ethernet (PoE)

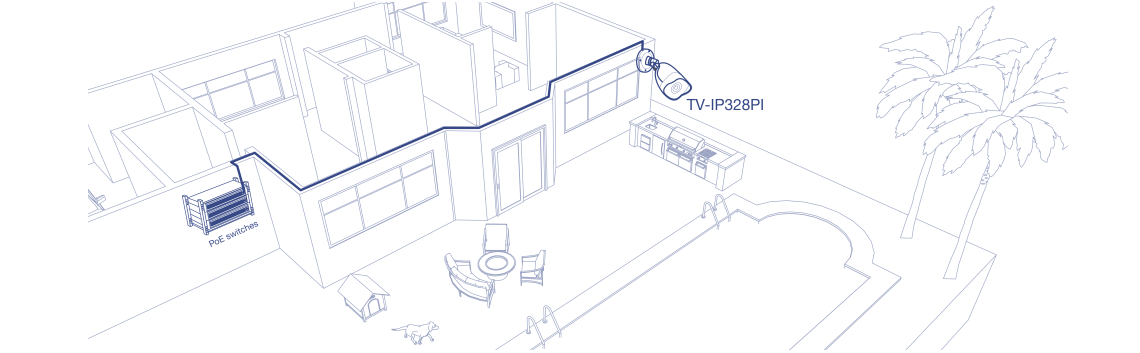

PoE offers cost savings and the flexibility to install this outdoor IR bullet camera up to 100m (328 ft.) from the PoE source equipment.

Outdoor Ready

Built for outdoor environments with an IP67 weather rating and an operating temperature range of -30° – 50° C (-22° – 122° F).

Features

4 Megapixel

Stream 4MP HD video (2560 x 1140) at 20 fps in bandwidth saving H.265 compression format

IR Night Vision

Night vision up to 30m (98 ft.)

PoE

Save installation costs with Power over Ethernet (PoE)

IP67 Rating

Outdoor IP67 weather rated housing

Motion Detection

Create custom motion detection zones to send email notifications when a zone is triggered

Tamper Detection

Create custom tamper detection zones to send an email notification when the camera view has been obstructed

Wide Dynamic Range (WDR)

Adjustable Wide Dynamic Range (WDR) setting improves image quality and clarity when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible

ONVIF

ONVIF Profile S

Complimentary Software

Complimentary pro-grade software to manage TRENDnet cameras

Complimentary Apps

Stream video to a mobile device with free iOS® and Android™ apps

Lens	Focal length: 4mm @ F1.2 Sensor: 1/3” CMOS sensor Digital zoom WDR: 120dB
Viewing	Horizontal angle: 77˚
3-Axis Manually Adjustable Mounting Arm	Pan: 0° to 360° Tilt: 0° to 180° Rotate: 0° to 360°
Minimum Illumination	IR off: 0.01 lux IR on: 0 lux IR distance: 30m (98 ft.) IR LED wavelength: 850nm
Compression	H.265+ / H.265 H.264+ / H.264 MJPEG
Resolution	Main stream: H.265+/H.265/H.264+/H.264: 2560 x 1440 up to 20 fps Sub stream: H.265/H.264/MJPEG: 704 x 576 up to 20 fps
Hardware Standards	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Device Interface	10/100Mbps PoE port Power jack
Housing	IP67 weather rated
Network Protocol	IPv4, IPv6, UDP, TCP/IP DHCP, NTP, DDNS, SMTP, FTP, LLTD SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X NFS, SMB/CIFS HTTP, HTTPS PPPoE UPnP, RTSP, RTP
Compliant Standard	ONVIF (Profile S, G, T)
Dimension	173 x 70 x 70mm (6.8 x 2.75 x 2.75 in.)
Weight	280g (9.9 oz.)
Operating Temperature	-30° – 50° C (-22° – 122° F)
Humidity	Max. 95% non-condensing
Power	Input: PoE Max. Consumption: 7W
Power Adapter (optional model: 12VDC1A)	Input: 100 – 240V AC , 50/60Hz Output: 12V DC, 1A external power adapter
Management Interface	Multi-language support: English, French, German, Spanish, and Portuguese Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch. Smart IR, BLC, WDR, white balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard WDR enhances video quality in high contrast daytime lighting Digital Noise Reduction removes digital noise from the video signal Time, date, and text overlay IP Address Filter Video Recording: scheduled, motion detection, and tamper detection Motion detection: define up to three motion detection areas and motion sensitivity Privacy masks: define custom privacy masks Tamper detection function: email notification Snapshot: real time snapshot and motion triggered Supported dynamic DNS services: dyn.com and no-ip.com Supports remote management Compatible browsers: Chrome™ or Firefox® (live view resolution up to 1280 x 720), Internet Explorer®
TRENDnetVIEW EVO Software	Supports up to 32 TRENDnet cameras Multiple language support Set recording options (motion detection, schedule, event trigger) Search and playback Custom viewing modes and options Compatibility: Windows® 10, 8.1, Windows Server® 2016, 2012, 2008
TRENDnet IPVIEW App	Free iOS® and Android™ apps View live camera video on a mobile device Take snapshots Zoom
Certifications	CE FCC UL
Warranty	3 year

PACKAGE CONTENTS

TV-IP328PI
Weather seal
Quick installation guide

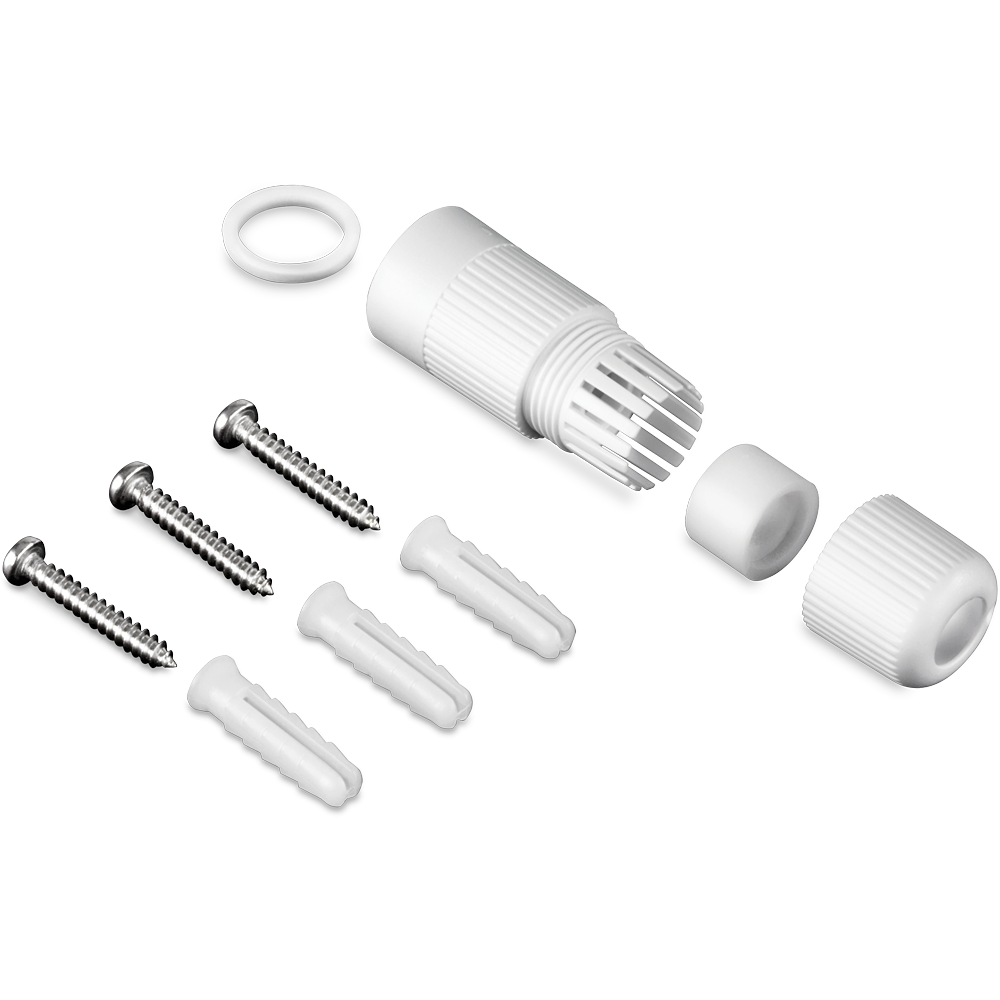

Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
