Indoor/Outdoor 1MP H.264 PoE IR Dome Network Camera

TV-IP325PI (Version v1.0R)

1MP 720p HD resolution
Night vision up to 30 meters (98 ft.)
Outdoor IP67 weather rating
Impact resistant design
Save installation costs with Power over Ethernet (PoE)
Digital Wide Dynamic Range image balancing
Program motion detection with email alerts
Free iOS^® and Android^™ mobile apps

DISCONTINUED PRODUCT

The TV-IP325PI (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

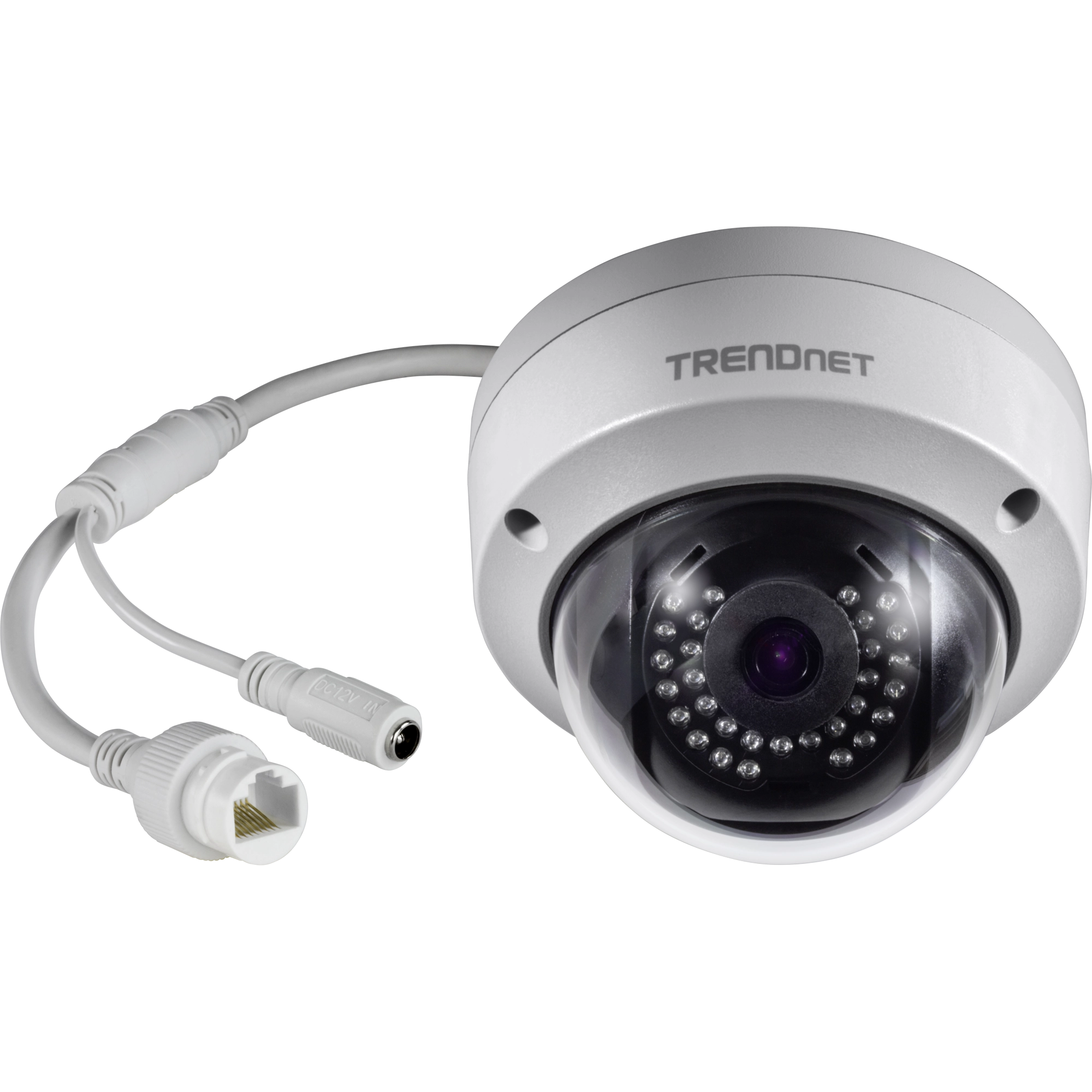

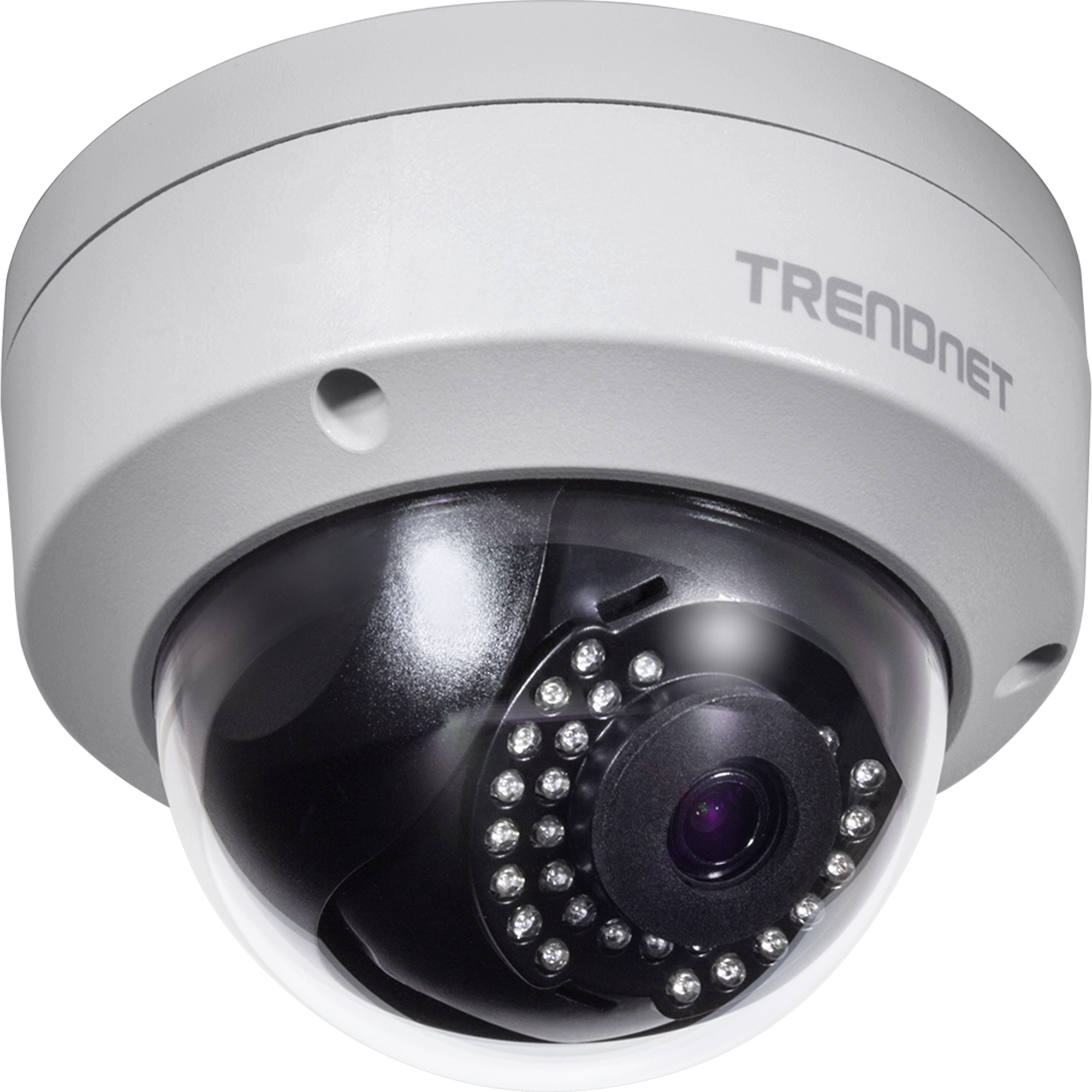

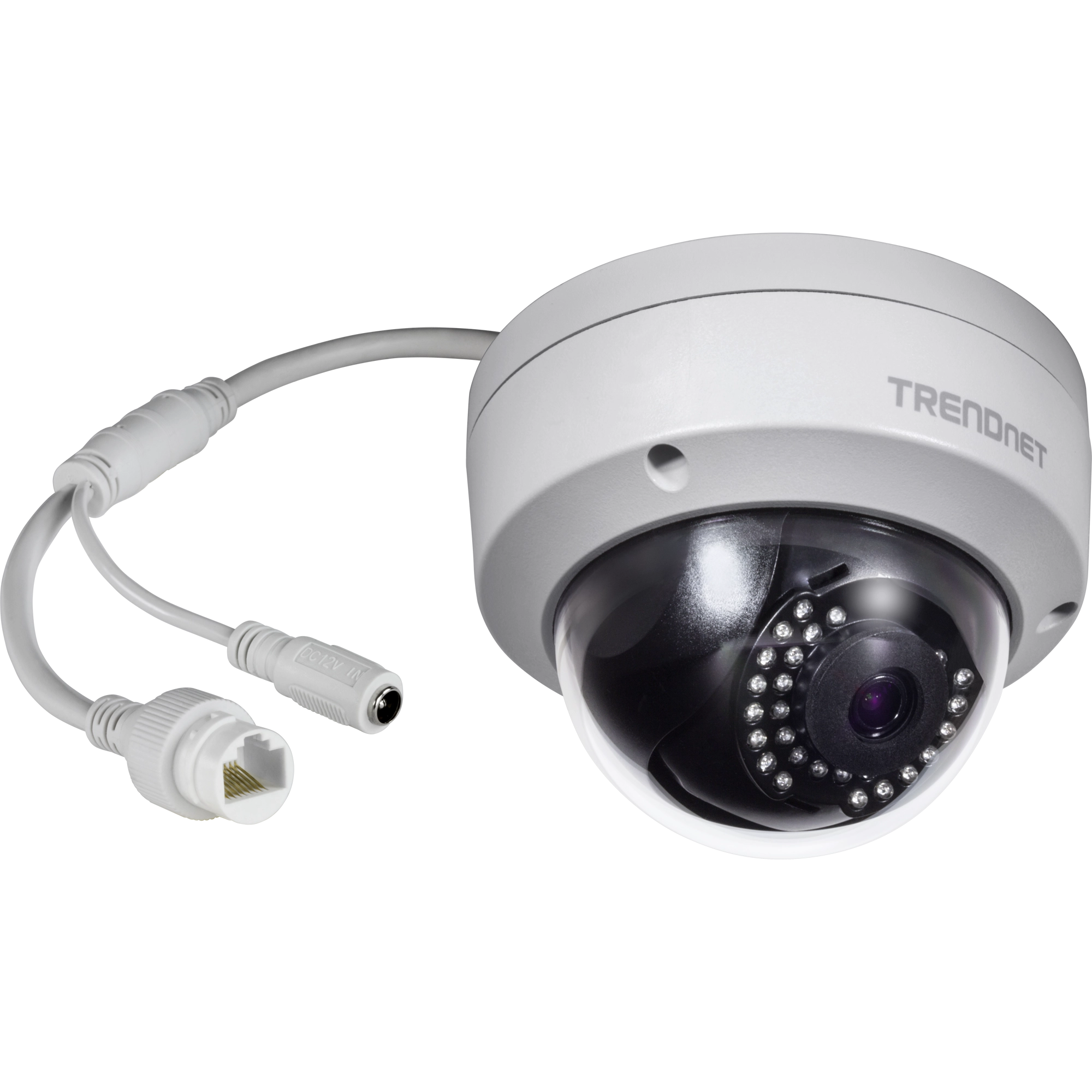

TRENDnet's Indoor/Outdoor 1MP H.264 PoE IR Dome Network Camera, model TV-IP325PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This IR dome network camera delivers year-round surveillance with an IP67 weather rated housing designed for outdoor environments. View 1MP video (1280 x 720) at 30 fps in a bandwidth saving H.264 compression format with included complimentary software and mobile apps.

A stylized representation of the sun and moon, with the sun's rays extending outward and a crescent moon overlapping the sun. Inside the crescent moon are four stars, all in a blue color scheme.

Day/Night HD Surveillance

View 1MP 720p HD video in H.264 compression and 30m night vision provides 24-hour surveillance.

A security camera is depicted with a cable extending from it, leading to a connector. A magnified view of the connector shows a symbol indicating Power over Ethernet (PoE).

Power over Ethernet (PoE)

PoE offers cost savings and the flexibility to install this outdoor IR dome camera up to 100m (328 ft.) from the PoE source equipment.

The illustration depicts two icons side by side. The first icon, on the left, shows several raindrops representing water resistance. The second icon, on the right, features a cloud with small dots, signifying dust resistance. These icons emphasize the product's durability in outdoor conditions.

Outdoor Ready

Built for outdoor environments with an IP67 weather rating and an operating temperature range of -30° – 60° C (-22° – 140° F).

A surveillance system setup within a building featuring two security cameras mounted on exterior walls, connected by blue cables to a network switch inside. The interior includes workstations with computers, chairs, desks, and a lounge area with a sofa and table. The network switch is on a shelf in a room filled with storage boxes, illustrating the integration of the surveillance system within the office environment.

1 Megapixel

1MP 720p HD video (1280 x 720) at 30 fps in the bandwidth saving H.264 compression format

IR Night Vision

Night vision up to 30 meters (98 ft.).

PoE

Save installation costs with Power over Ethernet (PoE)

IP67 Rating

Outdoor IP67 weather rated housing

Motion Detection

Create custom motion detection zones to send email notifications when a zone is triggered.

Tamper Detection

Create custom tamper detection zones to send an email notification when the camera view has been obstructed.

Vandal Resistant

Impact resistant housing design.

Digital Wide Dynamic Range (D-WDR)

Adjustable D-WDR setting improves image quality and clarity when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.

ONVIF

ONVIF Profile S

Complimentary Software

Complimentary pro-grade software to manage TRENDnet cameras

Complimentary Apps

Live video to a mobile device with free iOS^®and Android^™apps

Lens	Focal Length: 4mm @ F2.0 Focal depth: 30cm to infinity Sensor: 1/4” CMOS sensor Digital zoom: 4x
Viewing	Horizontal angle: 83.6˚ Manual pan: 0° to 355° Manual tilt: 0° to 70° Lens rotation: 0° to 355°
Minimum Illumination	IR off: 0.01 lux IR on: 0 lux IR distance: 30m (98 ft.) IR wavelength: 850nm
Compression	H.264 MJPEG
Resolution	Main stream: H.264: 1280 x 720 up to 30 fps Sub stream: H.264/MJPEG: 640 x 360 up to 30 fps
Hardware Standards	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Device Interface	10/100Mbps PoE port Power jack Reset button
Housing	IP67 weather rated
Network Protocol	IPv4, IPv6, UDP, TCP/IP DHCP, NTP, DDNS, SMTP, LLTD QoS/DSCP, IEEE 802.1X HTTP, HTTPS UPnP, RTSP, RTP
Compliant Standard	ONVIF (Profile S), PSIA, CGI, ISAPI
Dimensions	110 x 110 x 82.5mm. (4.3 x 4.3 x 3.2 in.)
Weight	500g (1.1 lb.)
Operating Temperature	-30° – 60° C (-22° – 140° F)
Humidity	Max. 95% non-condensing
Power	Input: PoE Max. consumption: 4W
Power Adapter (optional model: 12VDC1A)	Input: 100 – 240V AC , 50/60Hz Output: 12V DC, 1A external power adapter
Management Interface	Multi-language support: English, French, German, Spanish, and Portuguese Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch. Smart Supplement Light (Smart IR), BLC, D-WDR, white balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard D-WDR enhances video quality in high contrast daytime lighting Digital Noise Reduction removes digital noise from the video signal Time, date, and text overlay Motion detection: define up to three motion detection areas and motion sensitivity Video masks: define custom video masks Tamper detection function: email notification Snapshot: real time snapshot and motion triggered Supported dynamic DNS services: dyn.com and no-ip.com Supports remote management Compatible browsers: Internet Explorer^®
TRENDnetVIEW EVO Software	Supports up to 32 TRENDnet cameras Multiple language support Set recording options (motion detection, schedule, event trigger) Search and playback Custom viewing modes and options Compatibility: Windows^® 10, 8.1, Windows Server^® 2012, 2008
TRENDnet IPVIEW App	Free iOS^® and Android^™ apps View live camera video on a mobile device Take snapshots Zoom
Certifications	CE FCC
Warranty	3 year

PACKAGE CONTENTS

TV-IP325PI
Weather seal
Torx^® Security (pin-in) Allen Key
Quick installation guide
Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
