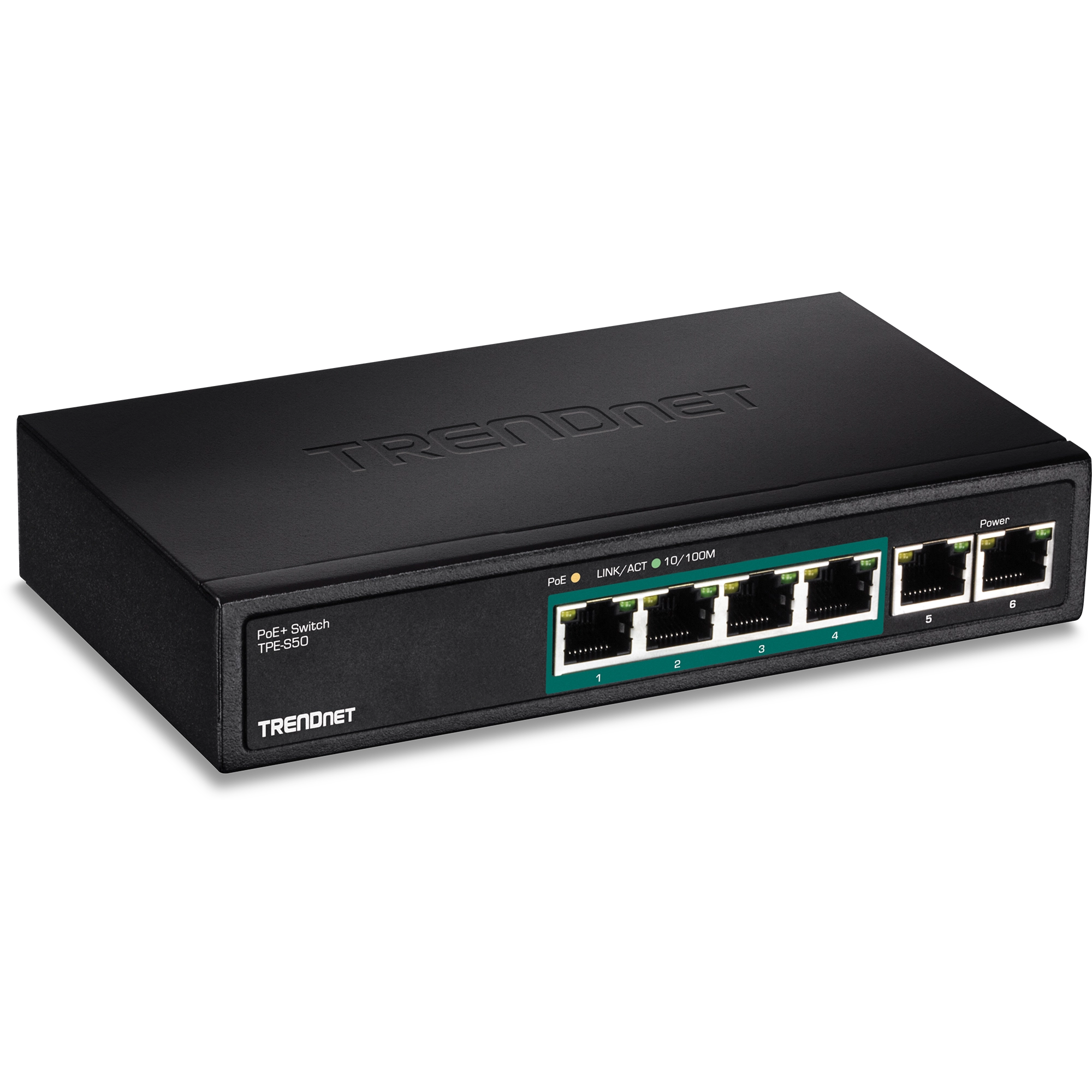

6-Port Fast Ethernet PoE+ Switch

TPE-S50 (Version v2.0R)

  • Easy installation
  • 4 x Fast Ethernet PoE+ ports and 2 x Fast Ethernet ports
  • 1.2Gbps switching capacity
  • 60W PoE budget
  • Wall mountable design
  • Sturdy metal switch
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices
  • Lifetime Warranty*
DISCONTINUED PRODUCT
The TPE-S50 (Version v2.0R) has been discontinued. For a list of discontinued products, click here.

The 6-Port Fast Ethernet PoE+ Switch, model TPE-S50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points, VoIP phones, and IP Cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE budget. Plug and play this sturdy metal switch for reliable high speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.

A network switch with six ports is shown, with three devices connected to it. One device is a security camera, another is a wireless access point, and the third is a laptop. The security camera and the wireless access point are connected via Power over Ethernet (PoE) with a power budget of 60 watts. The laptop is connected to the switch without PoE.

PoE+ Power

A 60W PoE power budget supplies up to four Power over Ethernet devices.

An illustration of a network cable with various icons inside it, including a music note, a document, a video camera, and a photo. The icons are arranged in two rows, with arrows indicating the direction of data flow. The text FAST ETHERNET SPEEDS is prominently displayed in the center of the cable, visually representing fast data transfer speeds associated with Fast Ethernet technology.

Fast Ethernet

Six Fast Ethernet ports provide a 1.2Gbps switching capacity to support edge network installations.

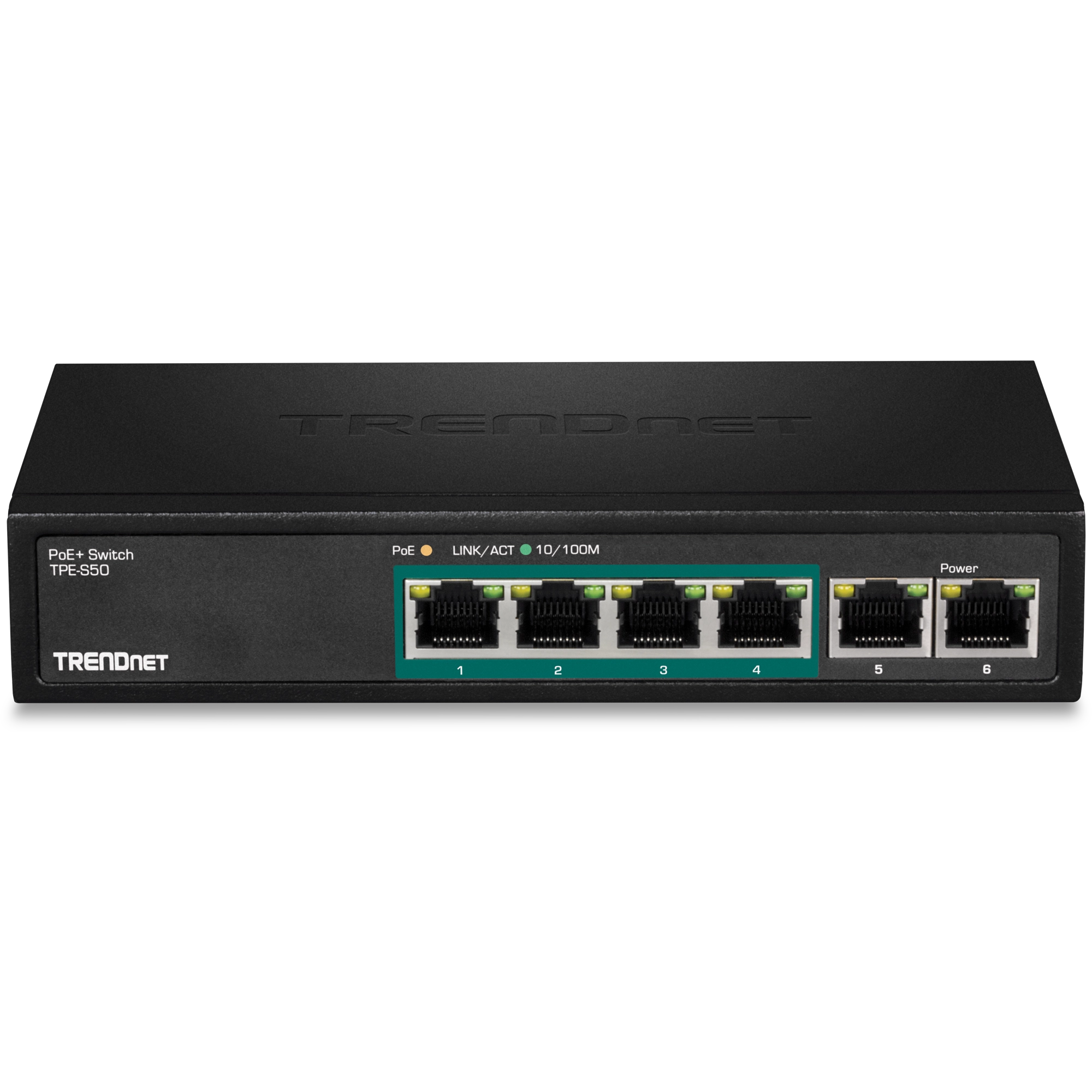

A rectangular network switch is depicted with a width of 16.8 centimeters. The front panel features six Ethernet ports labeled PoE, LINK/ACT, and 10/100M. The ports are arranged in a single row, and the device has a simple, clean design suitable for desktop use.

Compact Design

With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.

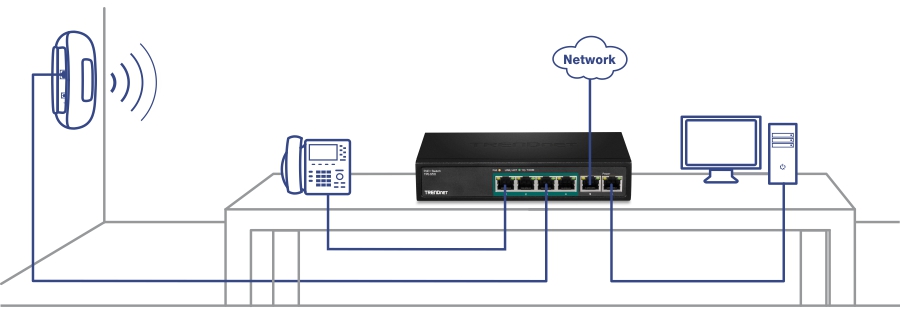

A network setup is depicted with a Trendnet switch at the center. The switch has multiple Ethernet ports, with cables connecting to various devices. On the left, a wireless access point is mounted on the wall, connected to the switch. Below it, a VoIP phone is also connected to the switch. On the right, a desktop computer is connected to the switch. Above the switch, a cloud icon labeled Network indicates the connection to the broader network. The setup illustrates a typical small office or home office network configuration, showing how different devices are interconnected through a central switch for network access.

PoE+

Supplies up to 30W of PoE+ power per PoE port with a 60W power budget

Ports

Four Fast Ethernet PoE+ ports and two Fast Ethernet ports

Switching Capacity

1.2Gbps switching capacity

Housing

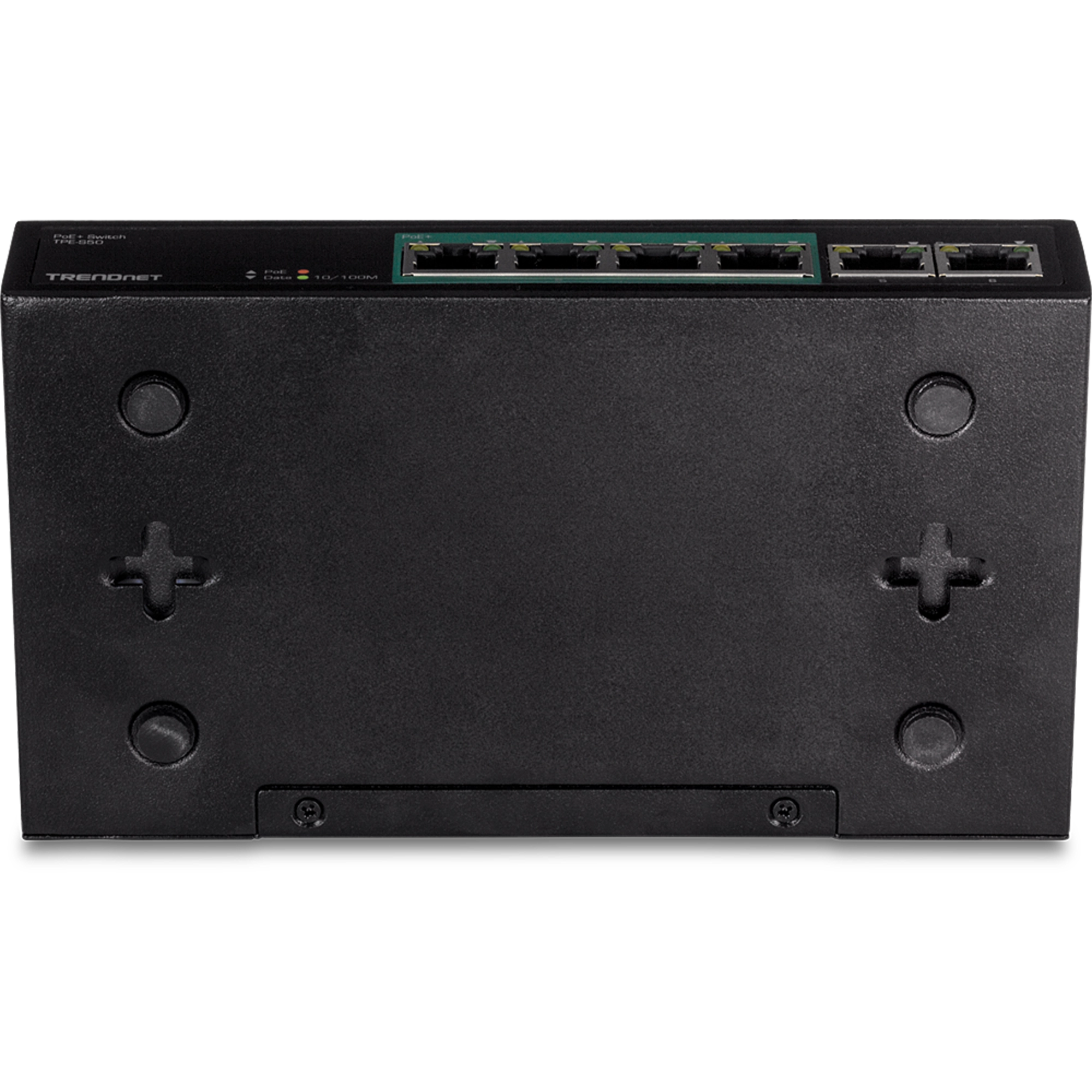

Wall mountable metal housing

LED Indicators

LED indicators convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 4 x 10/100Mbps PoE+ Ports
  • 2 x 10/100Mbps Ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance
  • Data Ram Buffer: 96KB
  • Switch Fabric: 1.2Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 0.89Mpps (64-byte packet size)
Special Features
  • GREENnet energy saving technology
Power

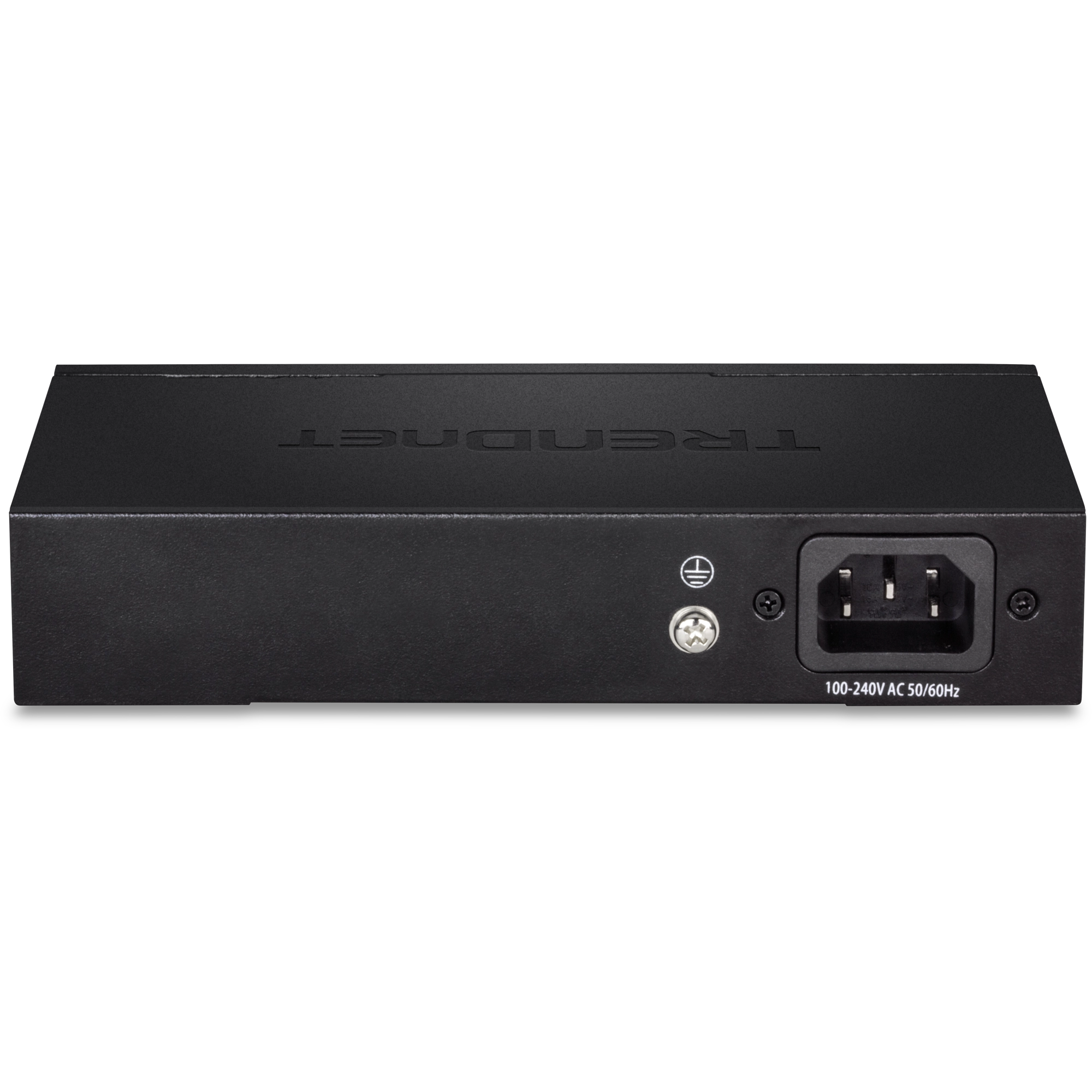

  • Input: 100~240 VAC, 50/60 Hz 1.1A Internal universal switching power
  • Consumption: 65 Watts (max.)
PoE
  • PoE budget: 60 Watts
  • Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 168 x 95 x 32 mm (6.6 x 3.7 x 1.6 in.)
Weight
  • 504g (17.8 oz.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TPE-S50
  • Quick Installation Guide

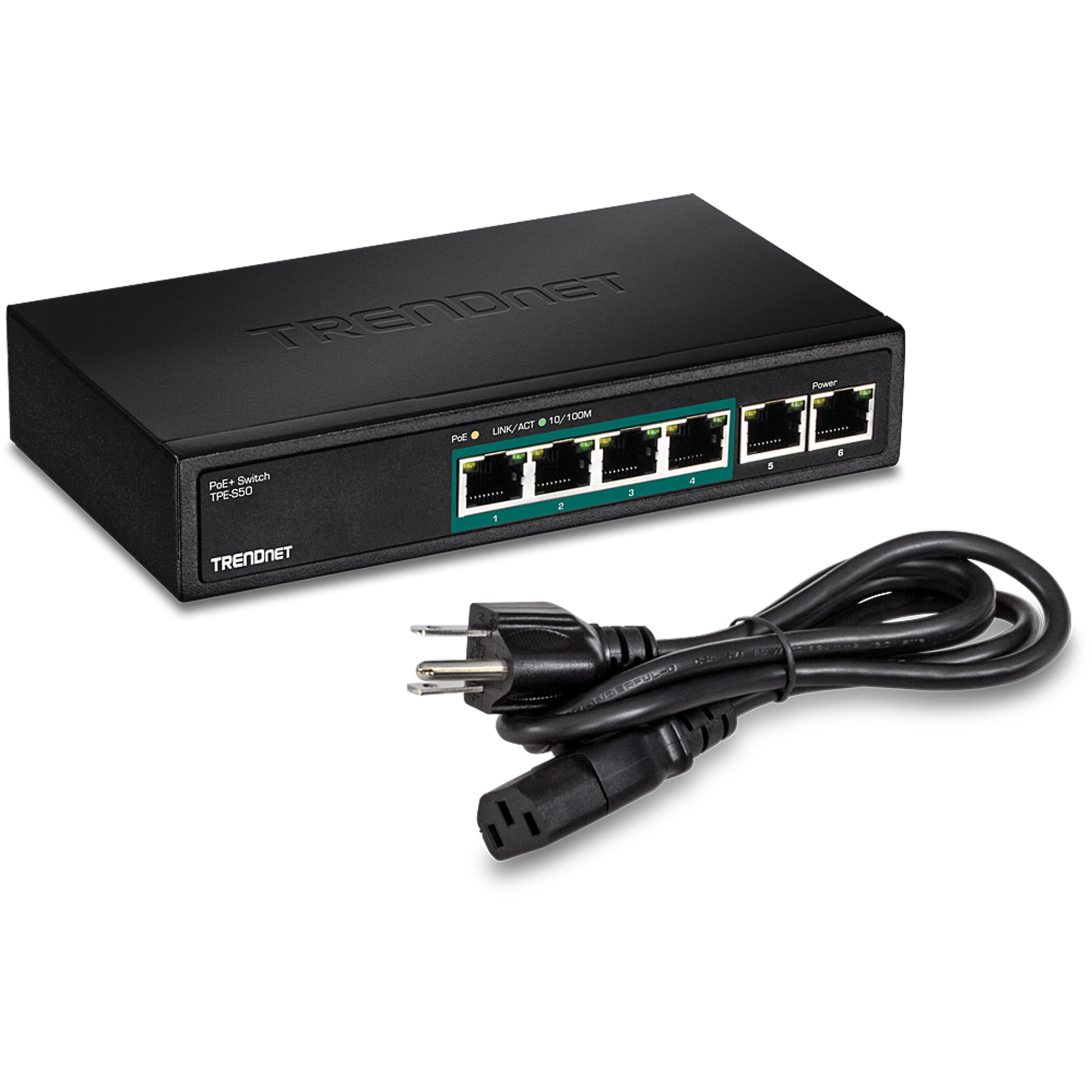

  • Power cord (1.2m / 4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
