16-Port 10/100 Mbps GREENnet Switch

TE100-S16Dg (Version v1.0R)

16 x 10/100 Mbps Ethernet ports
3.2 Gbps switching fabric
Compact fanless design
Up to 40% GREENnet energy savings*

DISCONTINUED PRODUCT

The TE100-S16Dg (Version v1.0R) has been discontinued. It has been replaced by the TEG-S16Dg (Version v2.1R). For a list of discontinued products, click here.

TRENDnet's compact 16-Port 10/100 Mbps GREENnet Switch, model TE100-S16Dg, provides performance, proven reliability, and reduced power consumption by up to 40%*. Embedded energy saving GREENnet technology works right out of the box with no management required. This fanless unmanaged desktop switch offers a total switching capacity of 3.2 Gbps.

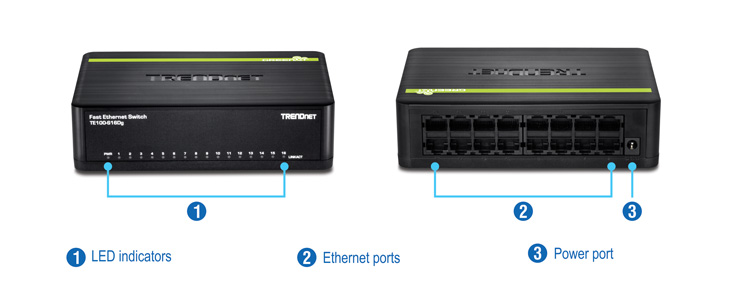

A TRENDnet Fast Ethernet Switch model TE100-S16Dg features LED indicators on the front panel, Ethernet ports, and a power port on the back panel. The switch is designed to connect multiple network devices.

Plug and Play

Simply power up the switch and plug in connected devices

Ports

16 x 10/100 Mbps Ethernet ports

Switching Capacity

3.2 Gbps switching capacity

Compact Enclosure

Compact desktop switch

LED Indicators

LED indicators convey port status

Fanless

Fanless design reduces energy consumption and operating noise

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 40%*

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az
Device Interface	16 x 10/100 Mbps ports LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Performance	Data RAM Buffer: 156 KB Switch Fabric: 3.2 Gbps MAC Address Table: 4 K entries Forwarding rate: 2.38 Mpps (64-byte packet size)
Special Features	GREENnet energy saving technology
Power	Input: 100-240 V AC, 50/60 Hz, 0.2 A Output: 5 V DC, 1A Consumption: 5 Watts (max.)
Operating Temperature	0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90 % non-condensing
Dimensions	156 x 107 x 42.5 mm (6.1 x 4.2 x 1.6 in.)
Weight	261 g (9 oz.)
Certifications	CE FCC
Warranty	3 year limited

PACKAGE CONTENTS

TE100-S16Dg
Quick Installation Guide
Power adapter (5V DC, 1A)

* Max power savings compared with standard TRENDnet switches.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
