USB-C 3.1 to 5GBASE-T Ethernet Adapter

TUC-ET5G (Version v1.0R)

IEEE 802.3bz 2.5/5GBASE-T compliant
USB-C 3.1 connection interface
5GBASE-T supports up to 5Gbps connection speeds
2.5GBASE-T supports up to 2.5Gbps connection speeds
Compatible with existing Cat5e or better cabling
Compact design is ideal for on-the-go professionals
Supports 802.1p (CoS) and 802.1Q (VLAN)
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's USB-C 3.1 to 5GBASE-T Ethernet Adapter, model TUC-ET5G, is equipped with a 5GBASE-T RJ-45 port that provides higher gigabit speeds capable of up to 5Gbps over existing Cat5e or better cabling. This USB-C 5G ethernet adapter features a USB-C 3.1 interface that easily connects a USB-C enabled notebook to a high-speed 5GBASE-T network. The low-profile compact design is ideal for on-the-go professionals.

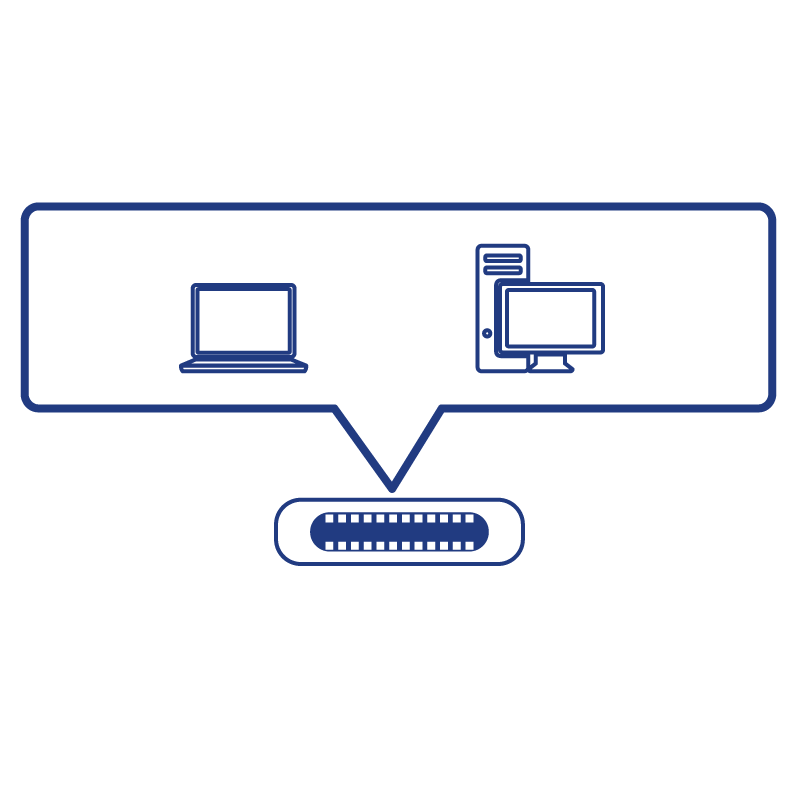

Line art illustration of a USB-C plug and a USB-A connector, with a laptop and desktop.

USB-C 3.1

Use the USB-C 5G ethernet adapter to easily connect to a 5GBASE-T network from a USB-C 3.1 enabled notebook.

Compatibility

Compatible with Windows^®operating systems.

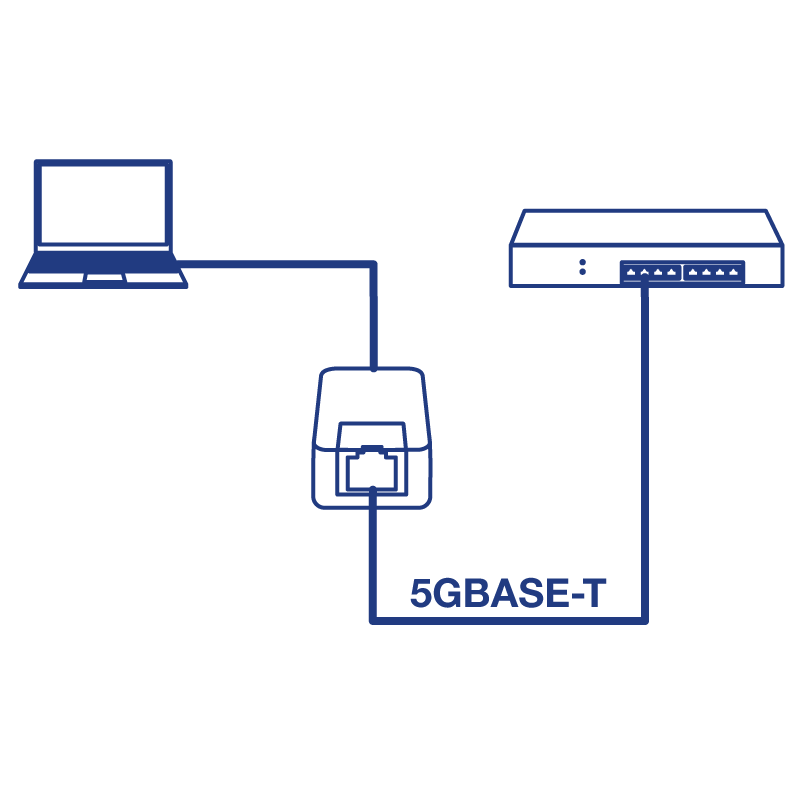

A network diagram illustrates how a laptop connects to a network switch using a USB-C 3.1 to 5GBASE-T Ethernet Adapter.

2.5/5GBASE-T Port

Equipped with a 5GBASE-T RJ-45 port that provides multi-gigabit speeds capable of up to 5Gbps over existing Cat5e or better cabling.

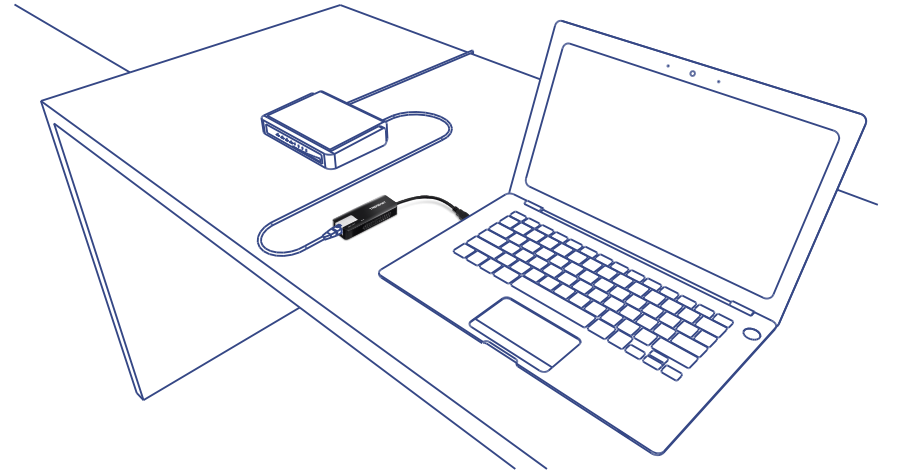

A laptop is placed on a desk with an external device connected via a cable, likely a network adapter, which is also connected to a router or modem on the desk. This setup suggests a wired internet connection between the laptop and the router through the adapter. The scene is depicted in a line drawing style, emphasizing the connectivity and arrangement of the devices on the desk.

USB-C 3.1

Use the USB-C 5G ethernet adapter to easily connect to a 5GBASE-T network from a USB-C 3.1 enabled notebook

Compatibility

Compatible with Windows^® operating systems

2.5/5GBASE-T Port

Equipped with a 5GBASE-T RJ-45 port that provides multi-gigabit speeds capable of up to 5Gbps over existing Cat5e or better cabling

Integrated Cable

Integrated 12.7cm (5 in.) USB-C cable

USB Powered

No external power adapter required—this compact USB-C 5G ethernet adapter is powered via the USB port

Standards	IEEE 802.1p IEEE 802.1Q IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az IEEE 802.3bz USB-C 3.1

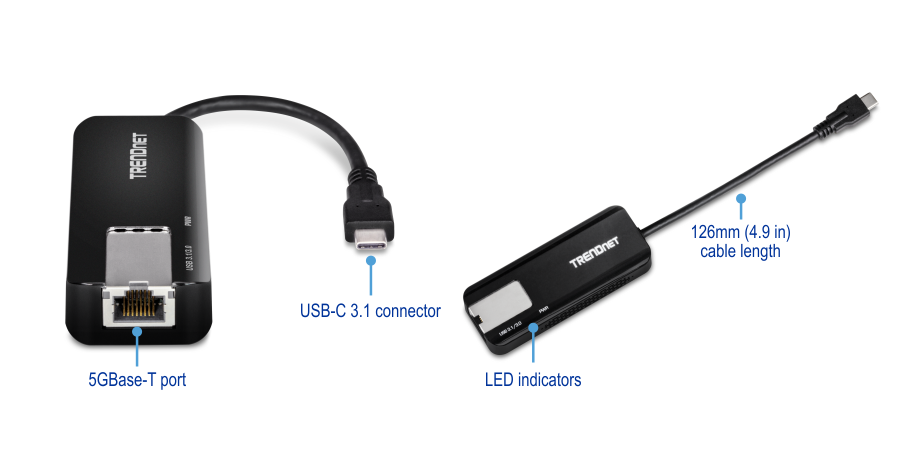

Interface	1 x 5GBase-T port (5Gbps/2.5Gbps/1Gbps/100Mbps) 1 x USB-C 3.1 connector
Maximum Data Rate	Up to 5Gbps (5GBase-T port)
Special Features	Energy saving technology Wake on LAN (suspend mode) Multi-Gigabit Adapter
Compatibility	Windows^® 10, 8.1, 7
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Power	USB powered
Dimensions	91 x 35 x 16.5mm (3.74 x 1.37 x 0.64 in.) 126mm (4.9 in) cable length
Weight	50g (1.7 oz.)
Certifications	CE FCC
Warranty	2 year

PACKAGE CONTENTS

TUC-ET5G
CD-ROM (Drivers & User Guide)
Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
