USB-C to HDMI 4K UHD Display Adapter

TUC-HDMI (Version v1.0R)

  • Connect an additional high resolution monitor to a workstation in Extend Mode
  • View a computer HDTV display up to 3840 x 2160 resolution at 30 Hz
  • Flawless video with high speed USB TYPE-C to HDMI connection
  • Powered by the connected computer
  • Supports Windows® and Mac® operating systems

TRENDnet's USB-C (TYPE-C) to HDMI 4K UHD Display Adapter, model TUC-HDMI, adds an HDTV or UHD monitor to a workstation. Extend or duplicate a computer display to an HDTV or monitor. Experience flawless video with the USB-C to HDMI connection. The adapter is powered by the connected computer and is compatible with Windows® and Mac® operating systems.

Multi-Display Workstation

Unlock workstation efficiency by adding multiple large screen HD displays to your workstation (one TUC-HDMI per display).

Display Your Way

Combine multiple displays into one viewing field with Extend Mode or repeat a viewing field to another display with Mirror Mode.

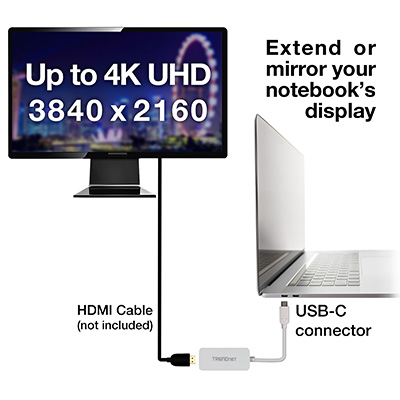

HD Video to a TV

Connect the high speed USB-C port to your computer, then connect the HDMI cable to your TV to stream HD video.

UHD Resolution

3840 x 2160 @ 30 Hz resolution

Extend Mode

Extend a monitor with an available HDMI port to a workstation

Duplicate Mode

Duplicate a computer display to an HDTV

USB Port

Compatible with USB TYPE-C port

Power

Powered by computer's USB port

LED Indicator

LED indicator conveys device status

Operating Systems

Compatible with Windows® and Mac® operating systems

Standards
  • HDMI 1.4b
  • USB Type-C

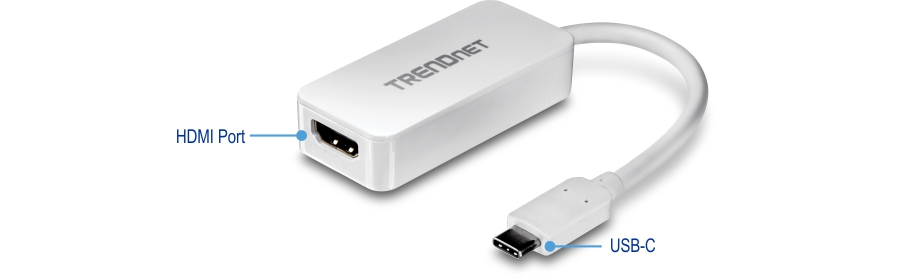

Interface
  • 1 x HDMI 1.4b port (Female)
  • 1 x USB Type-C port (Male)
Resolution
  • Full 1080p HD resolution support with a 60 Hz refresh rate
  • Max. 3840 x 2160 resolution at 30 Hz
Modes
  • Extend
  • Duplicate / Mirror
Display Controls
  • Define screen resolution
  • Rotate display left, right, upside down
  • Set as Main Monitor function transfers operating system controls to the display viewing field
  • Notebook Monitor Off function turns off the computer's primary display
Supported OS
  • Windows® 10
  • Mac OS® 10.11, 10.10, 10.9, 10.8, 10.7, 10.6
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
Dimensions
  • 66 x 30 x 15 mm (2.6 x 1.2 x 0.6 in.)

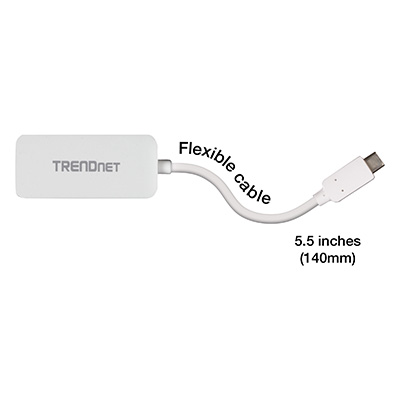

  • 140 mm (5.5 in) cable length
Weight
  • 60 g (2.0 oz.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TUC-HDMI
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
