USB-C to HDMI Adapter with Power Delivery

TUC-HDMI2 (Version v1.0R)

Mirror your laptop's HD display to any HDMI monitor or TV
Supports resolutions up to 4K Ultra HD at 60 Hz
Flawless video with high speed USB-C to HDMI 2.0 connection
USB-C Power Delivery Compliant
Supports Chrome^™, Windows^® 10 and Mac^® operating systems

DISCONTINUED PRODUCT

The TUC-HDMI2 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's USB-C to HDMI 4K UHD Display Adapter with Power Delivery, model TUC-HDMI2, adds an HDTV or UHD display to a USB-C powered notebook. Mirror your notebook PC's display to an HDTV or monitor, and experience flawless video with the USB-C to HDMI connection. The USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using HDMI.

A computer monitor shows the dimensions 4096 by 2160 on the screen.

HDMI 2.0

Compatible with 1080p HD and 4K UHD displays with a maximum resolution of up to 4096 x 2160 at 60 Hz

A diagram shows a laptop connected to a power outlet through a charger, with a lightning bolt symbol indicating the flow of electricity from the charger to the laptop.

Power Delivery Port

USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using HDMI

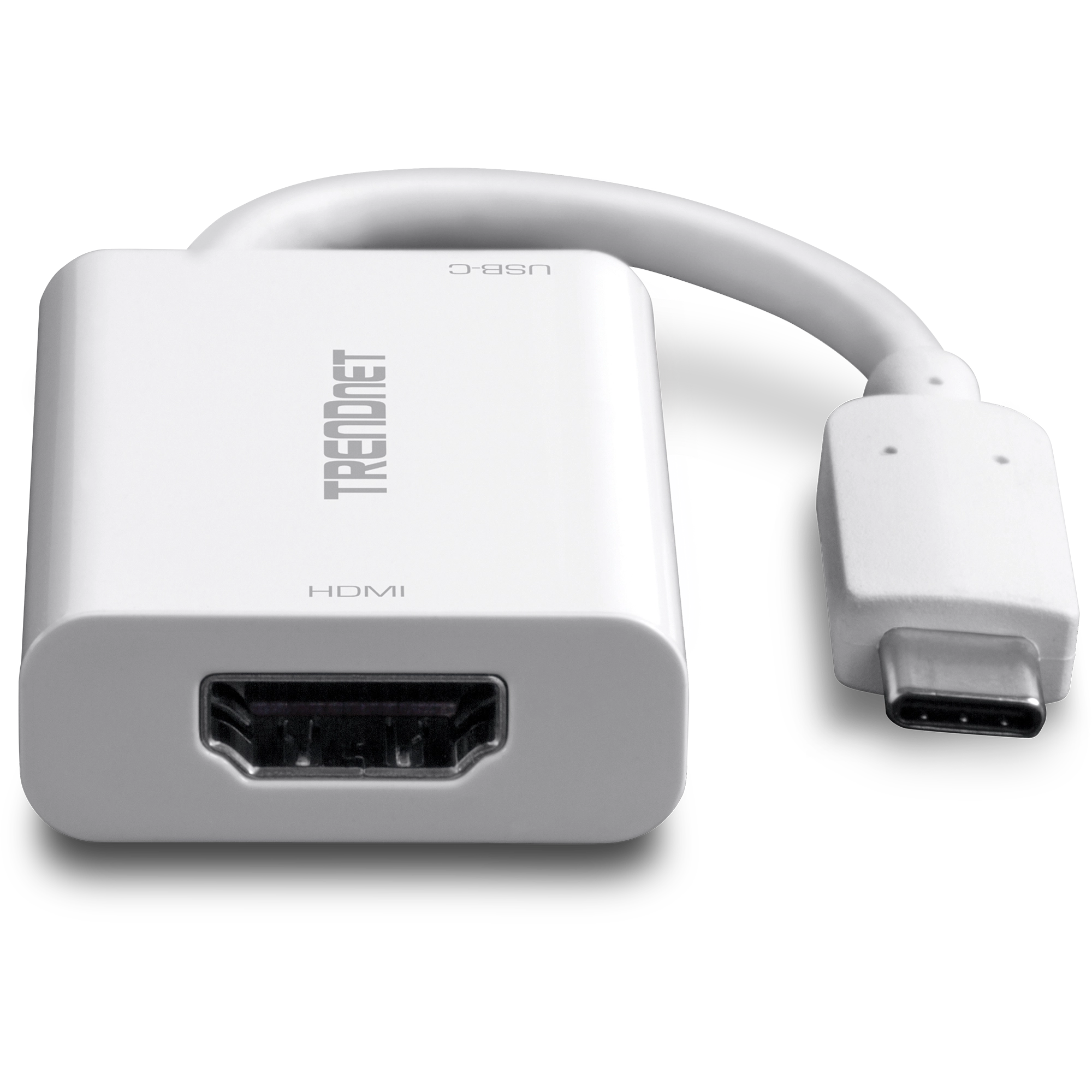

A USB-C to HDMI Adapter with Power Delivery shows an electronic device with a rectangular body connected to a cable. One end of the cable has a USB Type-C connector, while the rectangular body features an HDMI port, indicating it's used to connect HDMI devices to USB Type-C ports.

Integrated Cable

Flexible 10.1 cm (4 in) USB-C cable accommodates most installation scenarios

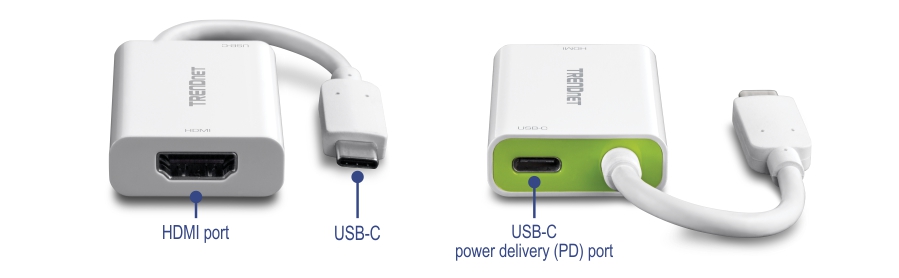

The device is a USB-C to HDMI adapter with power delivery. It features an HDMI port and a USB-C connector on one side, and a USB-C power delivery port along with another USB-C connector on the other side. The adapter is branded with the name TRENDnet.

4K UHD Resolution

Up to 4096 x 2160 at 60 Hz

Easy Setup

Simple installation in minutes

Compact Design

Reclaim desktop space and reduce clutter with this compact housing design

Flexible Connector

Attached flexible 10.1 cm (4 in.) USB-C cable accommodates most installation scenarios

Power Delivery

USB-C power delivery compliant port supports up to PD power profile 4

Operating Systems

Compatible with Chrome, Windows® 10 and Mac® operating systems

Standards	HDMI 2.0a USB Type-C
Interface	1 x HDMI 2.0a port (Female) 1 x USB Type-C port (Male) 1 x USB Type C power delivery (PD) port
PD port	Support up to PD power profile 4
Resolution	Full 1080p HD resolution support with a 60 Hz refresh rate Max. 4096 x 2160 resolution at 60 Hz
Modes	Extend Duplicate / Mirror
Display Controls	Define screen resolution Rotate display left, right, upside down Set as Main Monitor function transfers operating system controls to the display viewing field Notebook Monitor Off function turns off the computer's primary display
Compatibility	Windows^® 10 Mac OS^® 10.X Requires USB-C port that supports Thunderbolt or DisplayPort Alt mode.
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 90% non-condensing
Power	USB powered
Dimensions	50 x 33 x 12.5 mm (2 x 1.3 x 0.5 in.) 10.1 cm (4 in.) cable length
Weight	90 g (3.2 oz.)
Warranty	2 year limited
Certifications	CE FCC

PACKAGE CONTENTS

TUC-HDMI2
Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
