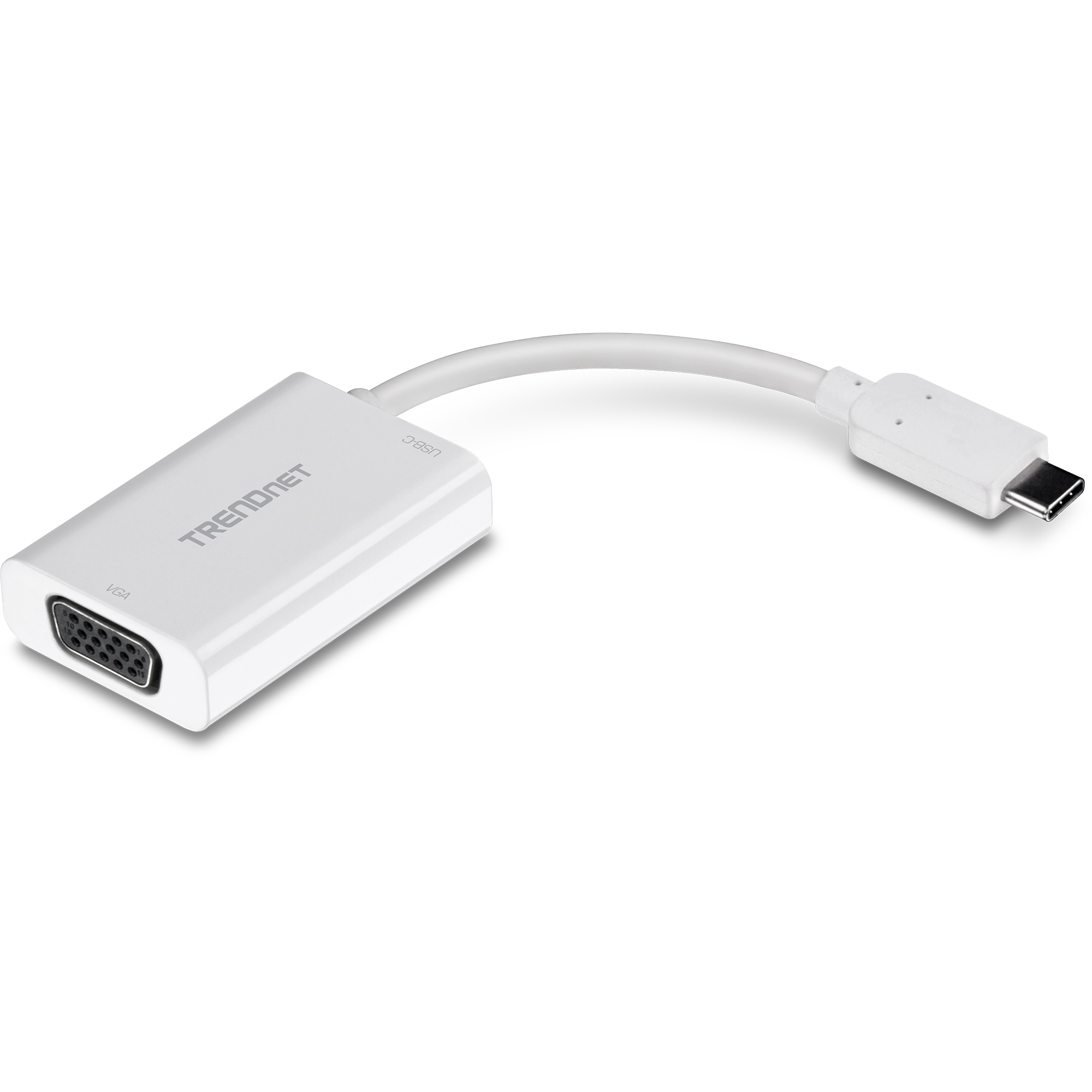

USB-C to VGA Adapter with Power Delivery

TUC-VGA2 (Version v1.0R)

Mirror your laptop's HD display to any VGA monitor or TV
Supports resolutions up to 1920 x 1200 at 60 Hz
Flawless video with high speed USB-C to VGA connection
USB-C Power Delivery Compliant
Supports Chrome^™, Windows^® 10 and Mac^® operating systems
NDAA compliant

TRENDnet's USB-C to VGA 1080p HD Display Adapter with Power Delivery, model TUC-VGA2, adds an HD display to a USB-C powered notebook. Mirror your notebook PC's display to an HDTV or monitor, and experience flawless video with the USB-C to VGA connection. The USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using VGA.

A line art illustration of a monitor displaying a resolution of 1920 x 1200.

VGA

Compatible with 1080p HD displays with a maximum resolution of up to 1920 x 1200 at 60 Hz

A simplified line drawing showing a USB-C to VGA Adapter with Power Delivery setup. It includes a wall power outlet, a plug with a cable connected to a power adapter, and the adapter’s cable leading to a laptop, indicating the flow of electricity.

Power Delivery Port

USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using VGA

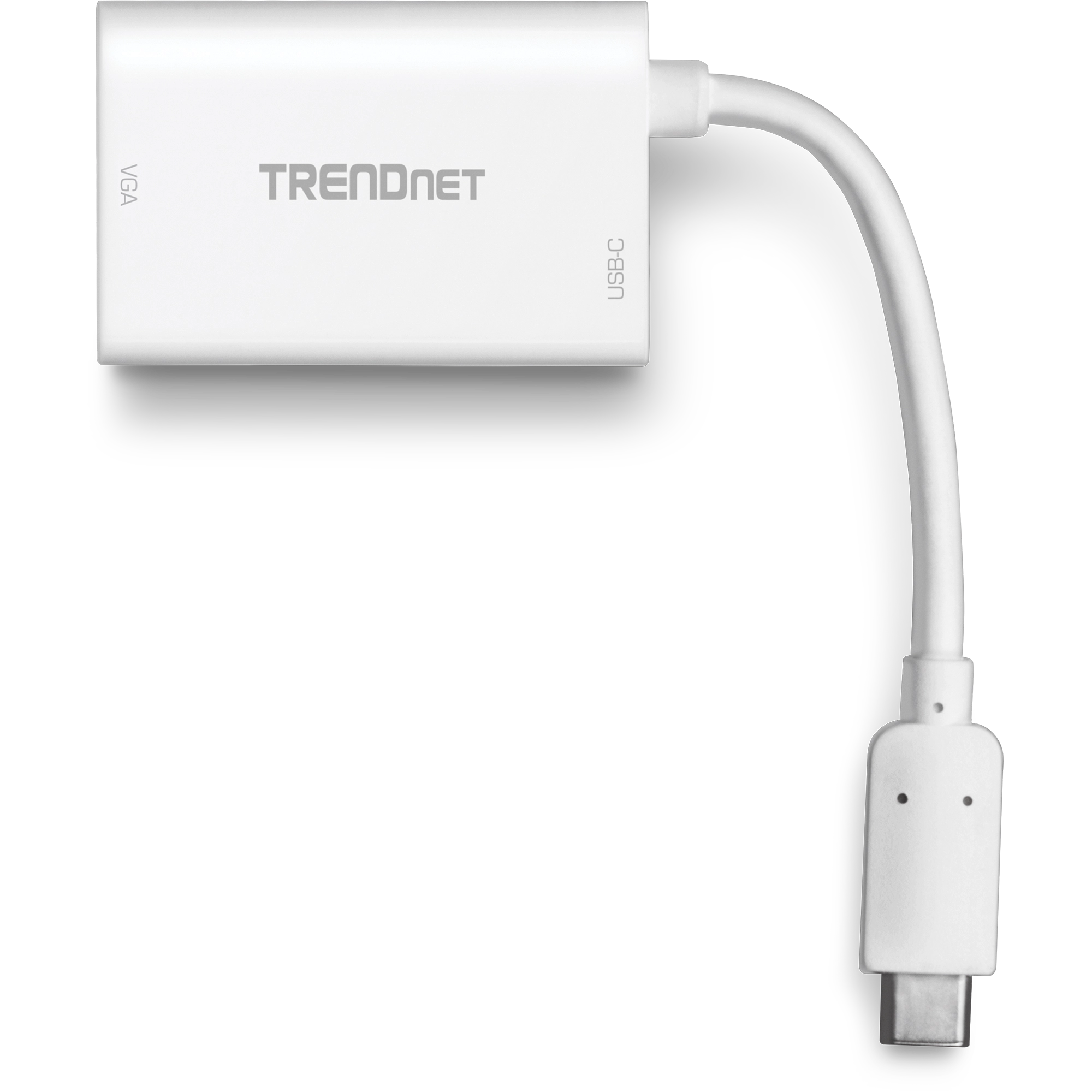

Line drawing of a USB-C to VGA Adapter with Power Delivery and an integrated USB cable.

Integrated Cable

Flexible 10.1 cm (4 in) USB-C cable accommodates most installation scenarios

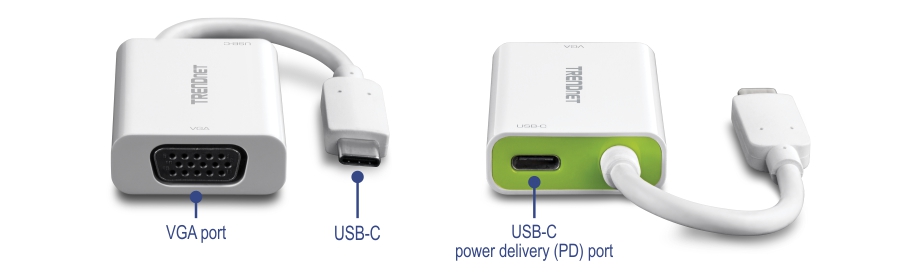

Diagram shows the front and back views of a TRENDnet USB-C to VGA Adapter with Power Delivery TUC-VGA2, highlighting VGA port, USB Type C connector, and USB Type C power delivery (PD) port.

Resolution

Up to 1920 x 1200 at 60 Hz

Easy Setup

Simple installation in minutes

Compact Design

Reclaim desktop space and reduce clutter with this compact housing design

Flexible Connector

Attached flexible 10.1 cm (4 in.) USB-C cable accommodates most installation scenarios

Power Delivery

USB-C power delivery compliant port supports up to PD power profile 4

Operating Systems

Compatible with Chrome, Windows® 10 and Mac® operating systems

Standards	VGA USB Type-C
Interface	1 x VGA 15pin (Female) with Alt mode 1 x USB Type C port (Male) 1 x USB Type C power delivery (PD) port
Monitor	Full 1080p HD resolution support with a 60 Hz refresh rate Max. 1920 x 1200 resolution at 60 Hz
PD port	Support up to PD power profile 4
Modes	Extend Duplicate / Mirror
Display Controls	Define screen resolution Rotate display left, right, upside down Set as Main Monitor function transfers operating system controls to the display viewing field Notebook Monitor Off function turns off the computer's primary display Windows^® 10 Mac OS^® 10.X
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 90% non-condensing
Power	USB powered
Dimensions	48 x 33 x 14.5 mm (1.9 x 1.3 x 0.6 in.) 60 mm (2.4 in.) cable length
Weight	20 g (0.7 oz.)
Warranty	2 year limited
Certifications	CE FCC

PACKAGE CONTENTS

TUC-VGA2
Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
