USB-C to 4-Port USB 3.0 Hub with Power Delivery

TUC-H4E2 (Version v1.0R)

  • Adds four USB 3.0 ports
  • No CD installation – just plug and play
  • Backward compatible with USB 2.0 ports
  • Reduced clutter with this compact adapter
  • Power Delivery compliant
  • Supports Chrome™, Windows® 10 and Mac® operating systems
DISCONTINUED PRODUCT
The TUC-H4E2 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's USB-C™ to 4-Port USB 3.0 Hub with Power Delivery, model TUC-H4E2, adds a 4-Port USB 3.0 hub to a USB-C powered notebook. No CD installation required – simply plug in flash drives, printers, scanners and other USB 3.0 devices at speeds up to ten times faster than a USB 2.0 connection. The TUC-H4E2 is also compatible with older USB 2.0 and 1.1 devices. The USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using the USB 3.0 hub.

A speech bubble displays icons representing a scanner, a printer, a USB flash drive, and a camera. Below this, USB 3.0 port.

Flexible Connector

Attached flexible 10.1 cm (4 in.) USB-C cable accommodates most installation scenarios

A diagram shows a laptop connected to a power outlet through a charger, with a lightning bolt symbol indicating the flow of electricity from the charger to the laptop.

Power Delivery Port

USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using the USB 3.0 hub

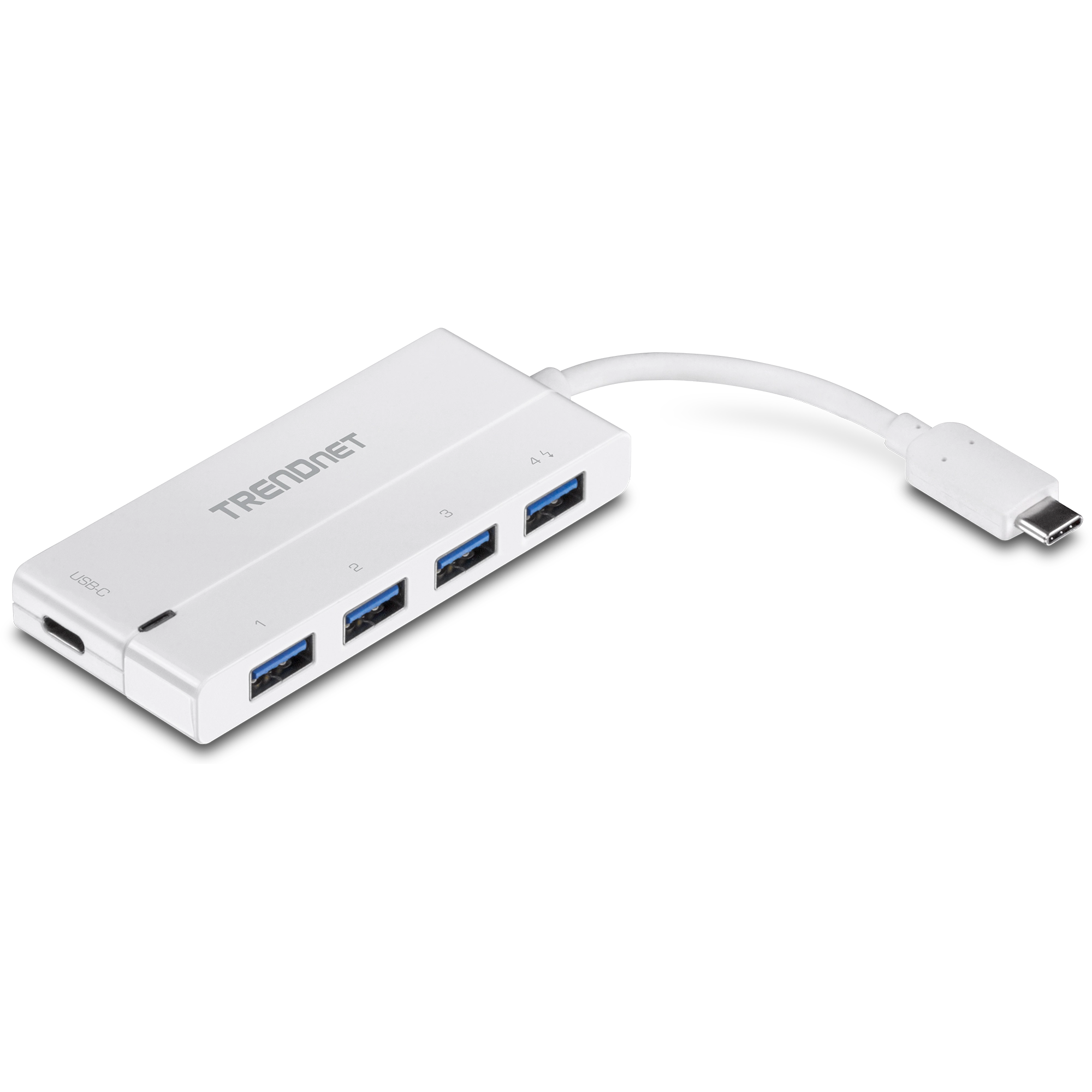

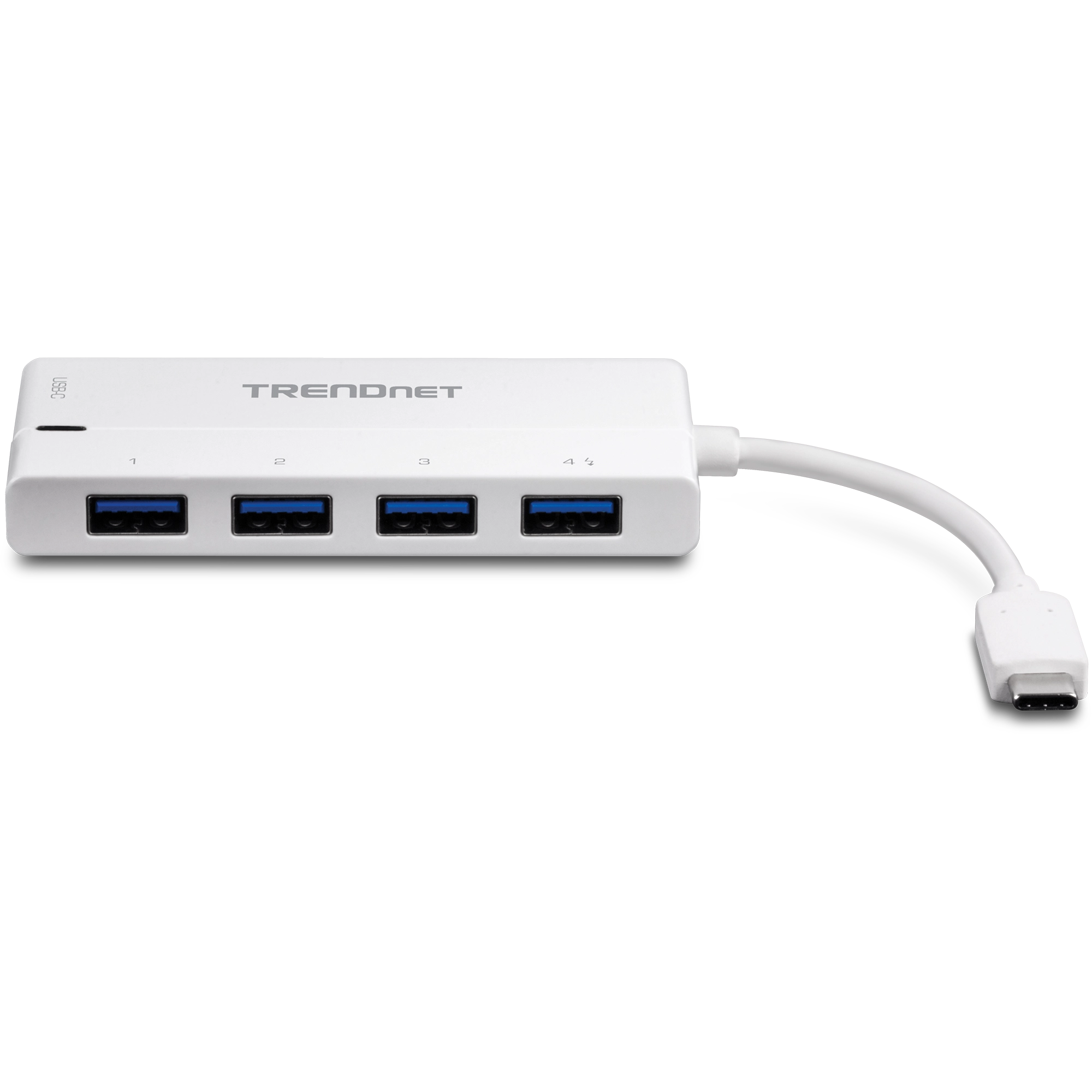

A USB-C to 4-Port USB 3.0 Hub with Power Delivery shows four identical USB ports on its front side. It is connected to a cable on the right side, featuring a connector at the end. The device is designed to connect multiple peripherals to a single USB-C port.

USB 3.0 Hub

4-Port USB 3.0 hub allows you to plug in flash drives, printers, scanners and other USB devices

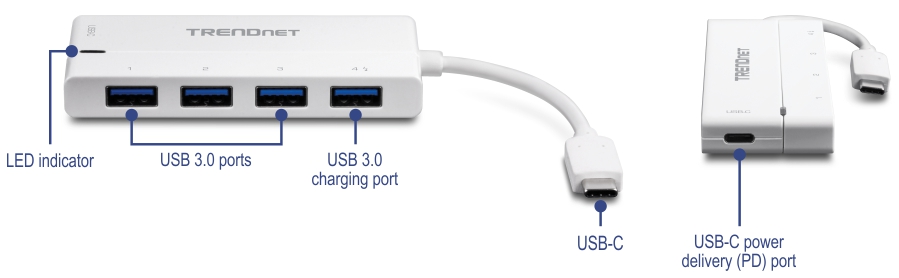

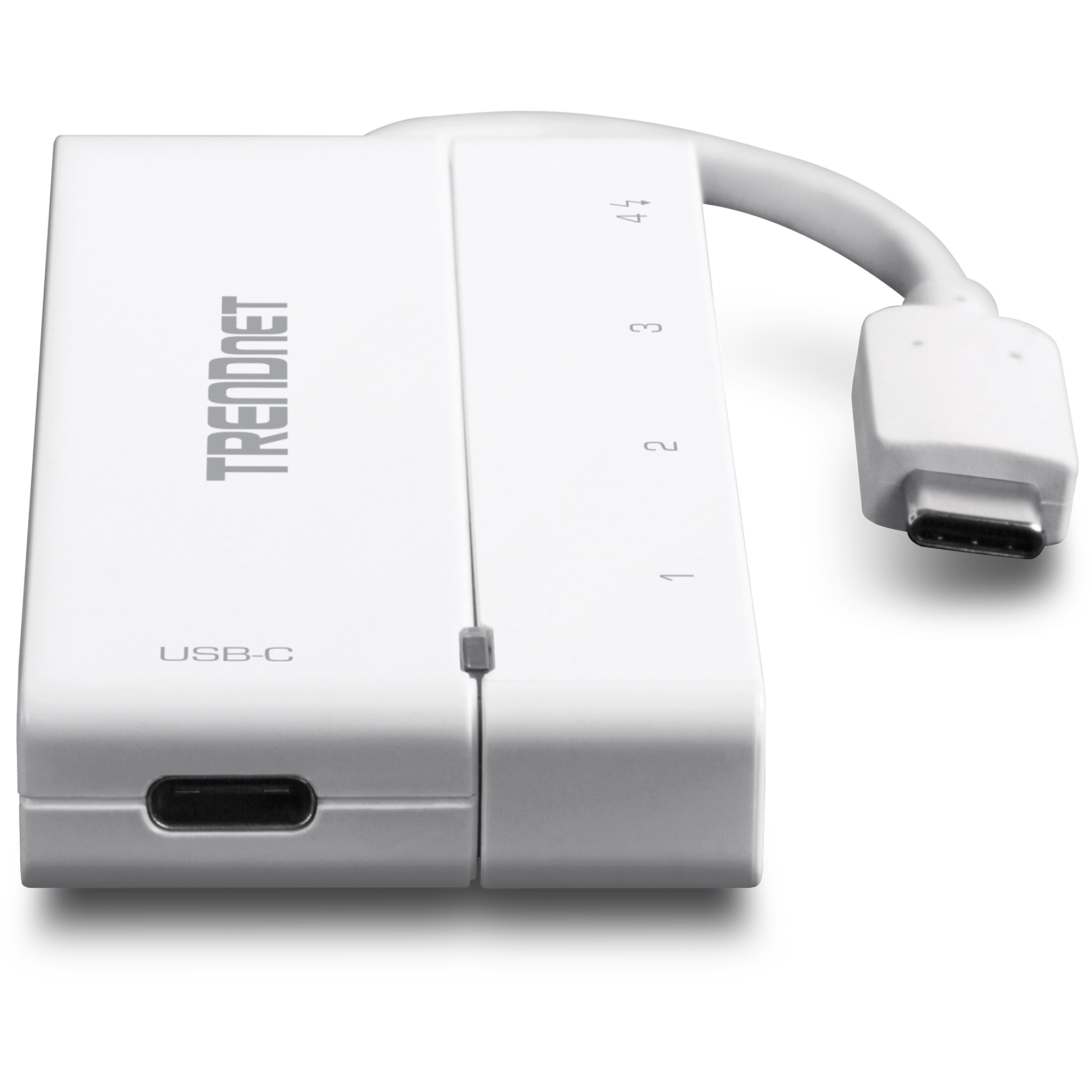

A TRENDnet USB hub features an LED indicator on the left side, followed by three USB 3.0 ports, and a USB 3.0 charging port on the right. The side view shows a USB-C connector attached to a cable, and a USB-C power delivery port.

Easy Setup

Simple installation in minutes

USB 3.0 Hub

Four USB 3.0 ports

Backwards Compatibility

Compatible with USB 2.0 and 1.1 ports

Compact Design

Reclaim desktop space and reduce clutter with this compact housing design

Flexible Connector

Attached flexible 10.1 cm (4 in.) USB-C cable accommodates most installation scenarios

Power Delivery

USB-C power delivery compliant port supports up to PD power profile 4

Operating Systems

Compatible with Chrome, Windows 10 and Mac operating systems

Standards
  • USB 3.0
  • USB 2.0
  • USB 1.1
  • USB Type-C
Interfaces
  • 1 x USB Type-C port
  • 3 x USB 3.0 ports
  • 1 x USB 3.0 charging port
  • 1 x USB Type C power delivery (PD) port
  • LED indicator
Maximum Data Rate
  • Up to 5 Gbps
Special Features
  • Compact form factor
  • Flexible USB-C cable
  • Charging port
USB bus powered
  • Output: 5 V DC, 0.9 A
  • Consumption: 4.5 W max.
USB Charging
  • USB charging specification v1.2
  • Supports Apple 1.0A / 2.4A charging modes
Operating Temperature
  • 0 - 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 90 x 40 x 12 mm (3.5 x 1.6 x 0.5 in.)
Weight
  • 45 g (1.6 oz.)
Warranty
  • 2-year limited

PACKAGE CONTENTS
  • TUC-H4E2
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
