4-Port USB KVM Switch

TK-407K (Version v2.0R)

Control up to 4 computers/servers with one set of console devices
USB keyboard/mouse emulation with 4 sets of detachable KVM cables
High video quality, up to 2048 x 1536 VGA resolution
Compliant with Windows®, Linux, and Mac OS™
Auto-Scan and LED display for computer monitoring
Keyboard status restored when switching between computers
Computer selection by top panel push buttons, keyboard hot key commands, or Windows-based client switching software*
User definable hot key (Windows only)
Plug & Play, and hot-pluggable
USB interface power method
All required cabling included
NDAA compliant

TRENDnet’s 4-Port USB KVM Switch, model TK-407K, lets you manage four PCs with just one set of keyboard, mouse, and monitor. This compact USB KVM switch is designed for VGA systems with USB mouse and keyboard connections. No driver installation required, simply plug in the devices to control four computers. Convenient top panel push buttons allow you to easily switch between different computers. Separate sets of KVM cables are included with the USB KVM Switch; users can start controlling four PCs instantly. The included KVM cables also provide power to the USB KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to KVM features, such as computer switching, and auto-scanning.

Computers

Conveniently control up to four PCs with just one set of USB mouse/keyboard, and VGA monitor.

Included KVM Cables

KVM cable sets are included with the USB KVM Switch, allowing users to control four PCs immediately.

VGA Port

Supports high video quality VGA resolutions, up to 2048 x 1536 with a 60Hz refresh rate.

The illustration depicts a KVM switch setup. At the center is a black TRENDnet TK-407K KVM switch with four numbered buttons on the top. The switch is connected to four computer CPUs, each represented by a tower icon with a power button symbol. The connections from the CPUs to the KVM switch are shown with blue lines. Additionally, the KVM switch is connected to a VGA monitor, a keyboard, and a mouse, also represented by icons and blue lines. The VGA monitor is labeled VGA. The console ports on the KVM switch include VGA, USB, and PS/2 connections.

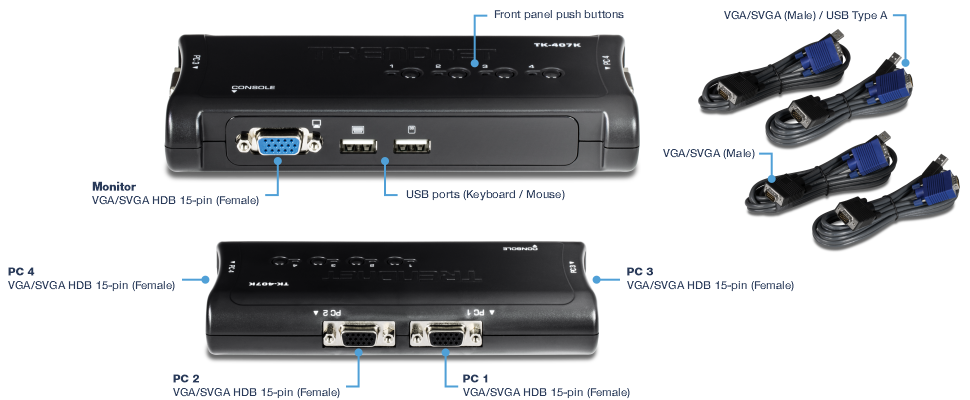

The visual shows a TRENDnet TK-407K KVM switch setup. The main device is labeled with front panel push buttons, a console VGA/SVGA HDB 15-pin female port for the monitor, and USB ports for the keyboard and mouse. There are four VGA/SVGA HDB 15-pin female ports labeled PC 1, PC 2, PC 3, and PC 4 for connecting computers. The setup includes three VGA/SVGA male to USB Type A cables, each with a VGA/SVGA male connector and a USB Type A connector. The image provides a clear layout of the KVM switch connections and the necessary cables for connecting multiple computers to a single monitor, keyboard, and mouse.

Computers

Control up to four PCs with just one set of USB mouse/keyboard, and VGA monitor

Included KVM Cables

Separate sets of KVM cables are included with the USB KVM Switch, so users can start controlling four PCs instantly

VGA Port

Supports high video quality VGA resolutions, up to 2048 x 1536 with a 60Hz refresh rate

USB Mouse & Keyboard

USB emulation technology supports most keyboard and mouse designs

Hot Keys

Hot Key operations provide immediate access to USB KVM features, such as computer switching, and auto-scanning

Multiple Platform Compatibility

The USB KVM Switch is compatible with Windows, Mac, and Linux operating systems

Computer Ports

Requires free USB and VGA ports from connected computers

Console Port Connectors	1 x VGA /SVGA HDB 15-pin (Female) 2 x USB ports (Keyboard / Mouse)
Computer Interface (up to 4)	1 x USB Type A 1 x VGA /SVGA HDB 15-pin (Female)
Cables (4 sets)	2 sets: 1.2m (4 ft.) 2 sets: 1.8m (6 ft.) VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A
Monitor Resolution	2048 x 1536 @ 60Hz
Switching Control	Front panel push buttons Keyboard hot key commands Auto-Scan interval: 10 secs
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Power	USB powered Max. consumption: 0.7W
Dimensions	167 x 80 x 28mm (6.6 x 3.2 x 1.1 in.)
Weight	159g (5.6 oz.)
Warranty	2 year
Certifications	CE FCC

PACKAGE CONTENTS

TK-407K
Quick Installation Guide
2 x KVM Cables (1.2m/4 ft.)
2 x KVM Cables (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
