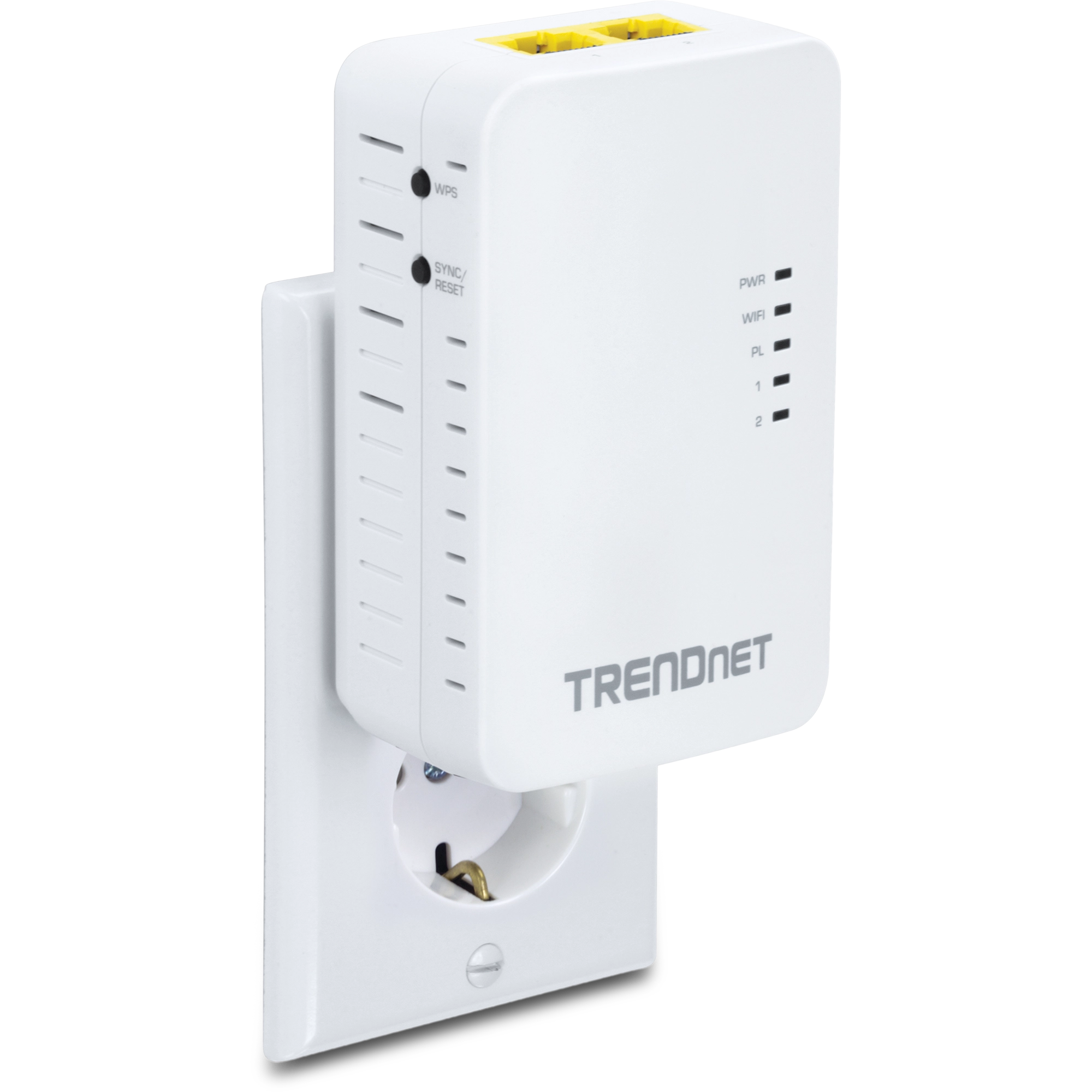

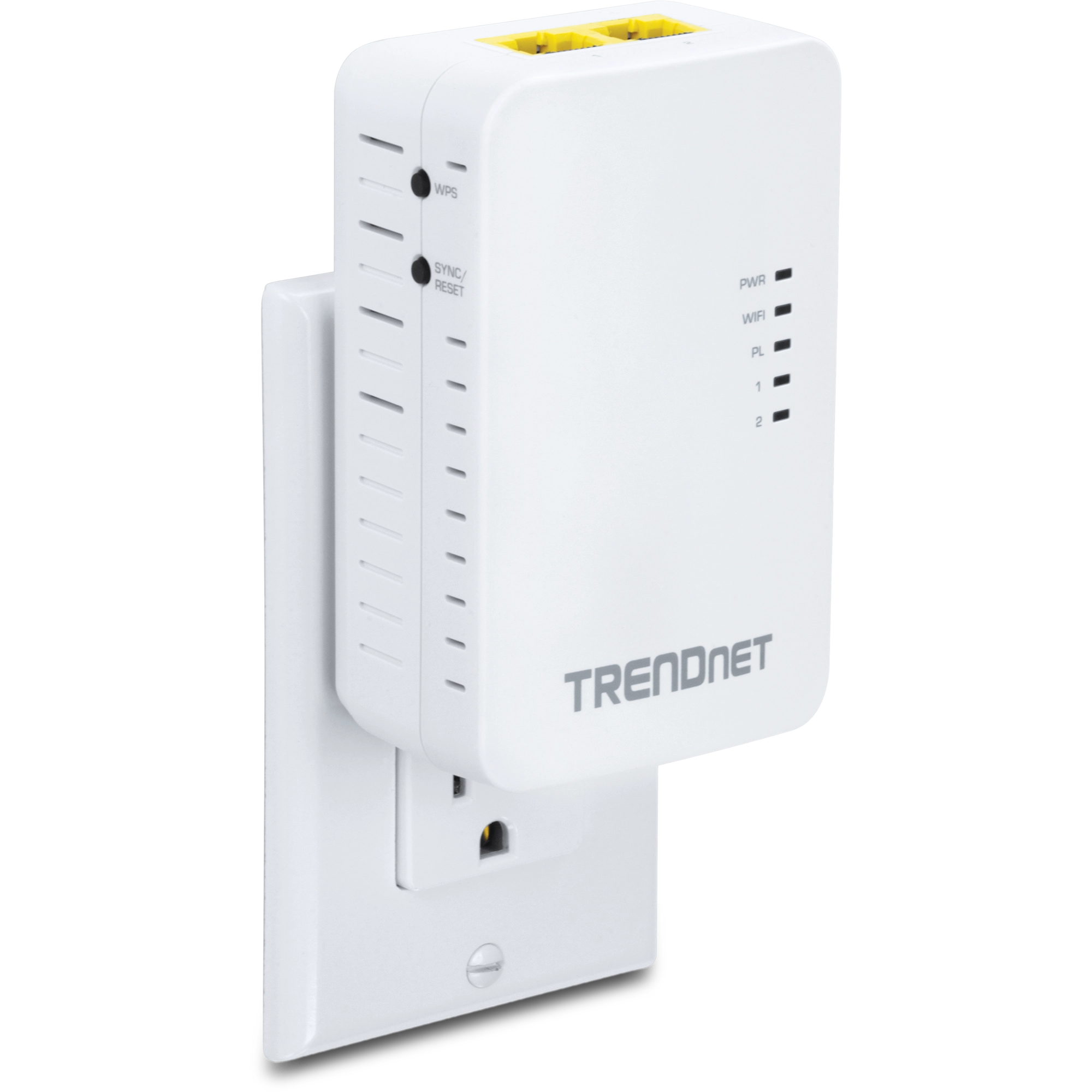

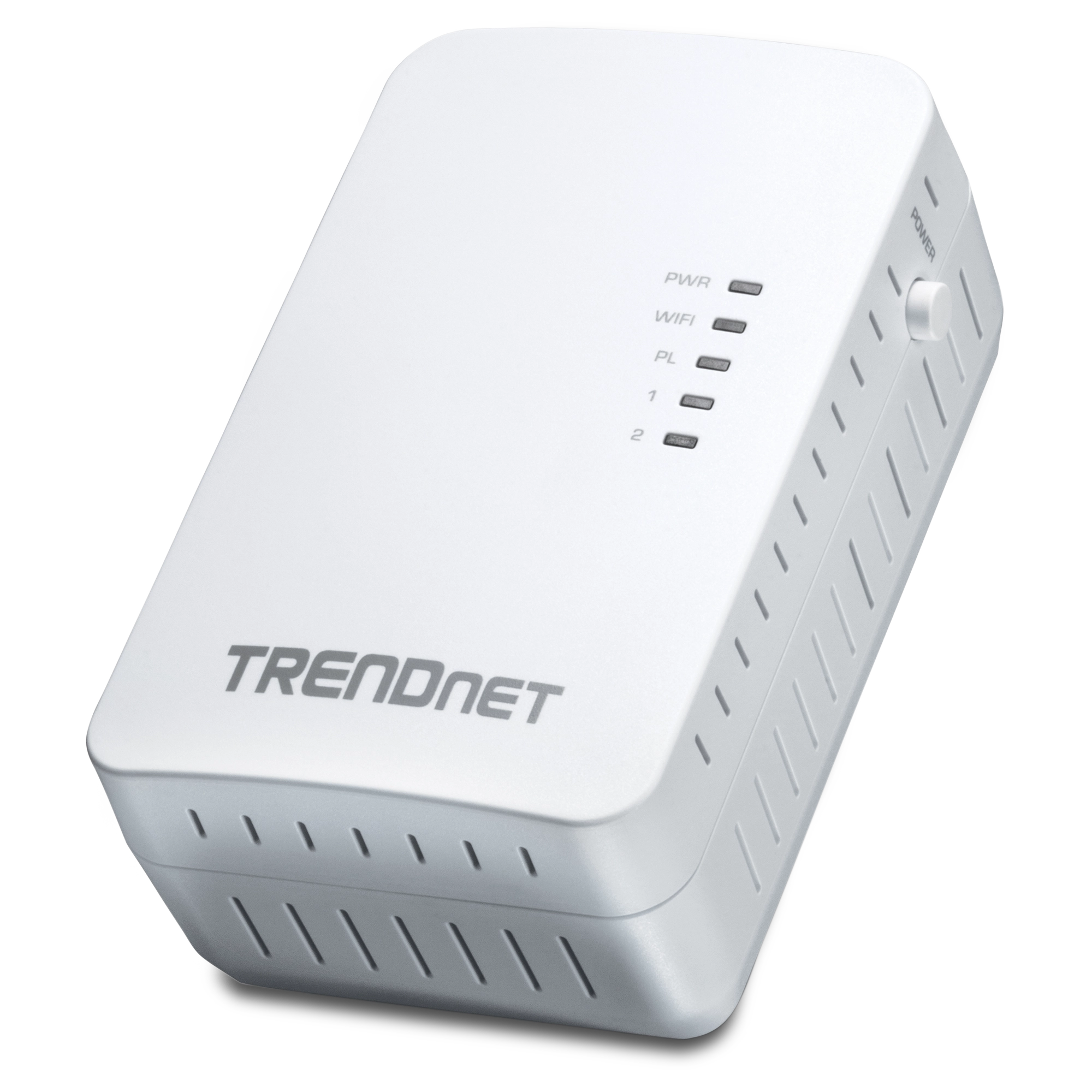

WiFi Everywhere™ Powerline 500 AV Access Point

TPL-410AP (Version v1.0R)

  • Create or expand a wireless network with this Powerline adapter
  • Powerline 500 AV and Wireless N 300
  • Easy no-CD installation
  • Two convenient Ethernet ports
  • Two Powerline devices are required to start a network

TRENDnet's Powerline 500 AV Wireless Access Point, model TPL-410AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one adapter to a router and plug in the TPL-410AP on your electrical system to create or expand a high performance wireless network.

Powerline

Auto-Connect Powerline

Simply plug in the Powerline adapters—all TRENDnet adapters auto-connect out of the box

Sync Button

Press the Sync button to change existing Powerline encryption keys

Pre-Encrypted

For your security the Powerline signal is pre-encrypted

Powerline 500

High speed Powerline networking over existing electrical lines

Ethernet Ports

Two convenient Ethernet ports to hardwire computers, smart TVs, and other network enabled devices

Cross Compatible

TRENDnet Powerline 500 and 200 adapters work together

Whole Home Coverage

Connects over electrical lines for houses up to 5000 square foot home (300 m/984 ft. linear distance over electrical lines)

Wireless

Quick Setup

Get up and running in minutes with the intuitive guided setup

N300 Wireless

Proven Wireless N 300

Wireless Coverage

Expanded wireless coverage with MIMO antenna technology

Pre-Encrypted

For your security the wireless is pre-encrypted with a unique password

One Touch Connection

Securely connect wireless devices at the touch of the Wi-Fi Protected Setup (WPS) button

Compatibility

Compatible with legacy 2.4 GHz Wireless devices


* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.** 500 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition. Maximum of 8 adapters (nodes) recommended for streaming video across your network.*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 1901/HomePlug® AV
Device Interface
  • 2 x 10/100 Mbps ports
  • Sync/reset button
  • WPS button
  • Power switch
  • LED indicators
  • Power Plug (A: North America Type B (NEMA 5–15); EU: European Type C (CEE 7/16); UK: United Kingdom Type G (BS 1363))
Frequency Band
  • 2 - 68 MHz
Networking Distance
  • Powerline: 5,000 sq. ft. home or 300 m (980 ft.) linear distance over electrical power lines**
Security
  • Wireless encryption: up to WPA2
  • Powerline encryption: 128-bit AES (Advanced Encryption Standard)
Utility OS Compatibility (optional)
  • Windows® 8.1, 8, 7, Vista, XP
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernet port for wired connectivity
Antenna Gain
  • 2.4 GHz: 2 x 3 dBi
Wireless Output Power /Receiving Sensitivity
  • 802.11b: 17 dBm (typical)/-76 dBm (typical) @ 11 Mbps
  • 802.11g: 14 dBm (typical)/-65 dBm (typical) @ 54 Mbps
  • 802.11n: 14 dBm (typical)/-61 dBm (typical) @ 300 Mbps
Power
  • Input: 100 - 240 V AC, 50 - 60 Hz, 0.2 A
  • Consumption: Active mode: 8 Watts (max.)
Operating Temperature
  • 0 - 40°C (32 – 104°F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • A: 65 x 100 x 55 mm (2.56 x 3.94 x 1.97 in.)
  • EU: 65 x 100 x 77 mm (2.56 x 3.94 x 3.03 in.)
  • UK: 65 x 100 x 70 mm (2.56 x 3.94 x 2.76 in.)
Weight
  • A: 153 g (5.4 oz.)
  • EU: 164 g (5.8 oz.)
  • UK: 168 g (5.9 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TPL-410AP
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.8 m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
