AC1200 Dual Band Wireless Access Point

TEW-814DAP (Version v1.0R)

  • High performance concurrent dual band Wireless AC access point
  • AC1200: 867 Mbps Wireless AC + 300 Mbps Wireless N bands
  • Access Point (AP), Client, Repeater, WDS, and WDS + AP modes
  • Gigabit LAN port
  • Connect devices with one-touch Wi-Fi Protected Setup (WPS)

TRENDnet's high performance AC1200 Dual Band Wireless Access Point, model TEW-814DAP, supports Access Point (AP), Client, Repeater, Wireless Distribution System (WDS) Bridge, and WDS + AP modes. The TEW-814DAP generates concurrent 867 Mbps Wireless AC and 300 Mbps Wireless N networks. Embedded GREENnet technology reduces power consumption by up to 50%.

Next Generation Wireless AC

802.11ac provides uninterrupted HD video streaming in a busy connected environment

Simultaneous Dual Band

High performance 867 Mbps Wireless AC + 300 Mbps Wireless N bands

Wireless Coverage

Extended wireless coverage with MIMO antenna technology

Compatibility

Compatible with legacy wireless devices

Gigabit Port

Gigabit LAN port maintains high performance connections to the wired network

Multi-Mode Support

Supports Access Point (AP), Client, Repeater, Wireless Distribution System (WDS), and WDS + AP modes

One Touch Connection

Securely connect to the access point at the touch of the Wi-Fi Protected Setup (WPS) button

Multi Language

Multi Language Interface: English, Spanish, French, German, and Russian

Logs

Real time logs and statistics help trouble shooting

Encrypted Wireless

Support for wireless encryption of up to WPA2

Multiple SSIDs

Create up to four SSIDs per wireless band

Energy Savings

Embedded GREENnet technology reduces power consumption

IPv6

IPv6 network support

Targeted Beamforming

Increased real-time performance by directing stronger wireless signals to your specific location

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 802.11ac (up to 867 Mbps)

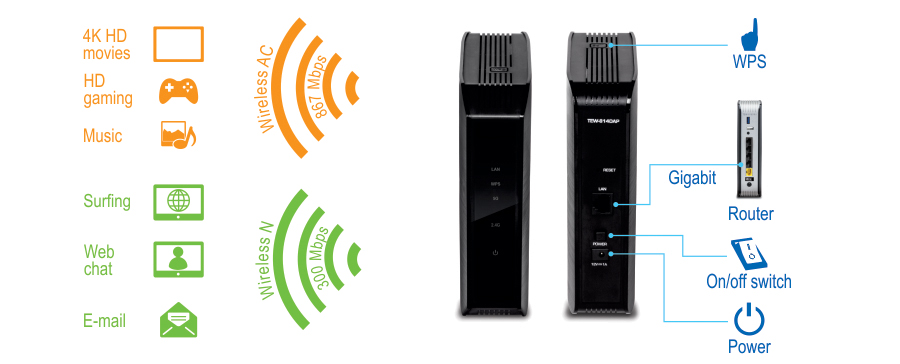

Hardware Interface
  • 1 x Gigabit port
  • Power switch
  • WPS button
  • LED indicators
Operation Modes
  • Access Point (AP), AP + WDS
  • Repeater
  • Client
Special Features
  • Concurrent dual band access point
  • IPv6 support (Static IPv6 and Auto-Configuration (SLAAC / DHCPv6))
  • Multi-language interface: English, French, Spanish, German, Russian
SSID
  • Up to 4 SSIDs per band (AP mode)
  • Wireless encryption: WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS (AP mode)
  • Access Controls: MAC Filter
Frequency
  • 5 GHz: FCC 5.180 – 5.240 + 5.745 – 5.825, ETSI: 5.180 – 5.240 GHz
  • 2.4 GHz: FCC 2.412 – 2.472, ETSI: 2.412 – 2.462 GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g/n: BPSK, QPSK, 16 QAM, 64 QAM sub carrier with OFDM
  • 802.11ac: BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM with OFDM
Antenna Gain
  • 5 GHz: 5.88 dBi (max.) internal
  • 2.4 GHz: 6.32 dBi (max.) internal
Wireless Output Power / Receiving Sensitivity
  • 802.11a: FCC: 20 dBm, CE: 22 dBm (max.) / -73 dBm (typical) @ 54 Mbps
  • 802.11b: FCC: 24 dBm, CE: 13 dBm (max.) / -84 dBm (typical) @ 11 Mbps
  • 802.11g: FCC: 22 dBm, CE: 14 dBm (max.) / -70 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): FCC: 22 dBm, CE: 14 dBm (max.) / -66 dBm (typical) @ 300 Mbps
  • 802.11n (5 GHz): FCC: 20 dBm, CE: 22 dBm (max.) / -66 dBm (typical) @ 300 Mbps
  • 802.11ac: FCC: 18 dBm, CE: 21 dBm (max.) / -56 dBm (typical) @ 867 Mbps
Wireless Channel
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 159, 157, 161 and 165, ETSI: 36, 40, 44, 48
  • 2.4 GHz: FCC: 1 - 11, ETSI: 1 - 13
Power
  • Input: 100 – 240 V AC, 50 - 60 Hz, 0.5 A
  • Output: 12 V DC, 1 A external power adapter
  • Consumption: 8.8 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 45 x 120 x 164 mm (1.8 x 4.7 x 6.5 in.)
Weight
  • 260 g (9.2 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-814DAP
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m / 5 ft.)
  • Power adapter (12 V DC, 1 A)

*For maximum performance of up to 867 Mbps use with an 867 Mbps 802.11ac wireless client. Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
