AC1200 Dual Band Wireless Router

TEW-811DRU (Version v1.0R)

  • AC1200: 867 Mbps AC + 300 Mbps N bands
  • Share music and videos with the USB share port
  • Pre-encrypted for your security
  • Create an isolated guest network
  • One touch network connection with the WPS button
  • All Gigabit wired ports
  • High power amplifiers extend wireless coverage
  • Compatible with DD-WRT Open Source Firmware****

Designed to handle multiple HD streams in a busy connected home, TRENDnet's high performance AC1200 Dual Band Wireless Router, model TEW-811DRU, creates two concurrent wireless networks—a high speed 867 Mbps Wireless AC network and a 300 Mbps Wireless N network to connect common wireless devices.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

One Touch Connection

Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

USB Share Port

Plug in a USB flash or storage drive to share content across the network

Security

Encrypted Wireless

For your security the router arrives pre-encrypted with a unique password

Guest Network

Create secure isolated guest networks for internet access only

Parental Controls

Control access to specific websites or types of content

Performance

Next Generation Wireless AC

802.11ac provides uninterrupted HD video streaming in a busy connected home

Simultaneous Dual Band

High speed 867 Mbps Wireless AC + 300 Mbps Wireless N

Gigabit Ports

Gigabit ports extend high performance wired connections

Wireless Coverage

High power amplifiers extend whole home wireless coverage

Backward Compatible

Compatible with Wireless N and older Wireless G devices

Targeted Beamforming

Increased real-time performance by directing stronger wireless to your specific location

Open Source

Compatible with DD-WRT open source firmware****

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11ac (draft 2.0, up to 867 Mbps)
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a

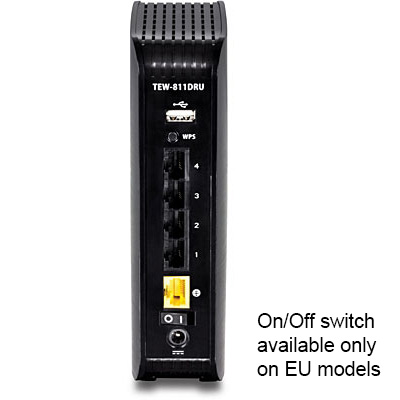

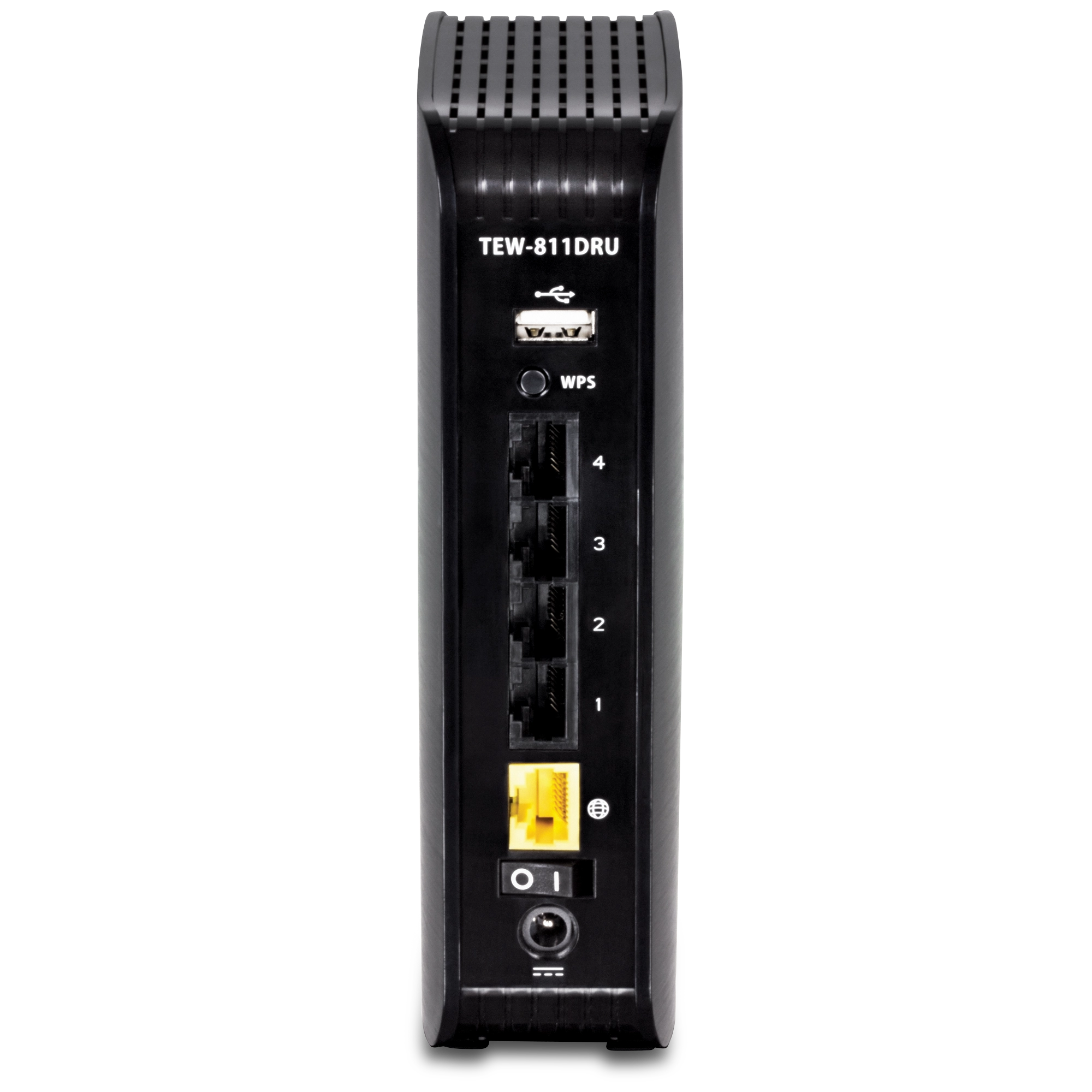

Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • USB 2.0 (Storage FTP, Samba, Printing)
  • Power switch (EU only)
  • WPS Button

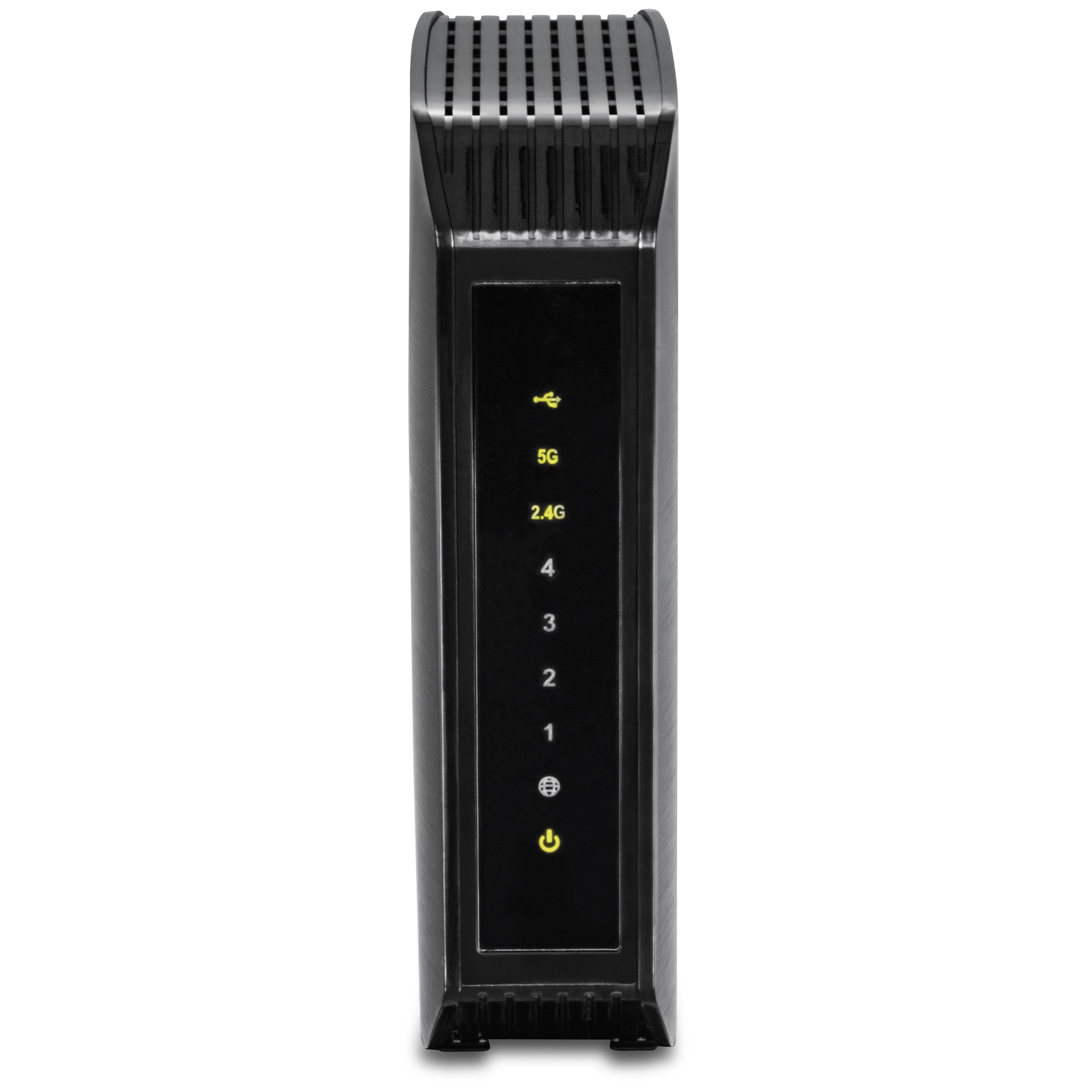

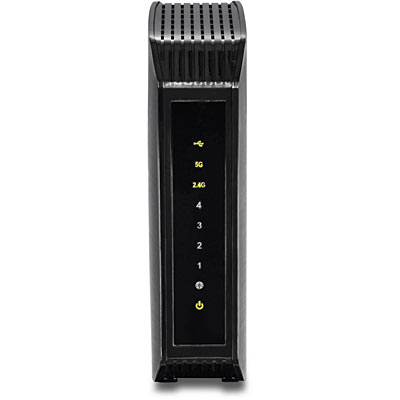

  • LED indicators
Security
  • Wireless encryption up to WPA2
  • Firewall: NAT, SPI
  • Parental (Access) Controls: Mac, URL, IP Filter
System Requirements
  • USB Printing utility: USB Printing utility: Windows: 8, 7, Vista, XP, Mac OS X: 10.4 / 10.5 / 10.6 / 10.7
Special Features
  • QoS Management
  • IPv6 support (6to4 and Native)
  • WDS support
  • 1 guest network per band with Internet isolation
  • DDNS support for dyndns.com & no-ip.com
  • Samba / FTP server support
Open Source
  • Compatible with DD-WRT Firmware
Power
  • Input: 100 ~ 240 V AC, 50~60 Hz
  • Output: 12 V DC, 2 A
  • Consumption: 18 Watts (Max.)
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Operating Humidity
  • Max. 85% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 45 x 120 x 164 mm (1.8 x 4.7 x 6.5 in)
  • 395 g (14 oz)
Warranty
  • 3-year limited

PACKAGE CONTENTS

  • TEW-811DRU
  • Multi-language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.5 m / 5 ft.)
  • Power adapter (12 V, 2 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
