N300 High Power PoE Access Point

TEW-735AP (Version v1.1R)

  • High power radio greatly expands coverage
  • Proven 300 Mbps wireless N
  • Features Access Point, WDS AP, WDS Bridge, and Repeater modes
  • No need to install the device near a power source with PoE installation
  • Off-white housing blends into environment
  • Plenum rated

TRENDnet's plenum rated business class N300 High Power PoE Access Point, model TEW-735AP, greatly increases wireless coverage as compared to standard access points. A variety of installation scenarios are supported with Access Point, WDS AP, WDS Bridge, and Repeater modes. Save installation time and costs with PoE.

Installation

Quick Setup

Get up and running in minutes with an intuitive guided setup

Plenum Rated

Plenum rating expands installation options

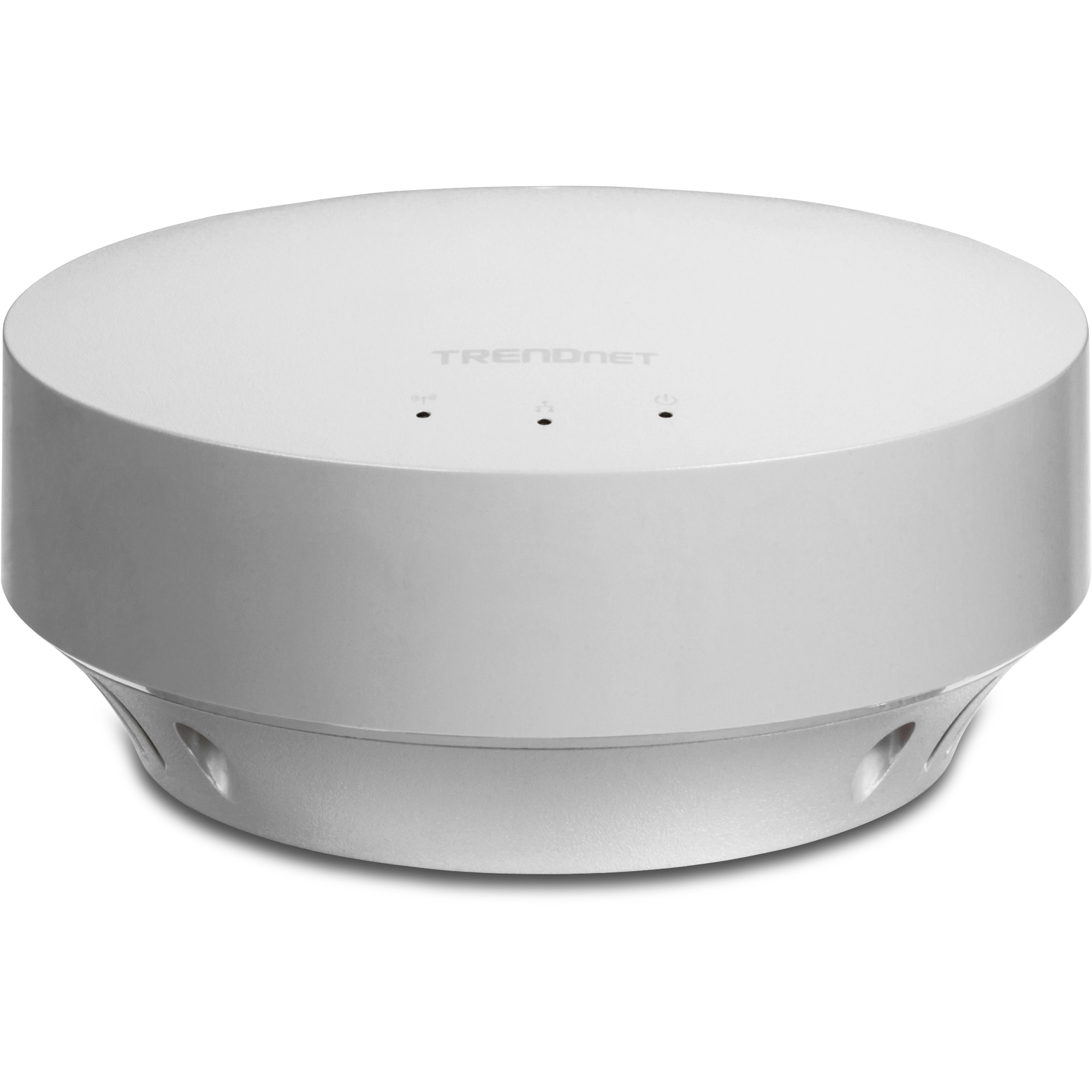

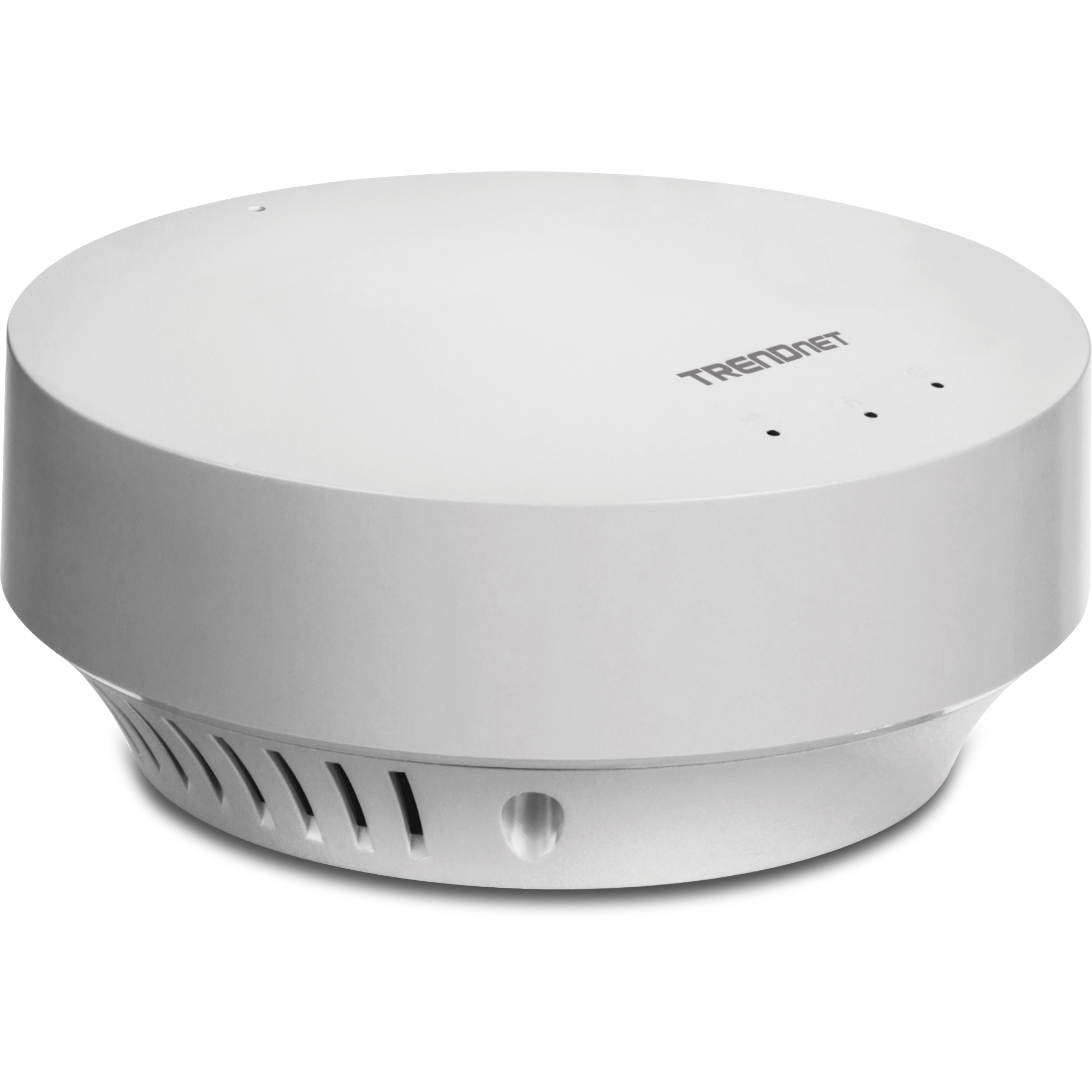

Housing

Off white color and smoke detector shape blends into most environments

Power over Ethernet (PoE)

Save installation time and costs with PoE (Optional power port for non-PoE installations)

LED Control

Disable diagnostic LEDs to further reduce visual attention

Performance

Wireless Coverage

High power radio greatly expands wireless coverage

Wireless Speed

Proven 300 Mbps wireless N

Backward Compatible

Compatible older wireless G devices

Management

Operation Modes

Access Point, WDS AP, WDS Bridge, and Repeater modes

IPv6

IPv6 pass through support

SSIDs

Create up to four wireless virtual LANs (SSIDs)

System Log

System log aids network troubleshooting

SNMP

Extend network monitoring to this device with SNMP support

Encryption

Encrypted Wireless

Support for encryption up to WPA2

VLAN Management

Up to four SSIDs with VLAN management support

Network Access

Create MAC filter tables to reduce network access risk

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 802.11az

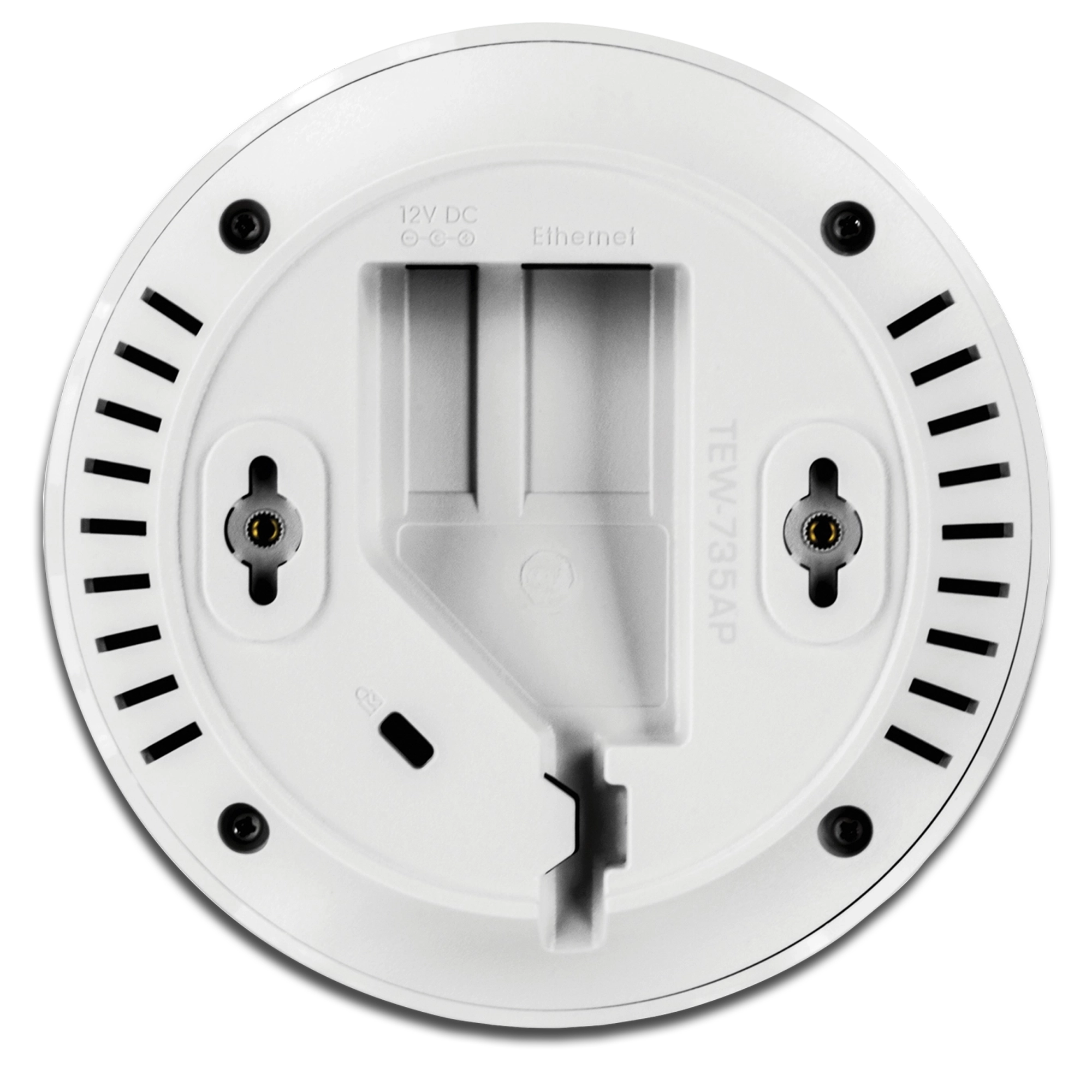

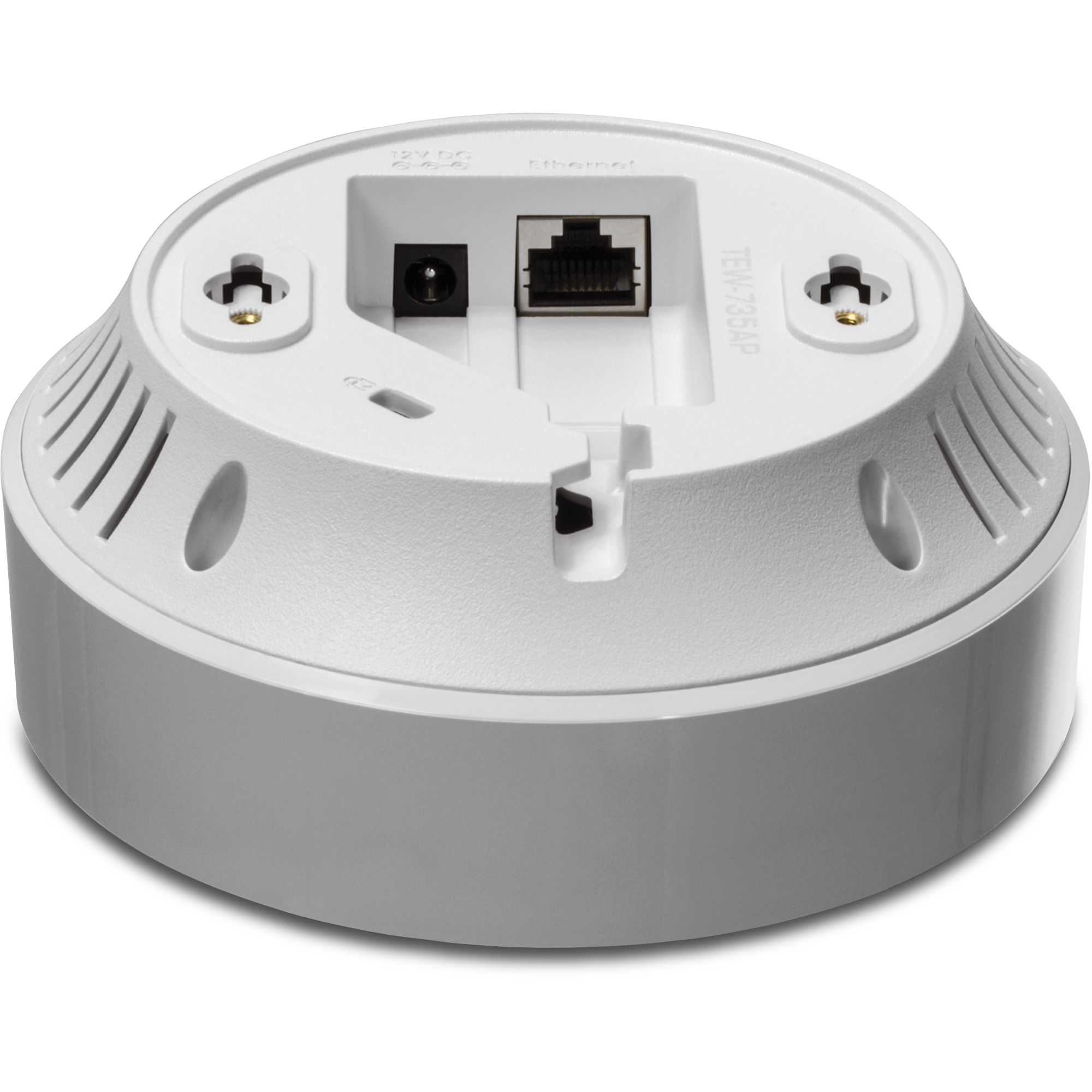

Device Interfaces
  • 1 x 10/100 Mbps PoE LAN port
  • Optional power port
  • Mounting points
  • LED indicators
Wireless
  • Modes: AP, Repeater, WDS AP, and WDS Bridge
  • Up to 4 SSIDs
Encryption
  • Wireless encryption up to WPA2
  • MAC address filtering
Special Features
  • High power wireless radio
  • Plenum rated
  • VLAN tag support
  • SNMP v1, v2c
  • Disable LEDs
  • IPv6 ready
  • Discrete housing
Antenna Gain
  • 4 dBi internal PIFA x 2
Wireless Output Power / Receiving Sensivity
  • 802.11b: FCC: 26 dBm (typical), CE: 20 dBm (typical) / -82 dBm (typical) @ 11 Mbps
  • 802.11g: FCC: 23 dBm (typical) , CE: 20 dBm (typical) / -72 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 23 dBm (typical) , CE: 20 dBm (typical) / -66 dBm (typical) @ 300 Mbps
Power
  • Input: 100 - 240 V AC, 50 - 60 Hz
  • Output: 12 V DC, 1 A
  • PoE power (with optional power adapter)
  • Consumption: 6 Watts (Max.)
Operating Temperature
  • 0 - 45°C (32 - 113°F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 128 x 60 mm (5 x 2.4 in.)
Weight
  • 210 g (7.0 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-735AP
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V DC, 1 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
