N150 Wireless Home Router

TEW-711BR (Version v2.0R)

Proven 150 Mbps Wireless N
Pre-encrypted wireless for your convenience
One touch network connection with the WPS button
Energy saving GREENnet technology

DISCONTINUED PRODUCT

The TEW-711BR (Version v2.0R) has been discontinued. It has been replaced by the TEW-831DR (Version v1.0R). For a list of discontinued products, click here.

TRENDnet's N150 Wireless Home Router, model TEW-711BR, offers proven 150 Mbps wireless n networking to share files, play games, and surf the internet. Embedded GREENnet technology reduces power consumption by up to 50%. For your convenience the wireless network is setup and pre-encrypted out of the box.

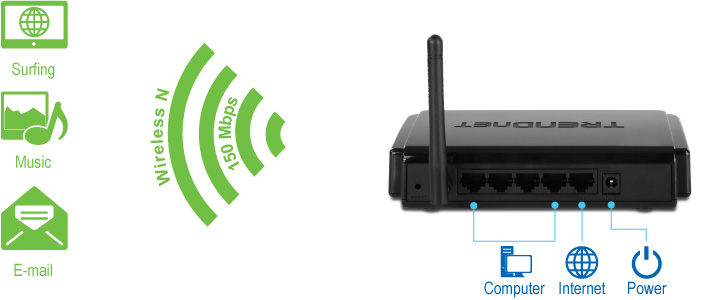

Illustration shows icons on the left with labels Surfing, Music, and Email, and a wireless signal labeled Wireless N & 150 Mbps. On the right is the back view of the N150 Wireless Home Router TEW-711BR with icons labeled Computer, Internet, and Power.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

One Touch Connection

Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

Access Control

Pre-Encrypted

For your convenience the wireless network is pre-encrypted with its own unique password

Parental Controls

Control access to specific websites and manage which devices can access the router

Performance

N150 Wireless

Reliable 150 Mbps Wireless N

Ethernet Ports

Ethernet ports to hardwire up to four devices

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 50%

IPv6

IPv6 network support

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Standard	IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3az IEEE 802.11b IEEE 802.11g Based on IEEE 802.11n technology
Hardware Interface	4 x 10/100 Mbps LAN ports 1 x 10/100 Mbps WAN port WPS button (Press and hold for 3 seconds to activate) Reset button (Press and hold for 10 seconds to reset to factory) LED indicators (Power, Status, WAN, WLAN, LAN 1-4)
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS Firewall: NAT, SPI, Virtual Server, Special Applications, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough, Multicast Passthrough, alow/deny ping request from internet Parental (Access) Controls: MAC, URL, IP Filter
Quality of Service	WMM
Internet Connection Types	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP/Static IP) PPTP (Dynamic IP/Static IP) L2TP(Dynamic IP/Static IP) Russia PPPoE (Dynamic IP/Static IP) Russia PPTP (Dynamic IP/Static IP) Russia L2TP (Dynamic IP/Static IP) IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring	Local/remote web based management Upgrade firmware Backup/restore configuration Logging – internal/syslog/email Reboot Restore to factory defaults Ping test
Routing	Static Dynamic (RIP v1/2)
Special Features	Dynamic DNS support for dyn.com, no-ip.com, and easydns.com Multi-Language interface: English, Spanish, German, Russian
Frequency	2.412 - 2.484 GHz
Modulation	802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	1 x 2 dBi external dipole
Wireless Output Power/Receiving Sensitivity	802.11b: FCC: 16 dBm (max.), ETSI: 15 dBm (max.)/-86 dBm (typical) @ 11 Mbps 802.11g: FCC: 14 dBm (max.), ETSI: 14 dBm (max.)/-74 dBm (typical) @ 54 Mbps 802.11n: FCC: 14 dBm (max.), ETSI: 14 dBm (max.)/-67 dBm (typical) @ 150 Mbps
Wireless Channels	FCC: 1-11 ETSI: 1-13
Power	Input: 100 – 240 V AC, 50 - 60 Hz, 0.19 A Output: 5 V DC, 1 A external power adapter Consumption: 2.8 Watts (max.)
Temperature	Operating: 0 – 40 °C (32 – 104 °F) Storage: -10 - 70 °C (-14 – 158 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	158 x 109 x 34 mm (6.2 x 4.3 x 1.3 in)
Weight	187 g (6.6 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-711BR
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)
Network cable (1.5 m/5 ft.)
Power adapter (5 V DC, 1 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
