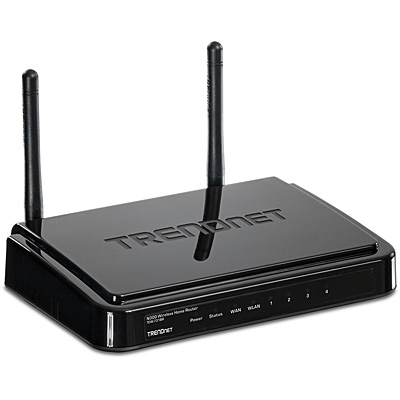

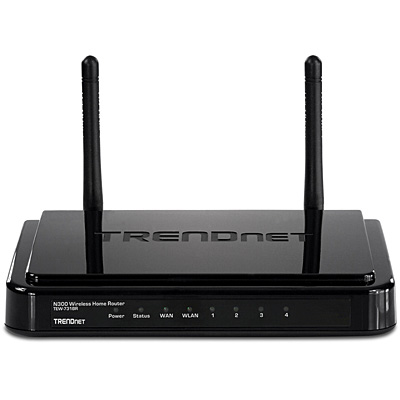

N300 Wireless Home Router

TEW-731BR (Version v2.0R)

Proven 300 Mbps Wireless N
Pre-encrypted wireless for your convenience
One touch network connection with the WPS button
Energy saving GREENnet technology

TRENDnet's N300 Wireless Home Router, model TEW-731BR, offers proven 300 Mbps wireless n networking to share files, play games, and surf the internet. Embedded GREENnet technology reduces power consumption by up to 50%. For your convenience the wireless network is setup and pre-encrypted out of the box.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

One Touch Connection

Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

Access Control

Pre-Encrypted

For your convenience the wireless network is pre-encrypted with its own unique password

Parental Controls

Control access to specific websites and manage which devices can access the router

Performance

N300 Wireless

Proven 300 Mbps Wireless N

Ethernet Ports

Ethernet ports to hardwire up to four devices

Wireless Coverage

Whole home wireless coverage with MIMO antenna technology for average size homes

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 50%

IPv6

IPv6 network support

Standards	IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3az IEEE 802.11b IEEE 802.11g IEEE 802.11n (2.4GHz up to 300 Mbps)

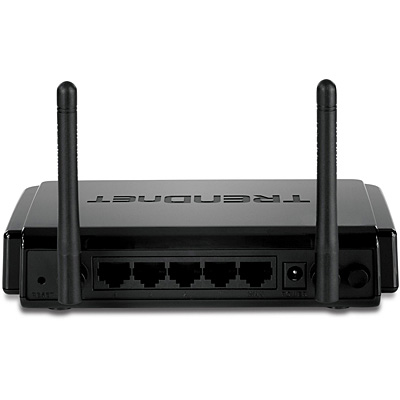

Hardware Interface	4 x 10/100 Mbps LAN ports 1 x 10/100 Mbps WAN port WPS button Reset button
LED indicators	Special Features Dynamic DNS support for dyn.com, no-ip.com, and easydns.com Multi-Language interface: English, Spanish, German, Russian Pre-encrypted wireless network
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS Firewall: NAT, SPI, Virtual Server, Special Applications, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough, Multicast Passthrough, allow/deny ping request from internet Parental (Access) Controls: MAC, URL, IP Filter
Quality of Service	WMM
Internet Connection Types	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP/Static IP) PPTP (Dynamic IP/Static IP) L2TP(Dynamic IP/Static IP) Russia PPPoE (Dynamic IP/Static IP) Russia PPTP (Dynamic IP/Static IP) Russia L2TP (Dynamic IP/Static IP) IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring	Local/remote web based management Upgrade firmware Backup/restore configuration Logging – internal/syslog/email Reboot Restore to factory defaults Ping test
Routing	Static Dynamic (RIP v1/2)
Frequency	2.412 - 2.484 GHz
Modulation	802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	2 x 2 dBi external dipole
Wireless Output Power	802.11b: FCC: 16 dBm (max.), ETSI: 17 dBm (max.) @ 11 Mbps 802.11g: FCC: 16 dBm (max.), ETSI: 17 dBm (max.) @ 54 Mbps 802.11n: FCC: 15 dBm (max.), ETSI: 14 dBm (max.) @ 300 Mbps
Receiving Sensitivity	802.11b: -86 dBm (typical) @ 11 Mbps 802.11g: -74 dBm (typical) @ 54 Mbps 802.11n: -67 dBm (typical) @ 300 Mbps
Wireless Channels	FCC: 1-11 ETSI: 1-13
Power	Input: 100 – 240 V AC, 50 - 60 Hz, 0.19 A Output: 5 V DC, 1 A external power adapter Consumption: 3.2 Watts (max.)
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	158 x 109 x 34 mm (6.2 x 4.3 x 1.3 in.)
Weight	194 g (6.8 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-731BR
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)
Network cable (1.5 m/5 ft.)
Power adapter (5 V DC, 1 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
