N600 Dual Band Wireless Router

TEW-752DRU (Version v1.0R)

  • Concurrent dual band 300 Mbps wireless n
  • Pre-encrypted for your convenience
  • Convenient USB share port
  • Create an isolated guest network on each band
  • All Gigabit wired ports
  • Energy savings GREENnet technology
  • IPv6 network ready
DISCONTINUED PRODUCT
The TEW-752DRU (Version v1.0R) has been discontinued. It has been replaced by the TEW-831DR (Version v1.0R). For a list of discontinued products, click here.

TRENDnet's N600 Dual Band Wireless Router, model TEW-752DRU, offers proven concurrent Dual Band 300 Mbps wireless n networking, Gigabit wired Ethernet ports, and a convenient USB share port. Embedded GREENnet technology reduces power consumption by up to 50%. For your convenience this router comes pre-encrypted and features guest networks.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

One Touch Connection

Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

USB Share Port

Plug in a USB flash or storage drive to share content across the network

Encryption

Pre-Encrypted

For your convenience the router arrives pre-encrypted with its own unique password

Guest Network

Create a isolated network, on each wireless band, for guest internet access only

Parental Controls

Control access to specific websites

Performance

N600 Wireless

Proven concurrent dual band 300 Mbps wireless n

Gigabit Ports

Gigabit ports extend high performance wired connections

Wireless Coverage

Extensive wireless coverage with MIMO antenna technology

Quality of Service (QoS)

Advanced QoS prioritizes video and audio transmissions

Backward Compatible

Compatible with older Wireless G devices

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 50%

IPv6

IPv6 network support


* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cov-erage will vary depending on interference, network traffic, building materials and other conditions

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)

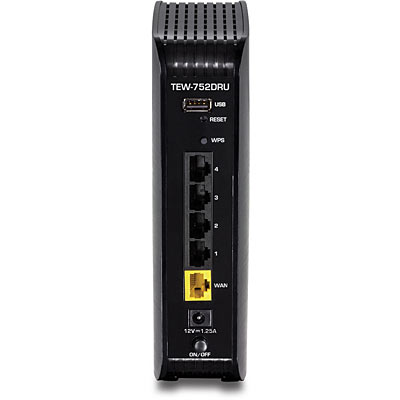

Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • 1 x USB 2.0 (Samba Storage)
Power switch
  • WPS Button
  • LED indicators
Encryption
  • Wireless encryption up to WPA2
  • Firewall: NAT, SPI
  • Parental (Access) Controls: Mac, URL, IP Filter
Special Features
  • Internet Bandwidth Control
  • IPv6 support
  • Guest network with Internet isolation Energy saving GREENnet technology
  • DynDNS support for: DynDNS.org
Antenna Gain
  • 2.4 GHz: 2 x 2 dBi internal printed/5 GHz: 2 x 5.4 dBi internal PIFA
Wireless Output Power/Receiving Sensitivity
  • 802.11a: 15 dBm (typical)/-65 dBm (typical) @ 54 Mbps
  • 802.11b: 18 dBm (typical)/-76 dBm (typical) @ 11 Mbps
  • 802.11g: 15 dBm (typical)/-65 dBm (typical) @ 54 Mbps
  • 802.11n: 15 dBm (typical)/-61 dBm (typical) @ 300 Mbps (for 2.4 GHz & 5 GHz)
Power
  • Input: 100 ~ 240 V AC, 50~60 Hz, 0.4 A
  • Output: 12 V DC, 1.25 A
  • Consumption: 14.7 Watts (max.)
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 45 x 118 x 164 mm (1.8 x 4.6 x 6.5 in.)
Weight
  • 255 g (9 oz)
Warranty
  • 3-year limited

PACKAGE CONTENTS

  • TEW-752DRU
  • Multi-language Quick Installation Guide
  • CD-ROM (User's Guide)
  • 1 x Network cable (1.5 m / 5 ft.)
  • Power adapter (12 V, 1.25 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
