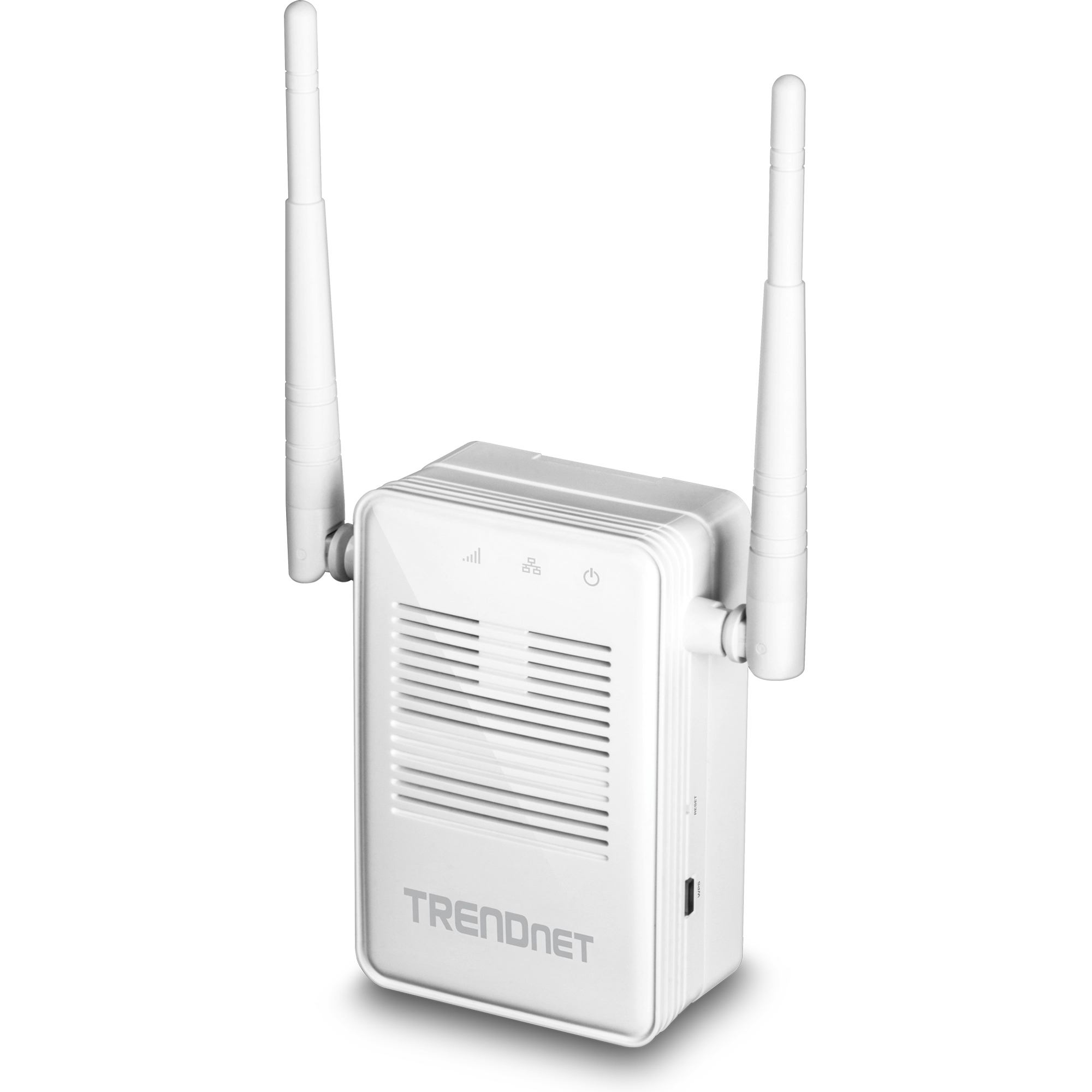

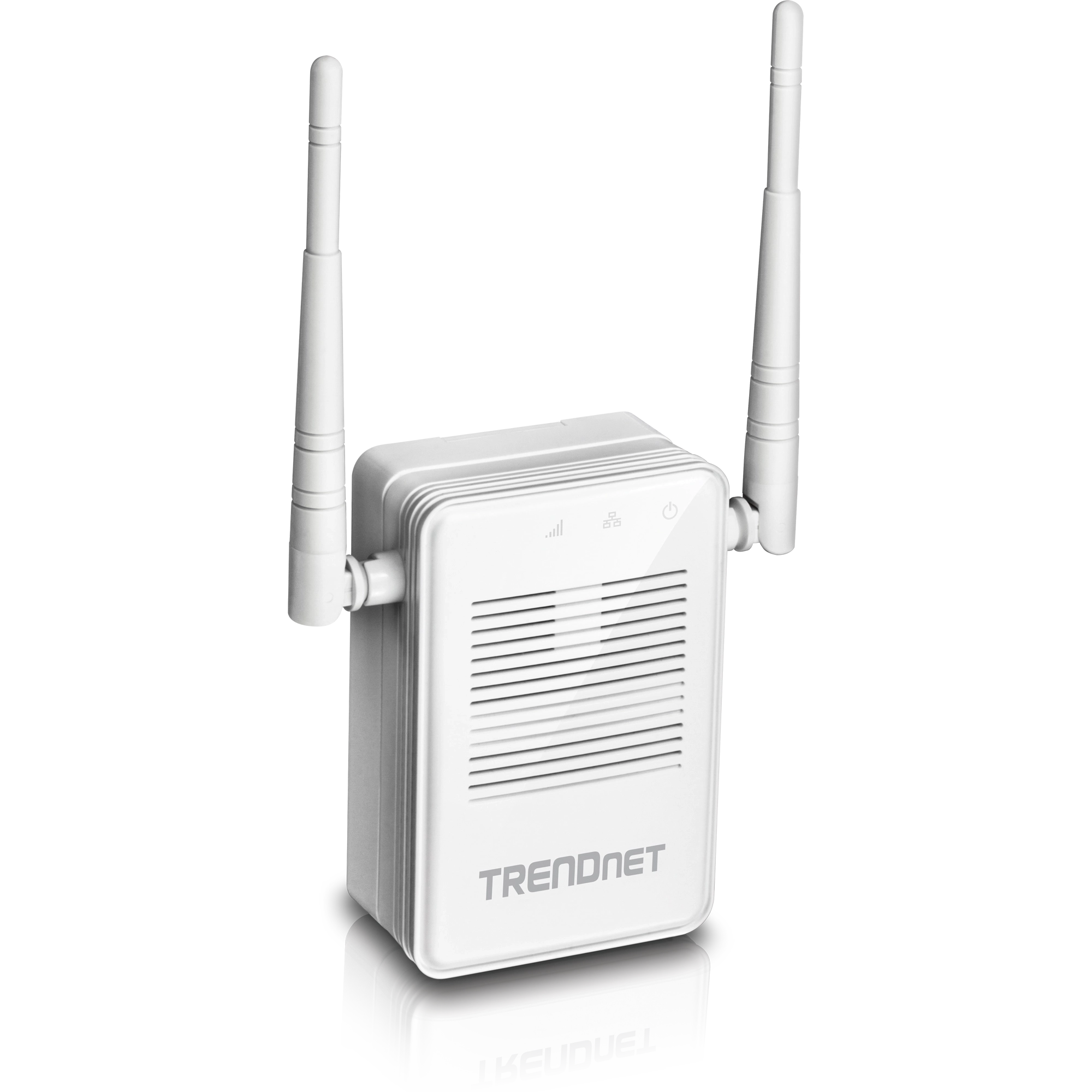

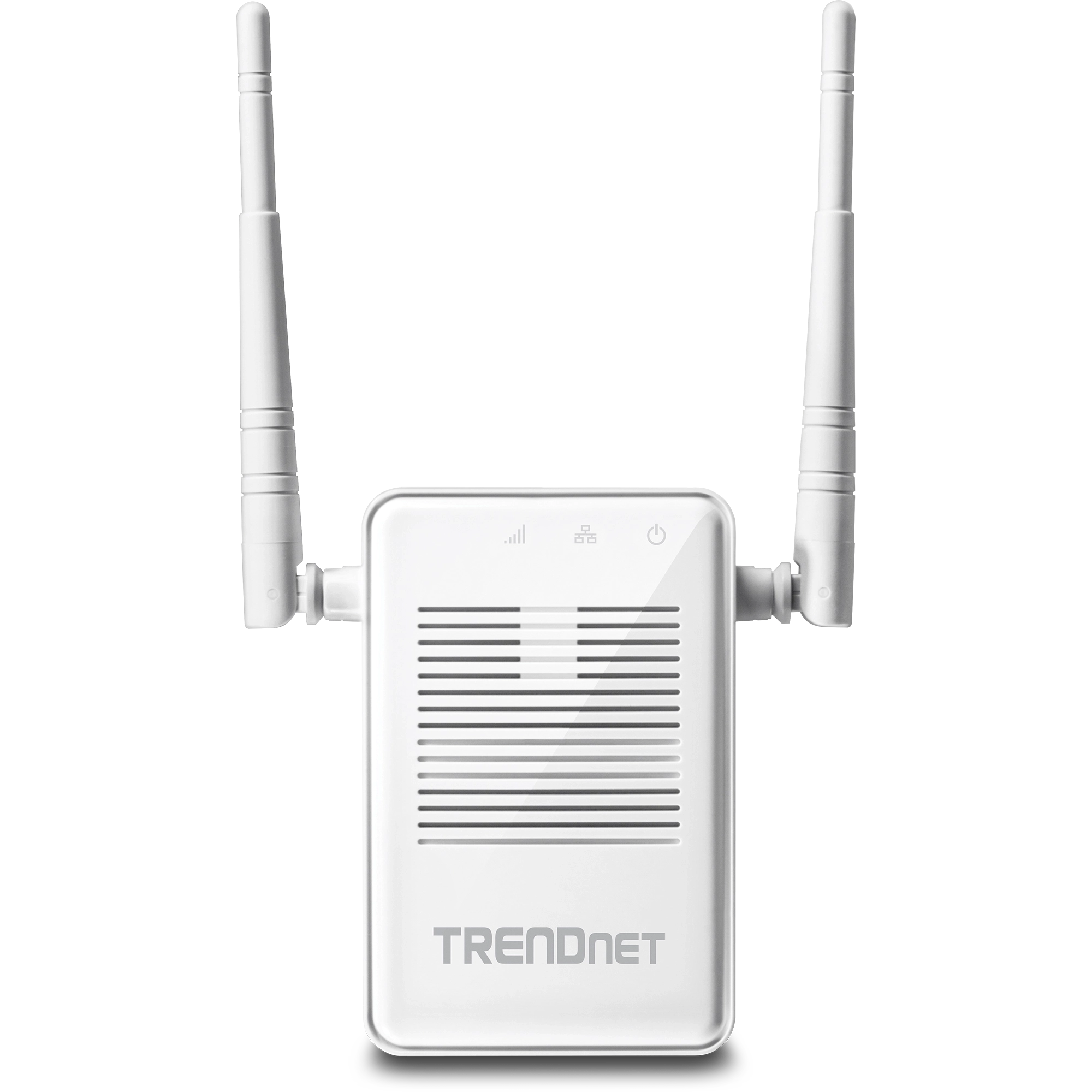

AC1200 WiFi Range Extender

TEW-822DRE (Version v1.0R)

Extends concurrent WiFi AC and N networks
AC1200: 867 Mbps WiFi AC + 300 Mbps WiFi N bands*
Extreme speeds for buffer-free 4K/3D/HD video streaming
Plugs directly into an electrical outlet
External antennas and high power amplifiers increase WiFi coverage
Extender and Access Point modes
Gigabit wired port

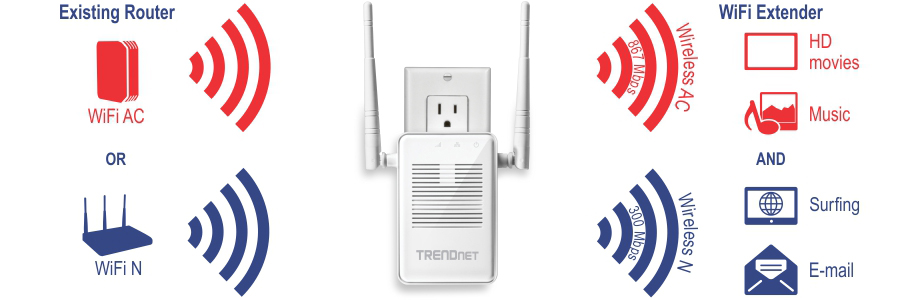

TRENDnet's AC1200 WiFi Range Extender, model TEW-822DRE, offers extreme wireless coverage to eliminate existing wireless network dead spots. Setup takes minutes with no drivers to install and it stays out of the way by plugging directly into an outlet. Connect to either an existing WiFi N or WiFi AC router and extend concurrent WiFi N and AC networks into an area with low or no wireless.

Blasts Away Deadspots

High performance WiFi amplifiers and external antennas broadcast strong AC1200 WiFi into areas with low or no coverage

Extreme WiFi for All

All home WiFi devices are supported by concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks.

Beamforming = Better

Beamforming increases real-time performance by directing stronger wireless signals to each device's specific location.

Easy Setup

Quick intuitive setup connects to either a WiFi AC or WiFi N network and adopts existing WiFi settings

AC1200 Dual Band

Broadcasts concurrent high speed 867 Mbps WiFi AC + 300 Mbps WiFi N networks

Extreme Coverage

Adjustable external antennas, high power amplifiers, and multiple antenna technology produces extreme wireless coverage

Gigabit Port

Gigabit port extends a high performance connection to a wired device

No Clutter

The extender plugs directly into an outlet

Operating Modes

External switch toggles between Extender (connects to a WiFi network) and Access Point (connects to a wired network) modes

Encrypted Wireless

Supports the latest encryption standards

Compatibility

Embedded GREENnet technology reduces power consumption

Targeted Beamforming

Increased real-time performance by directing stronger wireless signals to a device's specific location

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3az IEEE 802.11a IEEE 802.11ac (up to 867 Mbps) IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps)
Device Interfaces	Gigabit Ethernet port WPS Button AP/Extender/Off switch LED indicators Power plug A: North America Type B (NEMA 5–15) EU: Euro Type C (CEE 7/16) UK: United Kingdom Type G (BS 1363)
Operation Modes	Range Extender (Repeater) Access Point
Special Features	High power amplifier MIMO antenna technology Compact form factor IPv6 (Link local, Static, SLAAC/DHCPv6) Beamforming Multiple SSID DFS channels
SSID	Up to 4 additional SSIDs
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS MAC filter Wireless user number limitation
Frequency	FCC: 2.412 - 2.462 GHz, 5.180 - 5.240 GHz, 5.745 - 5.825 GHz ETSI: 2.412 - 2.472 GHz, 5.180 - 5.580 GHz, 5.660 - 5.700 GHz
Wireless Channels	2.4 GHz: FCC: 1-11; ETSI: 1-13 5 GHz: FCC: 36, 40, 44, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Modulation	BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
Antenna Gain	Dipole dual band antennae x 2 5G: 3 dBi 2.4G: 2 dBi
Wireless Output Power (EIRP)/Receiving Sensitivity	802.11a: FCC: 22 dBm (typical), CE: 20 dBm (typical)/-65 dBm (typical) @ 54 Mbps 802.11b: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-83 dBm (typical) @ 11 Mbps 802.11g: FCC: 27 dBm (typical), CE: 20 dBm (typical)/-65 dBm (typical) @ 54 Mbps 802.11n: FCC: 27 dBm (typical), CE: 20 dBm (typical)/-61 dBm (typical) @ 300 Mbps 802.11ac: FCC: 26 dBm (typical), CE: 20 dBm (typical)/-51 dBm (typical) @ 867 Mbps
Power	Input: 100 - 240 V AC, 50 /60 Hz Consumption: 8.3 Watts (Max.)
Operating Temperature	0 - 40 °C (32 – 104 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC UL IC
Dimensions	150 x 130 x 60 mm (5.9 x 5.1 x 2.4 in.)
Weight	265 g (9.3 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-822DRE
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)

*For maximum performance of up to 867 Mbps use with an 802.11ac wireless client. Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions
**Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
