N300 Wireless ADSL 2+ Modem Router

TEW-722BRM (Version v1.0R)

Combination high speed modem and powerful wireless N300 router
Compatible with ADSL 2/2+ ISP networks
Pre-encrypted wireless for your convenience
Wireless on/off button
Four Ethernet ports for wired devices

DISCONTINUED PRODUCT

The TEW-722BRM (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's N300 Wireless ADSL 2+ Modem Router, model TEW-722BRM, is a combination high performance modem for Internet access and powerful wireless N300 router—well suited for medium to large size homes. The modem is compatible with most ADSL Internet service provider networks and it comes with an intuitive guided setup wizard. For your convenience the wireless network is setup and pre-encrypted out of the box.

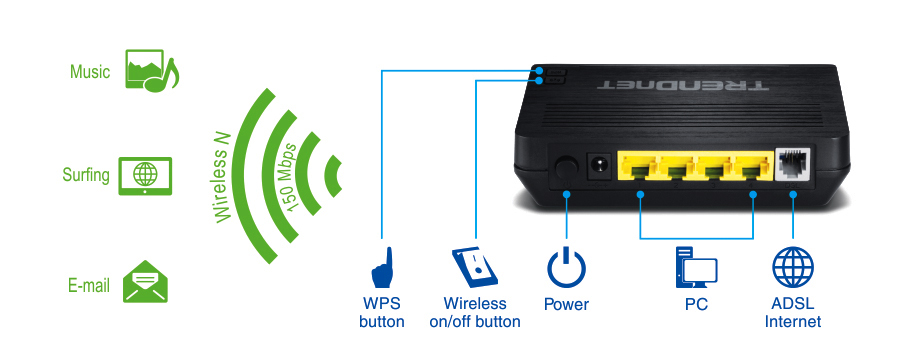

Illustration shows icons on the left with labels Music, Surfing, and Email, and a wireless signal labeled Wireless N & 150 Mbps. On the right is the back view of the N300 Wireless ADSL 2+ Modem Router TEW-722BRM with icons labeled WPS button, Wireless on/off button, Power, PC, and ADSL Internet.

Easy Setup

Get up and running in minutes with the intuitive guided setup

Internet Service

Compatible with most ADSL 2/2+ internet service provider networks

N300 Wireless

Powerful 300 Mbps Wireless N

Wireless Coverage

Whole home wireless coverage with MIMO antenna technology for medium to large size homes

Pre-Encrypted Wireless

For your convenience the wireless network arrives pre-encrypted with its own unique password

Guest Network

Create an isolated network for guest internet access only

Wireless On/Off Button

Enable or disable the wireless network with the convenient on/off wireless button

One Touch Connection

Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

Parental Controls

Control access to specific websites and manage which devices can access the router

Advanced QoS

Classify and prioritize different types of data such as video and audio transmissions

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 50%

Ethernet Ports

Four Ethernet ports to hardwire devices

IPv6

IPv6 network support

ADSL Line Interface	ADSL: ANSI T1.413 Issue2, G.992.1 (G.dmt, Annex A, and Annex B), G.992.2 (G.lite) ADSL2: G.992.3 (G.dmt.bis, Annex I, Annex J, and Annex L) ADSL2+: G.992.5 (Annex L and Annex M)
Standards	IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3az IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps)

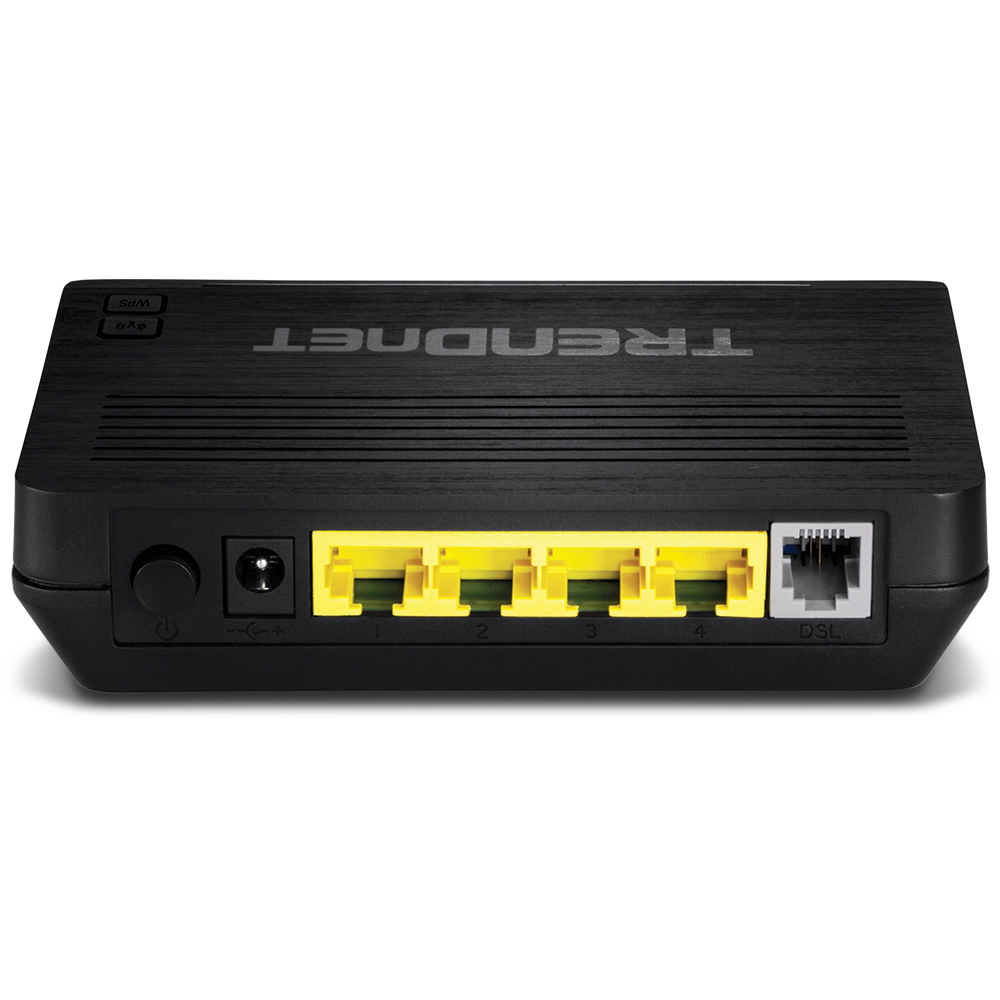

Hardware Interface	4 x 10/100 Mbps LAN ports 1 x RJ-11 WAN port WPS button / reset button Wi-Fi on/off button Power on/off button LED indicators Mounting points
Special Features	Dynamic DNS support for dyn.com, no-ip.com, and easydns.com Pre-encrypted wireless network Up to 4 SSIDs TR-069, TR-064, TR-098, TR-111, and TR-143 remote management support Port based flow control Port mapping Spanning Tree support LLMNR Energy saving GREENnet technology
Access Control	Wireless encryption: WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS Firewall: NAT, ALG, Port Trigger, SPI, Virtual Server, Special Applications, DMZ Host, PPTP / L2TP / IPsec VPN Passthrough, Multicast Passthrough, IGMP, MLD, allow / deny ping request from internet Parental (Access) Controls: MAC, URL, IP Filter, domain blocking DoS protection Packet filter
Quality of Service	WMM DCSP WFQ SP
Internet Connection Types	PPPoE (RFC-2516 Dynamic IP / Static IP) PPPoA (RFC-2364 Dynamic IP / Static IP) IPoA (RFC-1483 Routed) Dynamic IP (IPoEoA / MER with DHCP) Static IP Bridge Mode (RFC – 1483 Bridged) CIP (RFC-1577 Classic IP / ARP over ATM) IPv6 (Static, Auto-configuration (SLAAC / DHCPv6), PPPoE, IPv6 in IPv4 tunnel, 6to4, 6rd)
Management / Monitoring	Local / remote web based management Remote management (HTTP, CLI, FTPD, HTTPS) TR-069 Remote management Upgrade firmware Backup / restore configuration Logging – internal / syslog / email Reboot Restore to factory defaults Ping test ATM F4/F5 Loopback Diagnostics Traffic meter
Routing	Static Dynamic (RIP v1/2)
Frequency	2.412 - 2.484 GHz
Modulation	802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Media Access Protocol	CSMA / CA with ACK
Antenna Gain	2 x 4 dBi internal
Wireless Output Power / Receiving Sensitivity	802.11b: 15 dBm (max.) / -70 dBm (typical) @ 11 Mbps 802.11g: 15 dBm (max.) / -65 dBm (typical) @ 54 Mbps 802.11n: 15 dBm (max.) / -64 dBm (typical) @ 300 Mbps
Wireless Channels	FCC: 1-11 ETSI: 1-13
Power	Input: 100 – 240 V AC, 50 - 60 Hz, 0.5 A Output: 12 V DC, 0.5 A external power adapter Consumption: 4 Watts (max.)
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	126 x 109 x 25 mm (4.9 x 4.3 x 1 in.)
Weight	158 g (5.5 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-722BRM
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)
Network cable (1.5 m / 5 ft.)
Power adapter (12 V DC, 0.5 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
