N300 High Power Easy-N-Range Extender

TEW-737HRE (Version v1.0R)

High power wireless penetrates walls and greatly extends coverage

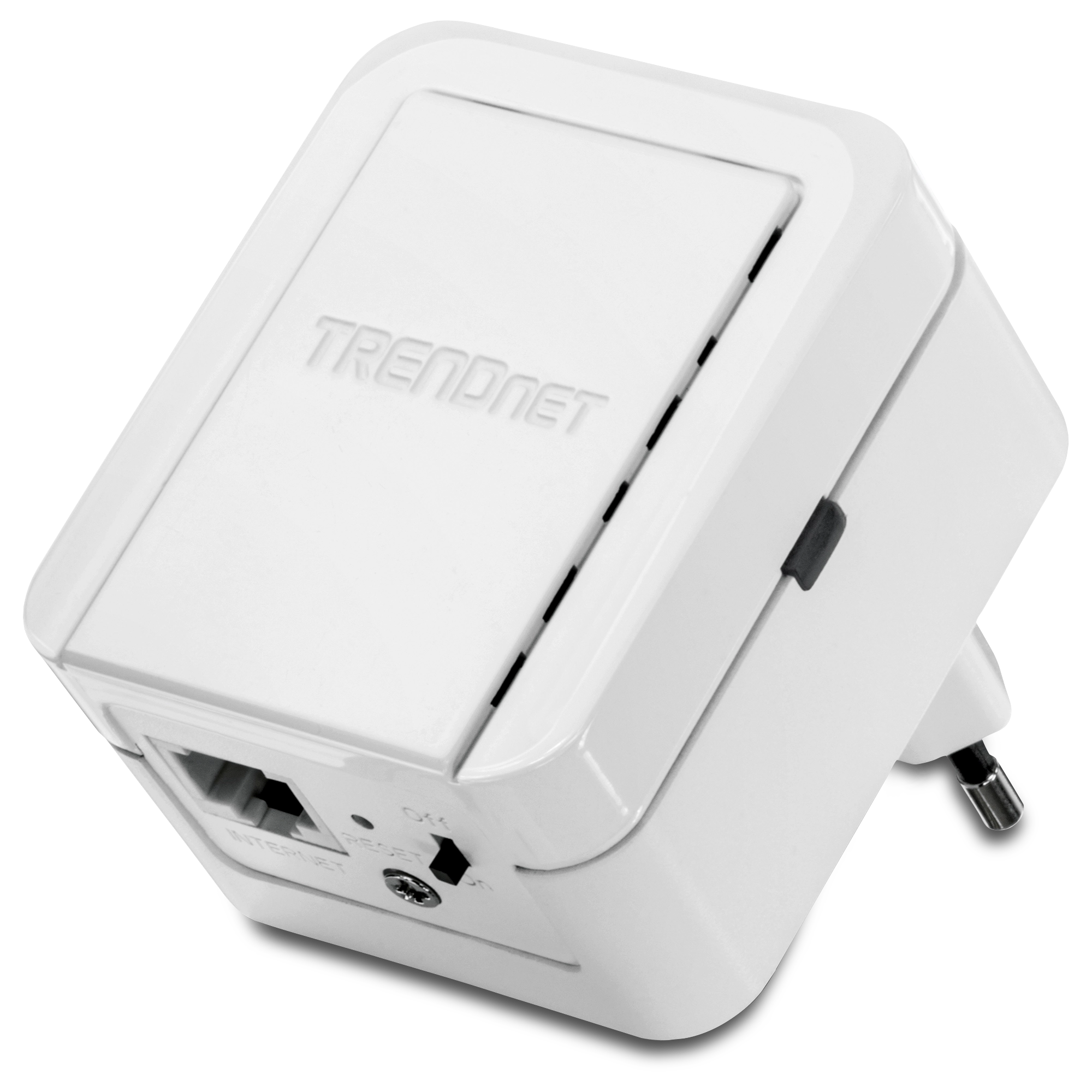

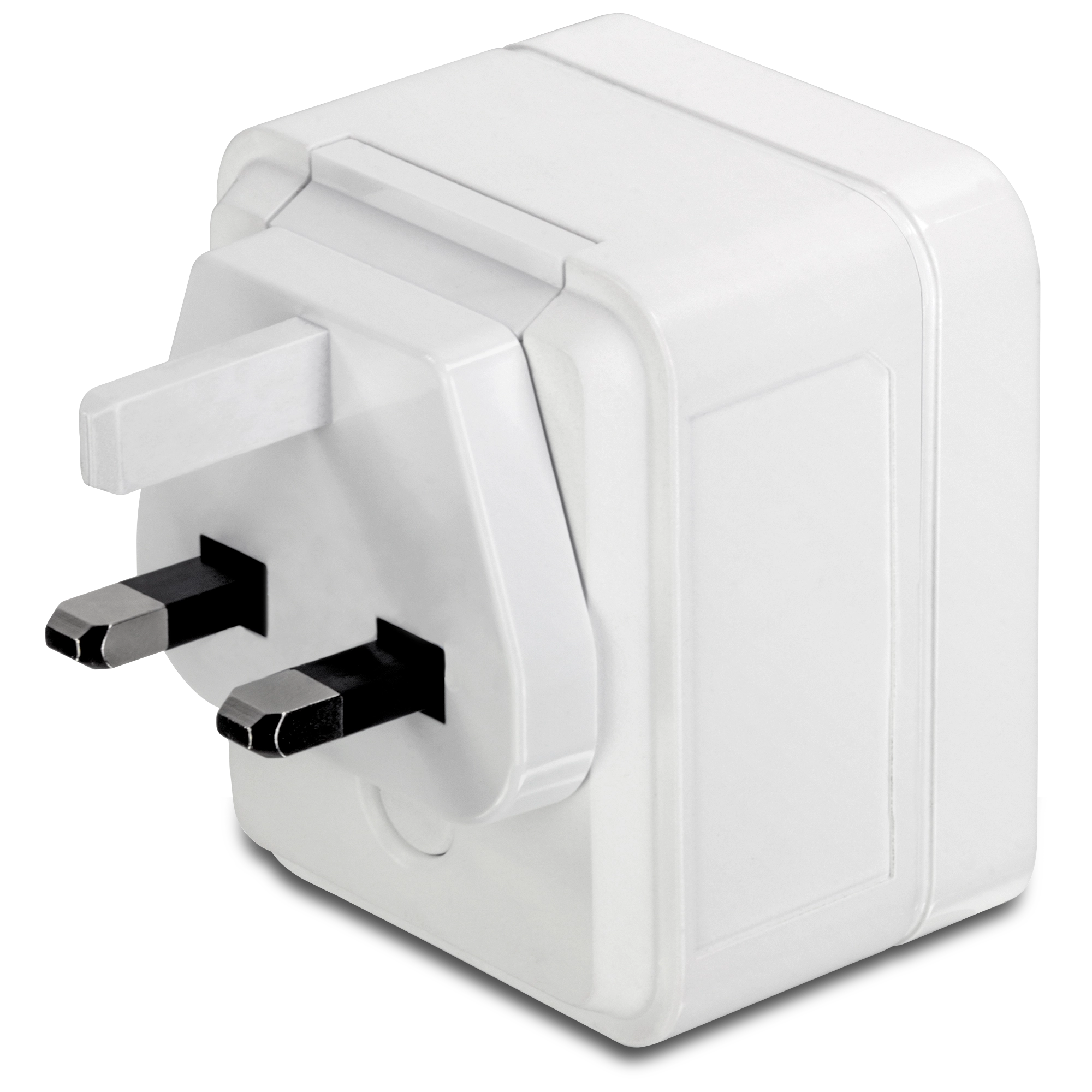

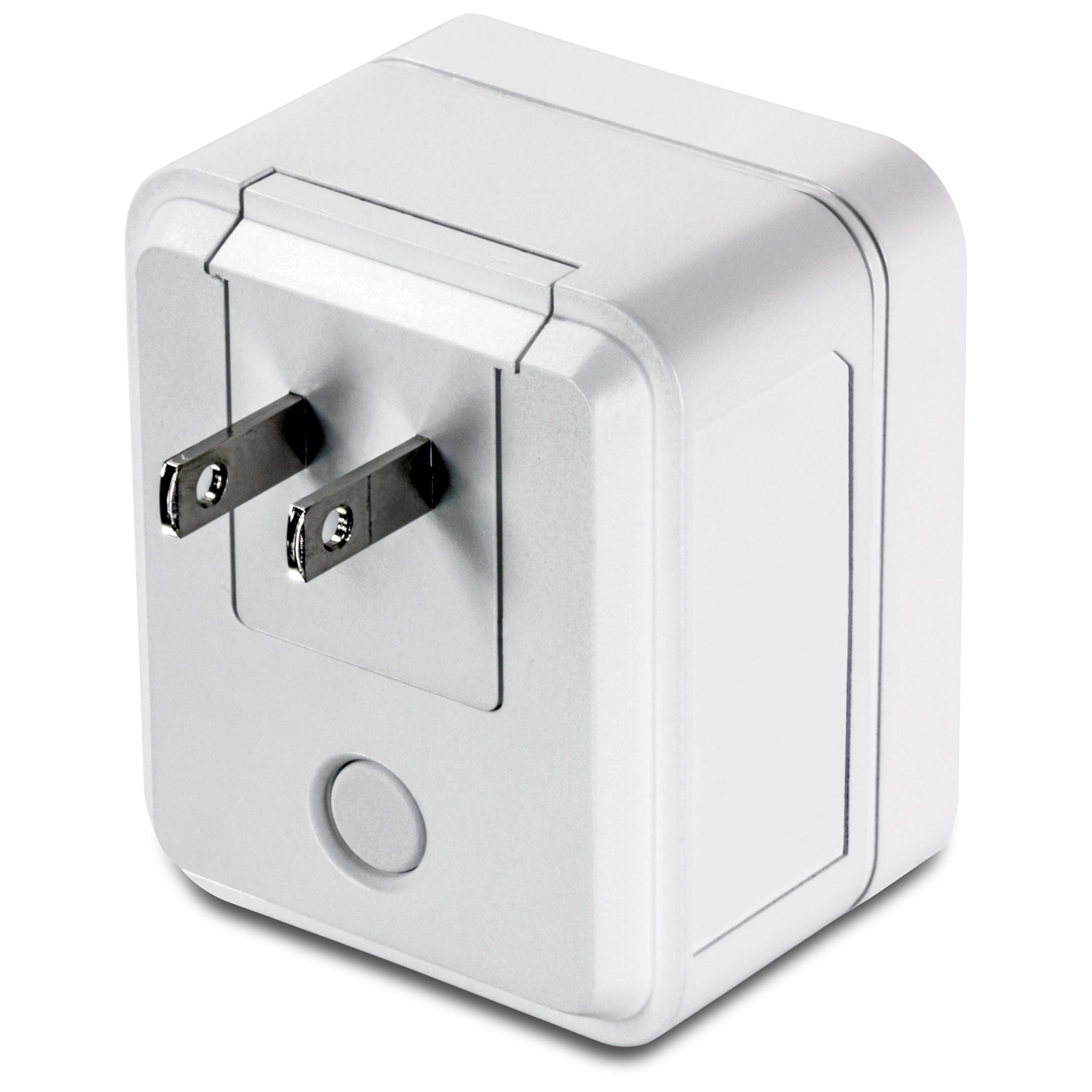

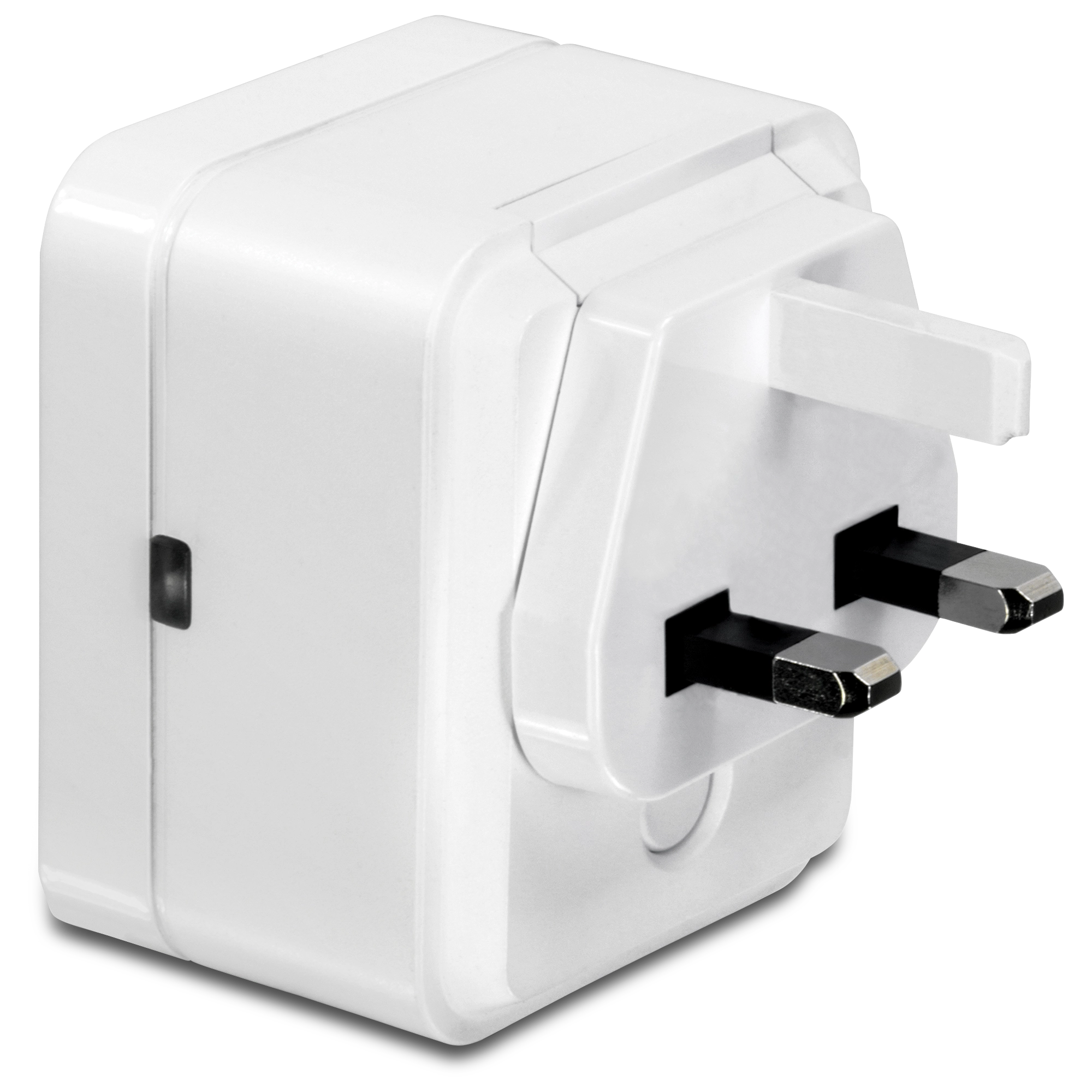

Compact housing plugs directly into an electrical outlet
Extends the range of your existing wireless network
No CD installation required
Automatically adopts router's password and encryption
Advanced wireless encryption protects your data

TRENDnet's N300 High Power Easy-N-Range Extender, model TEW-737HRE, offers extreme wireless coverage to eliminate existing wireless network dead spots. Setup takes minutes with no CD installation and it stays out of the way by plugging directly into an outlet. Simply press the Wi-Fi Protected Setup (WPS) button on your router, then on the TEW-737HRE and you're done—it's now extending your wireless network over a large area.

Ease of Use

Easy Setup

No CD installation—simply plug in the extender, scan for your wireless router, and connect

No Clutter

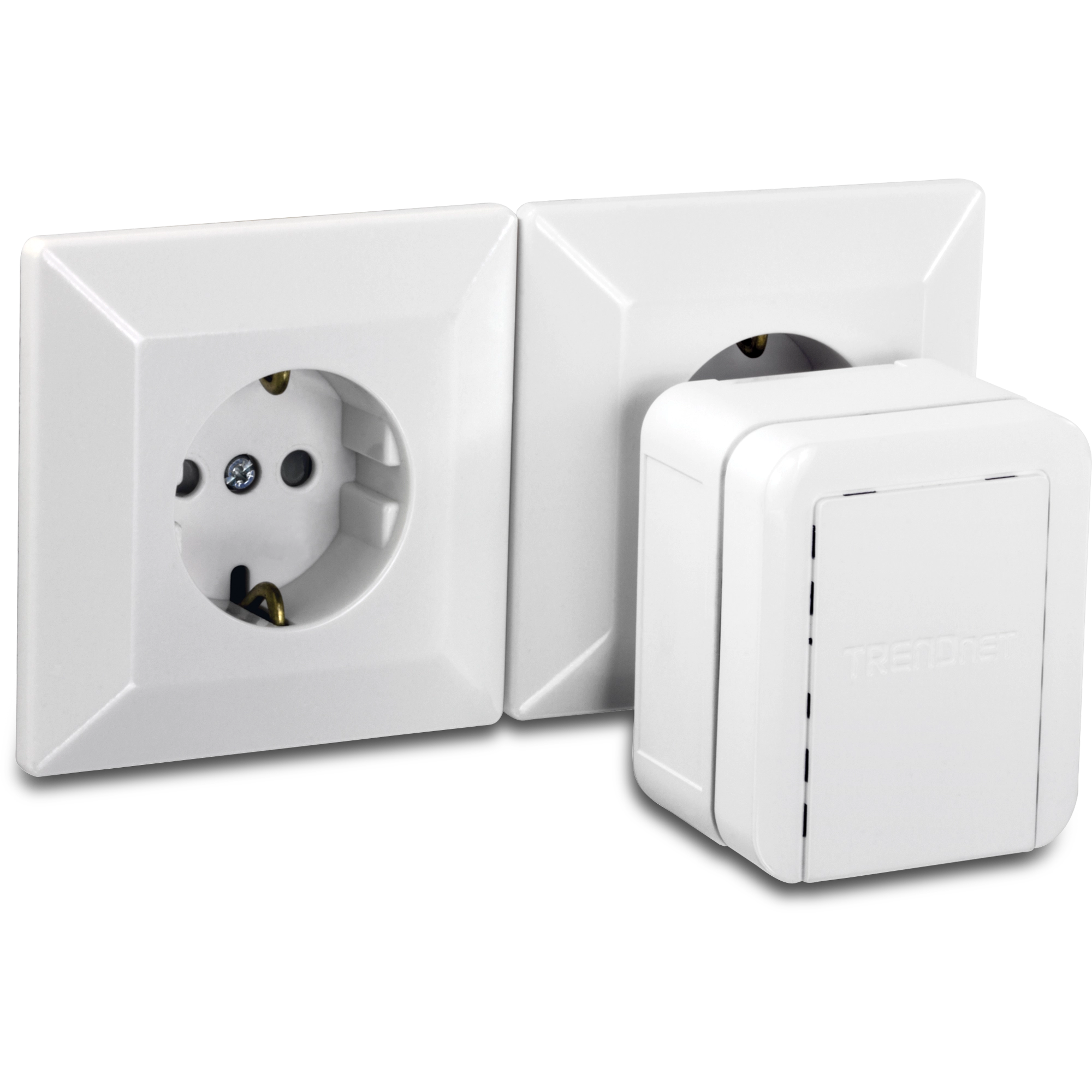

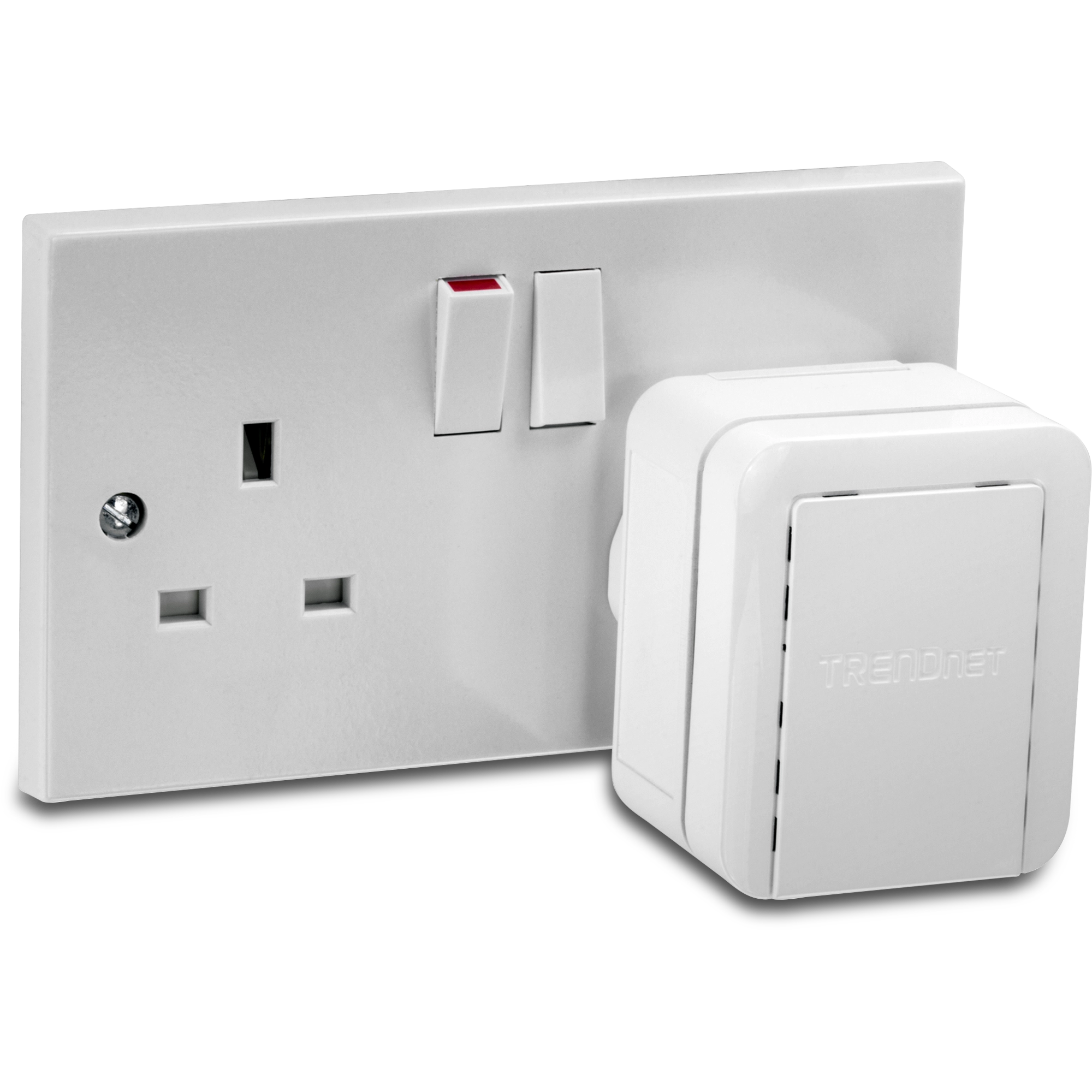

The compact form factor stays off the ground by plugging directly into an outlet

One Touch Connection

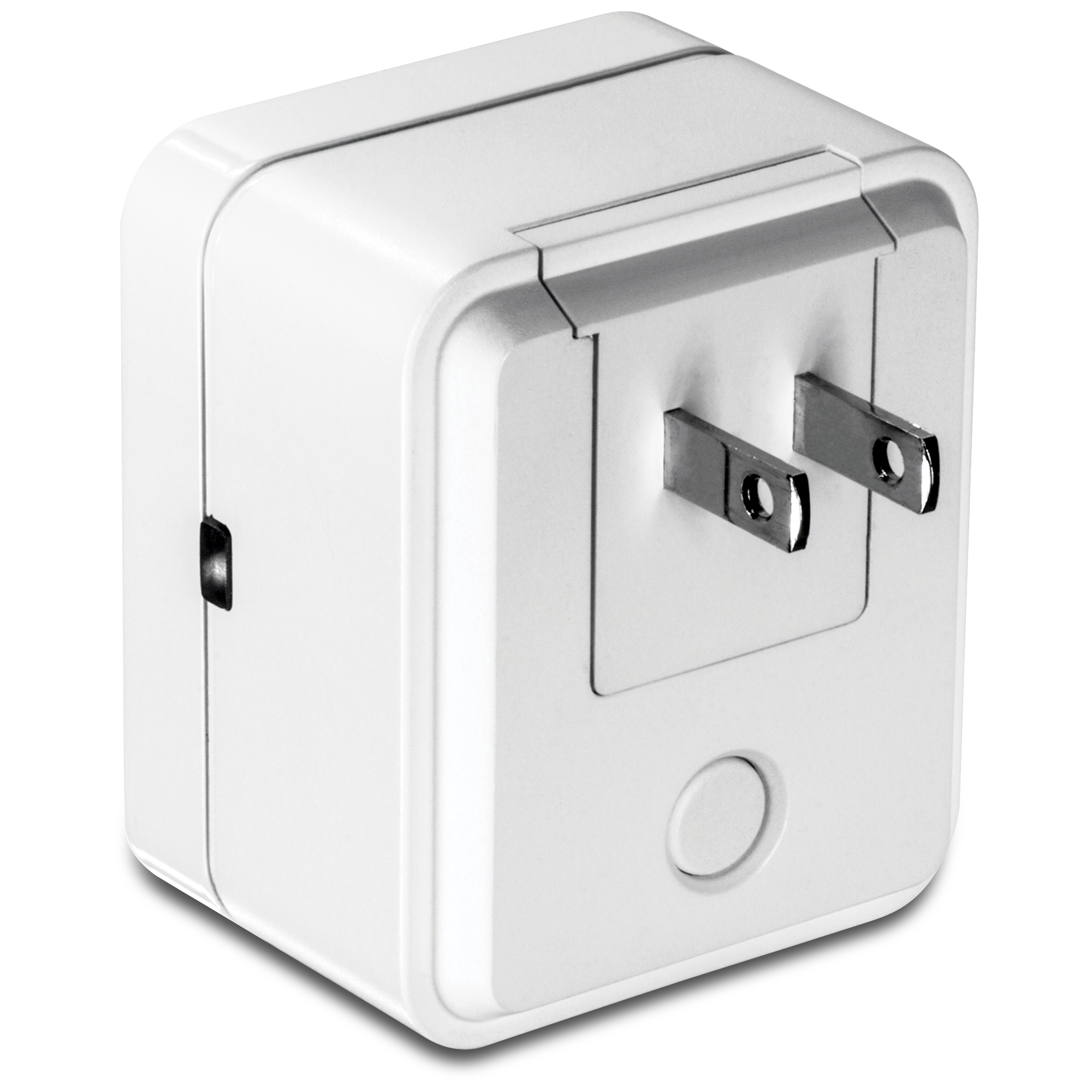

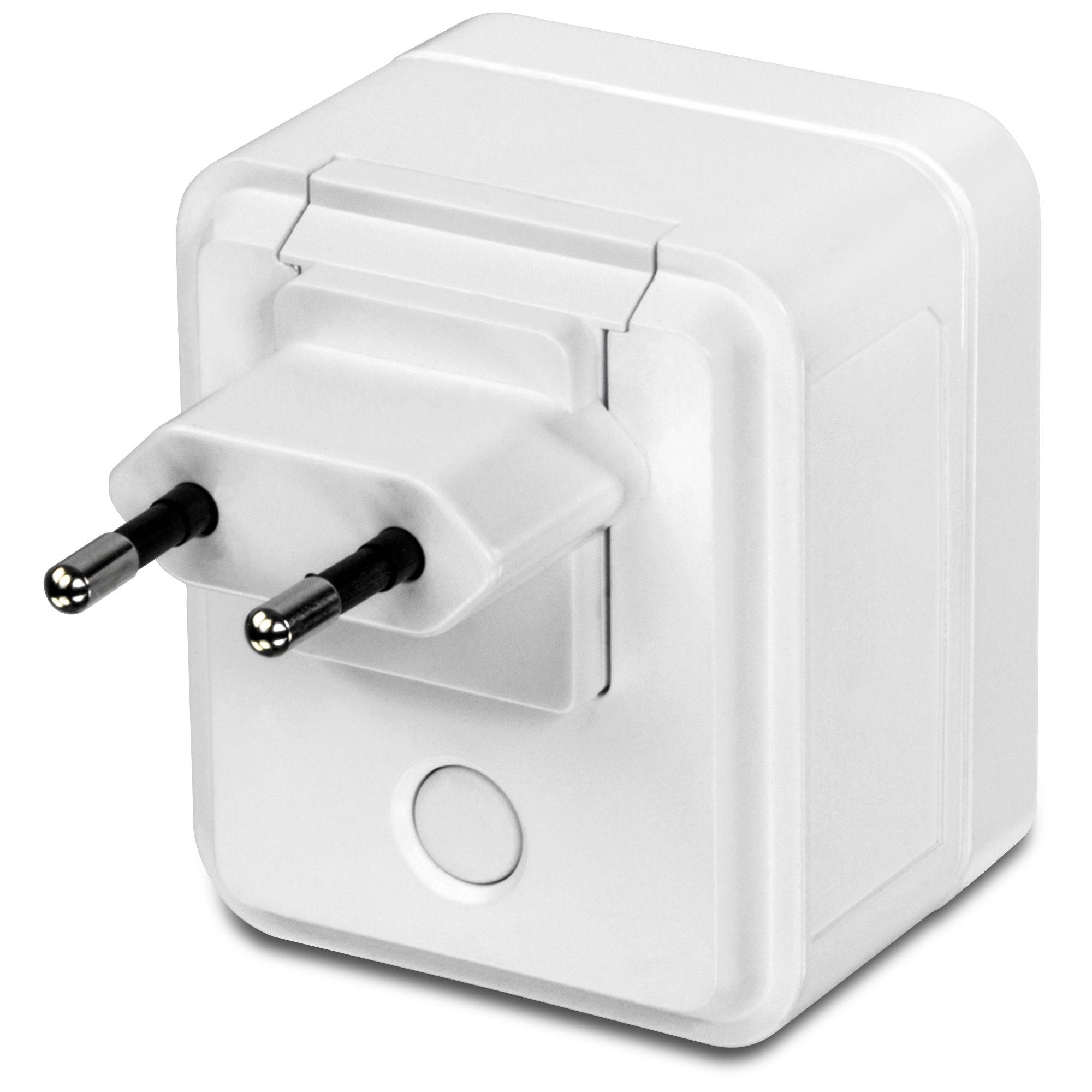

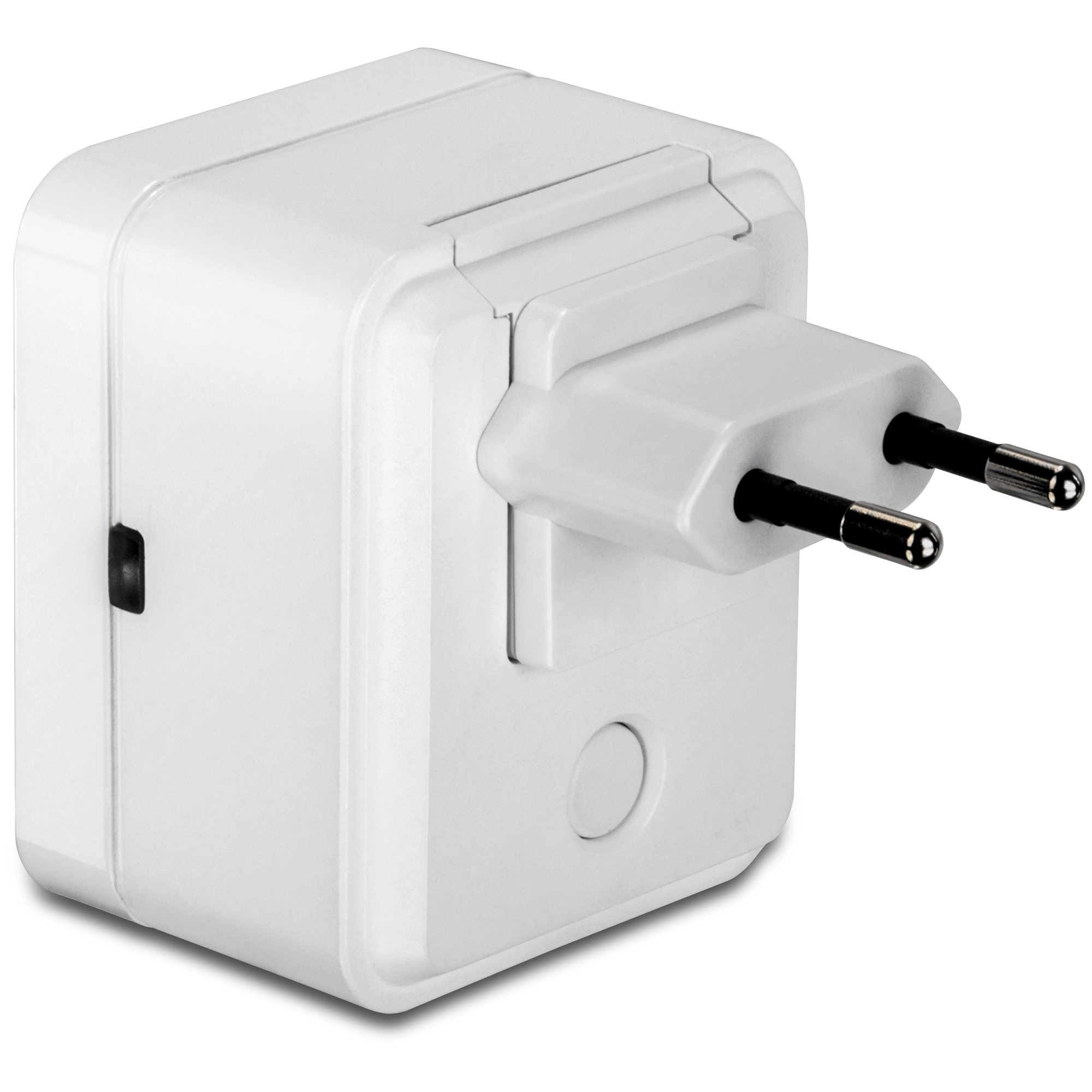

Extend your wireless network at the touch of the Wi-Fi Protected Setup (WPS) button

Encryption

Encrypted Wireless

Supports the latest encryption and automatically adopts router settings

Performance

Extreme Coverage

High power amplifiers and multiple antenna technology offer extreme wireless coverage

N300 Wireless

Proven 300 Mbps Wireless N

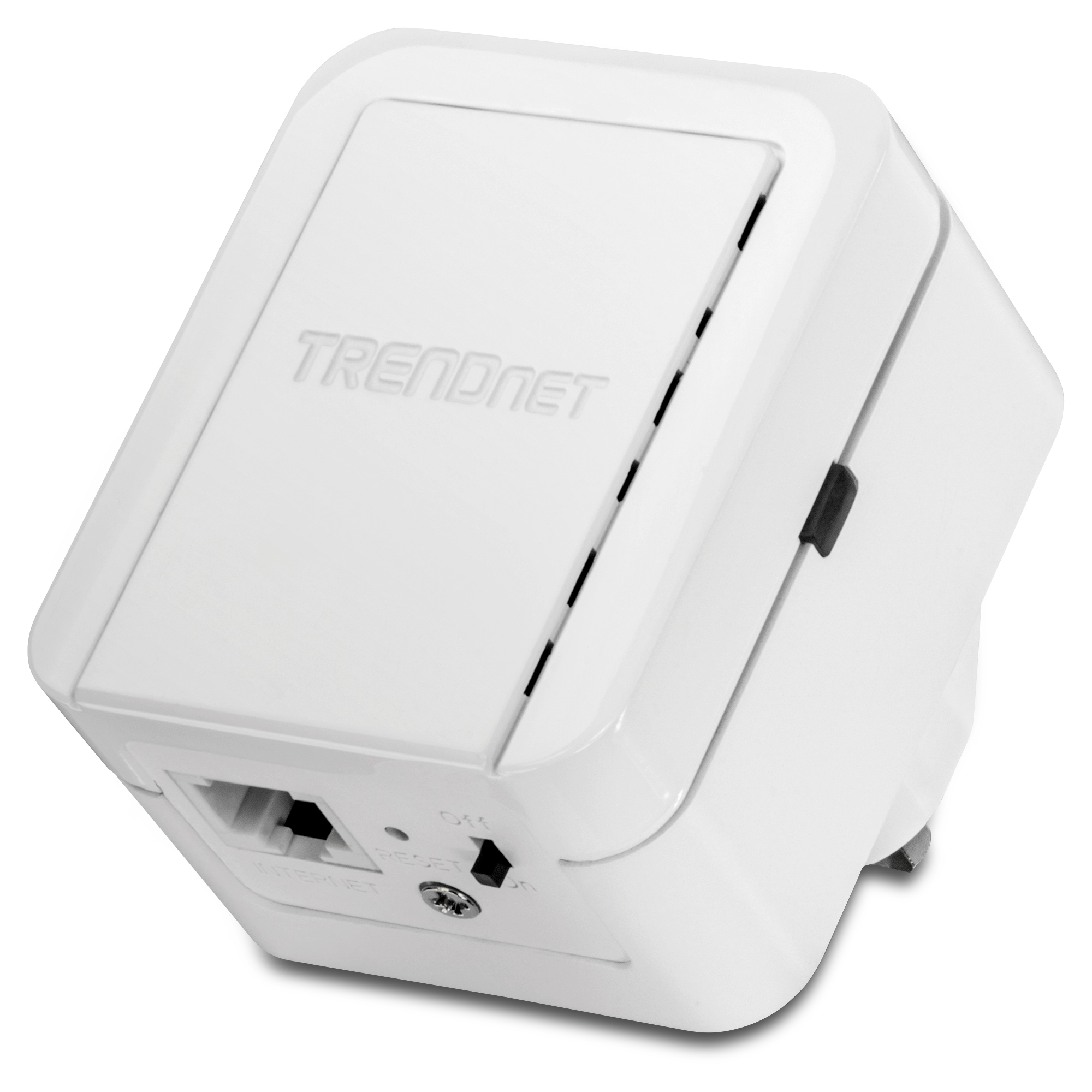

Ethernet Port

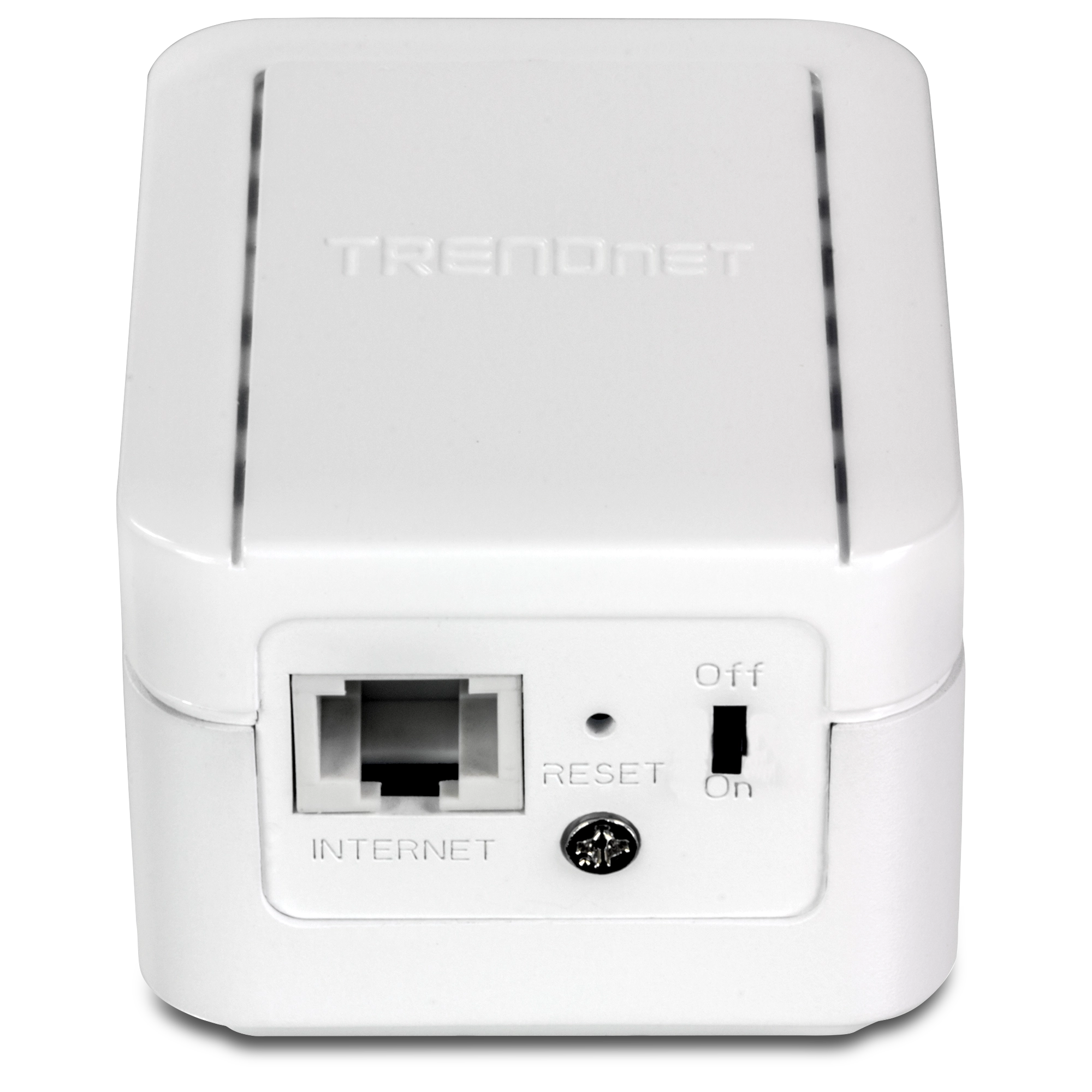

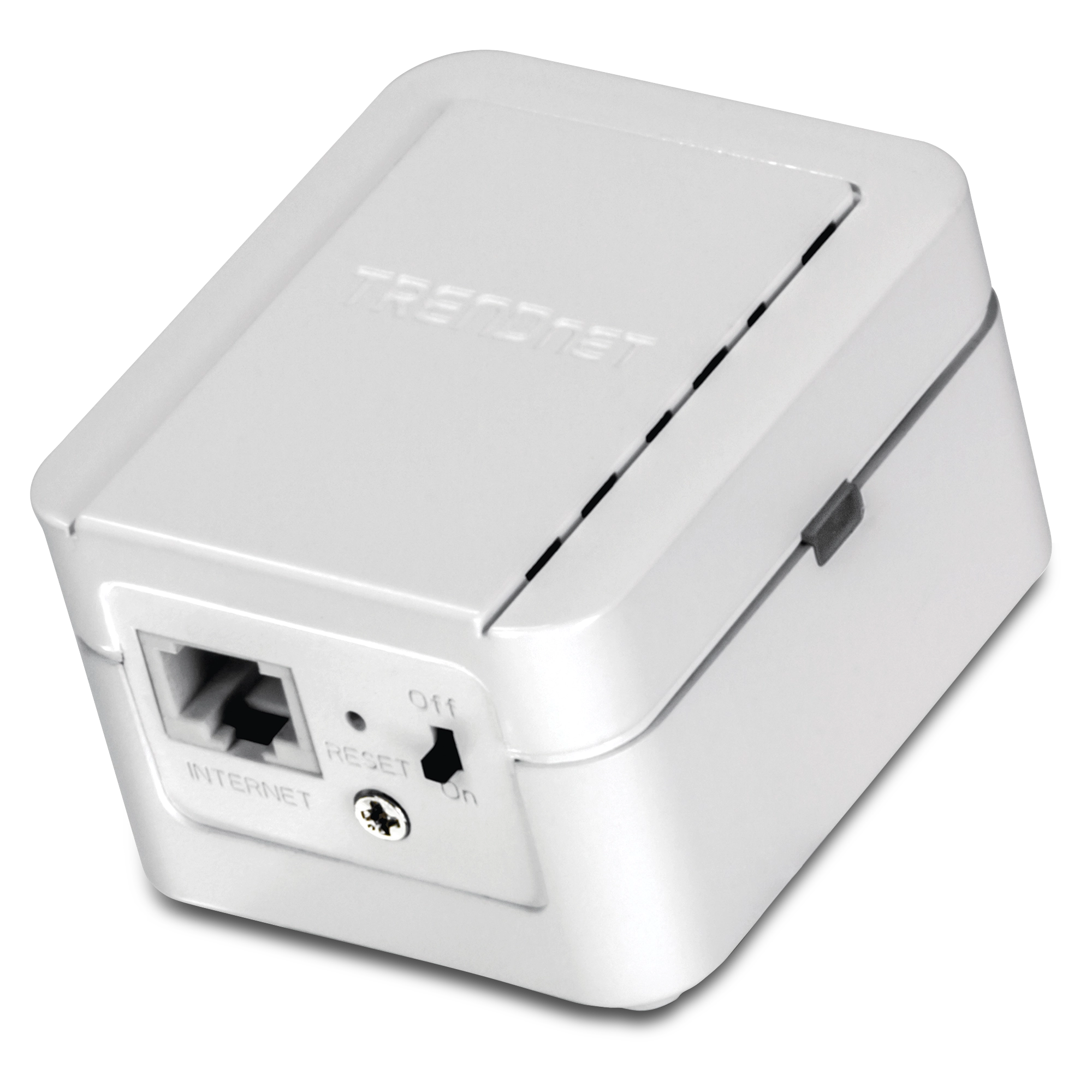

Ethernet port for easy management access

Compatibility

Works with all Wireless N router brands

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps)
Device Interfaces	1 x 10/100 Mbps LAN port
WPS Button	Power switch LED indicator
Encryption	Wireless encryption up to WPA2
Special Features	High power amplifier MIMO antenna technology Compact form factor IPv6 ready
Antenna Gain	2 dBi internal PIFA x 2
Wireless Output Power (EIRP)/Receiving Sensitivity	802.11b: FCC: 22 dBm (typical), CE: 20 dBm (typical)/-90 dBm (typical) @ 11 Mbps 802.11g: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-72 dBm (typical) @ 54 Mbps 802.11n: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-66 dBm (typical) @ 300 Mbps
Output Power	802.11b: 20 dBm 802.11g: 18 dBm 802.11n: 20 dBm
Power	100 - 240 V AC Consumption: 6 Watts (Max)
Operating Temperature	0 - 40°C (32 – 104°F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	67 x 56 x 45 mm (2.6 x 2.2 x 1.8 in.)
Weight	120 g (4.2 oz)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-737HRE
Multi-language Quick Installation Guide
CD-ROM (User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
