5/7 dBi Outdoor Dual Band Omni Antenna Kit

TEW-AO57 (Version 1.0R)

  • Pair of outdoor omni-directional dual band antennas
  • 2.4 GHz: 5 dBi
  • 5 GHz: 7 dBi
  • N-Type male connector
  • Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

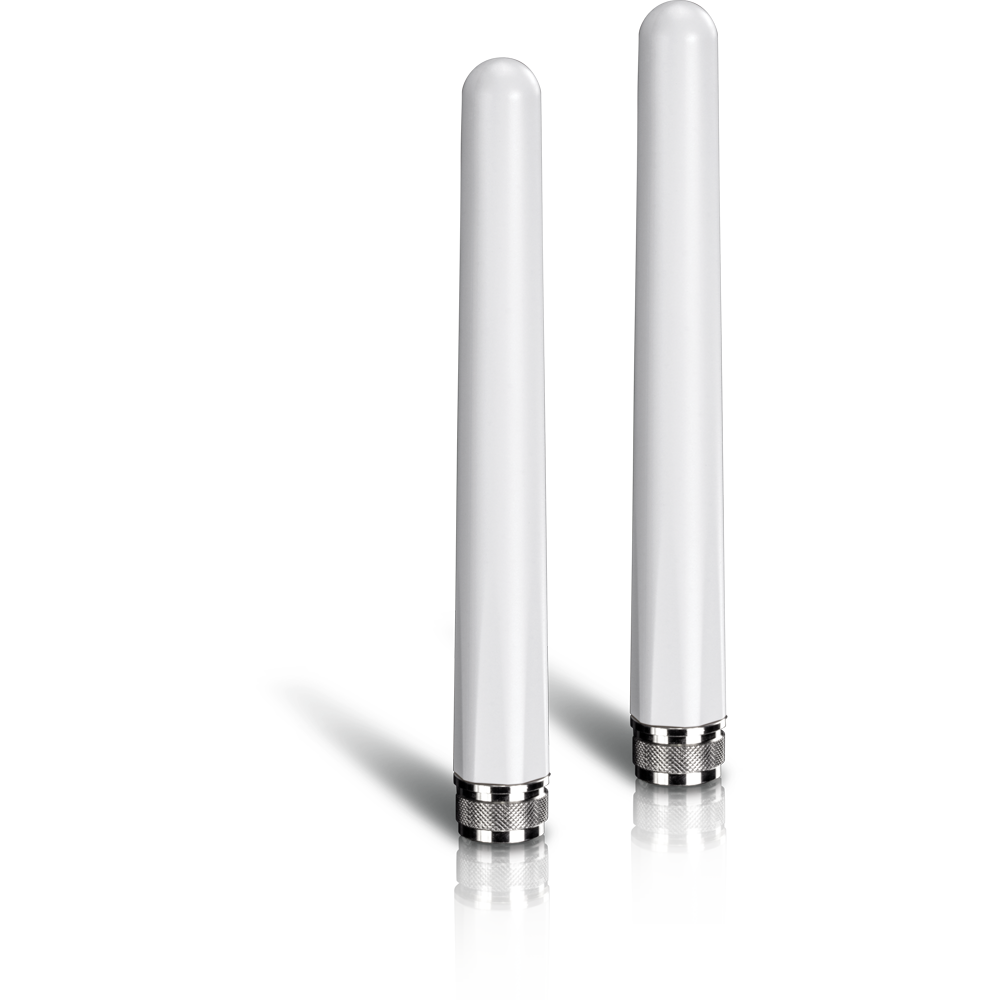

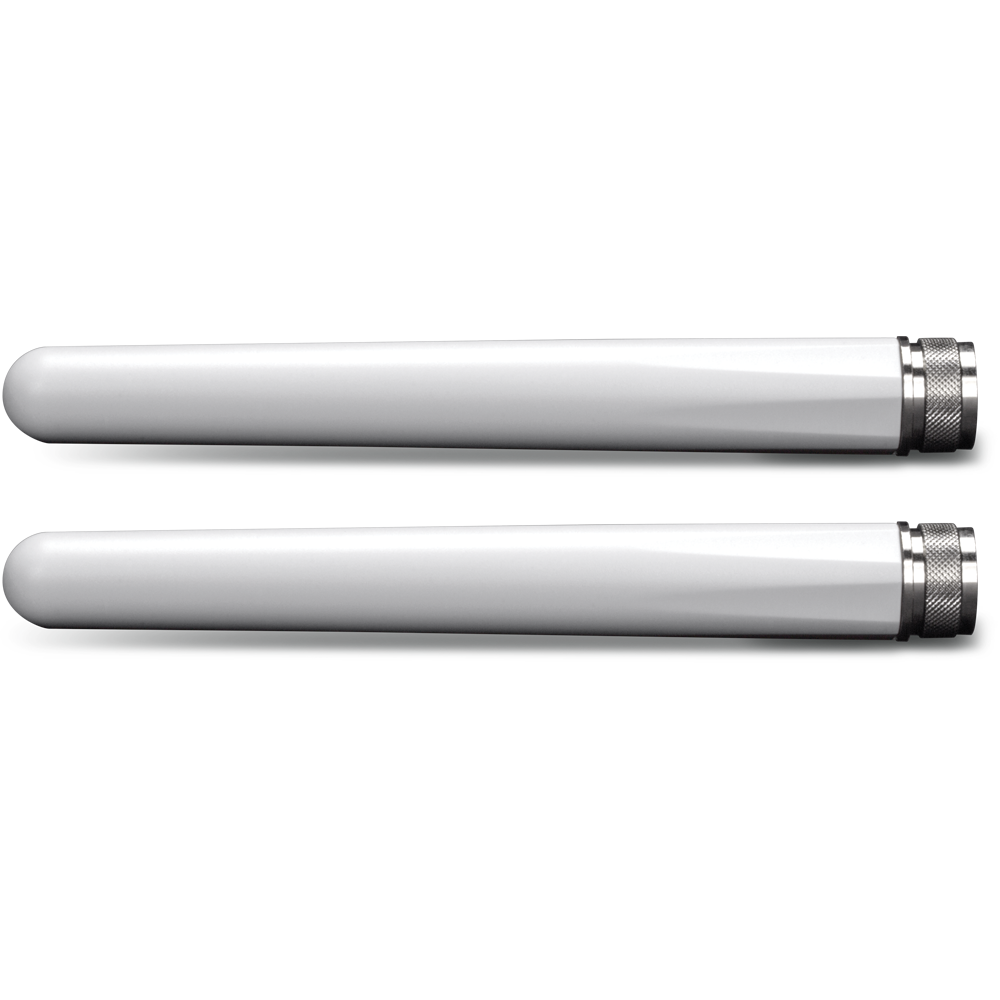

TRENDnet's 5/7 dBi Outdoor Dual Band Omni Antenna Kit, model TEW-AO57, comes with a pair of high performance outdoor antennas which support 2.4 and 5 GHz radio transmissions. The omni-directional antennas provide blanket wireless coverage and have N-Type male connectors. The antennas work with 802.11ac/n/g/b/a routers and access points with N-Type female connectors.

Four polar plots show the radiation patterns for horizontal and vertical polarizations at 2.4 GHz and 5 GHz frequencies. The top two plots represent 2.4 GHz, with horizontal polarization on the left and vertical polarization on the right. The bottom two plots represent 5 GHz, with horizontal polarization on the left and vertical polarization on the right. Each plot features multiple colored lines to indicate different measurements or conditions, labeled with angles and decibel levels to show radiation intensity in various directions.
Performance

Antenna Kit

Comes with a pair of outdoor antennas

Outdoor

Durable antenna construction for extreme outdoor conditions

Omni-Directional

Omni-directional antennas for blanket wireless coverage

Dual Band Support (2.4 + 5 GHz)

Compatible with 802.11ac/n/g/b/a routers and access points

Antenna Gain

2.4 GHz peak gain: 5 dBi, 5 GHz peak gain: 7 dBi

N-Type Connector

N-Type male connectors are compatible with routers and access points with N-Type female connectors

Antenna
  • Omni-directional dual band (2.4 + 5 GHz)
Frequency
  • 2.4 GHz: 2.4 - 2.5 GHz
  • 5 GHz: 5.15 – 5.88 GHz
Peak Gain
  • 2.4 GHz: 5 dBi (max.)
  • 5 GHz: 7 dBi (max.)
Polarization
  • Linear, Vertical
Connector type
  • N-Type male
Half-Power Beam Width (HPBW)
  • Horizontal: 360°
  • Vertical: 30°
Voltage Standing Wave Ratio (VSWR)
  • 2.0 max.: 1
Nominal Input Impedance
  • 50 Ohms
Power Handing
  • 2 Watts
Operating Temperature
  • -40 – 70 °C (-40 – 158 °F)
Operating Humidity
  • Max. 95 % non-condensing
Compatibility
  • Compatible with 802.11ac/n/g/b/a routers and access points with N-Type female connectors
Dimensions
  • Individual antenna: 22 x 178 mm (0.9 x 7.0 in.)
Weight
  • Individual antenna: 58 g (2 oz.)
  • Both antennas: 116 g (4 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-AO57 (2 x antennas)
  • Quick Installation Guide

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna align-ment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
