AC1200 WiFi Range Extender

TEW-822DRE (Version v2.0R)

  • Extends concurrent WiFi AC and N networks
  • AC1200: 867 Mbps WiFi AC + 300 Mbps WiFi N bands*
  • Extreme speeds for buffer-free 4K / 3D / HD video streaming
  • Plugs directly into an electrical outlet
  • External antennas and high power amplifiers increase WiFi coverage
  • Extender and Access Point modes
  • Gigabit wired port
DISCONTINUED PRODUCT
The TEW-822DRE (Version v2.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's AC1200 WiFi Range Extender, model TEW-822DRE, offers extreme wireless coverage to minimize existing wireless network dead spots. Setup takes minutes with no drivers to install and it stays out of the way by plugging directly into an outlet. Connect to either an existing WiFi N or WiFi AC router and extend concurrent WiFi N and AC networks into an area with little to no wireless signal.

The illustration depicts a house with three wireless devices inside. In the center, there is a router with antennas on both sides, emitting Wi-Fi signals. On either side of the router, there are two additional devices, each also emitting Wi-Fi signals. The signals from all three devices overlap, indicating a network setup that ensures comprehensive wireless coverage throughout the house.

WiFi Everywhere

High performance WiFi amplifiers and external antennas broadcast strong AC1200 WiFi into areas with low or no coverage.

A laptop displaying the text HD VIDEO is shown on the left side. To the right of the laptop, three curved lines represent wireless signals. These signals are directed towards a device with two antennas, indicating a wireless connection between the laptop and the device.

WiFi Performance

All home WiFi devices are supported by concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks.

The illustration depicts a central wireless router with two antennas, surrounded by various devices including a smartphone, a tablet, and a laptop. Each device is shown with signal waves indicating wireless connectivity to the router. The router is positioned in the center, with the devices evenly distributed around it, emphasizing the concept of wireless network connectivity.

Beamforming = Better

Beamforming increases real-time performance by directing stronger wireless signals to each device's specific location.

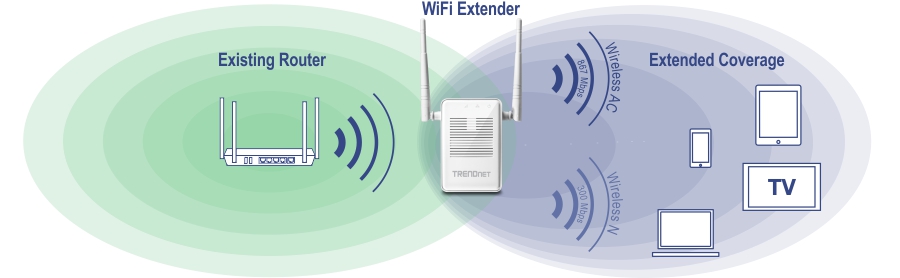

The illustration shows a WiFi network setup with an existing router and a WiFi extender. The existing router, depicted on the left, emits a green signal. The WiFi extender, positioned to the right, receives and extends the signal further, depicted by a blue signal. The extended coverage area includes various devices such as a tablet, laptop, TV, and smartphone. The WiFi extender supports Wireless AC with speeds up to 1167 Mbps and Wireless N with speeds up to 300 Mbps. The brand name TRENDnet is visible on the WiFi extender.

Easy Setup

Quick intuitive setup connects to either a WiFi AC or WiFi N network and adopts existing WiFi settings

AC1200 Dual Band

Broadcasts concurrent high speed 867 Mbps WiFi AC + 300 Mbps WiFi N networks

Extreme Coverage

Adjustable external antennas, high power amplifiers, and multiple antenna technology produces extreme wireless coverage

Gigabit Port

Gigabit port extends a high performance connection to a wired device

No Clutter

The extender plugs directly into an outlet

Operating Modes

External switch toggles between Extender (connects to a WiFi network) and Access Point (connects to a wired network) modes

Encrypted Wireless

Supports the latest encryption standards

Compatibility

Compatible with legacy wireless devices

Targeted Beamforming

Increased real-time performance by directing stronger wireless signals to a device's specific location

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.11a
  • IEEE 802.11ac (up to 867 Mbps)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
Device Interfaces
  • Gigabit Ethernet port
  • WPS Button
  • AP / Extender / Off switch
  • LED indicators
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Operation Modes
  • Range Extender (Repeater)
  • Access Point
Special Features
  • High power amplifier
  • MIMO antenna technology
  • Compact form factor
  • IPv6 (Link local, Static, SLAAC / DHCPv6)
  • Beamforming
  • Multiple SSID
  • DFS channels
SSID
  • Up to 4 additional SSIDs
Access Control
  • Wireless encryption: WEP, WPA / WPA2-PSK, WPA / WPA2-RADIUS
  • MAC filter
  • Wireless user number limitation
Frequency
  • FCC: 2.412 - 2.462 GHz, 5.180 - 5.240 GHz, 5.745 - 5.825 GHz
  • ETSI: 2.412 - 2.472 GHz, 5.180 - 5.580 GHz, 5.660 - 5.700 GHz
Wireless Channels
  • 2.4 GHz: FCC: 1-11; ETSI: 1-13
  • 5 GHz: FCC: 36, 40, 44, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Modulation
  • BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
Antenna Gain
  • Dipole dual band antennae x 2
  • 5G: 3 dBi
  • 2.4G: 2 dBi
Wireless Output Power (EIRP) / Receiving Sensitivity
  • 802.11a: FCC: 22 dBm (typical), CE: 20 dBm (typical) / -65 dBm (typical) @ 54 Mbps
  • 802.11b: FCC: 20 dBm (typical), CE: 20 dBm (typical) / -83 dBm (typical) @ 11 Mbps
  • 802.11g: FCC: 27 dBm (typical), CE: 20 dBm (typical) / -65 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 27 dBm (typical), CE: 20 dBm (typical) / -61 dBm (typical) @ 300 Mbps
  • 802.11ac: FCC: 26 dBm (typical), CE: 20 dBm (typical) / -51 dBm (typical) @ 867 Mbps
Power
  • Input: 100 - 240 V AC, 50/60 Hz
  • Consumption: 8.3 Watts (Max.)
Operating Temperature
  • 0 - 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
  • UL
  • IC
Dimensions
  • 150 x 130 x 60 mm (5.9 x 5.1 x 2.4 in.)
Weight
  • 265 g (9.3 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-822DRE
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)

*For maximum performance of up to 867 Mbps use with an 802.11ac wireless client. Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions
**Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
