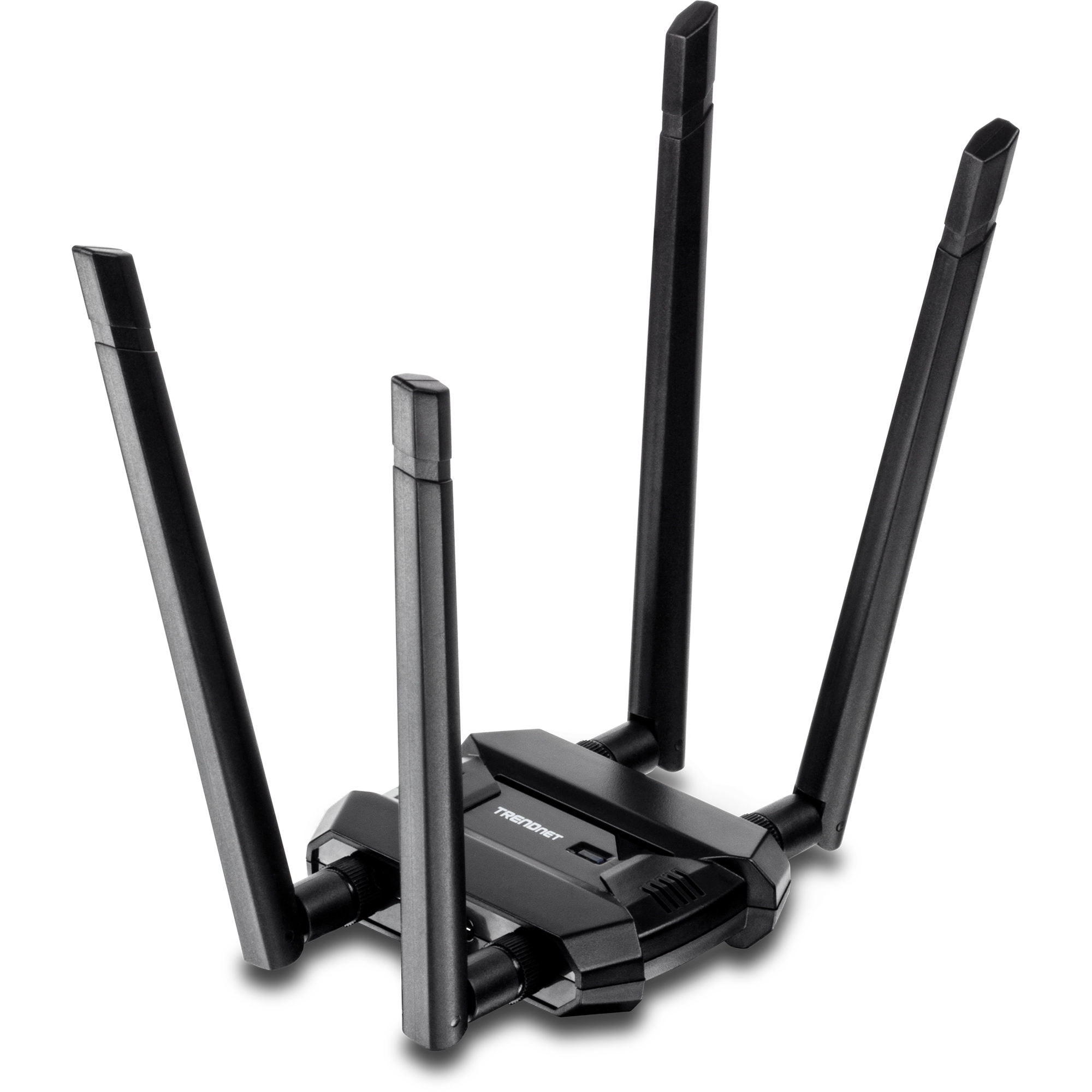

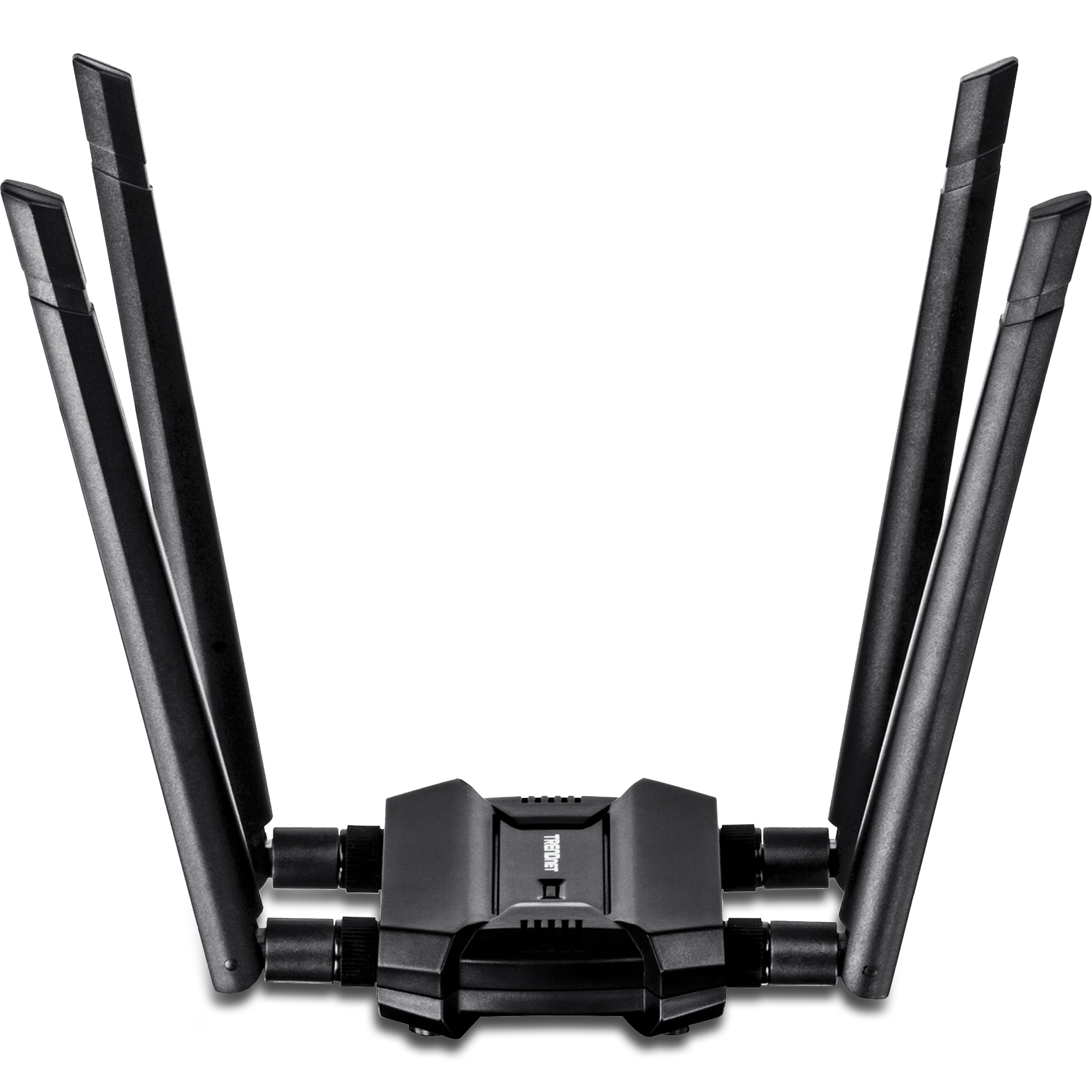

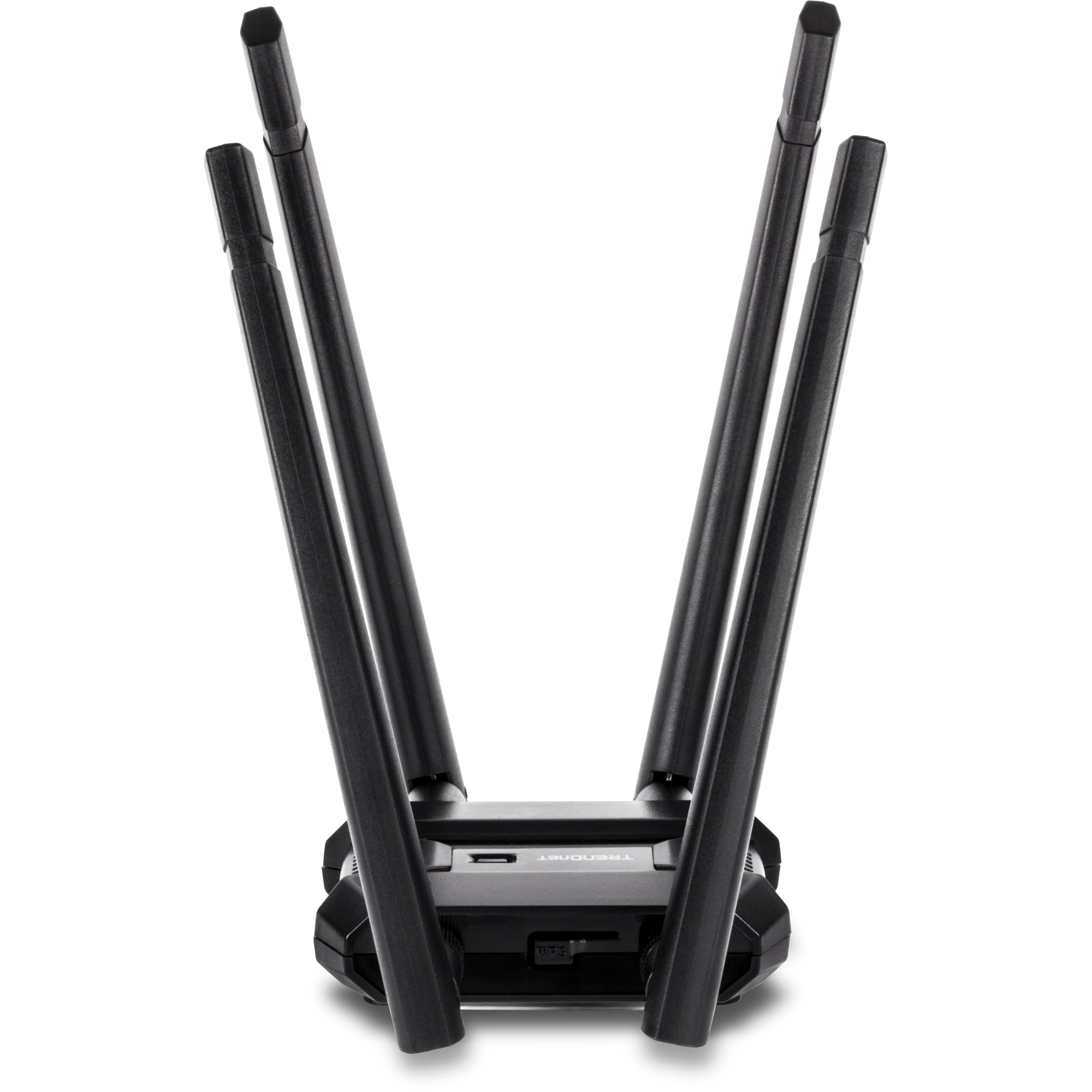

AC1900 High Power Dual Band Wireless USB Adapter

TEW-809UB (Version v1.0R)

  • Easy setup
  • AC1900: 1300 Mbps Wireless AC or 600 Mbps Wireless N bands*
  • High power radio and high gain detachable antennas
  • Supports Windows® and Mac® operating systems
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet's AC1900 High Power Dual Band Wireless USB Adapter, model TEW-809UB, upgrades a computer to Wireless AC1900. Quickly connect to a high performance Wireless AC network at 1300 Mbps or to a Wireless N network at 600 Mbps. A high power radio with detachable high gain antennas increase wireless coverage.

Illustration of a computer screen labeled HD VIDEO connected to strong WiFi signal waves, indicating high-speed wireless internet for gaming, streaming HD video, and web surfing at speeds up to 1300 Mbps with WiFi AC or 600 Mbps with WiFi N.

WiFi Performance

Upgrade your computer to 1300 Mbps WiFi AC or 600 Mbps WiFi N to surf, game, and stream 4K HD video.

Two Wi-Fi routers facing each other, with one emitting signal waves towards the other, illustrating beamforming, a technique that focuses a wireless signal towards a specific receiving device for improved connection quality.

Beamforming

Beamforming increases real-time performance by directing stronger wireless signals to each device's specific location.

A device with four vertical antennas extending from a central base unit, surrounded by concentric circles representing its coverage area. The base unit has multiple components and connectors, indicating it is a high-power radio with detachable high-gain antennas designed to increase coverage.

Increased Coverage

High power radios with detachable high gain antennas.

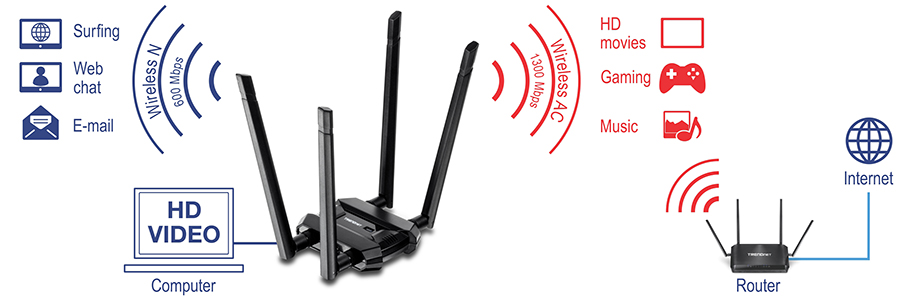

A wireless network setup with a dual-band Wi-Fi adapter in the center, featuring three antennas. On the left, icons for surfing, web chat, and email, supported by Wireless N at 600 Mbps. On the right, icons for HD movies, gaming, and music, supported by Wireless AC at 1300 Mbps. The router connects to the internet, completing the network setup.

Easy Setup

Get up and running in minutes with the intuitive guided setup

AC1900 Dual Band

Connect to an extreme performance 1300 Mbps Wireless AC or 600 Mbps Wireless N network*

Wireless Coverage

High power radios with detachable high gain antennas

LED Indicator

LED indicator conveys device status

Operating Systems

Compatible with Windows® and Mac® operating systems

Standards
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 600 Mbps)
  • IEEE 802.11ac (up to 1300 Mbps)
Hardware Interface

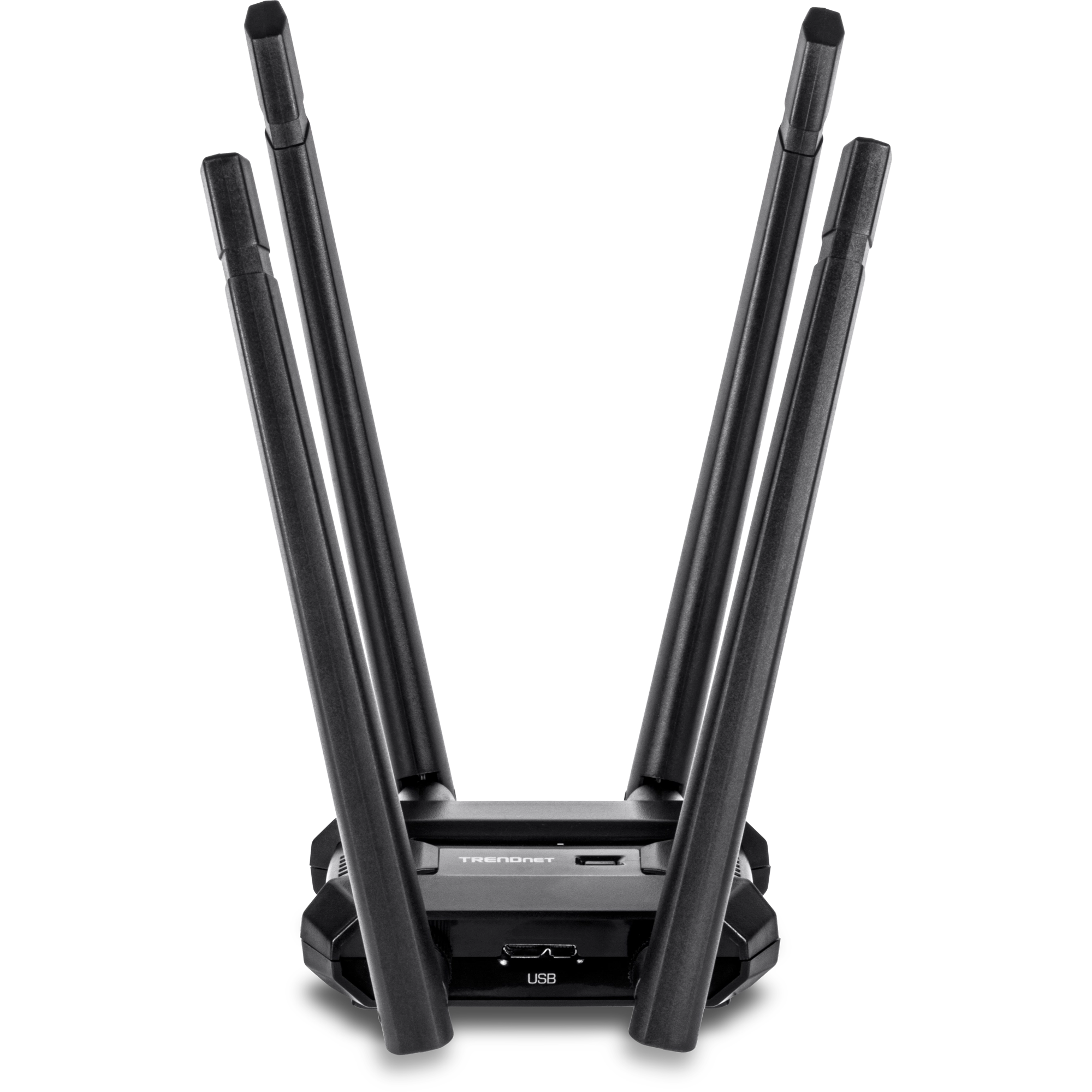

  • USB 3.0 Micro-B port
  • LED indicator
  • WPS Button
  • 4 x RP-SMA female antenna connectors
  • 4 x High gain detachable dual band antennas
Encryption
  • Wireless encryption: WEP, WPA / WPA2-PSK
Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
  • Mac OS® 10.6-10.13
Special Features
  • 4 high gain dual band detachable antennas and integrated high powered amplifiers for long range connectivity
  • High-speed 802.11ac connectivity
  • Explicit Beamforming
Quality of Service
  • WMM
Frequency
  • 2.4 GHz: (FCC) 2.412 – 2.462 GHz, (ETSI) 2.412 – 2.472 GHz
  • 5 GHz: (FCC) 5.150 – 5.250 GHz / 5.745 - 5.825 GHz, (ETSI) 5.150 – 5.250 GHz / 5.500 – 5.700 GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Antenna Gain
  • 2.4 GHz / 5 GHz: 4 x 5 dBi (max.) dual band external / detachable
Wireless Output Power
  • FCC: 802.11a: 21 dBm (max.) / ETSI: 18.5 dBm (max.) @ 54 Mbps
  • FCC: 802.11b: 23 dBm (max.) / ETSI: 17.5 dBm (max.) @ 11 Mbps
  • FCC: 802.11g: 20 dBm (max.) / ETSI: 17 dBm (max.) @ 54 Mbps
  • FCC: 802.11n (2.4GHz): 23 dBm (max.) / ETSI: 17.5 dBm (max.) @ 600 Mbps
  • FCC: 802.11n (5GHz): 19.5 dBm (max.) / ETSI: 18 dBm (max.) @ 600 Mbps
  • FCC: 802.11ac: 20.5 dBm (max.) / ETSI: 17.5 dBm (max.) @ 1300 Mbps
Receiving Sensitivity
  • 802.11a: -72 dBm (typical) @ 54 Mbps
  • 802.11b: -84 dBm (typical) @ 11 Mbps
  • 802.11g: -70 dBm (typical) @ 54 Mbps
  • 802.11n (2.4GHz): -90 dBm (typical) @ 600 Mbps
  • 802.11n (5GHz): -88 dBm (typical) @ 600 Mbps
  • 802.11ac: -84 dBm (typical) @ 1300 Mbps
Wireless Channels
  • 2.4GHz: (FCC) 1-11, (ETSI) 1-13
  • 5GHz: (FCC) 36, 40, 44, 48, 149, 153, 157, 161, 165, (ETSI) 36, 40, 44, 48
Power
  • Consumption: Max. 6.6 W
Operating Temperature
  • 0 - 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 80% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 85 x 75 x 20 mm (3.35 x 2.95 x 0.79 in.)
Weight
  • 48 g (1.7 oz.)
Warranty:
  • 3 year limited

PACKAGE CONTENTS
  • TEW-809UB
  • Quick Installation Guide
  • CD-ROM (Drivers & User's Guide)
  • 4 x High Gain Detachable Dual Band Antennas
  • USB 3.0 Micro-B to USB Type-A cable (0.91 m / 3 ft)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 1.3 Gbps use with a 1.3 Gbps 802.11ac wireless adapter. For maximum performance of up to 600 Mbps, use with an 600 Mbps 802.11n wireless adapter.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
