N300 WiFi Router

TEW-731BR (Version v3.0R)

Up to 300 Mbps Wireless N*
Pre-encrypted wireless for your convenience
One touch network connection with the WPS button
Four 10/100 Mbps LAN ports
Internet bandwidth control
Dual 5 dBi external antennas

TRENDnet's N300 WiFi Router, model TEW-731BR, offers up to 300 Mbps wireless N networking to share files, play games, and surf the internet. Control access to the internet and manage bandwidth for devices connected to router. For your convenience, the wireless network is setup and pre-encrypted out of the box.

Line art of the N300 WiFi Router TEW-731BR with a wireless signal illustration and a shield with a lock icon, also showing a laptop and a smartphone.

Pre-Encrypted

For your convenience, the wireless network is pre-encrypted with its own unique password

Line art of the N300 WiFi Router TEW-731BR with a round wireless signal.

5 dBi External Antennas

Dual 5 dBi external antennas provide extended wireless coverage

Illustration of a network cable labeled with icons representing Web, FTP, & VoIP moving through the network.

Internet Bandwidth Control

Control access to the internet and manage bandwidth for devices connected to the router

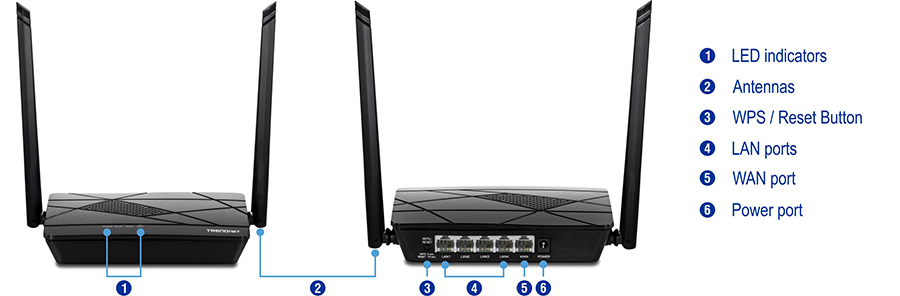

Multiple views of the N300 WiFi Router TEW-731BR. On the left is the front view with numbered labels for LED Indicators and Antenna. On the right is the back view with numbered labels for WPS/Reset Button, LAN ports, WAN port, and Power port.

Easy Setup

Install in minutes with the intuitive guided setup

One Touch Connection

Connect to the router using the Wi-Fi Protected Setup (WPS) button

Pre-Encrypted

For your convenience, the wireless network is pre-encrypted with its own unique password

Access Controls

Control access to specific websites and manage which devices can access the router

Fast Ethernet Ports

10/100 Mbps Ethernet ports connect up to four devices

Wireless Coverage

Dual 5 dBi antennas provide extended wireless coverage

IPv6

IPv6 network support

Standards	IEEE 802.3 IEEE 802.3x IEEE 802.3u IEEE 802.3az IEEE 802.11b IEEE 802.11g IEEE 802.11n (2.4 GHz up to 300 Mbps)
Hardware Interface	4 x 10/100 Mbps LAN ports 1 x 10/100 Mbps WAN port WPS / Reset button LED indicators
Special Features	Internet Bandwidth Control IPv6 Support 5 dBi Antennas Multi-Language interface: English, Spanish, Portuguese Pre-encrypted wireless network
Access Control	Wireless encryption: WEP, WPA / WPA2-PSK Firewall: NAT, SPI, Virtual Server, Port Triggering, DMZ Host, PPTP / L2TP / IPsec VPN Passthrough, allow / deny ping request from Internet Access Control: URL / Keyword Filter, IP Filter, Wireless MAC Filter
Quality of Service	WMM Internet Bandwidth Control Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP / Static IP) IPv6 (Static, Auto-configuration (SLAAC / DHCPv6), Link-Local, PPPoE)
Management	Local / remote web based management Upgrade firmware Backup / restore configuration Reboot Restore to factory defaults Wireless Repeater Mode
Frequency	2.412 - 2.484 GHz
Modulation	802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Media Access Protocol	CSMA / CA with ACK
Antenna Gain	2 x 5 dBi external adjustable
Wireless Output Power	802.11b: FCC: 14 dBm (max.), ETSI: 17 dBm (max.) @ 11 Mbps 802.11g: FCC: 15 dBm (max.), ETSI: 17 dBm (max.) @ 54 Mbps 802.11n: FCC: 17 dBm (max.), ETSI: 14 dBm (max.) @ 300 Mbps
Receiving Sensitivity	802.11b: -80 dBm (typical) @ 11 Mbps 802.11g: -72 dBm (typical) @ 54 Mbps 802.11n: -72 dBm (typical) @ 300 Mbps
Wireless Channels	FCC: 1-11 ETSI: 1-13
Power	Input: 100 – 240 V AC, 50 - 60 Hz Output: 5 V DC, 1 A external power adapter Consumption: 3.2 Watts (max.)
Operating Temperature	0 – 45 °C (32 – 113 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	160 x 102 x 30 mm (6.2 x 4.3 x 1.3 in.) Antenna length: 195 mm (7.7 in.)
Weight	164 g (5.8 oz.)
Warranty	3 Year limited

PACKAGE CONTENTS

TEW-731BR
Quick Installation Guide
Network cable (1 m / 3.28 ft.)
Power adapter (5 V DC, 1 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
