10-Port 10G Unmanaged Switch

TEG-S7102 (Version v1.0R)

  • 8 x 10G RJ-45 ports
  • 2 x 10G SFP+ ports
  • Backwards compatible with 100/1000BASE-T devices
  • Smart fan design eliminates noise
  • Rackmount design
  • 200Gbps switching capacity
  • IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
List Price: $472.99
Price: $429.99
Quantity:
Wishlist

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 10G Switches. This 10G switch comes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or better cabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 10G switches are cost-effective solutions to increase your network’s throughput.

A network switch with 10G ports, shown inside a speech bubble.

10G Ports

Offers eight 10G ports, and two 10G SFP+ ports for high-speed network uplinks or downlink connections for a cost-effective solution in adding 10G link capability.

A 10-port network switch with a no fan symbol.

Smart Fan

The smart fan design lowers power consumption and energy costs, and eliminates distracting operating noise.

A network switch connected to a laptop and smartphone, with icons representing various digital services like email, cloud storage, and social media, all linked by lines.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance.

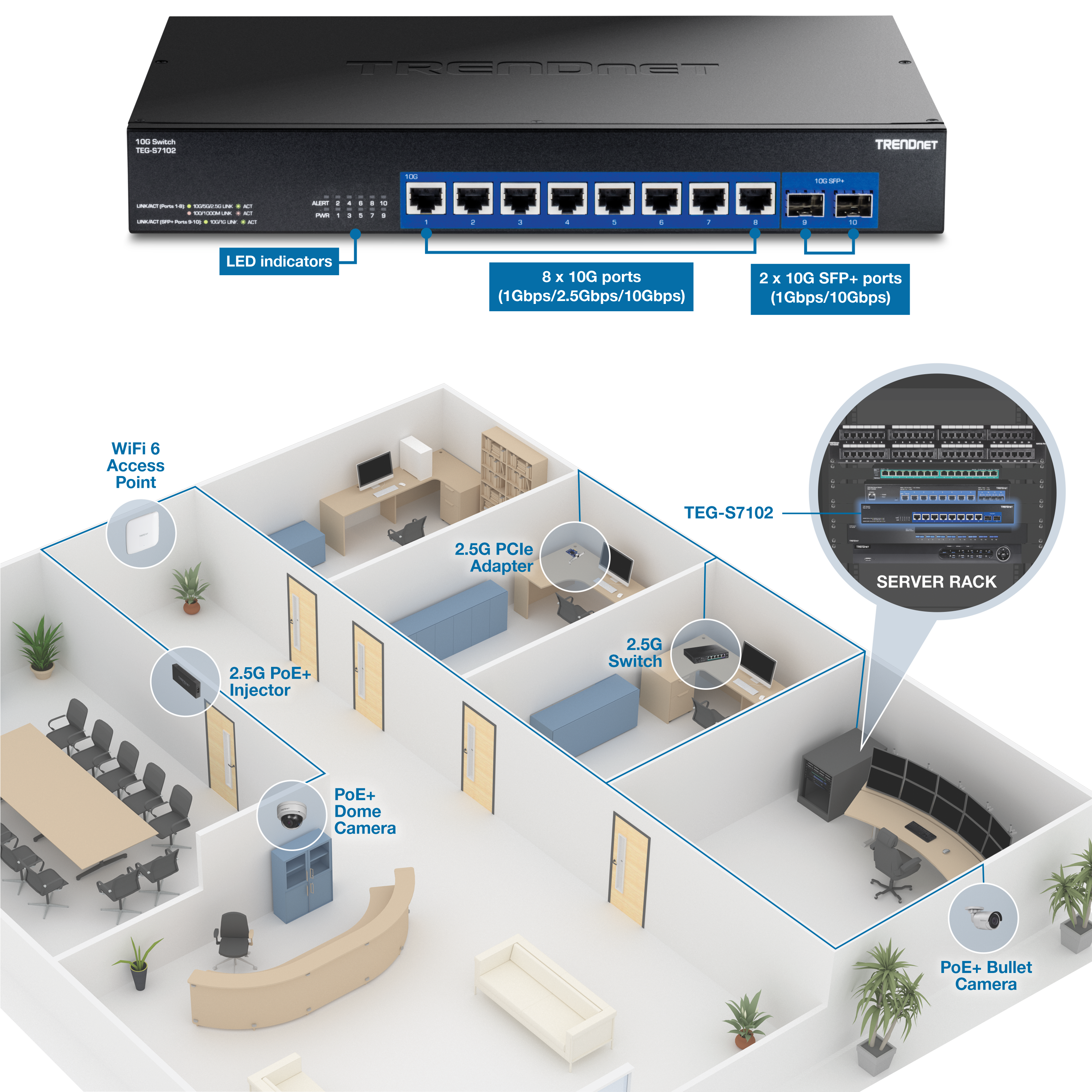

A network setup features a TRENDnet TEG-S7102 10G switch with 8 x 10G ports supporting 1Gbps, 2.5Gbps, and 10Gbps speeds, and 2 x 10G SFP+ ports supporting 1Gbps and 10Gbps speeds. Connected devices include a WiFi 6 access point, a 2.5G PoE+ injector, a PoE+ dome camera, a 2.5G PCIe adapter, a 2.5G switch, and a PoE+ bullet camera. The switch is mounted in a server rack, managing network connections in an office environment.

Easy Installation

No configuration needed, simply connect network devices to the 10G switch

10G Ports

Equipped with 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over existing Cat6A or better cabling

10G SFP+ Ports

The 10Gb switch features 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G fiber link capability

Smart Fan

Smart fan design lowers energy consumption and eliminates distracting operating noise

Housing Design

Sturdy metal housing

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on this 10Gb switch conveys port status

Standards
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3bz
  • IEEE 802.1x
Device Interface
  • 8 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • 2 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5G Ethernet: 5Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
  • 10G SFP+: 20Gbps (full duplex)
Performance
  • Switch fabric: 200Gbps
  • RAM buffer: 2MB
  • MAC address table: 32K entries
  • Jumbo frames: 12KB
  • Forwarding mode: Store and forward
  • Forwarding rate: 148.8Mpps (64-byte packet size)
Power
  • Input: 90 – 264V AC, 47/63 Hz. Internal power supply
  • Max. consumption: 40W
MTBF
  • 151,765 hours
Fan / Acoustics
  • Quantity: 1
  • Max. noise level: 47dBA
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 330 x 230 x 44mm (13 x 9 x 1.73 in.)
Weight
  • 2.54 kg (5.6 lbs.)
Certifications
  • CE
  • FCC
  • LVD
  • ETL
Warranty

PACKAGE CONTENTS
  • TEG-S7102
  • Quick Installation Guide
  • Power cord (1.5m / 4.9ft.)
  • Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
