8-Port Unmanaged 2.5G Switch

TEG-S380 (Version v2.0R)

  • 8 x 2.5G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • Backwards compatible with 1000Mbps devices
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • 40Gbps switching capacity
  • IEEE 802.3bz (2.5G) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Price: $109.99
Quantity:
Wishlist

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

Internet speed gauge showing quick data transfer rate.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

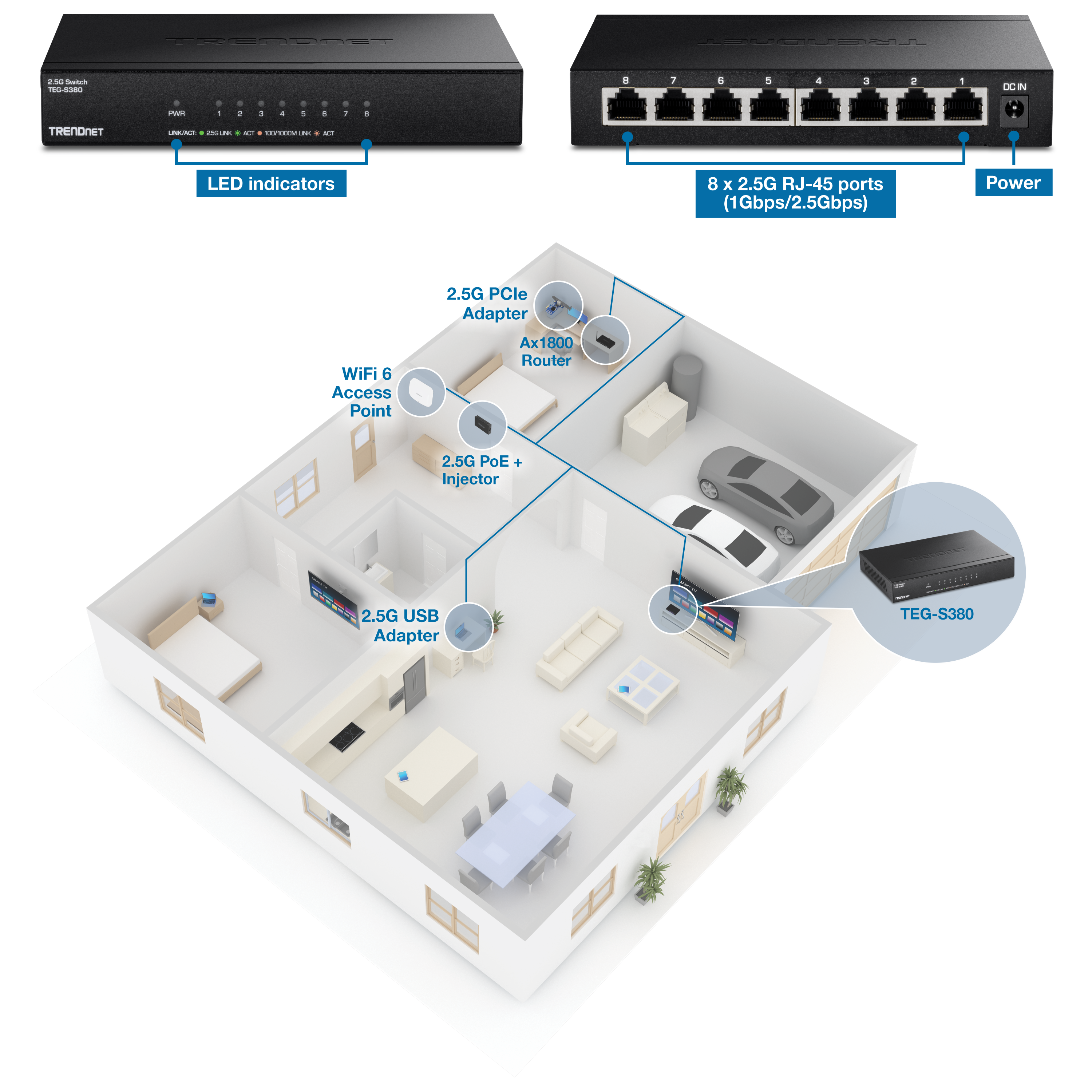

Diagram showing one wireless routers & wired switch connected to a wall.

Wall Mountable

The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.

A 8-port network switch with a no fan symbol.

Fanless

The fanless design of the 2.5G switch lowers energy consumption costs and eliminates operating noise.

Easy Installation

No configuration needed, simply connect network devices to the 2.5G Ethernet switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Switching Capacity

40Gbps switching capacity

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on this 2.5G switch conveys port status

Standards
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 8 x 2.5G RJ-45 ports (1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Switching Capacity: 40Gbps
  • RAM Buffer: 1MB
  • MAC Address Table: 4K entries
  • Forwarding Rate: 29.76Mpps (64-byte packet size)
  • Jumbo Frames: 12KB
Special Features
  • Wall mountable
Power
  • Input: 100 – 240V AC, 50/60 Hz, 0.5A
  • Output: 12V DC, 1A
  • Max. Consumption: 7.26W
Fan/Acoustics
  • Fanless design
MTBF
  • 530,531 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 159 x 110 x 25mm (6.26 x 4.33 x 0.98 in.)
Weight
  • 453.6g (16 oz.)
Certifications
  • FCC
  • CE
Warranty

PACKAGE CONTENTS
  • TEG-S380
  • Quick Installation Guide
  • Power adapter (12V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
