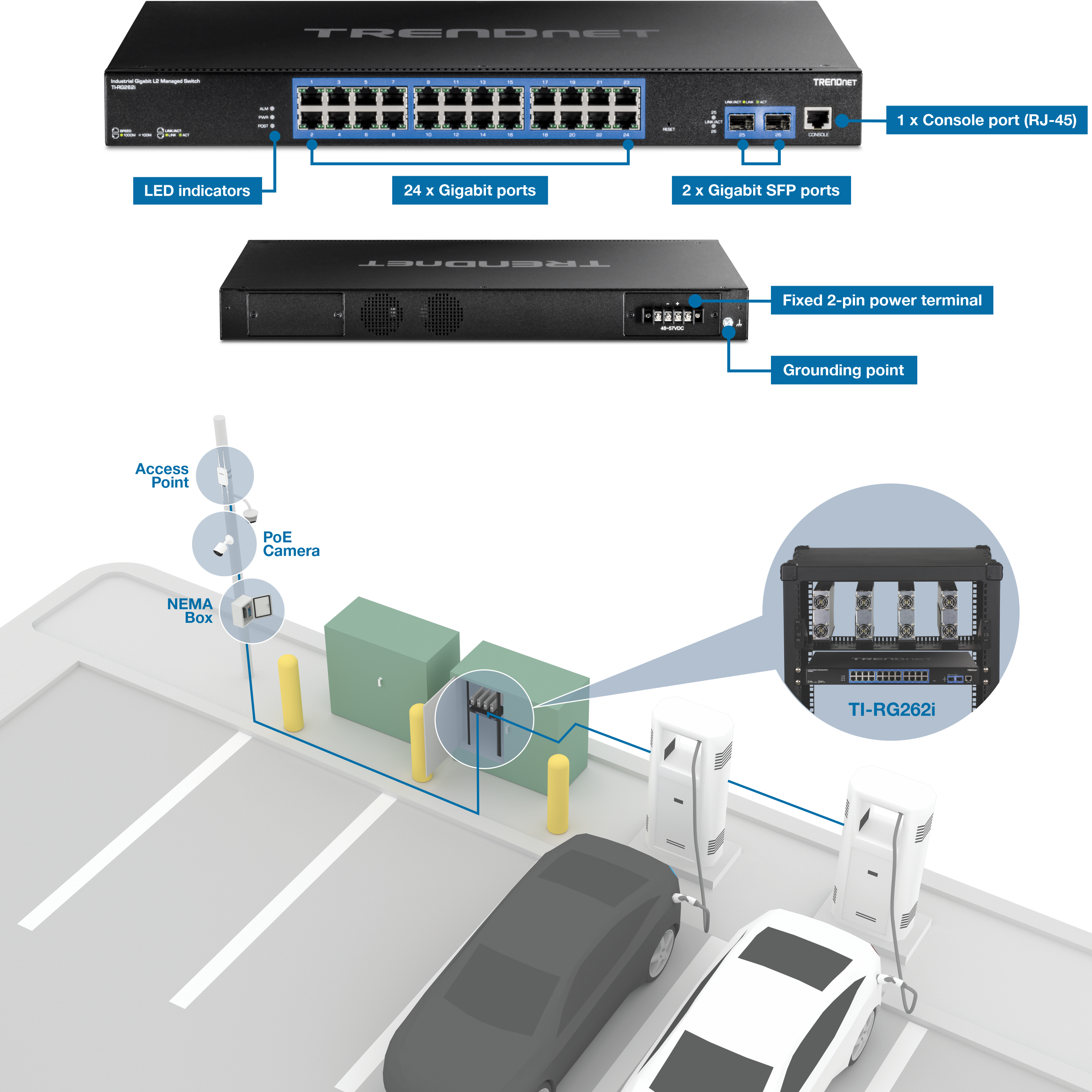

![TI-RG262i 26-Port Industrial Gigabit L2 Managed Rackmount Switch with callout bubble showing its web management interface](/images/products/keypoints/TI-RG262i_v1/kp_L2_management.png)
L2 Management
Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.
TRENDnet’s Industrial Gigabit L2 Managed Rackmount Switch offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today’s SMB networks. Each industrial layer 2 rackmount switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments. Our industrial layer 2 rackmount switch models feature copper gigabit ports for high-speed device connections, as well as SFP ports that support 100/1000Base-FX SFP modules for long distance fiber networking applications. This industrial layer 2 rackmount switch feature a fanless design that eliminates operating noise and lowers energy consumption.
This Industrial Gigabit L2 Managed Rackmount Switch provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, and SNMP monitoring
Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.
This sturdy metal housing switch is well-suited for 19” 1U rack installations with included rackmount brackets.
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments.
24 x Gigabit ports and 2 x SFP ports allow for a 52Gbps switching capacity, and 1 x console port (RJ-45 to RS-232) for out-of-band management
Managed features include 802.1Q, IGMP v1 / 2 / 3, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP, static and dynamic link aggregation, and ERPS for flexible network integration
Offers IPv4 / IPv6 static or DHCPv4 / v6 assignment, DHCP server / relay / option 82, and DHCP server snooping / screening to filter out unauthorized DHCP servers
Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping, and IP Source Guard provides layered network access controls
Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and ModBus / TCP
Sturdy rack mountable metal housing with mounting kit included
Industrial layer 2 rackmount switch with a fanless design to eliminate operating noise and lower energy consumption
52Gbps switching capacity
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance
A wide operating temperature range of -40° – 70° C (-40° – 158° F) allows the industrial layer 2 rackmount switch to be installed in extreme hot or cold environments
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding point on the industrial layer 2 rackmount switch protects equipment from external electrical surges
Standards |
|
Device Interface |
|
Data Transfer Rate |
|
Performance |
|
Management |
|
MIB |
|
Spanning Tree |
|
Link Aggregation |
|
Quality of Service (QoS) |
|
VLAN |
|
Multicast |
|
Access Control |
|
ACL |
|
Special Features |
|
Power |
|
Terminal Block |
|
Enclosure |
|
MTBF |
|
Operating Temperature |
|
Operating Humidity |
|
Dimensions |
|
Weight |
|
Certifications |
|
Warranty |
PACKAGE CONTENTS |
|
