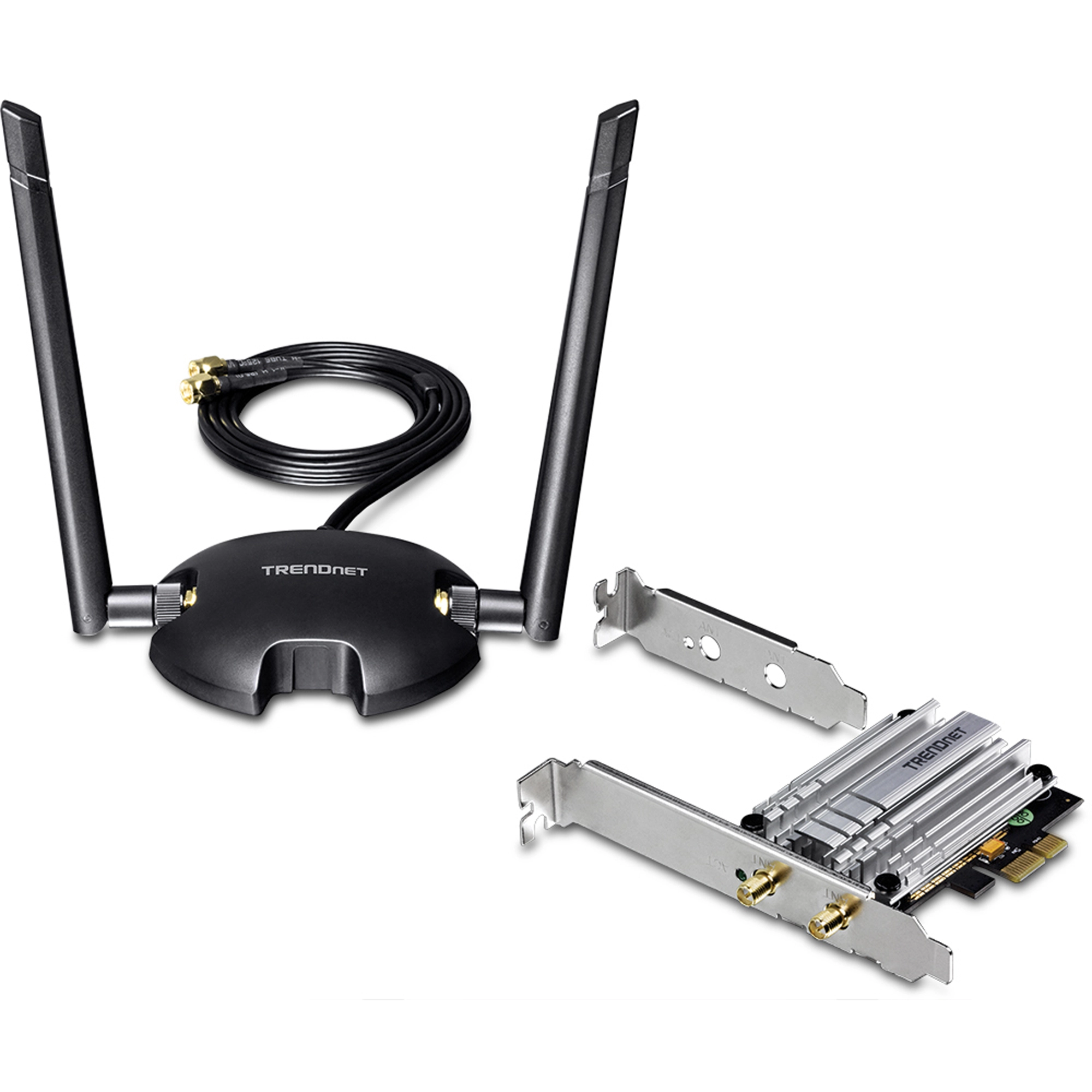

TRENDnet's AC1200 High Power Wireless Dual Band PCIe Adapter, model TEW-807ECH, upgrades a standard or low profile Windows® computer to Wireless AC1200. Quickly connect to a high performance Wireless AC network at 867 Mbps or to a Wireless N network at 300 Mbps. A high power radio with detachable 5 dBi antennas increase wireless coverage. A conven-ient 1 m (3.3 ft.) extension cable and a magnetic mounting base provide installation flexibility.
![](/images/products/keypoints/TEW-807ECH/WiFiPerformance_web.jpg)
WiFi Performance
Updgrade your desktop computer to 867 Mbps WiFi AC or 300 Mbps WiFi N to surf, game, and stream 4K HD video.
![](/images/products/keypoints/TEW-807ECH/TowerVersatility_web.jpg)
Versatility

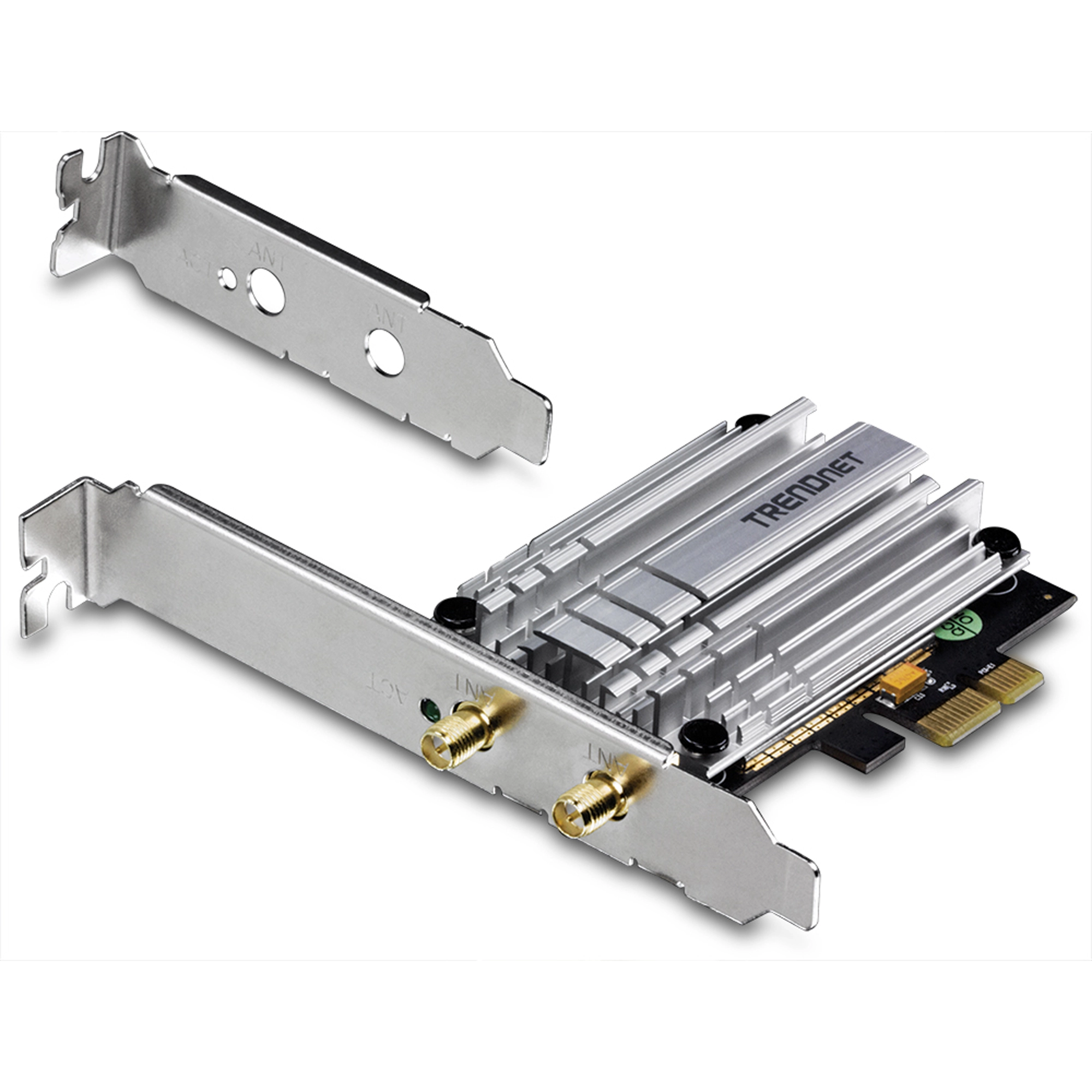

Interchangeable mounting brackets provide compatibility with both standard and low profile computers.
![](/images/products/keypoints/TEW-807ECH/IncreasedCoverage_web.jpg)
Increased Coverage

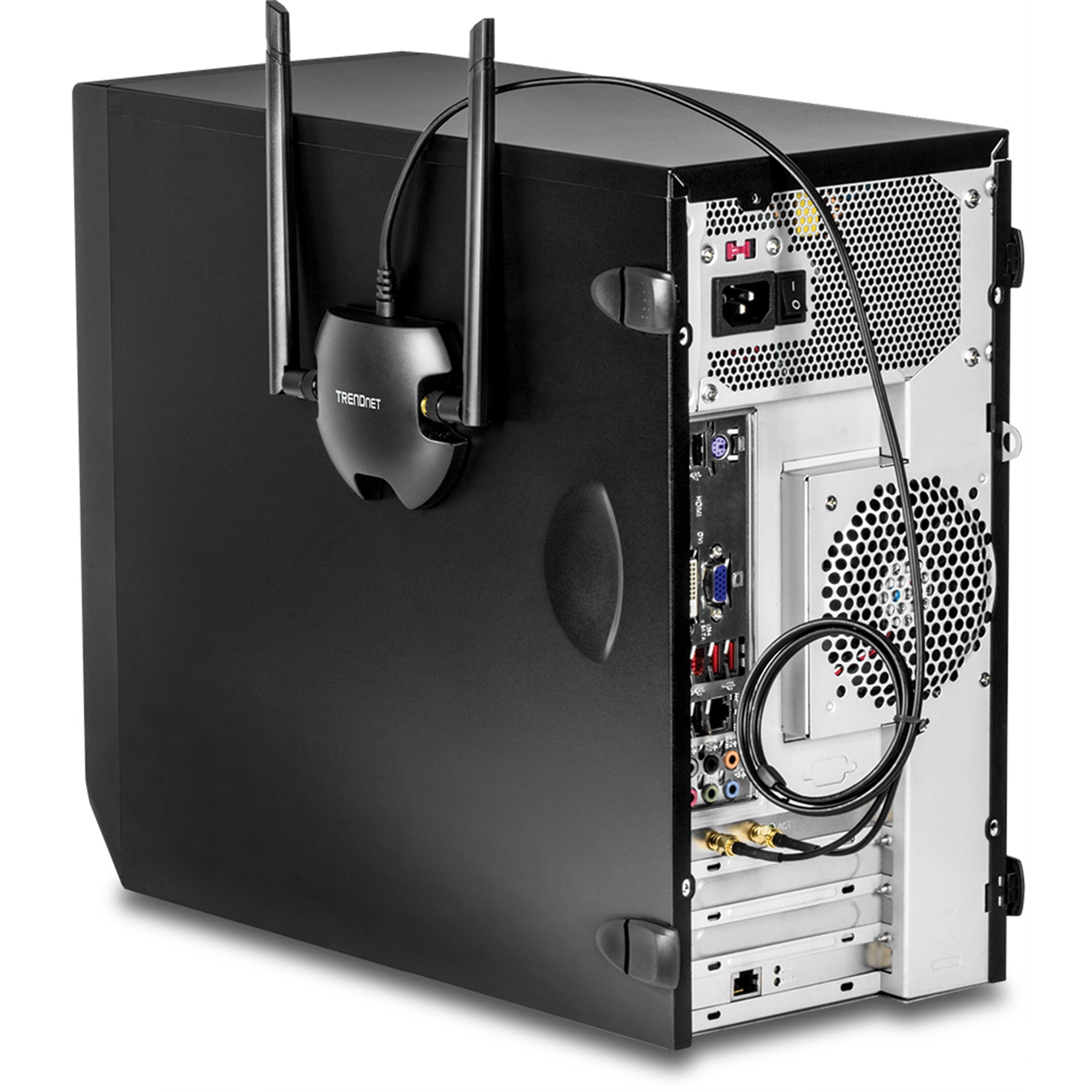

A high power radio with detachable 5 dBi antennas on a magnetic mounting base increase WiFi coverage.
Standards | - PCI Express 1.0a
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n (up to 300 Mbps)
- IEEE 802.11ac (up to 867 Mbps)
|

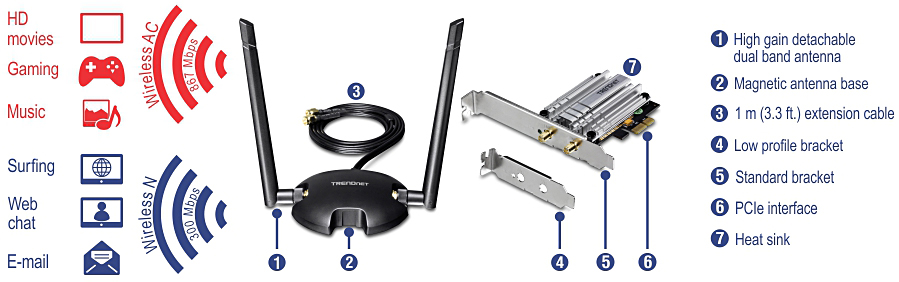

Hardware Interface | - PCI Express x1 (Version 1.0a)
- LED indicator
- 2 x RP-SMA antenna connectors
- Magnetic Antenna Base with 1 m (3.3 ft) extension cable
- 2 High Gain Detachable Dual Band Antennas
- Standard and low profile tower brackets
|
Encryption | - Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
|
Compatibility | - Windows® 10, 8.1, 8, 7, Vista, XP
|
Special Features | - 2 high gain dual band detachable antennas and integrated high powered amplifiers for long range connectivity

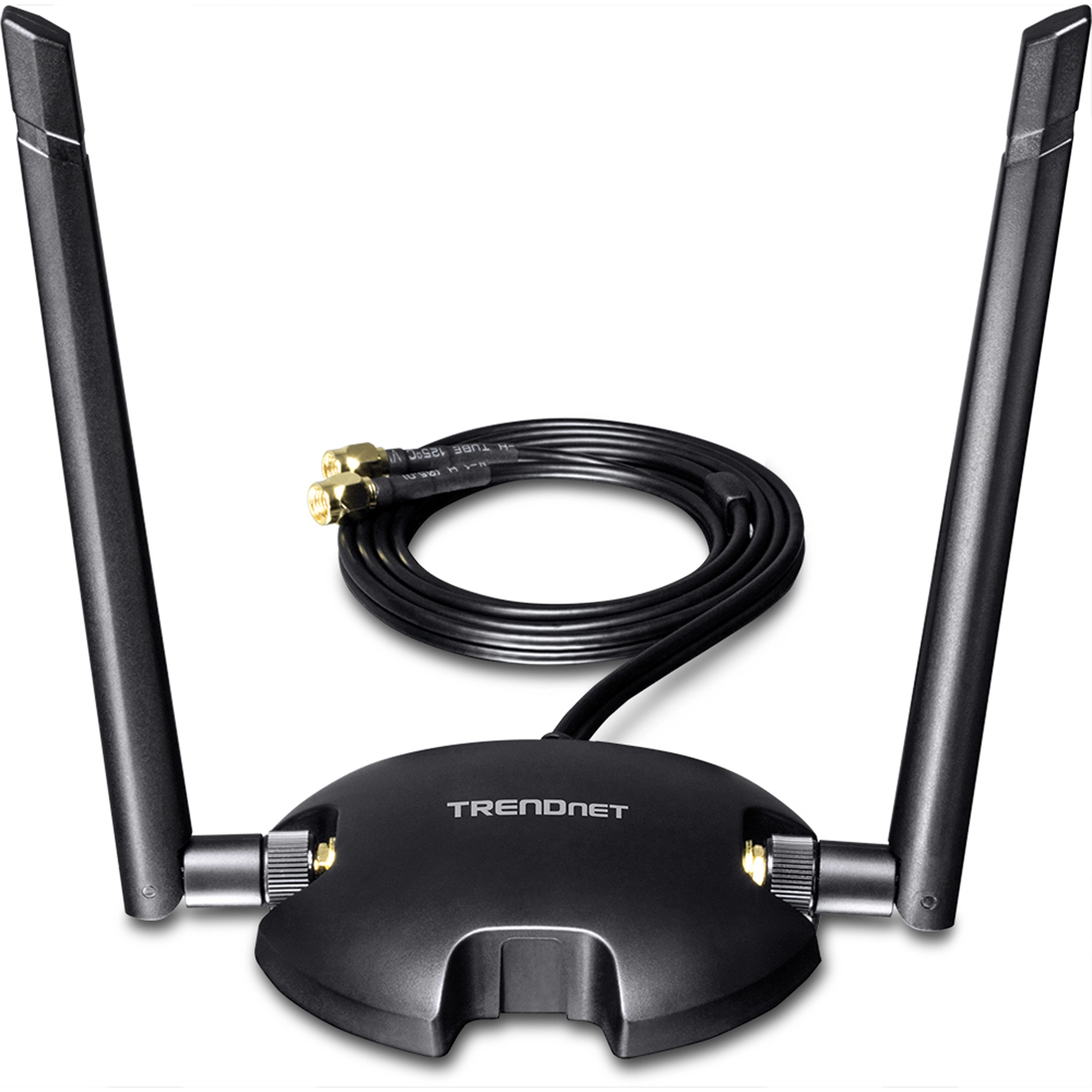

- Magnetic Antenna Base for easy mounting and antenna positioning for optimal signal reception
- High-speed 802.11ac connectivity
|
Quality of Service | |
Frequency | - 2.4GHz: (FCC) 2.412 – 2.462GHz, (ETSI) 2.412 – 2.472GHz
- 5GHz: (FCC) 5.150 – 5.250GHz/5.745 - 5.825GHz, (ETSI) 5.150 – 5.250GHz/5.260 – 5.320GHz/5.500 – 5.700GHz
|
Modulation | - 802.11b: CCK, DQPSK, DBPSK
- 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
- 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
- 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
|
Antenna Gain | - 2.4 GHz/5 GHz: 2 x 5 dBi (max.) dual band external/detachable
|
Wireless Output Power | - FCC: 802.11a: 28 dBm (max.) / ETSI: 22.30 dBm (max.) @ 54 Mbps
- FCC: 802.11b: 27 dBm (max.) / ETSI: 19.80 dBm (max.) @ 11 Mbps
- FCC: 802.11g: 27 dBm (max.) / ETSI: 19.70 dBm (max.) @ 54 Mbps
- FCC: 802.11n (2.4GHz): 27 dBm (max.) / ETSI: 19.70 dBm (max.) @ 300 Mbps
- FCC: 802.11n (5GHz): 27 dBm (max.) / ETSI: 22.50 dBm (max.) @ 300 Mbps
- FCC: 802.11ac: 27 dBm (max.) / ETSI: 22.30 dBm (max.) @ 867 Mbps
|
Receiving Sensitivity | - 802.11a: -90 dBm (typical) @ 54 Mbps
- 802.11b: -91 dBm (typical) @ 11 Mbps
- 802.11g: -87 dBm (typical) @ 54 Mbps
- 802.11n (2.4GHz): -85 dBm (typical) @ 300 Mbps
- 802.11n (5GHz): -90 dBm (typical) @ 300 Mbps
- 802.11ac: -58 dBm (typical) @ 867 Mbps
|
Wireless Channels | - 2.4GHz: (FCC) 1-11, (ETSI) 1-13
- 5GHz: (FCC) 36, 40, 44, 48, 149, 153, 157, 161, 165, (ETSI) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
|
Power | |
Operating Temperature | |
Operating Humidity | |
Certifications | |
Dimensions | - 84 x 64 x 17 mm (3.3 x 2.5 x 0.7 in.)
|
Weight | - 80 g (2.8 oz.)
- Antenna Base: 114 g (4 oz.)
|
Warranty: | |

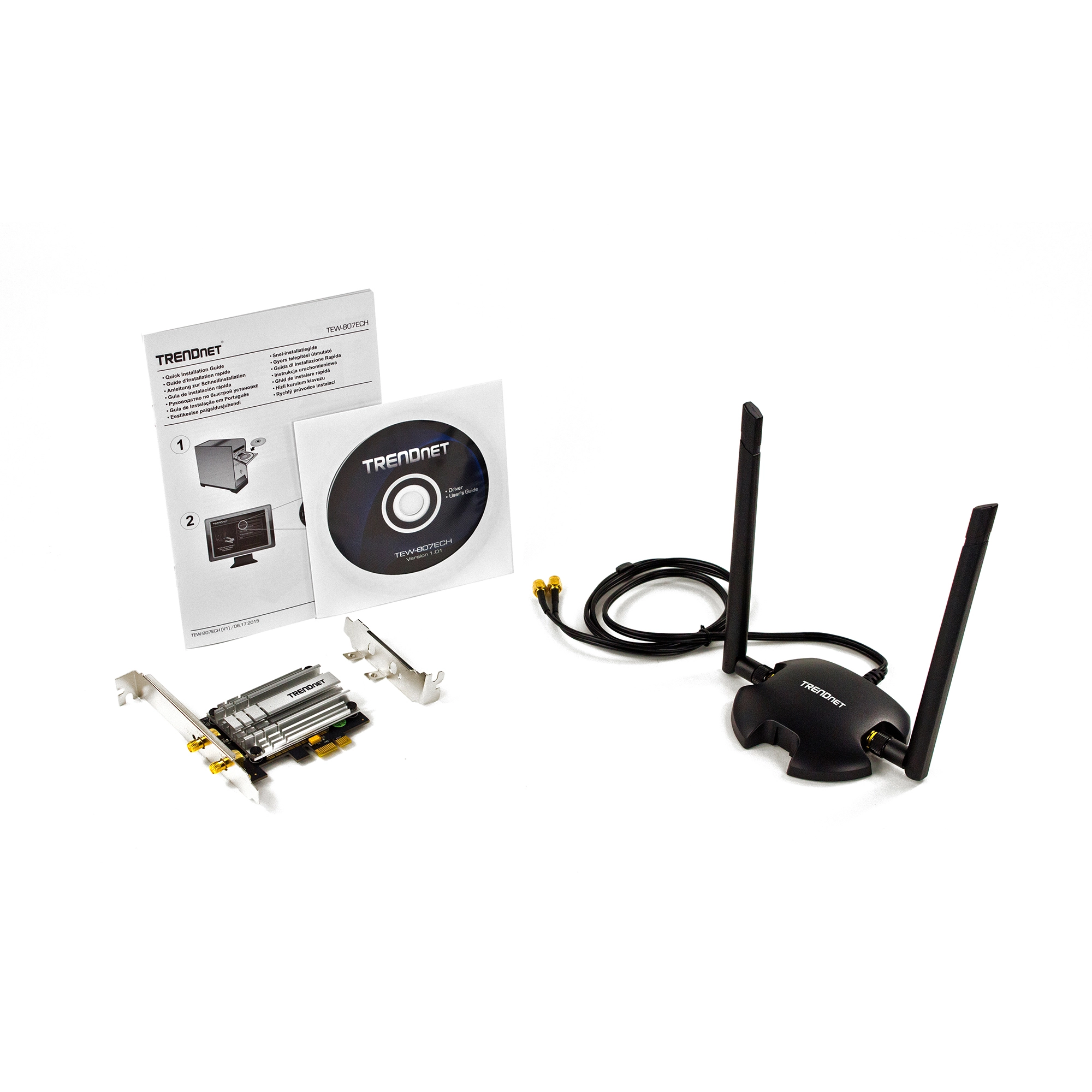

PACKAGE CONTENTS |
- TEW-807ECH
- Multi-Language Quick Installation Guide
- CD-ROM (Utility & Drivers)
- 2 x High Gain Detachable Dual Band Antennas
- 1 x Magnetic Antenna Base with 1 m (3.3 ft) extension cable
- Standard & Low Profile Brackets
|
* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps, connect to an 867 Mbps 802.11ac wireless router or access point.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
