100BASE-T to SFP Fiber Media Converter (Certified Refurbished)

RB-TFC-FSFP (Version v1.0R)

  • 1 x 100BASE-T RJ-45 port
  • 1 x 100BASE-SX/LX SFP Slot
  • SFP slot accommodates multimode or single-mode modules
  • Auto-MDIX 100BASE-T RJ-45 copper port supports Full-Duplex mode
  • Not compatible with TFC-1600
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Price: $13.99
Quantity:
Wishlist

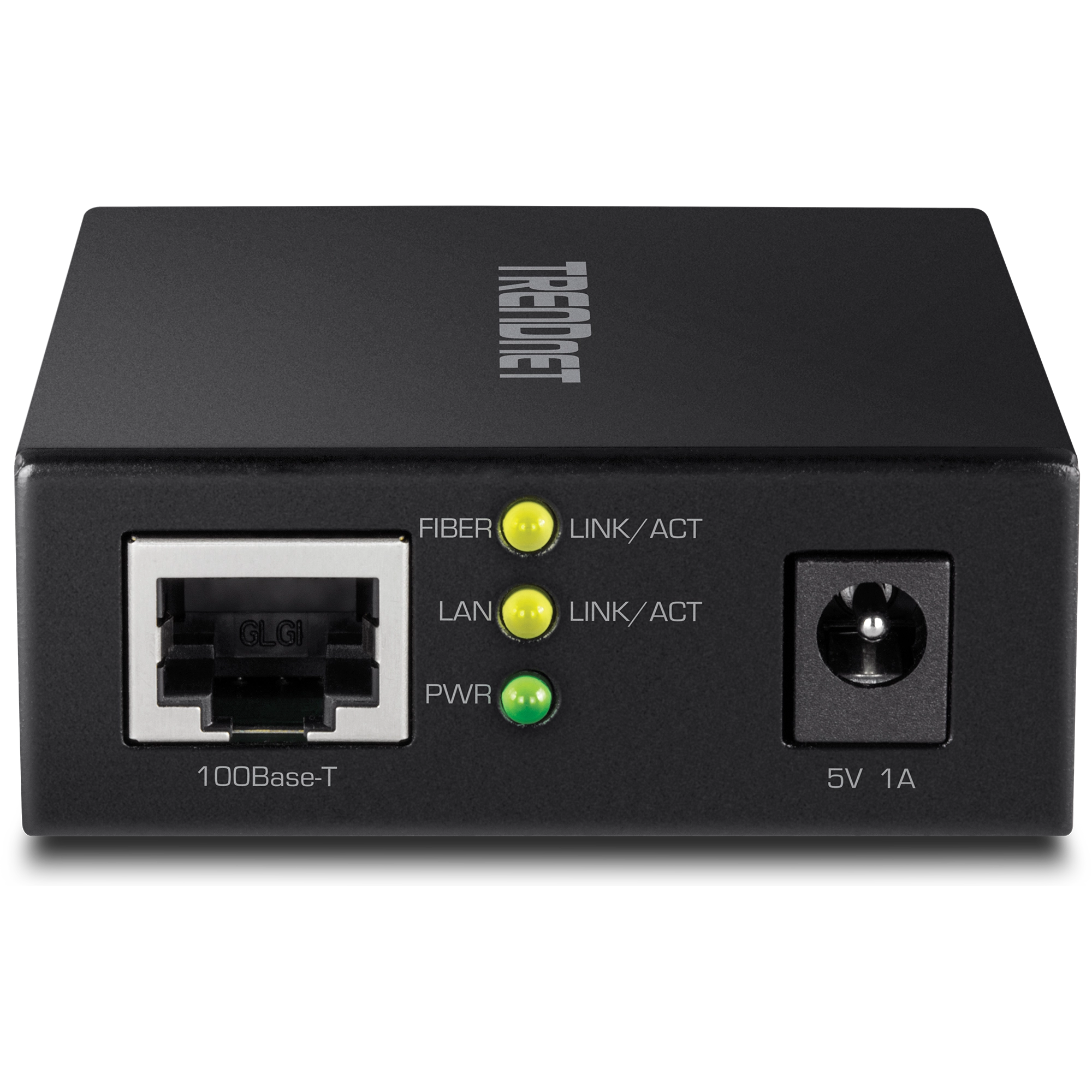

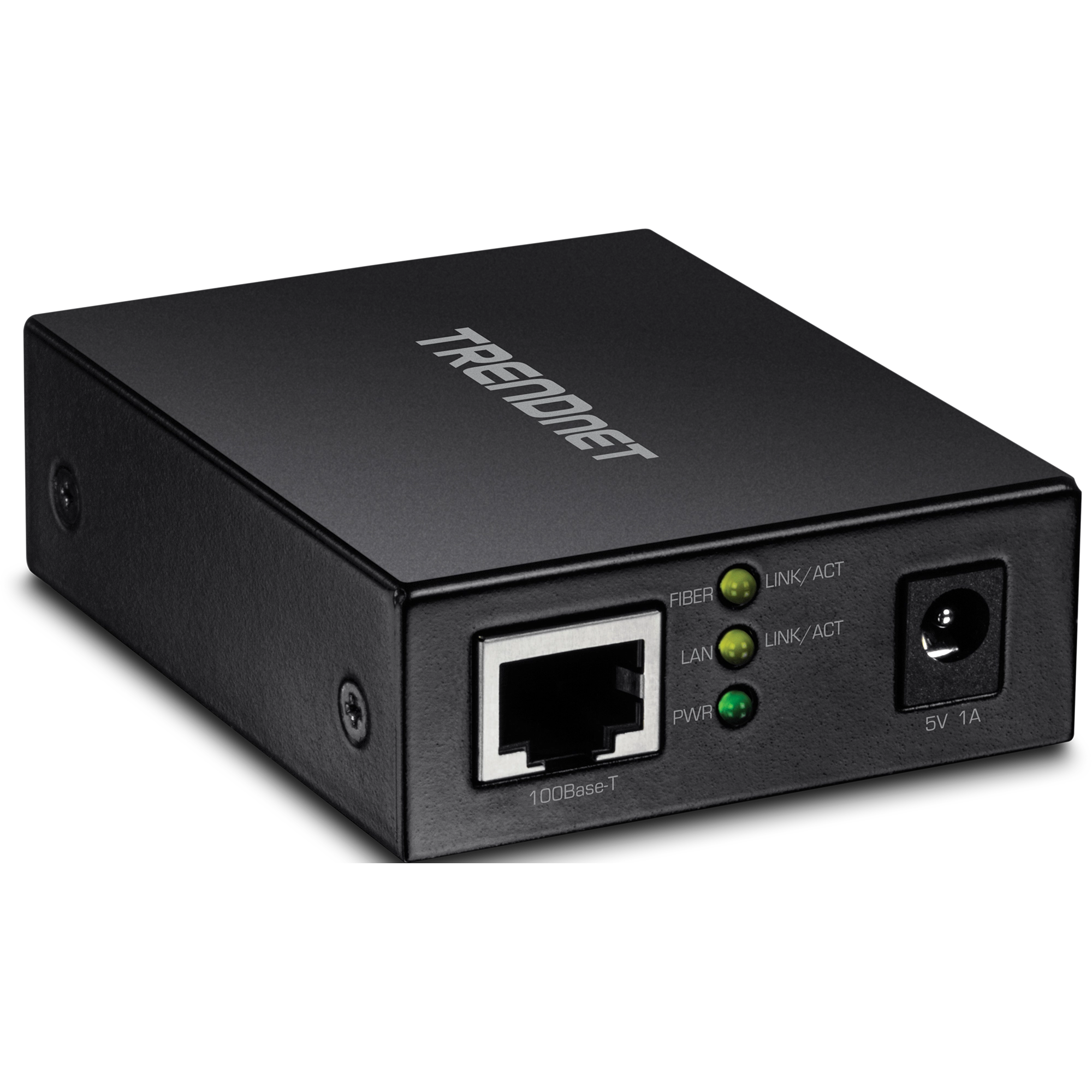

This compact Fiber Media Converter transforms 100Base-T (Copper) media to 100Base-SX/LX (Fiber) SFP media and vice versa. The 100Base-T RJ-45 port supports a full duplex connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.

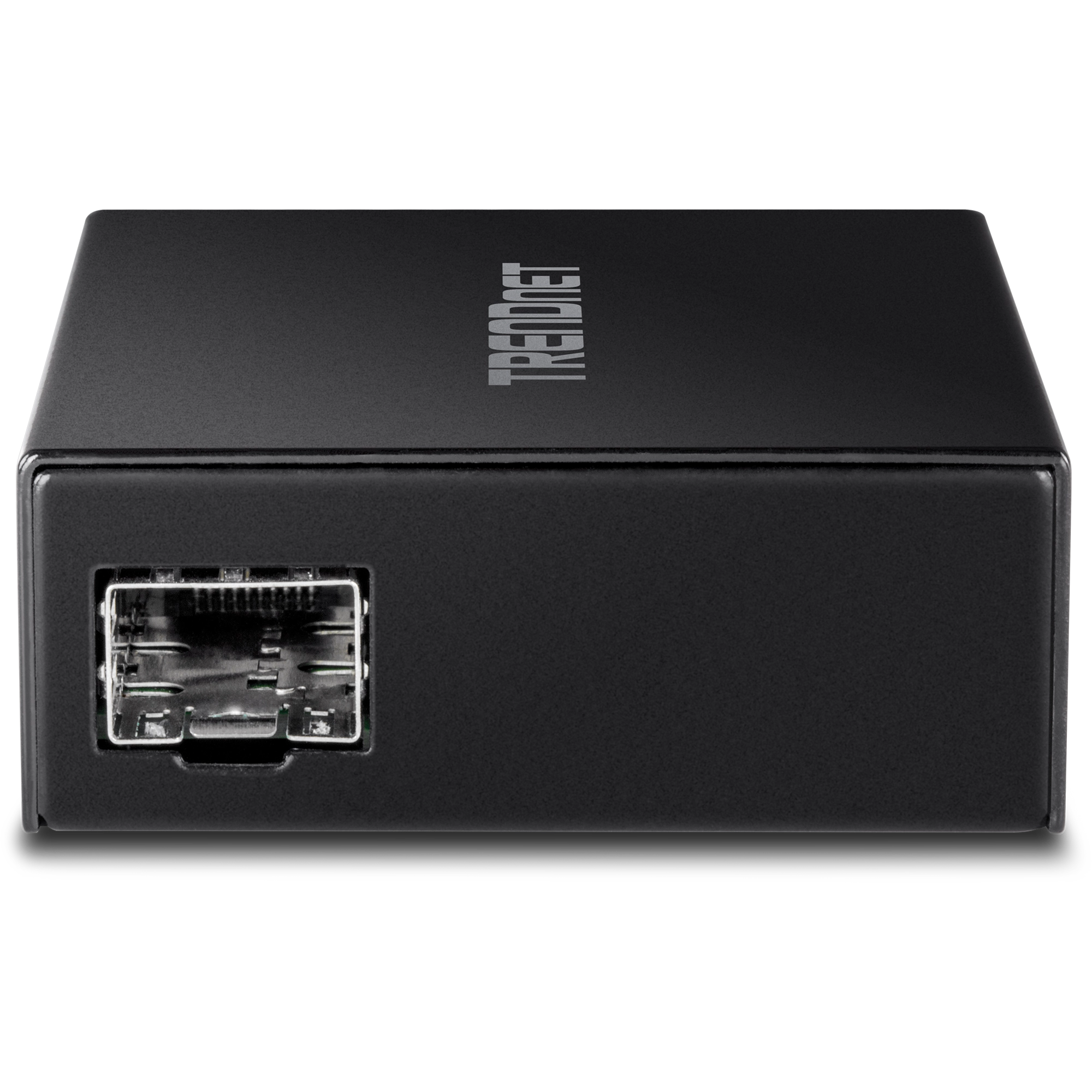

SFP Slot

SFP slot supports both multimode and single-mode SFP modules.

Power Adapter

Included power adapter for standalone use.

Compact

Small and compact metal housing design provides greater installation flexibility.

Network Ports

1 x 10/100 Mbps copper RJ-45 port and 1 x 100 Mbps SFP slot

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Compact Design

Small, compact, and lightweight metal housing provides greater installation flexibility

LED Indicators

LED indicators convey port status

Fiber Wavelength

Compatible with multi-mode and single mode transmissions

Standards
  • IEEE 802.3
  • IEEE 802.3u

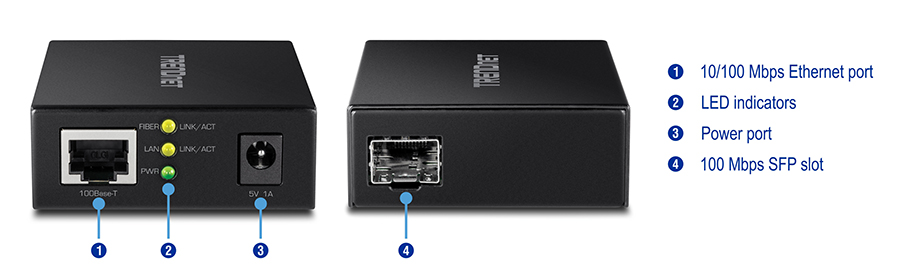

Device Interface
  • 1 x 10/100 Mbps Ethernet port
  • 1 x 100 Mbps SFP slot
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Power
  • Input: 110 – 240 V AC, 50/60 Hz
  • Output: 5V DC, 1A
  • Consumption: 5 Watts (Max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 75 x 60 x 12 mm (3 x 2.4 x 0.5 in.)
Weight
  • 156 g (5.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 90-day
PACKAGE CONTENTS
  • TFC-FSFP
  • Quick Installation Guide
  • Power Adapter (5V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
