5-Port Unmanaged Fast Ethernet Long Range PoE+ Switch (Certified Refurbished)

RB-TE-FP051 (Version v1.0R)

Easy installation
4 x Fast Ethernet PoE+ ports and 1 x Fast Ethernet port
Enable the DIP switch to extend PoE+ signal up to 250m (820ft.) at 10Mbps
1Gbps switching capacity
60W PoE budget
Wall mountable design
Sturdy metal switch
Use with TRENDnet's PoE splitter to network and power non-PoE devices

The 5-Port Unmanaged Fast Ethernet Long Range PoE+ Switch, model TE-FP051, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as access points, VoIP phones, and IP Cameras. It supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE budget. This Unmanaged Fast Ethernet Long Range PoE+ Switch works up to 250m (820 ft.) away for longer distance PoE applications. It features a fanless design, and has a convenient option for wall-mounting.

A network diagram of Network Switch, connected to PoE Camera and wireless access point device up to 60 Watt.

PoE+ Power

A 60W PoE power budget supports up to four Power over Ethernet devices.

Illustration of a network cable labeled 1Gbps Switching Capacity with icons representing music, video, data transfer moving through the network.

Fast Ethernet (10/100Mbps)

Five Fast Ethernet ports provide a 1Gbps switching capacity to support edge network installations.

A security camera is connected to a network switch with a cable labeled 250 meters (820 feet). The network switch has a speech bubble indicating an option to turn PoE (Power over Ethernet) on or off.

Long Range PoE+ Switch

Extend PoE+ signal up to 250m (820 ft.) at 10Mbps for long distance PoE installations by enabling the DIP switch.

The illustration depicts a building with a network setup that includes several surveillance cameras connected via Ethernet cables. The cables are routed through the building, extending to various locations, including the exterior. The setup highlights the use of a TE-FP051 device, shown in a blue circle, to extend PoE Plus up to 250 meters (820 feet). The building's interior includes office spaces with desks and computers, a lounge area, and a storage room with shelves and boxes. The exterior features a parking lot with additional surveillance cameras mounted on poles.

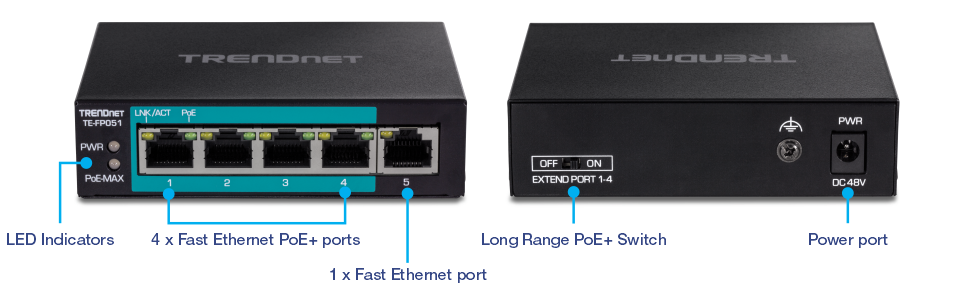

The TRENDnet TE-FP051 device has a front view with LED indicators, four Fast Ethernet PoE+ ports, and one Fast Ethernet port. The back view shows a long-range PoE+ switch and a power port labeled DC 48V.

PoE+

Supplies up to 30W of PoE+ power per PoE port with a 60W power budget

Ports

Four Fast Ethernet PoE+ ports and one Fast Ethernet port

Long Range PoE+

Enable the DIP switch to extend the PoE+ signal up to 250m (820 ft.) at 10Mbps for long distance PoE installations

Switching Capacity

1Gbps switching capacity

Housing

Wall mountable metal housing

LED Indicators

LED indicators on this long distance PoE switch convey PoE and port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at
Device Interface	4 x Fast Ethernet PoE+ ports 1 x Fast Ethernet port DIP Switch LED indicators Wall mountable
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance	Data RAM Buffer: 56KB Switch Fabric: 1Gbps MAC Address Table: 1K entries Forwarding rate: 0.744Mpps (64-byte packet size)
Power	Input: 100 – 240V AC, 50/60Hz Output: 48V DC, 1.35A external power adapter Max. consumption: 4.8W (no PD)
PoE	PoE budget: 60W Over current protection Short circuit protection
MTBF	612,220 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	105 x 83 x 28mm (4.1 x 3.3 x 1.1 in.)
Weight	0.2kg (0.4 lbs.)
Certifications	CE FCC
Warranty	90-day

PACKAGE CONTENTS

TE-FP051
Quick Installation Guide
Power Adapter (48V DC, 1.35A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
