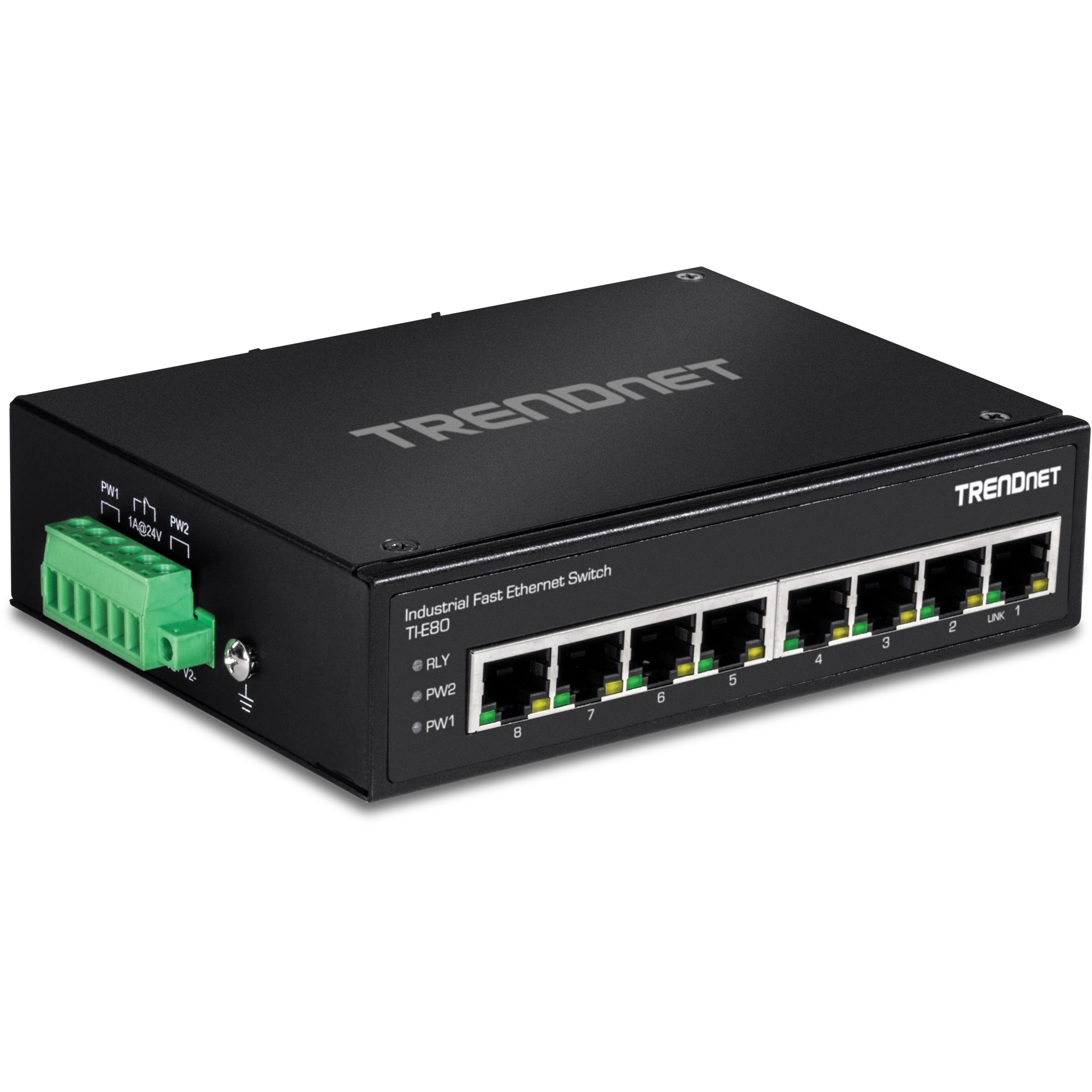

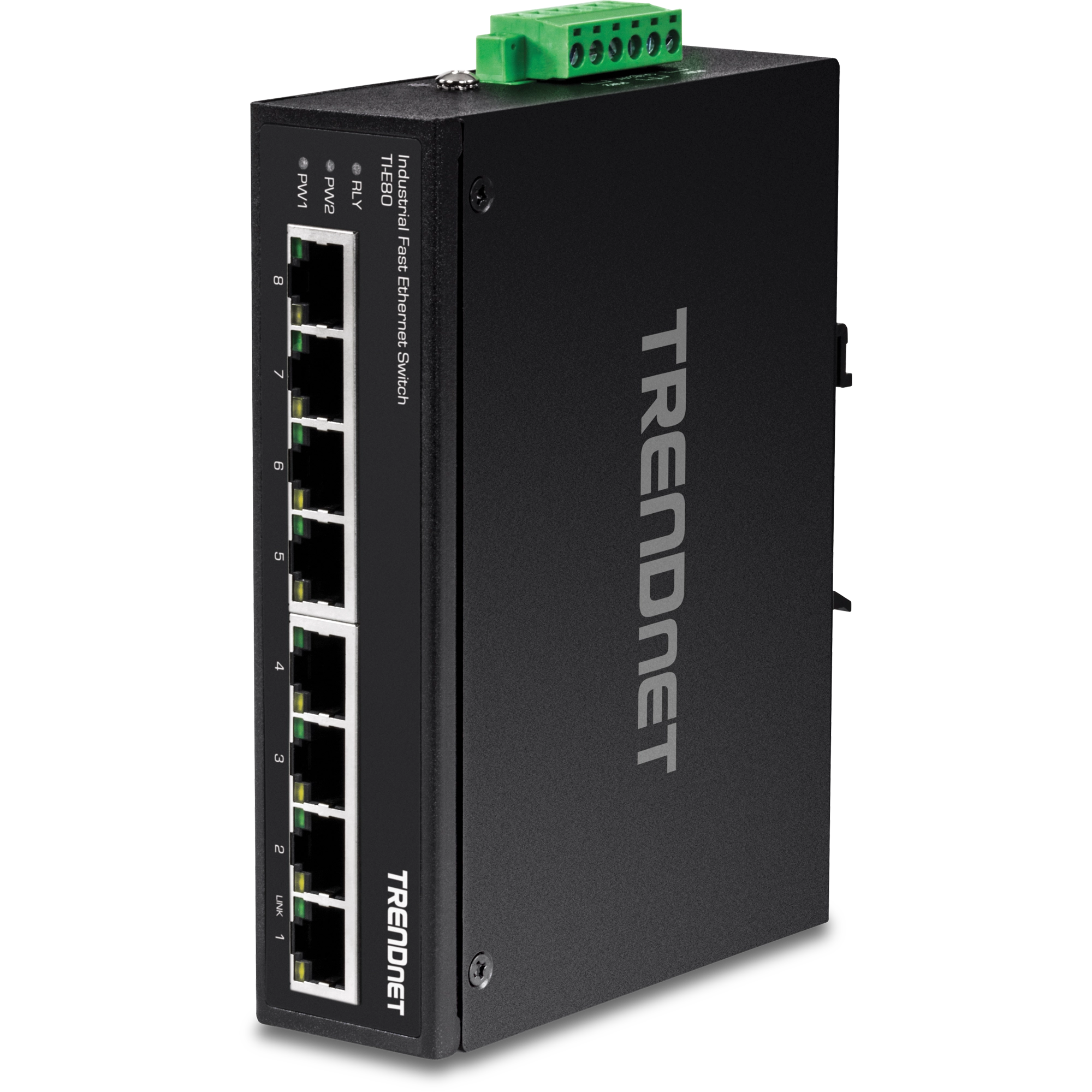

8-Port Industrial Fast Ethernet DIN-Rail Switch (Certified Refurbished)

RB-TI-E80 (Version v1.0R)

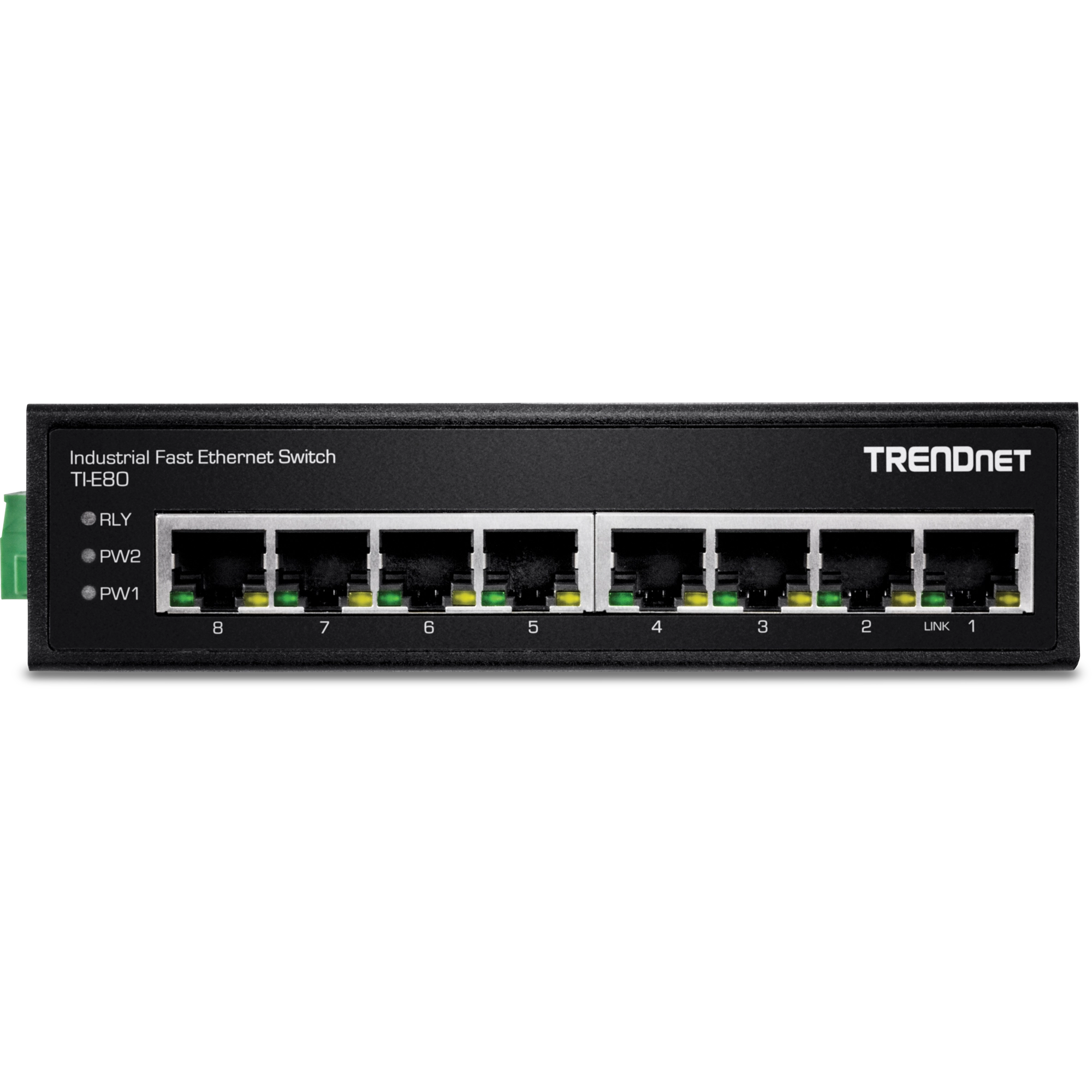

8 x Fast Ethernet ports
1.6Gbps switching capacity
Forwarding rate: 1.19Mpps (64-byte packet size)
Hardened IP30 rated metal switch
Includes DIN-Rail mount and wall mount brackets
Wide operating temperature range of -40° – 75° C (-40° – 167° F)
Dual inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (model: TI-M6024)
Fanless design for silent operation
NDAA / TAA compliant

TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

Redundant Power

The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F).

Easy Installation

Industrial Ethernet switches feature a quick and easy installation process with an intuitive guided setup

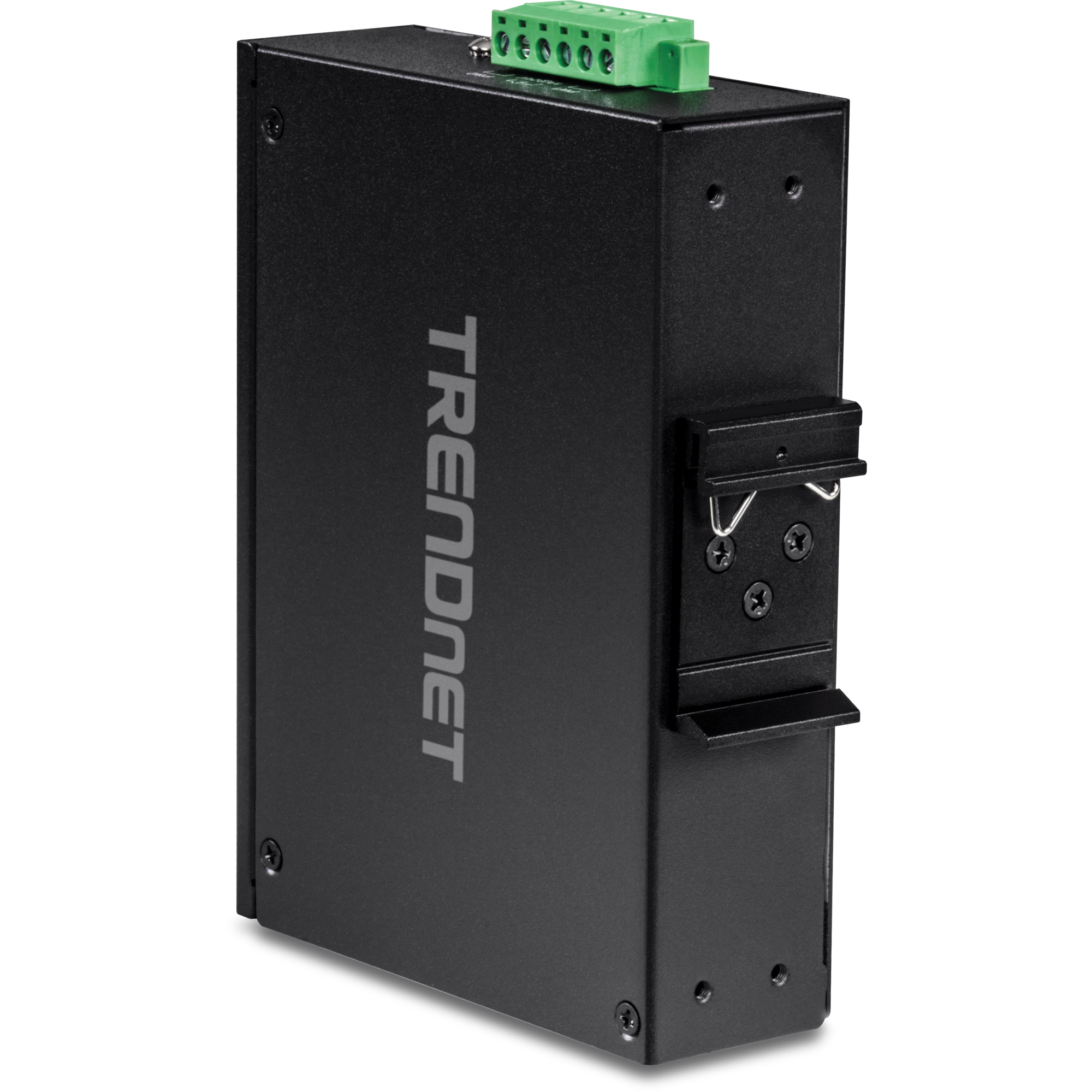

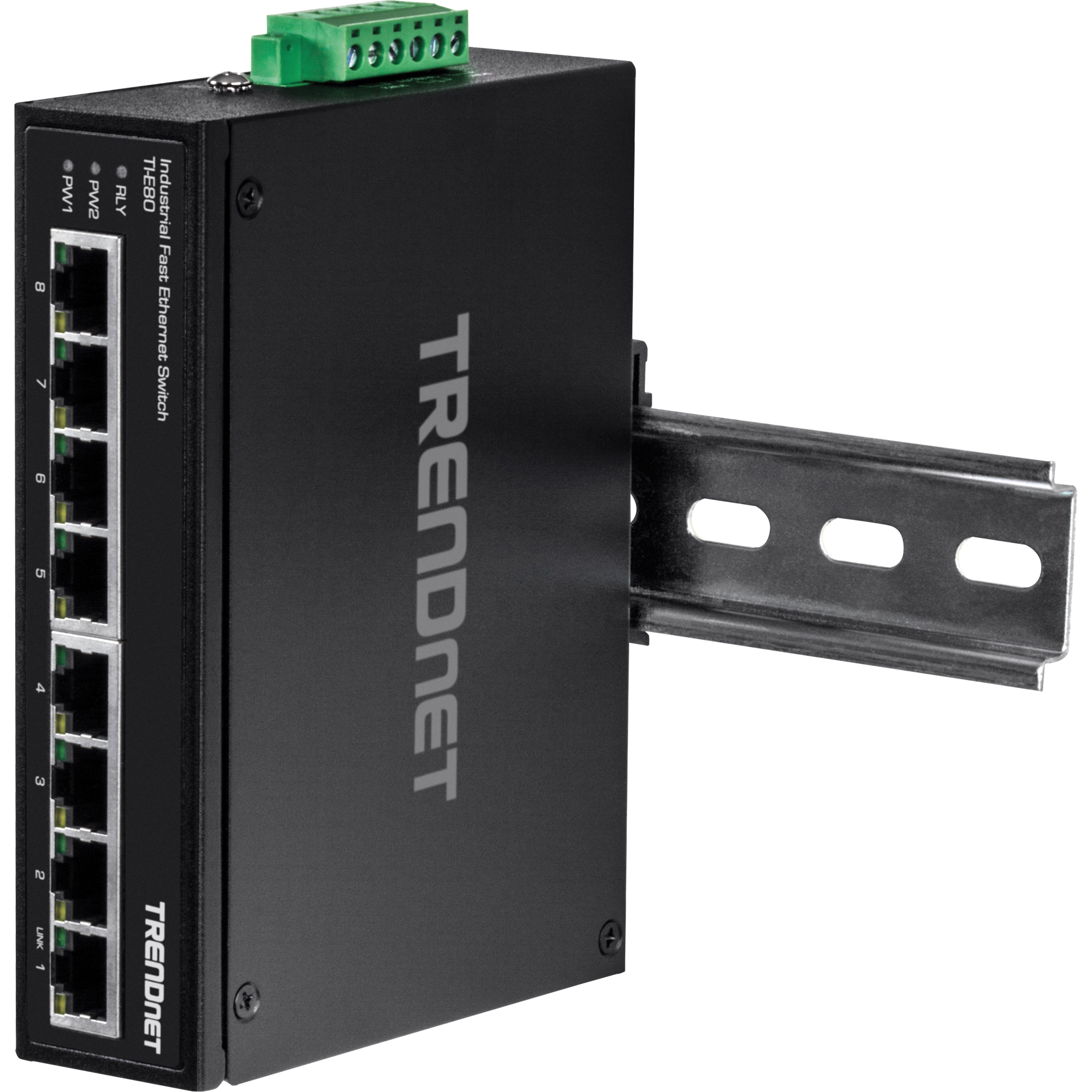

DIN-Rail / Wall Mounts

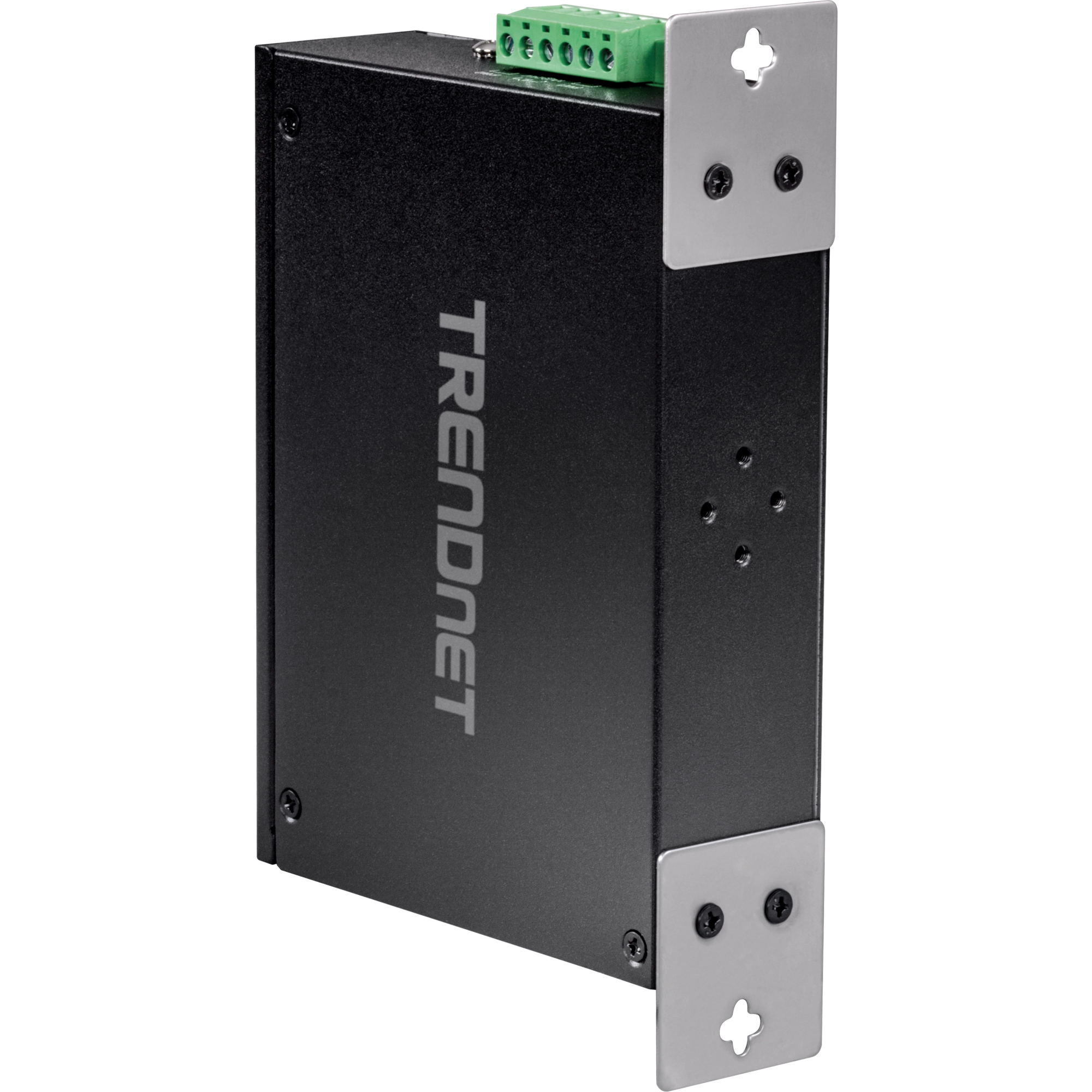

IP30 rated metal enclosure with DIN-Rail mount and wall mount hardware included

Redundant Power

Dual power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV

Grounding Point

Grounding point on each industrial Ethernet switch designed to protect equipment from external electrical surges

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x

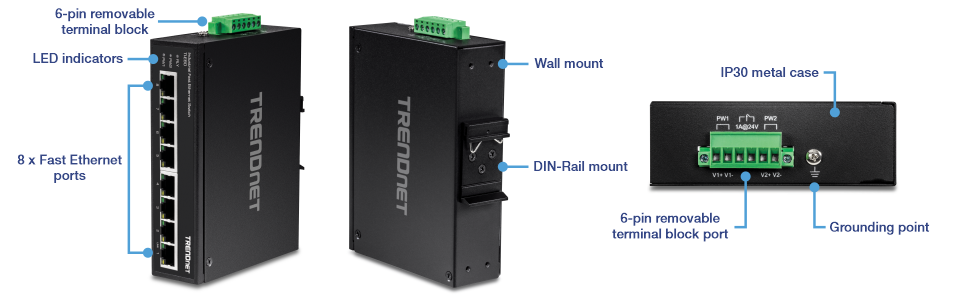

Device Interface	8 x Fast Ethernet ports 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance	Data RAM Buffer: 56KB Switching Fabric: 1.6Gbps MAC Address Table: 1K entries Forwarding rate: 1.19Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Redundant power inputs ESD 8kV support Low-profile design
DC Power	Input: 12 – 56V DC Recommended power supply: TI-M6024 (sold separately) Max. consumption: 3W

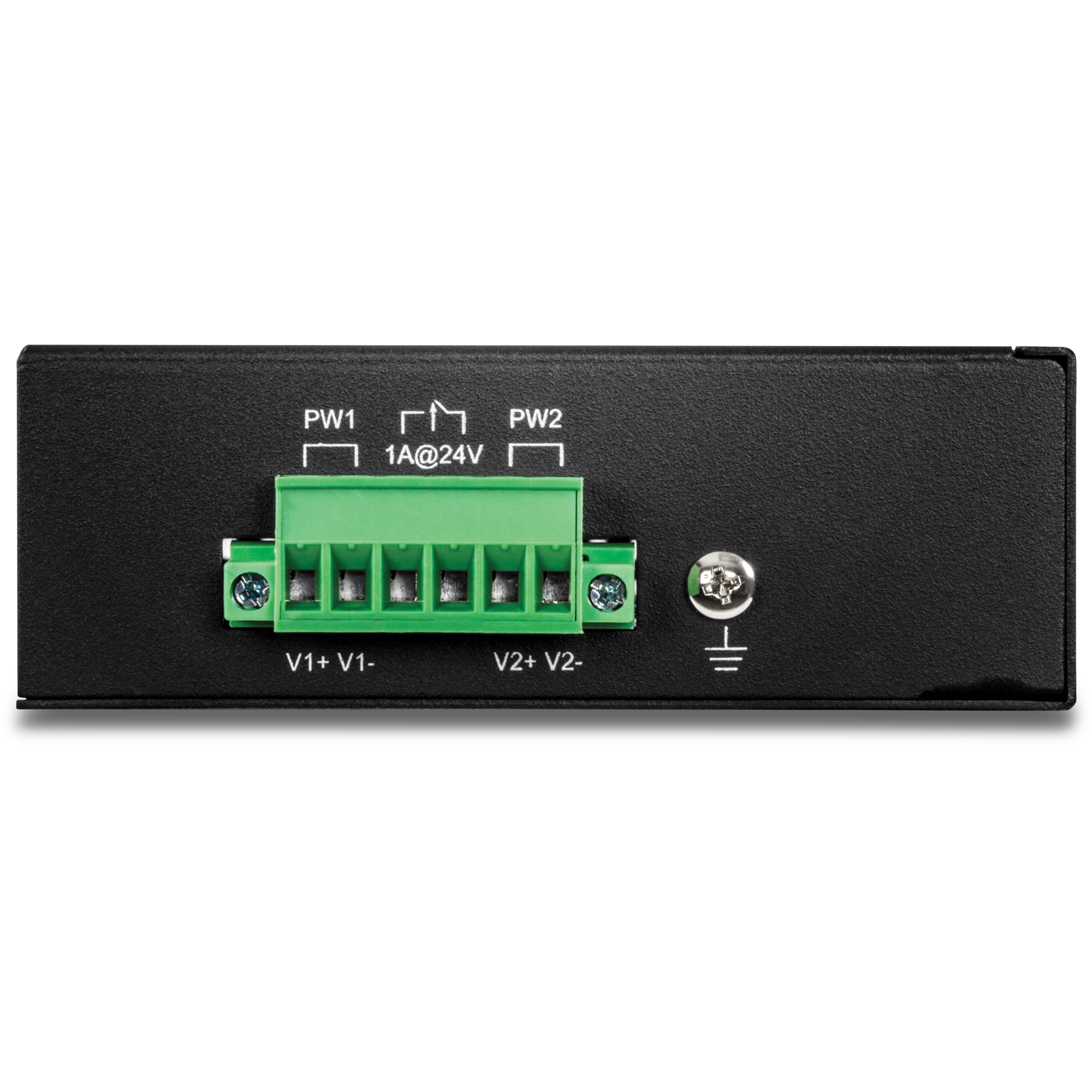

Terminal Block	Redundant power inputs, alarm relay contact, 6-pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – in. / 0.5Nm / 0.56Nm Wire strip length: 7-8mm Alarm Relay Contact Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	510,304 hours
Housing	IP30 metal case DIN-Rail mount Wall mount Grounding point
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	142 x 105 x 37mm (5.6 x 4.1 x 1.5 in.)
Weight	486g (17.1 oz.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	90-day

PACKAGE CONTENTS

TI-E80
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
