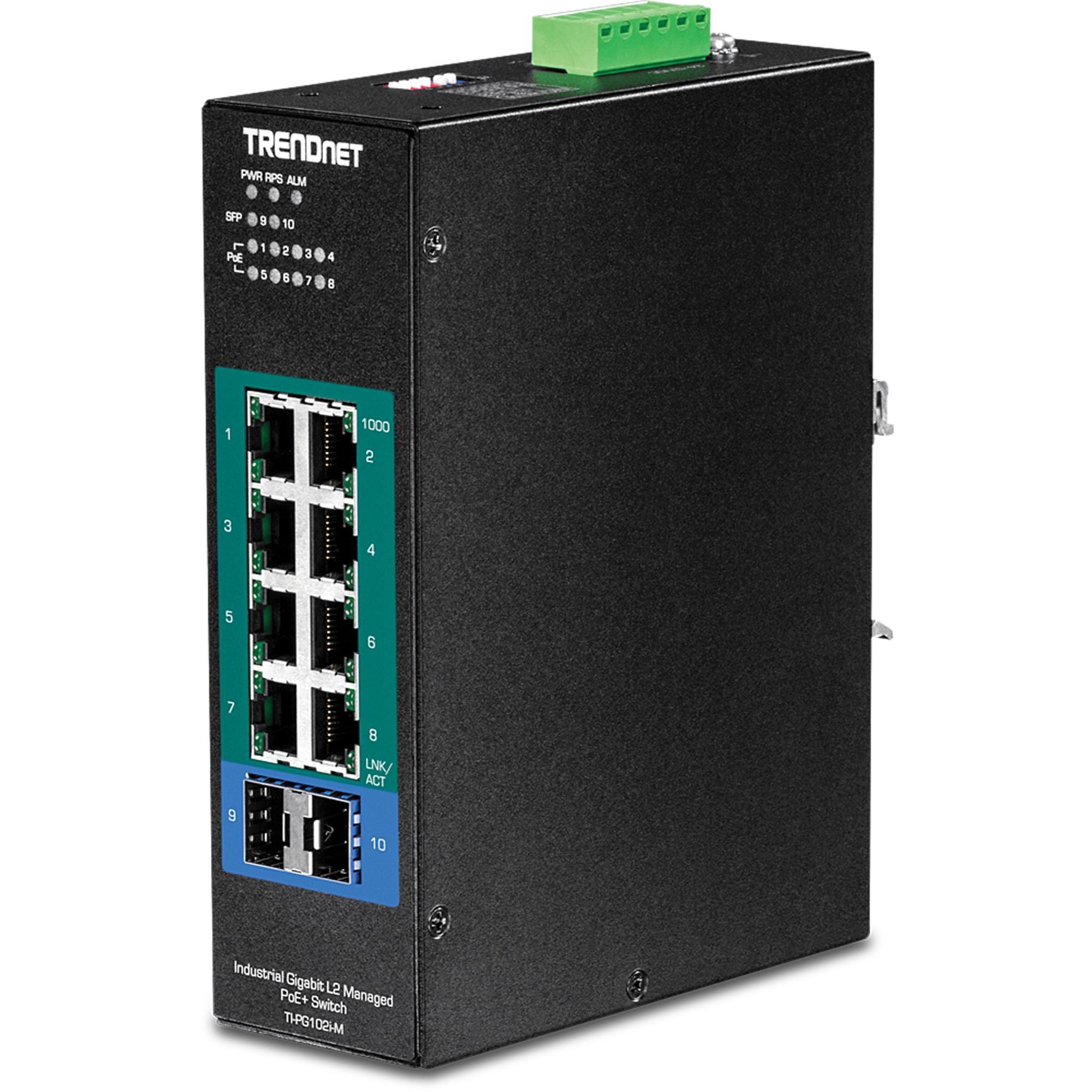

10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24 – 57V (Certified Refurbished)

RB-TI-PG102i-M (Version v1.0R)

8 x Gigabit PoE+ ports
2 x SFP slots
Supports 100/1000Base-FX fiber SFP modules
PoE power budget: 240W@48VDC or 124W@24VDC
PoE alive check restarts unresponsive PoE powered devices
20Gbps switching capacity
Hardened IP30 rated metal housing
Includes DIN-rail mounting bracket
Operating temperature range of -10° – 75° C (14° – 167° F)
Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
IEEE 802.1p QoS with queue scheduling support
Bandwidth control per port
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (models: TI-S24048, TI-S48048, TI-S12024)
NDAA / TAA compliant

TRENDnet’s 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG102i-M, features eight Gigabit PoE+ ports with a 240W PoE budget, and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -10° – 75° C (14° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

Integration Flexibility

Managed features include PoE control, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

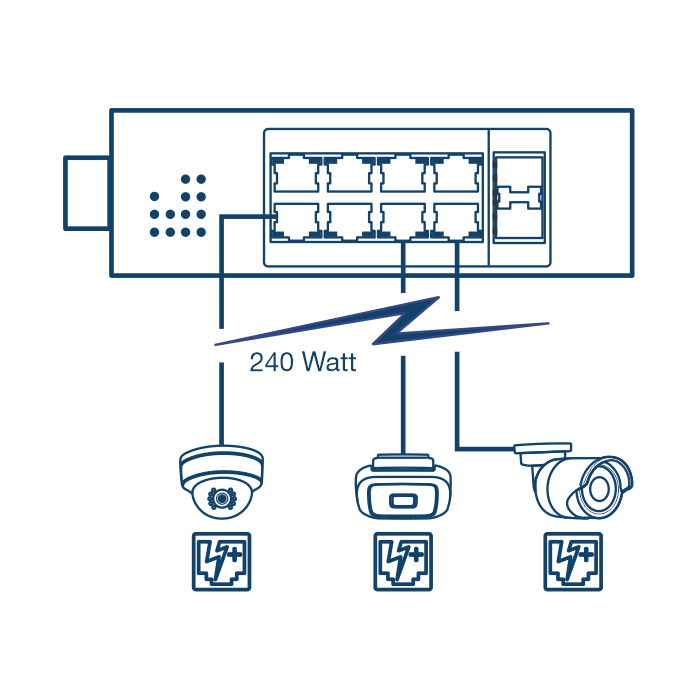

PoE Power

A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Industrial Design

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -10° – 75° C (14° – 167° F) for industrial environments.

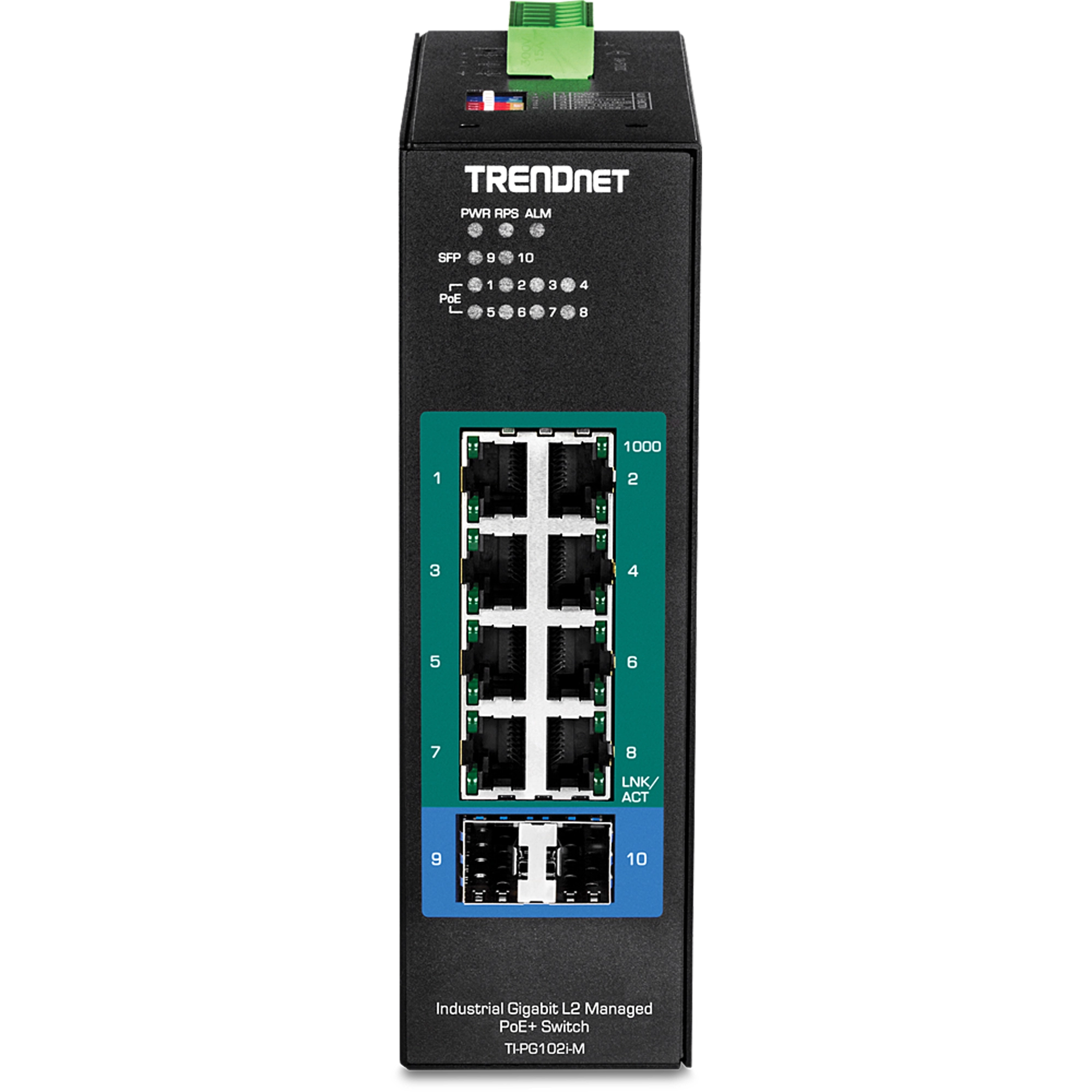

Network Ports

8 x Gigabit PoE+ ports, 2 x Gigabit SFP Slots

PoE Power

Supplies up to 30W of PoE+ power per port with a 240W power budget

Full PoE Control Per Port

Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling

Traffic Management

Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP spanning tree, and link aggregation for flexible network integration

Access Control

Managed access control featues include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

System Monitoring

Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

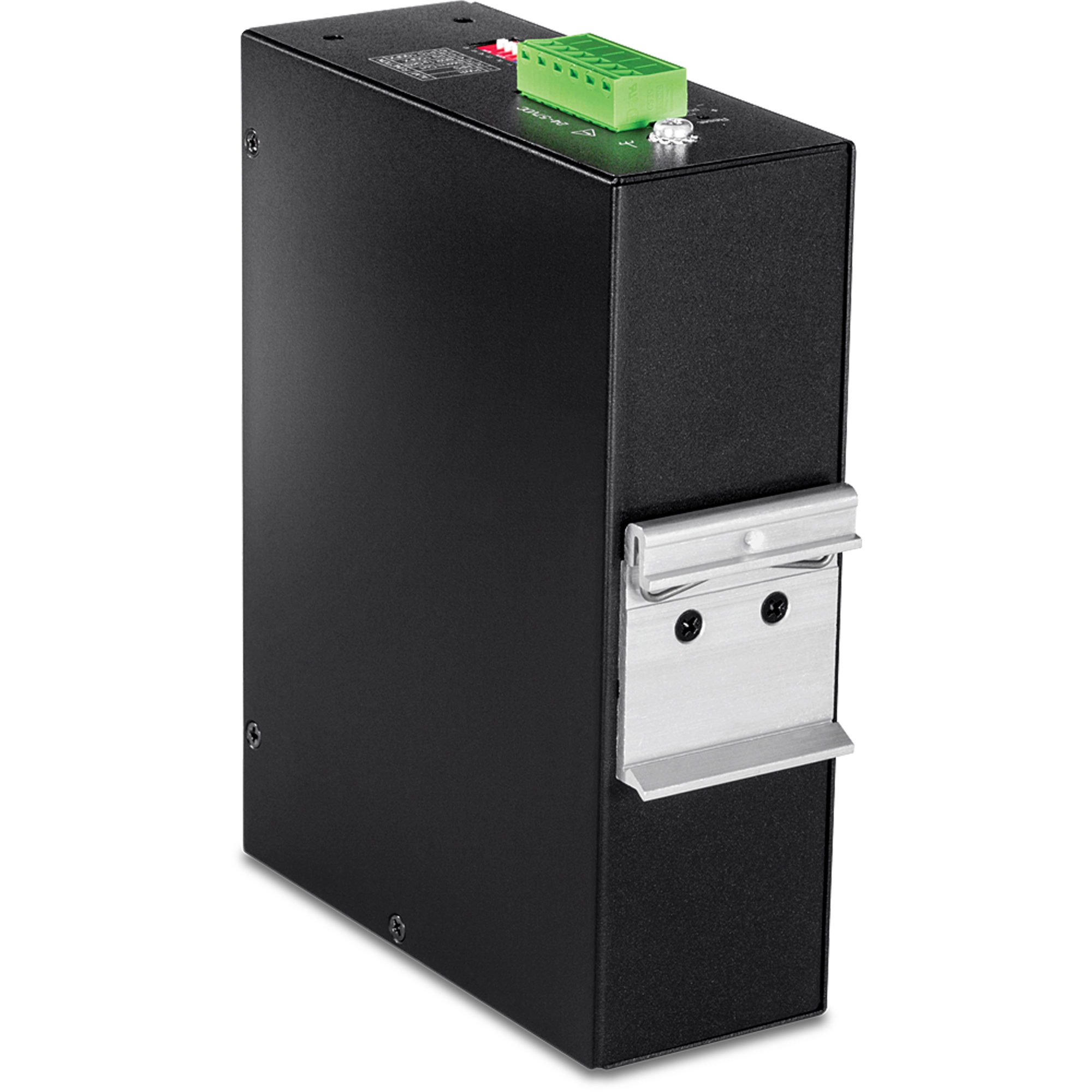

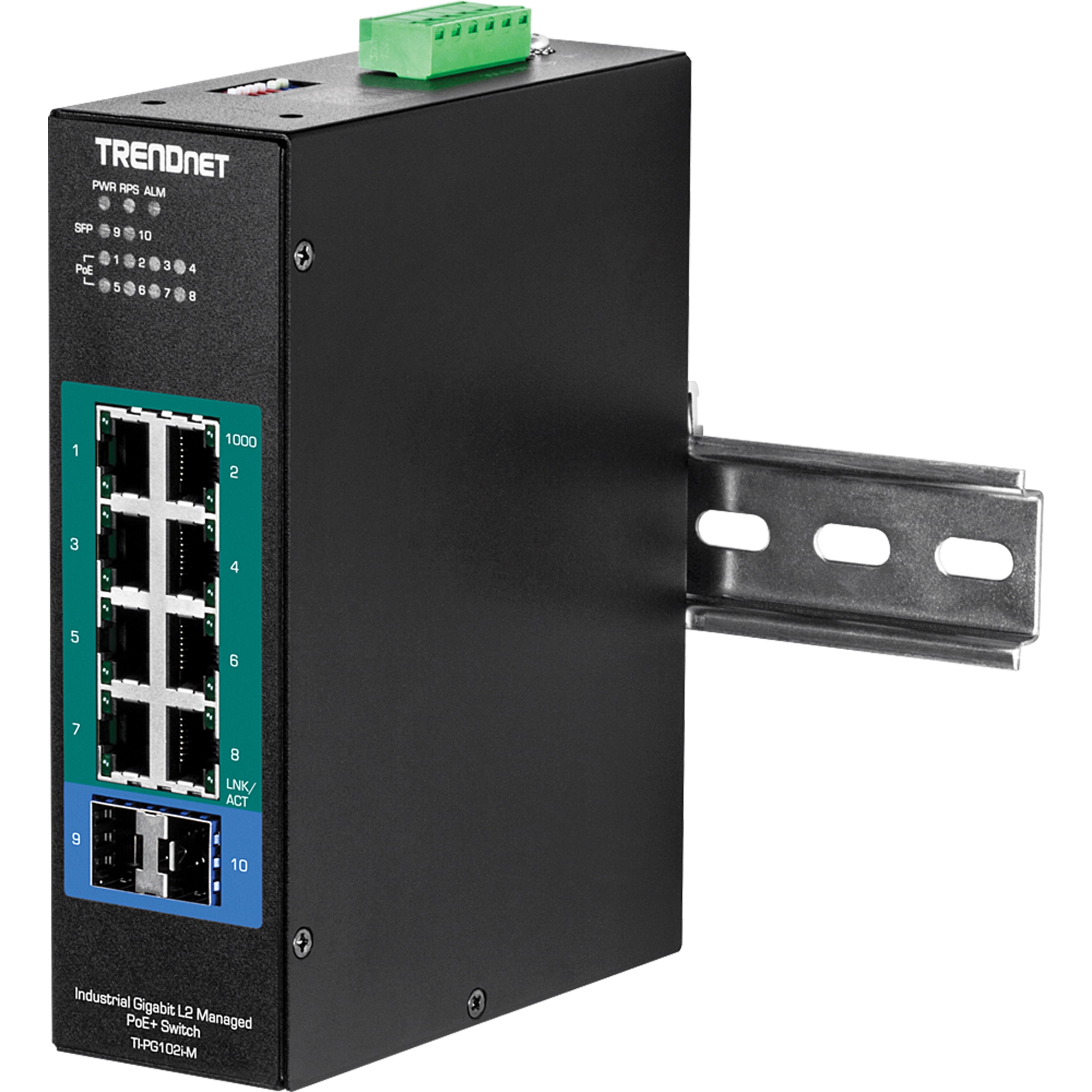

DIN-Rail Mount

IP30 rated metal enclosure includes DIN-rail mounting bracket

Switching Capacity

20Gbps switching capacity

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately: TI-S24048, TI-S48048, TI-S12024)

Alarm Relay

Alarm relay output triggered by power failure of primary and / or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Wide Temperature Range

A wide operating temperature range of -10° – 75° C (14° – 167° F) allows for installations in extreme hot or cold environments

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards

IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.1ax
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at

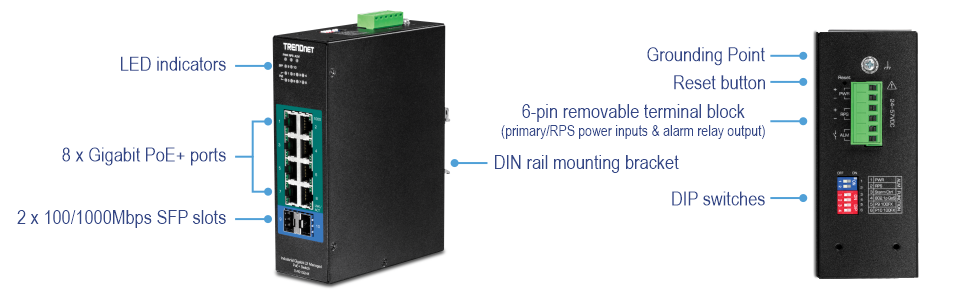

Device Interface

8 x Gigabit PoE+ ports
2 x 100/1000Mbps SFP slots

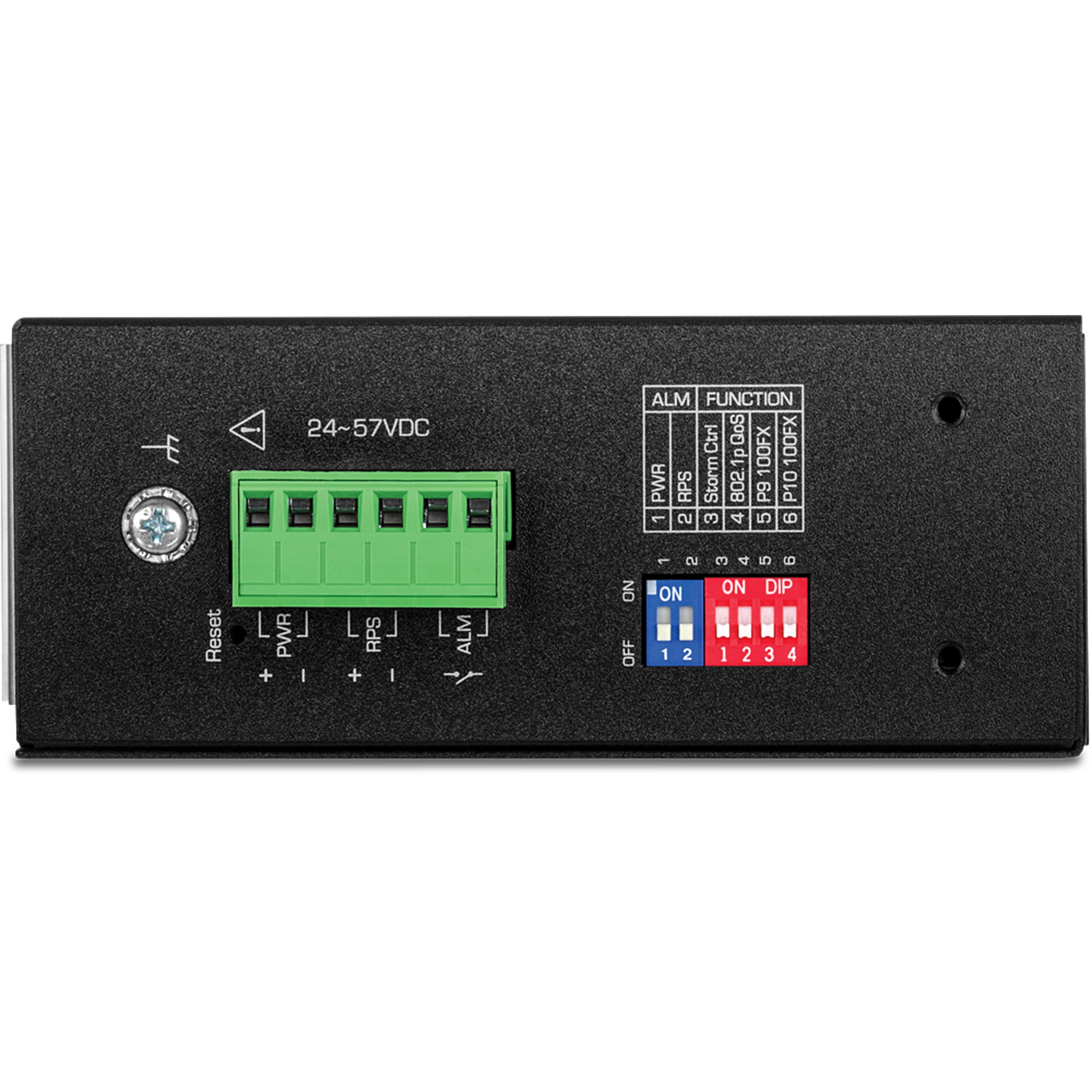

6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
DIP switches
LED indicators
Reset button

Data Transfer Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 20Gbps
RAM buffer: 128MB
MAC address table: 8K entries
Jumbo frames: 10KB
Forwarding mode: store and forward
Forwarding rate: 14.88Mpps (64-byte packet size)

Management

HTTP web-based GUI
CLI: Telnet / SSHv2
SNMP v1, v2c, v3
SNMP trap (up to 5 receivers)
RMON groups 1/2/3/9
Device configuration backup & restore, upgrade firmware, reboot, and reset to default
Multiple administrative or read-only user accounts
Enable or disable power saving mode per port
Static MAC entries
LLDP (Link layer discovery protocol)
Netlite device map
ONVIF device discovery
SNTP
SMTP alert
Syslog
Port statistics/utilization
Traffic monitor
Port mirror: one to one, many to one
Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
Loopback detection
DHCP relay/option 82
ERPS (Ethernet Ring Protection Switching) G8032v2
SFP DDMI (Digital Diagnostic Monitoring Interface)

MIB

MIB II RFC 1213
Bridge MIB RFC 1493
RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

IEEE 802.1d STP (spanning tree protocol)
IEEE 802.1w RSTP (rapid spanning tree protocol)
BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth control per port
Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN
MAC-based VLAN
Port isolation
Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3
IGMP querier
IGMP fast leave
Up to 256 multicast groups
Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
DHCP snooping/screening
Trusted host/IP access list for management access
Port Security/MAC address learning restriction (Up to 100 entries per port)
Static/dynamic ARP inspection

ACL

Source/Destination MAC address
Source/Destination IP address
Source Interface
VLAN ID
EtherType
TCP/UDP port 1-65535

Special Features

Netlite device discovery and map display in GUI
Port security: MAC address learning restriction per port
DHCP relay/option 82 & DHCP server snooping/screening support
Wide operating temperature range
Dual redundant power inputs
Alarm relay triggered by power failure
Surge and ESD protection

Power

PWR (Primary) terminal input: 24 – 57V DC
RPS (Redundant) terminal input: 24 – 57V DC
Compatible power supply: TI-S12024 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately
Max. Consumption: 13W (no PoE load), 253W (full PoE load)

PoE

PoE budget: 240W@48V DC input, 124W@24V DC input
802.3at: Up to 30W per port
PoE Mode A: Pins 1, 2, 3, and 6 for power
PoE auto classification
PoE port priority/power scheduling/PD alive check
Over current/short circuit protection

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.5 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-26
Stranded wire (AWG): 12-26
Wire strip length: 10-11mm

Dip Switch

Pin	1	2	3	4	5	6	7	8	9
RS-232	DCD	RxD	TxD	DTR	GND	DSR	RTS	CTS	-
RS-422	TxD+ (A)	TxD- (B)	RxD- (B)	RxD+ (A)	GND	-	-	-	-
RS-485	-	-	Data- (B)	Data- (A)	GND	-	-	-	-

Alarm Relay Output

Relay output with current carrying capacity of 1A, 24V DC
Short circuit mode when one power source is connected
Open circuit mode when two power sources are connected

Enclosure

IP30 rated metal enclosure
Fanless passive cooling
DIN-Rail mount
Grounding point
ESD (Ethernet) Protection: 8KV DC
Surge (Power) Protection: 6KV DC

MTBF

562,234 hours @ 25° C
142,948 hours @ 75° C

Operating Temperature

-10° – 75° C (14° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)

Weight

930g (2.05 lbs.)

Certifications

CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

Warranty

90-day

PACKAGE CONTENTS

TI-PG102i-M
Quick Installation Guide
Removable terminal block
DIN rail mounting bracket
