48-Port Gigabit PoE+ Managed Layer 2 Switch with 4 shared SFP slots (Certified Refurbished)

RB-TL2-PG484 (Version v1.0R)

Command Line interface management supported
SNMP (v1, v2c, v3), 802.1X, RSTP, and MSTP support
Supports Port Trunking, Mirroring, IGMP, Static and Dynamic VLAN, and RMON
Private / Voice VLAN, QoS, and bandwidth controls
24 x Gigabit PoE+ ports
24 x Gigabit ports
4 x shared SFP slots and a console port
96 Gbps switching capacity
Smart fans reduce energy consumption

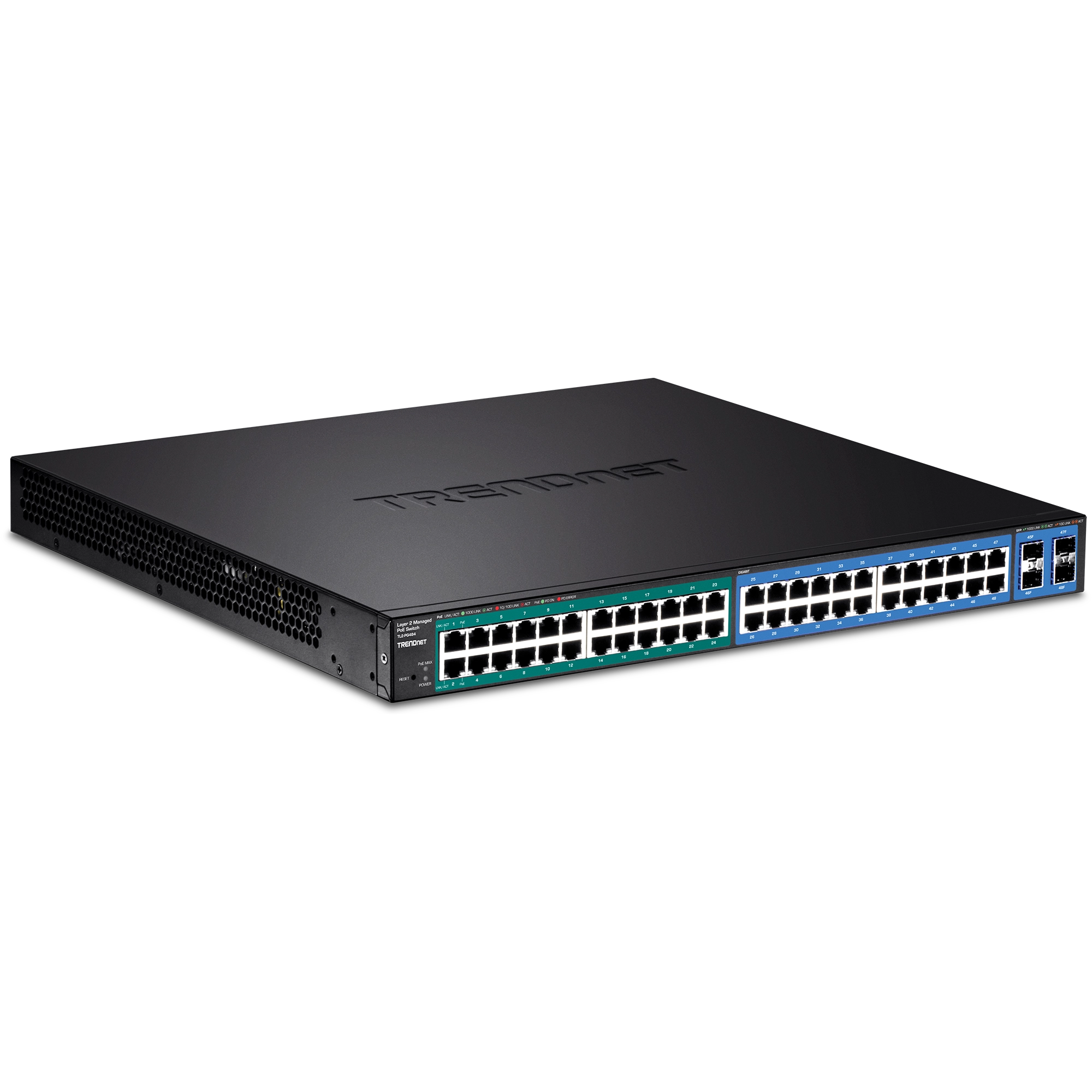

TRENDnet's 48-Port Gigabit PoE+ Managed Layer 2 Switch with 4 shared SFP slots, model TL2-PG484, has 24 x Gigabit PoE+ ports, 24 x Gigabit ports, and 4 x shared SFP slots, a console port, a PoE Power budget of 370 Watts, and an advanced Layer 2 management feature set. This IPv6 ready switch offers traffic management, troubleshooting, access control, and monitoring features.

Power over Ethernet

The 370 W PoE power budget supplies PoE+ (up to 30 W) to ports 1-24 along with PD (powered device) auto classification and over current/short circuit protection.

Smart Fans

Smart fans save energy and reduce operating noise by varying fan speed and usage based on real-time cooling needs.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.

Hardware Design

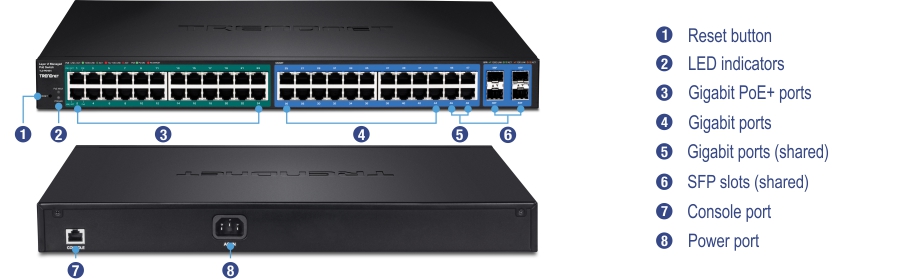

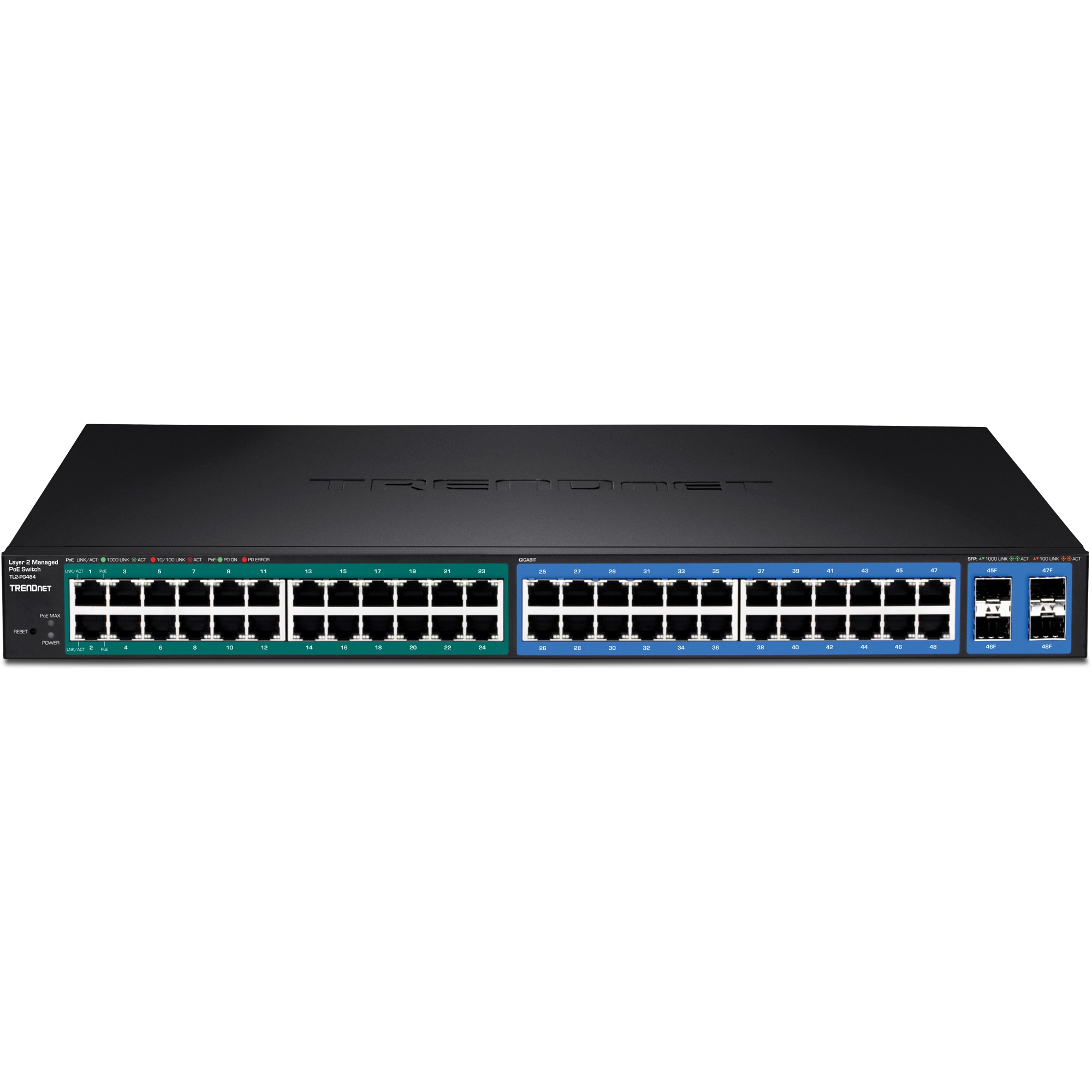

Provides 24 x Gigabit PoE+ ports, 24 x Gigabit ports, 4 x shared SFP slots, a console port, and includes rackmount brackets.

Smart Fan

Smart fan saves energy by varying fan speed and use based on cooling needs

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling.

Troubleshooting

Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.

Access Controls

Features such as ACL, SSL, MAC / port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS are compatible with layered network access controls.

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3af (15.4 Watts / port) IEEE 802.3at (30 Watts / port) IEEE 802.3az

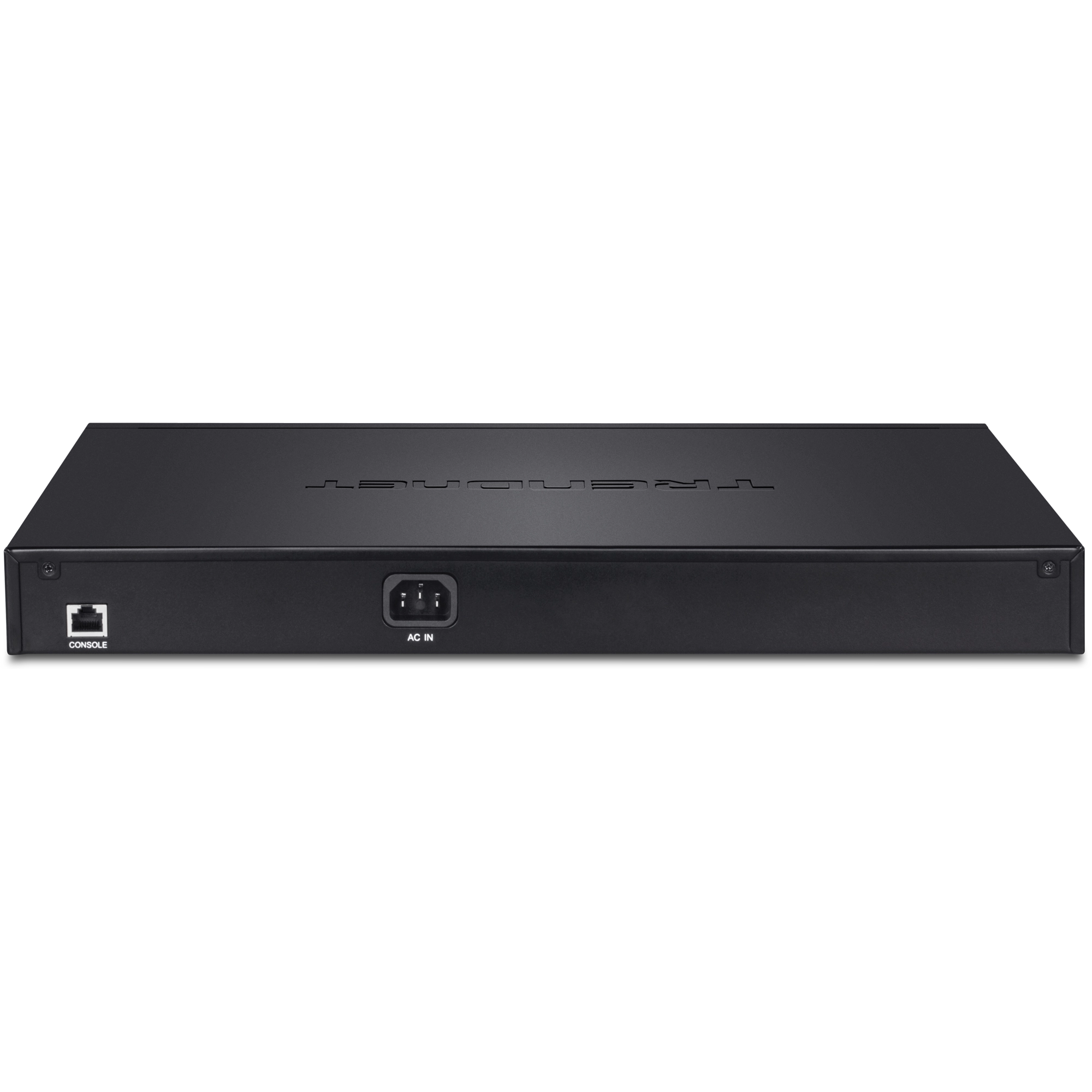

Device Interface	24 x Gigabit PoE+ ports 24 x Gigabit ports 4 x shared Gigabit SFP slots 1 x RJ-45 console port LED indicators Reset button
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 96 Gbps RAM buffer: 1 MB MAC Address Table: 16K entries Jumbo Frames: 10 KB HOL Blocking Prevention Forwarding rate: 71.4 Mpps (64-byte packet size)
Management	CLI (Console / Telnet / SSHv2) HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable / disable 802.3az Power Saving LLDP Virtual Cable Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 Bridge MIB Extension RFC 2674 SNMPv2 MIB RFC 1907 Ethernet Interface MIB RFC 1643 Ethernet –like MIB RFC 2863 Interface Group MIB RFC 2233 MIB Traps Convention RFC 1215 RMON MIB RFC 1757, RFC 2819 802.1p MIB RFC 2674 RADIUS Client Authentication MIB RFC 2618 LLDP-MIB IEEE 802.1ab Ping MIB RFC 2925, RFC 4560
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 Static Multicast Address Up to 256 multicast entries MLD Snooping v1, v2
Port Mirror	RX, TX, or Both One to one Many to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP / UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Management Utility	Windows^® 10, 8.1, 8, 7, Vista, XP, Windows^® 2003 / 2008 Server
Special Features	PoE+ ports
Power	Input: 100 – 240 V AC, 50/60 Hz, internal power supply Consumption: 425.6 W (max.)
PoE	PoE budget: 370 W 802.3at: Up to 30 W per port (ports 1-24) Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-) PD auto classification Over current / short circuit protection
Smart Fan / Acoustics	Quantity: 4 Noise Level: 56 dB(A) (max.)
MTBF	318,350 hours
Operating Temperature	0 – 45°C (32 – 113°F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 430 x 44.45 mm (17.3 x 16.93 x 1.75 in.) Rack mountable 1U height
Weight	6.61 kg (14.57 lbs.)
Certifications	CE FCC UL
Warranty	90-day limited

PACKAGE CONTENTS

TL2-PG484
Quick Installation Guide
CD-ROM (Utility & User's Guide)
Power cord (1.8 m / 6 ft.)
RJ-45 to RS-232 console cable (205.74 cm / 6.75 feet)
Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
