Products » Certified Refurbished » Surveillance » RB-TV-NVR408

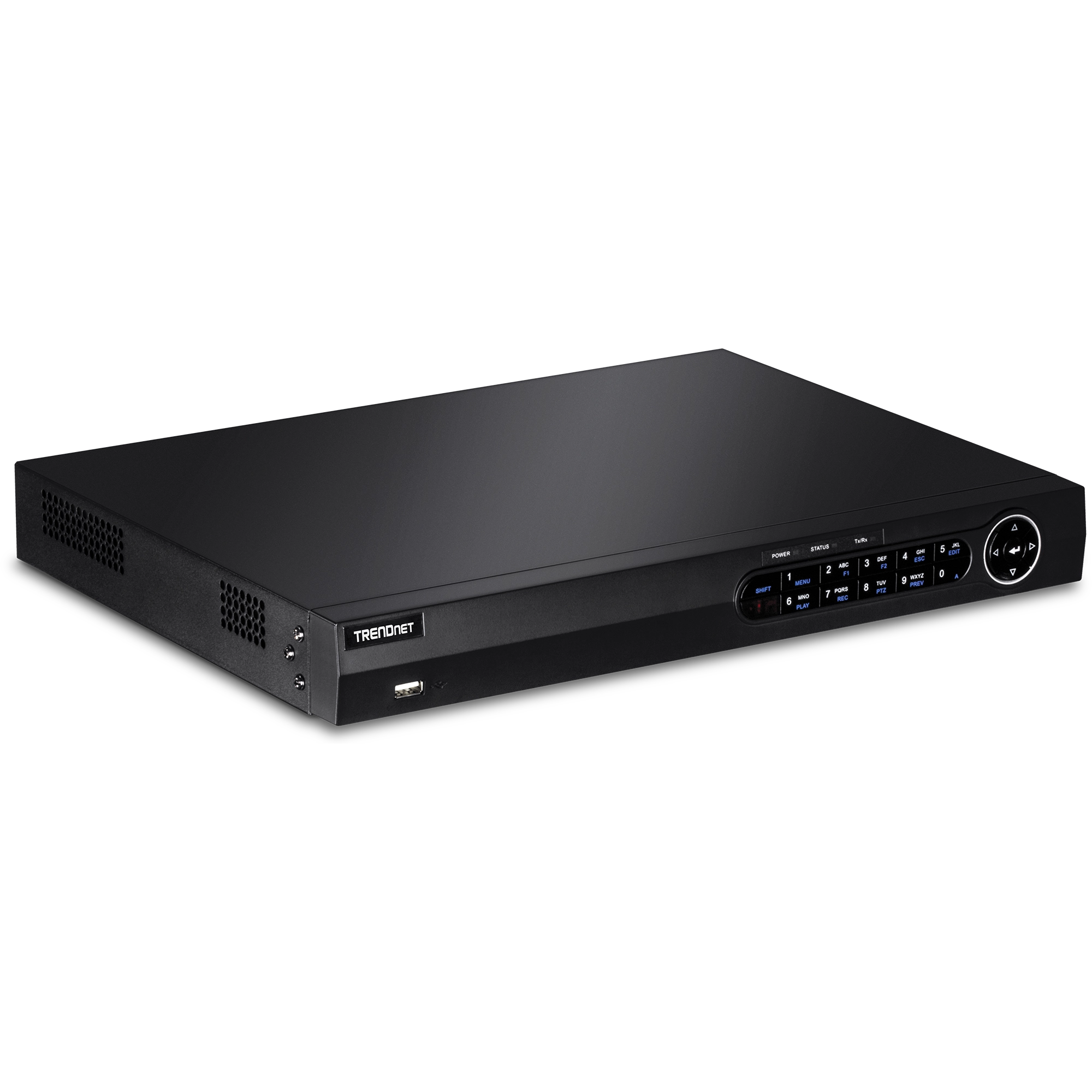

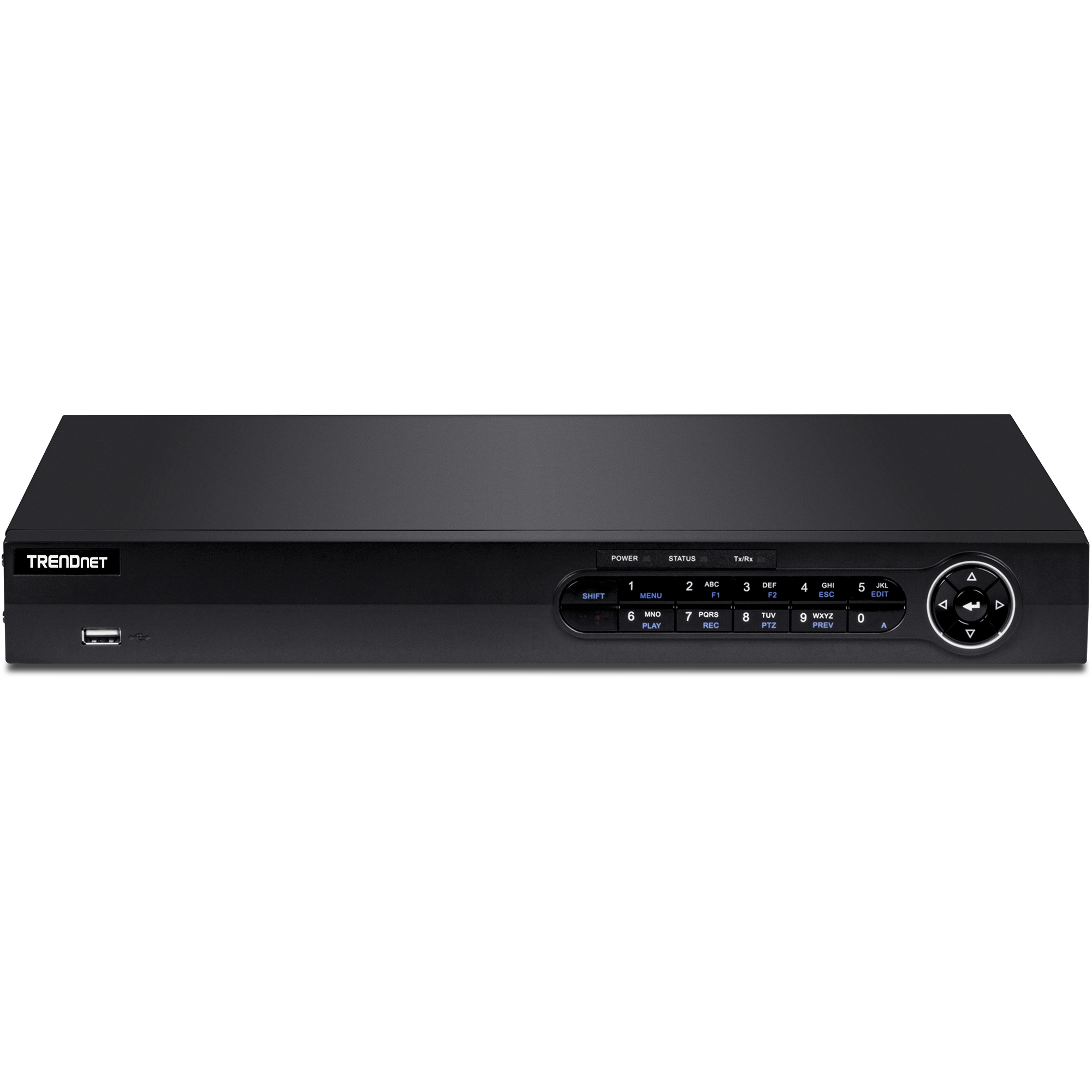

8-Channel H.265 1080p HD PoE+ NVR (Certified Refurbished)

RB-TV-NVR408 (Version v1.0R)

Standalone 8-channel HD PoE+ network video recorder
Supports one 4K camera channel
Supports H.264 and H.265 video encoding
Plug and play up to 8 TRENDnet PoE cameras*
Concurrent 1080p HD video recording for all channels
Two 3.5” SATA II bays support up to a 12TB of storage (6TB per bay, HDDs sold separately)
Over one month of continuous 1080p HD video recording **
Advanced video playback
Rackmount hardware included
PoE power budget: 80W
ONVIF compliant

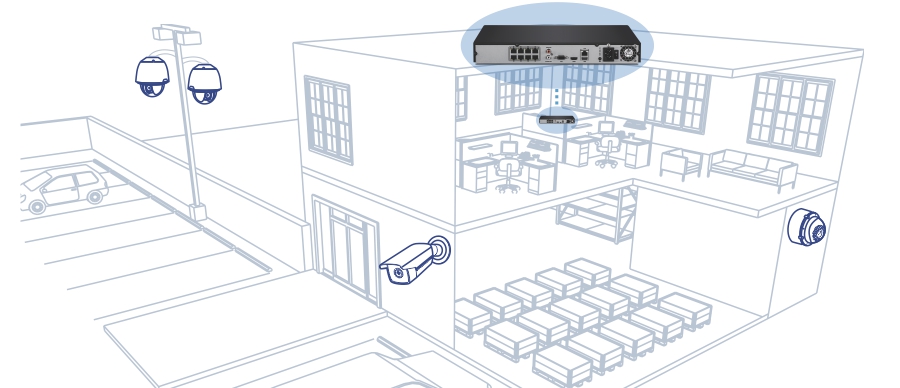

TRENDnet's standalone 8-channel H.265 PoE+ NVR, model TV-NVR408, offers a comprehensive rack mountable camera management solution. The NVR networks and powers up to eight PoE cameras*. Install up to 12TB of storage (hard drives not included) to record over one month of continuous video from eight 1080p HD PoE cameras**. The TV-NVR408 features advanced video playback and comes with a free iOS^®/Android^™ app.

Standalone HD NVR

This standalone H.265 HD NVR supports a total storage capacity of up to 12TB and powers up to eight PoE network cameras (HDDs, cameras, and display not included).

Simple Setup

The NVR auto-recognizes and powers TRENDnet PoE cameras* – simply connect compatible TRENDnet PoE cameras and start recording surveillance video.

4K Support

Connect a 4K display to the HDMI interface to view one 8MP 4K UHD camera channel.

Hardware

PoE+ Ports

Plug and play TRENDnet PoE network cameras* to the eight PoE+ ports with a total power budget of 80W

Storage

Two 3.5” SATA II bays support up to 12TB of total storage (6TB per bay, HDDs not included)

Network Uplink Port

Gigabit Ethernet network uplink port

Display Interface

HDMI up to 4K resolution and VGA up to 1080p resolution

Audio Ports

Audio in and out ports

USB Ports

One USB port for the included mouse and one for video export

Mouse Included

Supports mouse and keyboard (keyboard not included)

Rackmount

Rackmount hardware included

Management

Mobile App

View live video on a mobile device with the free iOS^®and Android^™apps

Remote Access

Access the NVR over the internet

Camera Setup

Auto-recognizes TRENDnet cameras* and works with ONVIF PoE network cameras

Live View

Multiple camera viewing options with auto-scan function

Camera Management

For each camera, manage on-screen display (OSD), image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss

Video Recording

Max. resolution for all cameras concurrently: Full HD 1080p video at 30 fps in H.265 compression
Max. for a single camera: 8MP 4K UHD resolution in H.265 compression

Recording Time

(A)Over one month of recording per camera with 12TB of storage (HDDs not included) and 8 x 1080p cameras at 30 fps (H.265 compression, medium VBR)
(B)Over two months of recording per camera with 12TB of storage (HDDs not included) and 8 x 720p cameras at 30 fps (H.265 compression, medium VBR)

Scheduled Recording

Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full

Advanced Playback

Advanced archived video playback with a quick reference timeline and calendar

Video Export

Export and archive recorded video

Dynamic DNS Support

Support for dyn.com and NO-IP.com

IPv6

IPv6 support

ONVIF

ONVIF compliant

Video Input	H.265 / H.264 video formats Up to 8 cameras
Video Output	HDMI up to 4K 3840 x 2160 at 30Hz VGA up to 1920 x 1080 at 60Hz
Audio	Line-in with RCA connector (2.0Vp-p, 1k?) Line-out with RCA connector
Recording	Up to 8MP resolution 8-channel simultaneous recording up to 1080p 30fps 2 SATA interface for HDD or SSD up to 6TB storage each
Playback	H.265 / H.264 / MPEG4 Playback resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF 1 channel at 8MP / 4 channels at 1080p
Hardware Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	1 x Gigabit network port 8 x 10/100 PoE+ camera network ports 2 x USB 2.0 HDMI port VGA port Analog audio in / out port Power port Power switch LED indicators (Power, Storage, and Network)
PoE Ports	PoE 802.3at (max. 30W per port) Total PoE power budget: 80W Plug and play with TRENDnet PoE cameras*
Network Protocol	IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2 DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2 HTTP, UPnP, RTSP, RTP, RTCP
Operating Temperature	-10° - 55° C (14° - 131° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC UL 60950
Dimensions	380 x 310 x 45mm (15 x 12 x 1.8 in.)
Weight	3.3kg (7.3 lb.)
Power	Input: 100 – 240 V AC 50/60 Hz Power consumption: Main board: 10W max. Fully loaded with HDD and PoE: 180W max.
Management Interface	Live view: Simultaneous 3x3, 1+7, 1+5, 2x2 views or auto switch single view Scheduled recording: continuous and motion detection with optional holiday exceptions. Supporting camera configuration through NVR*: On Screen Display, display settings: brightness, contrast, saturation, PTZ, motion detection setting, video tamper, and video loss. Holiday scheduling for custom recording schedules during observed holidays Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag Video export: tag, cut, and export video clips USB external storage: firmware upgrade, import/export configuration file and logs, export recorded video files, search and playback videos directly from external storage Local live view settings: define screen layout and channel viewing sequence Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, recording exceptions, and PoE power overload. Supported dynamic DNS services: Dyn.com and NO-IP.com Management Setting: maximum 32 user accounts Traffic chart and statistics for network management
TRENDnet IP View App	Free iOS^® and Android^™ app View your NVR video on your mobile device Take snapshots Zoom
Warranty	90-day

PACKAGE CONTENTS

TV-NVR408
Power cord (1.4 m/5 ft.)
Network cable (1.4 m / 5 ft.)
HDMI cable (1.8 m / 6 ft.)
Optical mouse
SATA data cables / power cables
Quick Installation Guide

*See list of compatible cameras
**Over one month of continuous recording 8 cameras in 1080p resolution at 30 fps (H.265 compression, medium VBR) with 12TB of storage (HDDs not included)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
