TRENDnet Store

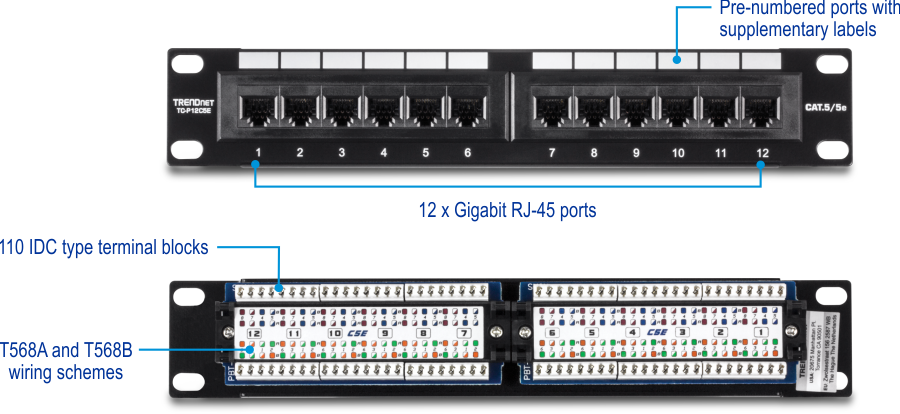

12-Port Cat. 5e Unshielded Patch Panel (Certified Refurbished)

RB-TC-P12C5E (Version v2.0R)

  • 12 x Gigabit RJ-45 ports
  • 10 inch wide patch panel is well suited for home and SMB applications
  • Designed for Category 5e cabling
  • Includes cable management holders, tie, and port labels
  • Use with TRENDnet TC-PDT Punch Down Tool
Price: $13.99
Quantity:
Wishlist

The 12-Port Cat. 5e Unshielded Patch Panel, provides a 100 MHz connection to 12 x Gigabit RJ-45 Ethernet ports. This 10 inch wide patch panel is well suited for home and SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections. Use with TRENDnet's Punch Down Tool with 110 and Krone Blade, model TC-PDT, and RJ-11/RJ-45 crimp/cut/strip tool, model TC-CT68.

  • 12 x 1000Base-T Gigabit RJ-45 ports
  • Supports a 100 MHz connection
  • 10 inch wide patch panel
  • Cat. 5e color coded labeling for T568A and T568B wiring schemes
  • IDC terminal blocks are compatible with 110 and Krone style connectors
  • Labels above each port
  • Cat. 5e transmission performance compliant with ANSI, TIA, and EIA 568 B.2 standards
  • Nylon cable ties and holders included
  • 90-day warranty
Hardware
Wiring standards
  • T568A & T568B
Network Media
  • Cat. 5e
Mounting Point Retention Strength
  • 7.7 kg (17 lbs.)
Dimension (L x W x H)
  • 254 x 44 x 30 mm (10 x 1.7 x 1.2 in.)
Weight
  • 230 g (8 oz)
Temperature
  • -10 - 60°C (14 - 140°F)

PACKAGE CONTENTS
  • TC-P12C5E
  • Quick Installation Guide
  • Cable holders and ties

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
