PoE+ Injector (Certified Refurbished)

RB-TPE-105I (Version v1.0R)

  • Full Duplex Ethernet speeds
  • Converts a non-PoE Ethernet port to a PoE+ or PoE port
  • Integrated power supply
  • Network distances of up to 100 meters (328 feet)
  • Save on installation and equipment costs
Price: $11.29
Quantity:
Wishlist

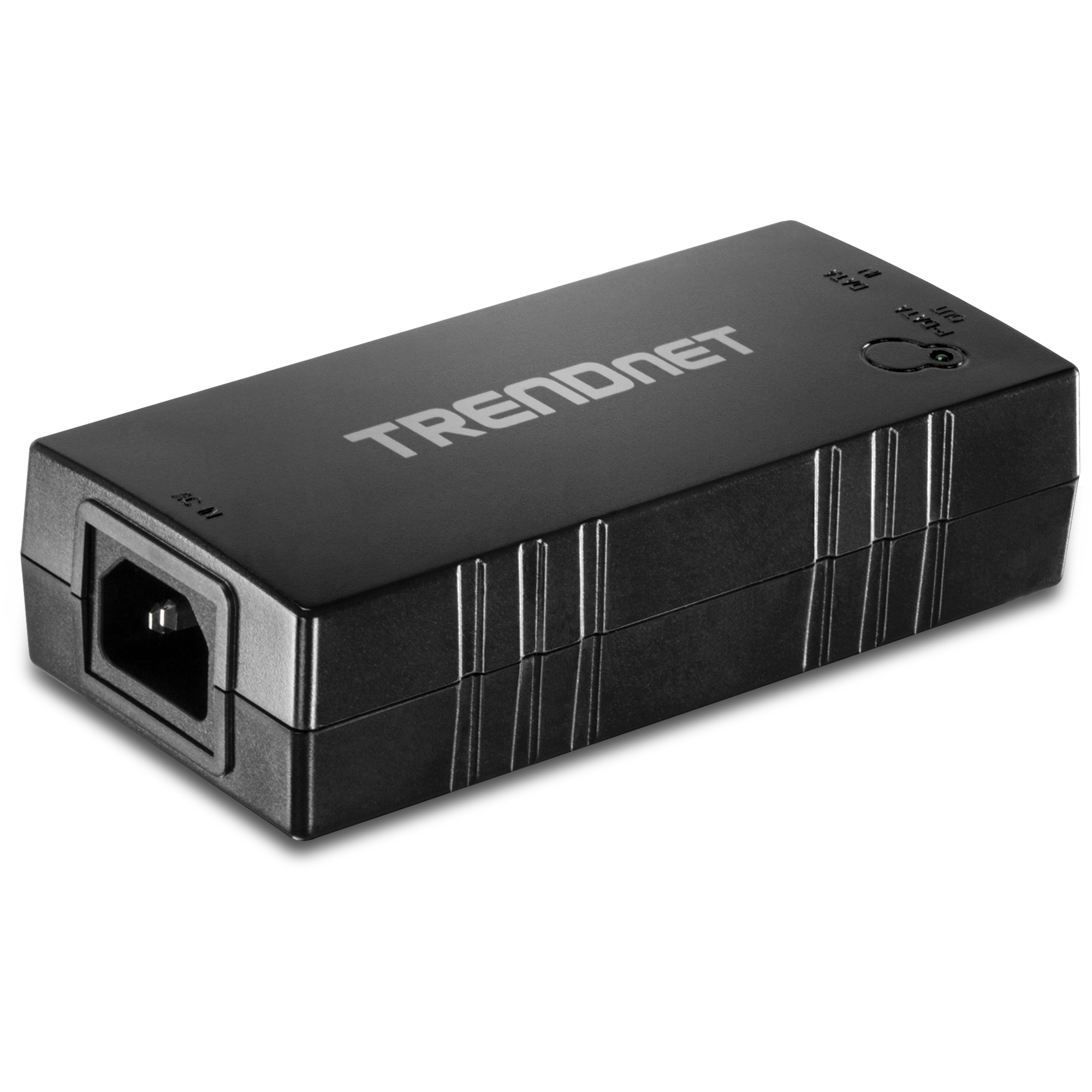

The PoE+ Injector, model TPE-105I, combines electrical power with a network connection to produce a Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.

Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.

  • IEEE 802.3at PoE+ (30 Watts) compliant
  • Backwards compatible with IEEE 802.3af PoE (15 Watt) devices
  • Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device
  • Integrated power supply
  • Network devices for distances of up to 100 meters (328 ft.)
  • 1 x 10/100 Mbps Auto-MDIX Data In port
  • 1 x 10/100 Mbps PoE+ Auto-MDIX Data Out port

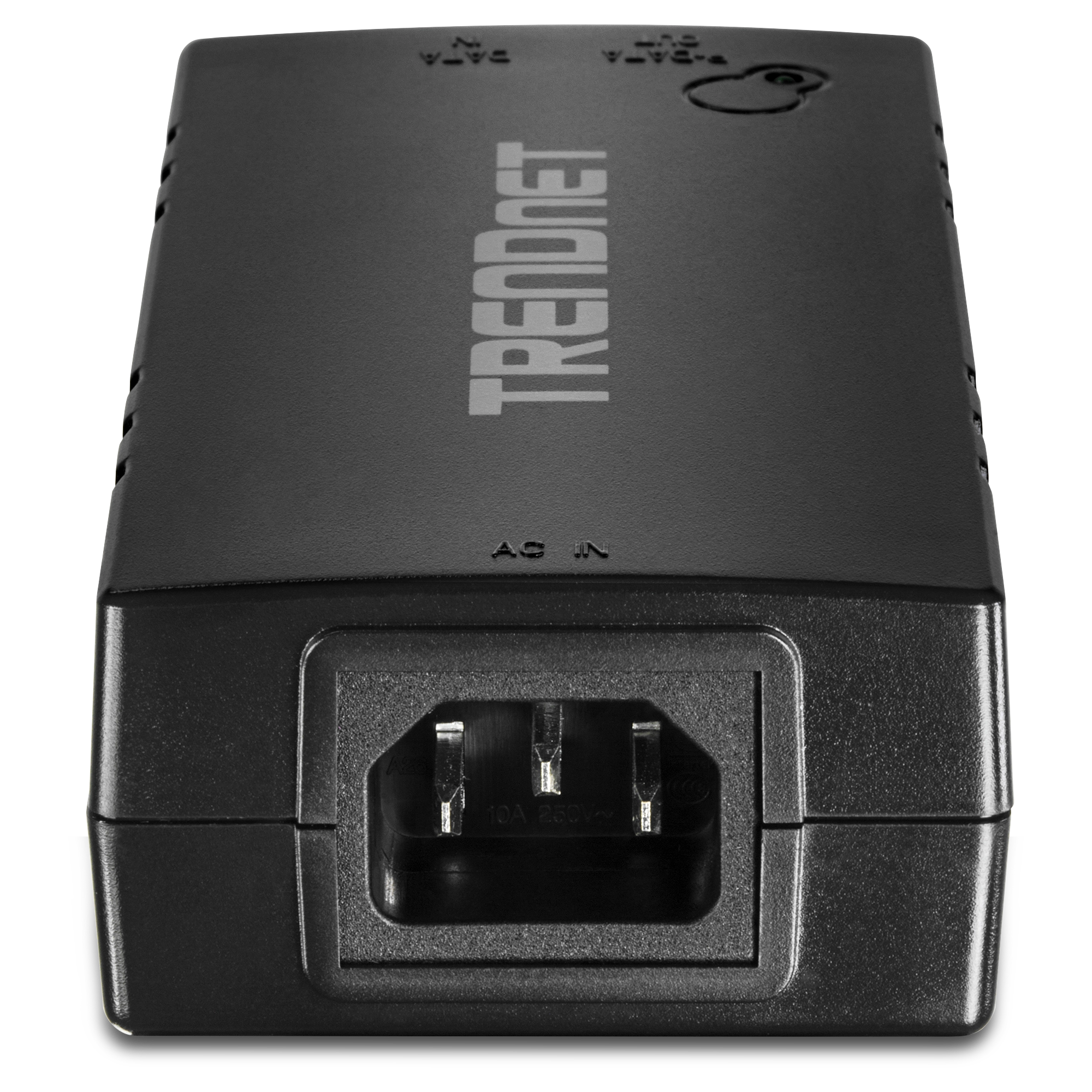

  • Power port with LED indicator
  • Easily install a PoE+ or POE device where a power outlet is not available
  • Reduce installation and network equipment costs
  • 90-day limited warranty
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at Power over Ethernet Plus (PoE+)
Network Media
  • 10 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters
  • 100 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters

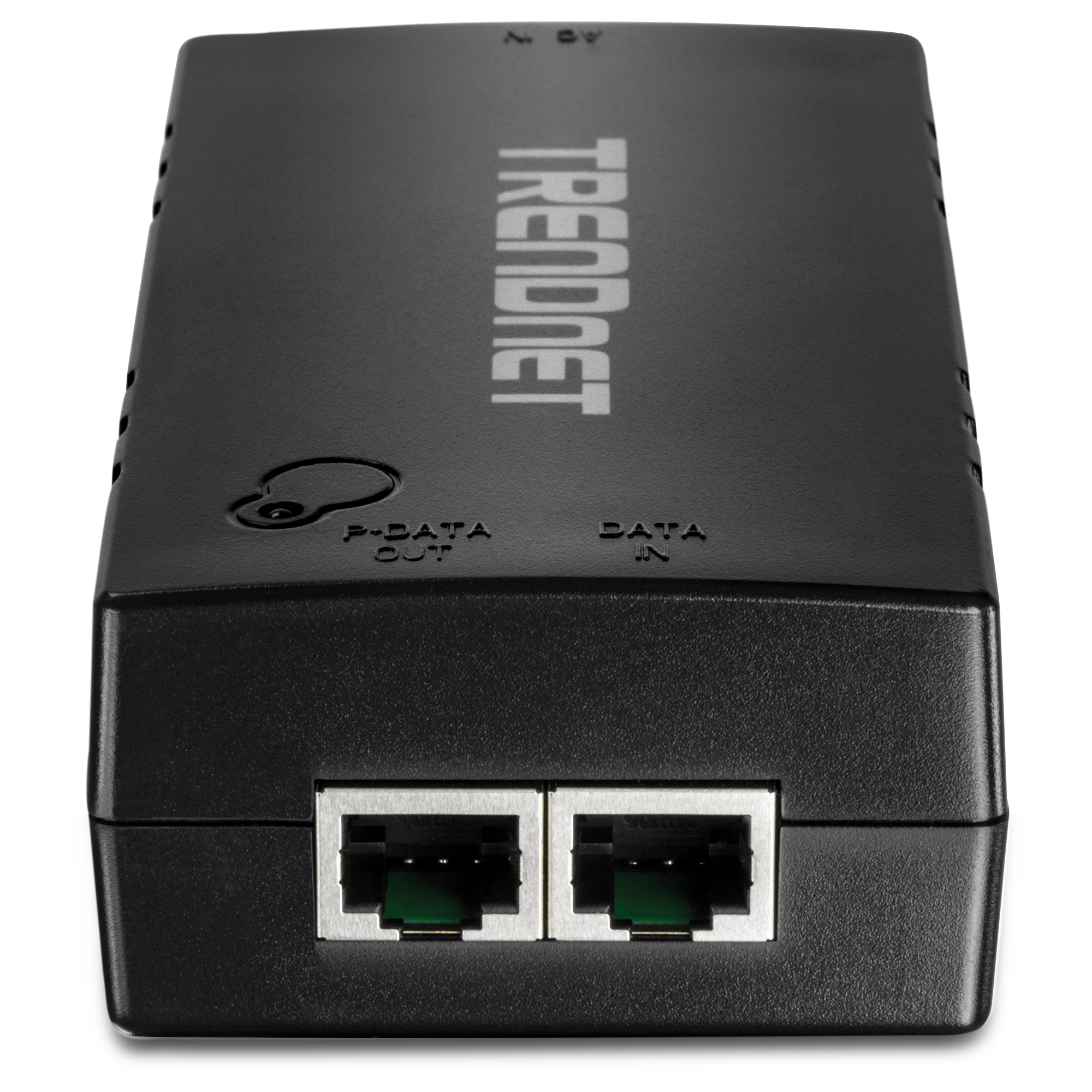

Ports
  • 1 x 10/100 Mbps DATA-IN (Data only)
  • 1 x 10/100 Mbps PWR+DATA OUT (Power + Data)
PoE Delivery
  • Pair 1: Pin 1, 2
  • Pair 2: Pin 3, 6
Power
  • Input: 100~240V, 50~60Hz, 0.65A max.
Power Consumption
  • Max 30 Watts
Dimensions (W x D x H)
  • 133 x 63 x 35 mm (5.2 x 2.5 x 1.4 in.)
Weight
  • 162 g (5.7 oz.)
Temperature
  • Operation: -10°C~45°C (14°F~ 113°F)
  • Storage: -20°C~60°C (-4°F~140°F)
Humidity
  • Max 95% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TPE-105I
  • Quick Installation Guide
  • Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
