Outdoor PoE Megapixel HD Day/Night Internet Camera

TV-IP322P (Version v1.0R)

Narrow field of vision for long distance monitoring
Night vision up to 20 meters (66 ft.)
Outdoor installation ready with an IP66 weather proof rating
H.264 Megapixel resolution at up to 1280 x 1024
Save installation cost with Power over Ethernet (PoE)
Program motion detection recording and email alerts with complimentary software

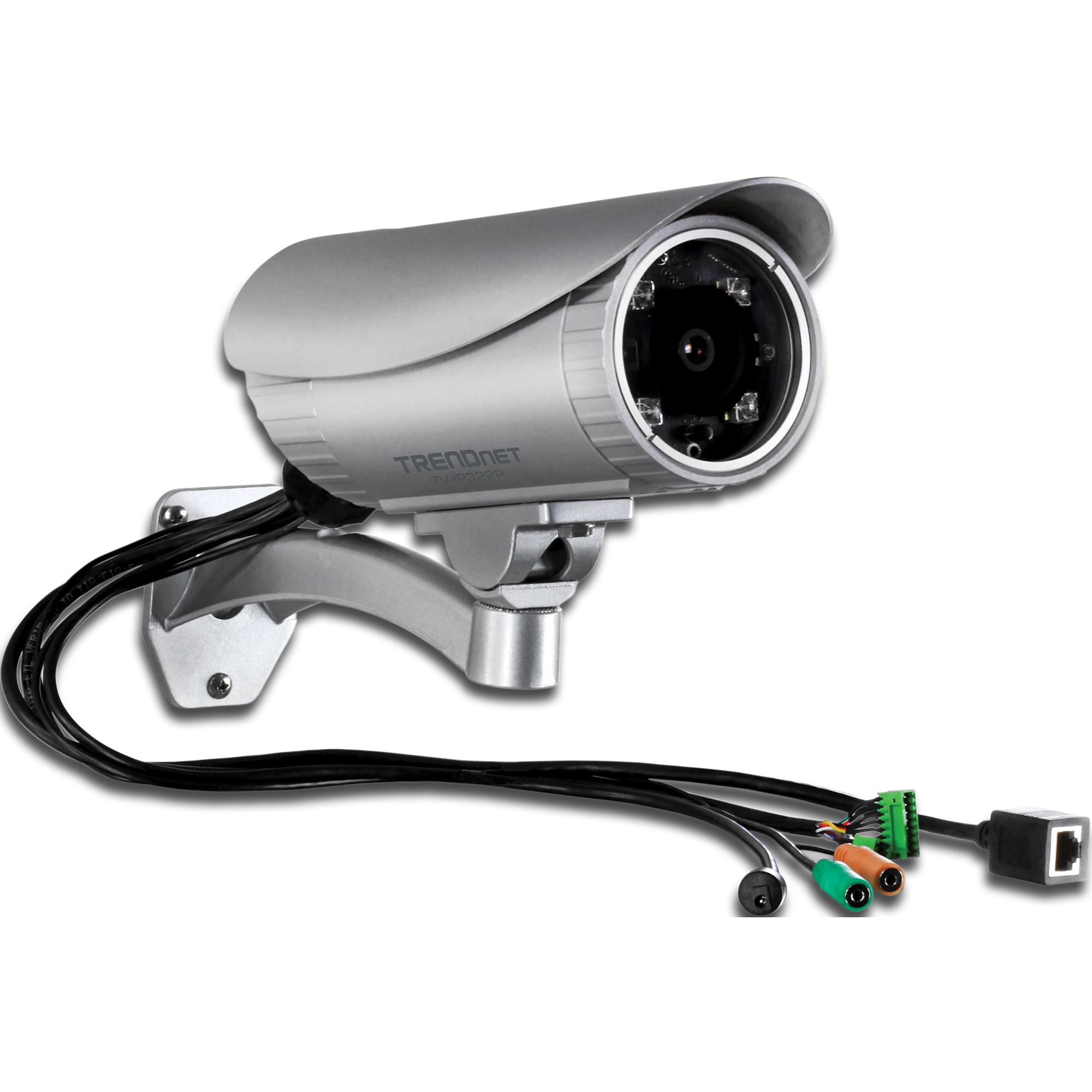

The Outdoor PoE Megapixel HD Day/Night Internet Camera, model TV-IP322P, provides powerful Megapixel night vision in complete darkness for up to 20 meters (66 feet). This camera is outdoor installation ready with an IP66 rated weather proof and vandal proof outdoor enclosure. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology.

Record 1280 x 1024 pixel (SXGA) H.264 video at up to 15 frames per second (fps) or 640 x 480 pixel (VGA) resolution at up to 30 fps. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include motion detection recording, email alerts, scheduled recording sessions, H.264 / MPEG-4 image compression, 3GPP support, Samba client support, Input / Output ports to network to alarm systems, date-and-time and other text overlays, mask overlays to conceal sensitive areas, and digital zoom. A wall / ceiling mounting kit is included and a sun visor shields the camera from direct sunlight.

Ready for outdoor installation with an IP66 rated weather proof and vandal proof outdoor housing
IEEE 802.3af PoE compliant device
1 x 10/100Mbps PoE Auto-MDIX RJ-45 port
Optional power port for non-PoE installations
SD/SDHC card slot *
Input/Output ports (GPIO) to network to alarm systems
High quality H.264, MPEG-4, and MJPEG video recording
Resolution up to 1280 x 1024 pixels at up to 15 frames per second (fps) and 640 x 480 pixels at up to 30 fps
Stream Network camera video to a 3GPP compatible wireless device
Powerful infrared bulbs enable recording in complete darkness for distances up to 20 meters (66 feet)
Two way audio is enabled by installing optional third party microphone and speakers
Dynamic DNS support
Images controls: brightness, contrast, saturation and mirror (horizontally/vertical)
Time, date, and other text overlays
Mask overlays conceal sensitive areas
Supports TCP/IP networking, SMTP Email, HTTP, and other Internet protocols
Record streaming video to your computer or Network Storage device with Samba support
Three motion detection windows with just-in-time snapshot, motion detection triggered email alerts, and image upload to FTP
Send instant messages to Jabber client via Jabber Server
Supports Quality of Service (QoS) with Differentiated Services Code Point (DSCP)
Quick Universal Plug and Play (UPnP) installation
Complimentary TRENDnetVIEW software: manage up to 32 cameras**
3-year limited warranty

* SD card sold separately** Monitoring multiple cameras may require a high performance CPU

Camera
General	Sensor: 1/3" Megapixels color CMOS sensor Resolution: 1280 x 1024 pixels Board Lens Focal Length: 12mm Aperture (F/No): F1.8 Minimum illumination: 0 Lux (Night vision) Viewing Angle: Diagonal: 32 degree Horizontal: 27 degree Vertical: 18 degree
Image & Video	Compression: H.264, MPEG-4, and MJPEG Exposure/white balance/gain control: automatic Built-in ICR
Audio	External microphone in Sensitivity: -48dB +/- 3dB Frequency:50~16000Hz Format: PCM/AMR
Pan/Tilt/Zoom	Protocol: Pelco D, Pelco P
32 presets	Auto Patrol
GPIO	Ground, GPIO in/out, RS485, 12V DC, 24V AC
SD Slot	Supports SD/SDHC (up to 32GB)
Hardware
Network	IEEE 802.3u 10/100Mbps Fast Ethernet IEEE 802.3af PoE
LED	Power, Link
IR Wavelength	850nm
Reset Button	Reboot or restore to factory default
Power Over Ethernet	PoE Power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power-
Power Consumption	9.5 Watts max.
Power	12 V DC, 1.5 A external power adapter (for non-PoE installations)
Dimension	235 x 110 x 89 mm (9.3 x 4.3 x 3.5 in.)
Weight	1.5 kg (3.2 lb)
Operating Temperature	Temperature: -20°C ~ 60°C (-4°F ~ 140°F) Wind Velocity: 130km/hr Humidity: Max. 90% (non-condensing)
Certifications	CE, FCC, IP66
Requirement
Management Interface	Internet Explorer 6.0 or above
To Run TRENDnetVIEW	Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
TRENDnetVIEW	Channel: supports up to 32 cameras Record/Playback/Motion Detection
Network Protocols	TCP/IP, IPv4, IPv6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, and RTCP
Management
Remote	Remote management supported
Backup/Restore	Save/retrieve configuration files
Settings
Image	Brightness, saturation, sharpness, and mirror (horizontal/vertical)
Video	Encoding type: H.264, MPEG-4, MJPEG Compression: 5 levels Resolution/Frame Rate: SXGA (1280 x 1024) up to 15fps VGA (640x480) up to 30fps QVGA (320x240) up to 30fps QQVGA (160x120) up to 30fps Multi-Stream H.264: SXGA, VGA, QVGA, QQVGA MPEG4: VGA, QVGA, QQVGA MJPEG: SXGA, VGA, QVGA, QQVGA
Recording	Recording type: continuous, schedule, or motion detection with software
Event Management	Event trigger: motion, GPIO, schedule Store video file to SD card Send Instant message to Jabber client via Jabber server
QoS	DSCP
Port Settings	HTTP port: 80 (default)
Digital Zoom	3x
Dynamic DNS	Yes
Time	Synchronize with NTP server or set time/date manually
SMTP	SMTP mail supported up to 2 destination accounts
System Log	100 entries (max.)

PACKAGE CONTENTS

TV-IP322P
Multi-language Quick Installation Guide
CD-ROM (Utility & User's Guide)
Power adapter (12 V DC, 1.5 A)
Network Cable (1.5 m/ 5 ft.)
GPIO Adapter
Spiral Cable Wrap
Camera Bracket

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
