6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 – 56 V

TI-PG62B (Version v1.1R)

  • 4 x Gigabit PoE+ ports
  • 2 x SFP slots (100/1000Mbs)
  • PoE power budget 60W@12V – 120W@24-55V
  • 12Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Dual 12 – 55V DC power inputs for redundancy
  • Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S12048, TI-S24048, TI-M6024)
  • NDAA / TAA compliant
  • Lifetime Warranty*
NDAA/TAA Compliant

Price: $384.99
Quantity:
Wishlist

TRENDnet’s 6-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports, a 120W PoE power budget, and two dedicated SFP slots. Users are able to connect four PoE+ devices and two SFP modules to this industrial variable voltage PoE+ switch with a 12Gbps switching capacity for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 12 – 55V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.

TI-PG62B 6-Port Industrial Gigabit PoE+ DIN-Rail Switch with three devices connected (two cameras and a access point) using 120W Watt PoE power budget.

PoE Power

A 120W PoE+ power budget on the industrial variable voltage PoE+ switch supplies up to four Power over Ethernet devices with PoE+ power.

TI-PG62B 6-Port Industrial Gigabit PoE+ DIN-Rail Switch with two Power source (v1, v2) connected highlighting its power redundancy feature.

Fault Tolerance

The industrial variable voltage PoE switch features dual 12V – 55V DC power inputs for redundancy with overload current protection.

four icons, each representing different features or protections, Device with Vibration Lines: indicates vibration or shock resistance, Thermometer: Signifies temperature resistance. Lightning Bolt: Represents electrical resistance or protection against electrical surges and Text “IP30”: Indicates a specific level of ingress protection (IP) rating against dust and water.

Industrial Design

Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power Budget

Supplies up to 30W of PoE power per port on this industrial variable voltage switch with a 120W PoE power budget

Network Ports

4 x Gigabit PoE+ ports, 2 x SFP Slots (100/1000Mbps)

DIN-Rail/Wall Mounts

IP30 rated metal enclosure, with DIN-Rail and wall mount hardware included

Switching Capacity

12Gbps switching capacity

Redundant Power

Dual 12V – 55V DC power inputs with overload current protection (compatible power supplies sold separately: TI-S12024)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance on the variable voltage switch

Wide Operating Temperature

Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point on the industrial variable voltage switch protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at

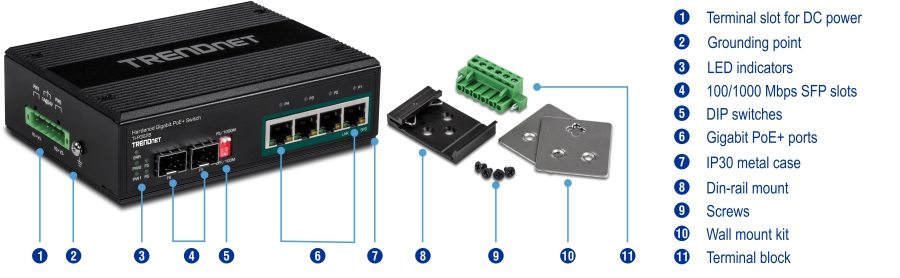

Device Interface
  • 4 x Gigabit PoE+ ports
  • 2 x 100/1000Mbps SFP slots
  • 6-pin removable terminal block
  • LED indicators
  • DIP switch
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 128 KB
  • Switching Fabric: 12 Gbps
  • MAC Address Table: 1 K entries
  • Jumbo Frame: 9 KB
  • Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Supports 12/24/48 power inputs
  • Voltage booster boost up to 55V DC
  • Dual redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 6KV support
DC Power
  • Input: 12/24/48 V DC
  • Output: up to 55 V DC
  • Compatible power supply: TI-S15052, TI-S24052, TI-S12024, TI-S12048, TI-S24048, TI-M6024 (sold separately)
  • Consumption: Max. 5.76 Watts (no PoE)
PoE
  • PoE budget: 120W @ 24VDC/48VDC/56VDC
  • PoE budget: 60W @ 12VDC
Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
DIP Switch
  • 1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
  • 2: OFF (SFP 1000M, default), ON (SFP 100M)
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Open circuit mode when one power source is connected
  • Short circuit mode when two power sources are connected
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 6 KV ESD protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 143 x 105 x 45 mm (5.6 x 4.1 x 1.8 in.)
Weight
  • 700 g (1.6 lb)
Certifications
  • CE
  • FCC
  • Shock (EN 60068-2-27)
  • Freefall (EN 60068-2-32)
  • Vibration (EN 60068-2-6)
PACKAGE CONTENTS
  • TI-PG62B
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
